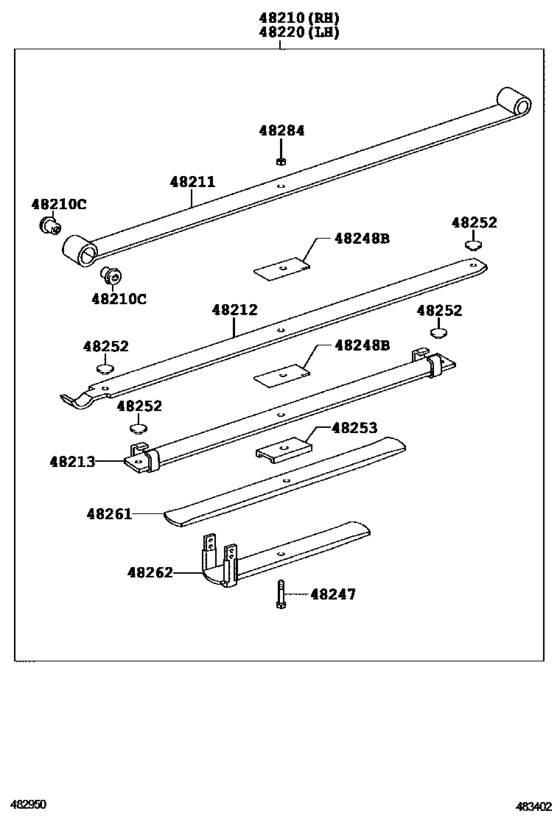

Rear Spring & Shock Absorber ([07.2011 - ] 5-LEAF,TYPE A (1107- )) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2011 - 2015
- Sales region
- Europe
- Frame
- KUN35
- grade
- DLX
- ENGINE
- 2KDFTV
- DESTINATION
- EUR
- DECK
- SD
- CAB
- DCB
- Model
- HILUX
- From
- 08.2011
- To
- 12.2015
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux
- Driver's Position
- LHD
- Fuel Induction
- HDCR
- Building Condition
- IV3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48210
|
48210
48210-0K320
Spring Assy, Rear Rh
[07.2011 - 01.2014] KUN2#,35..DCB,THDCB 5-LEAF,TYPE A:REFER ILLUST. |
48210-0K320 |
— | ||
| replacement | |||||
|
48210
|
48210
48210-0K321
Spring Assy, Rear Rh
[07.2011 - 01.2014] KUN2#,35..DCB,THDCB 5-LEAF,TYPE A:REFER ILLUST. |
48210-0K321 |
— | ||
|
48210
|
48210
48210-0K321
Spring Assy, Rear Rh
[02.2014 - 12.2015] KUN2#,35..DCB,THDCB 5-LEAF,TYPE A:REFER ILLUST. |
48210-0K321 |
— | ||
|
48210C
|
48210C
90389-T0009 Bush(For Rear Spring Leaf)[07.2011 -] KUN2#,35 |
90389-T0009 |
from US $10.93 |
||
|
48211
|
48211
48211-0K320
Leaf, Rear Spring, No.1
[07.2011 - 02.2014] KUN2#,35..DCB,THDCB TYPE A:REFER ILLUST. |
48211-0K320 |
— | ||
|
48211
|
48211
48211-0K321
Leaf, Rear Spring, No.1
[02.2014 - 12.2015] KUN2#,35..DCB,THDCB TYPE A:REFER ILLUST. |
48211-0K321 |
— | ||
|
48212
|
48212
48212-0K320
Leaf, Rear Spring, No.2
[07.2011 - 02.2014] KUN2#,35..DCB,THDCB TYPE A:REFER ILLUST. |
48212-0K320 |
— | ||
|
48212
|
48212
48212-0K321
Leaf, Rear Spring, No.2
[02.2014 - 12.2015] KUN2#,35..DCB,THDCB TYPE A:REFER ILLUST. |
48212-0K321 |
— | ||
|
48213
|
48213
48213-0K320
Leaf, Rear Spring, No.3
[07.2011 - 02.2014] KUN2#,35..DCB,THDCB TYPE A:REFER ILLUST. |
48213-0K320 |
— | ||
|
48213
|
48213
48213-0K321
Leaf, Rear Spring, No.3
[02.2014 - 12.2015] KUN2#,35..DCB,THDCB TYPE A:REFER ILLUST. |
48213-0K321 |
— | ||
|
48220
|
48220
48210-0K320
Spring Assy, Rear Rh
[07.2011 - 01.2014] KUN2#,35..DCB,THDCB 5-LEAF,TYPE A:REFER ILLUST. |
48210-0K320 |
— | ||
| replacement | |||||
|
48220
|
48220
48210-0K321
Spring Assy, Rear Rh
[07.2011 - 01.2014] KUN2#,35..DCB,THDCB 5-LEAF,TYPE A:REFER ILLUST. |
48210-0K321 |
— | ||
|
48220
|
48220
48210-0K321
Spring Assy, Rear Rh
[02.2014 - 12.2015] KUN2#,35..DCB,THDCB 5-LEAF,TYPE A:REFER ILLUST. |
48210-0K321 |
— | ||
|
48247
|
48247
48247-0K310
Bolt, Rear Spring, Center
[07.2011 - 12.2015] KUN2#,35..DCB,THDCB TYPE A:REFER ILLUST. |
48247-0K310 |
— | ||
|
48248B
|
48248B
48248-0K020 Spacer, Rear Spring, No.3REAR SPRING, NO.3 [07.2011 - 12.2015] KUN2#,35 TYPE A:REFER ILLUST. |
48248-0K020 |
from US $1.76 |
||
|
48252
|
48252
48252-0K010 Silencer, Rear Spring[07.2011 - 12.2015] KUN2#,35 TYPE A:REFER ILLUST. |
48252-0K010 |
from US $1.48 |
||
|
48253
|
48253
48253-0K010 Spacer, Rear Spring, No.1REAR SPRING, NO.1 [07.2011 - 12.2015] KUN2#,35 TYPE A:REFER ILLUST. |
48253-0K010 |
US $5.77 |
||
|
48261
|
48261
48261-0K320
Leaf, Rear Helper Spring, No.1
[07.2011 - 02.2014] KUN2#,35..DCB,THDCB TYPE A:REFER ILLUST. |
48261-0K320 |
— | ||
|
48261
|
48261
48261-0K321
Leaf, Rear Helper Spring, No.1
[02.2014 - 12.2015] KUN2#,35..DCB,THDCB TYPE A:REFER ILLUST. |
48261-0K321 |
— | ||
|
48262
|
48262
48262-0K320
Leaf, Rear Helper Spring, No.2
[07.2011 - 02.2014] KUN2#,35..DCB,THDCB TYPE A:REFER ILLUST. |
48262-0K320 |
— | ||
|
48262
|
48262
48262-0K321
Leaf, Rear Helper Spring, No.2
[02.2014 - 12.2015] KUN2#,35..DCB,THDCB TYPE A:REFER ILLUST. |
48262-0K321 |
— | ||
|
48284
|
48284
48284-0K310 Nut, Rear Spring Center Bolt[07.2011 - 12.2015] KUN25..FLD;KUN2#,35..DCB,SCB,THDCB,THSCB TYPE A:REFER ILLUST. |
48284-0K310 |
US $7.17 |
||
