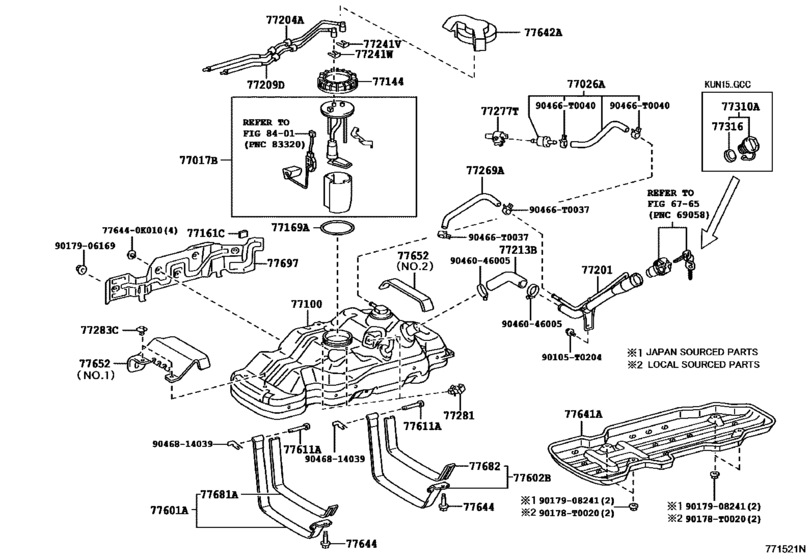

Fuel Tank & Tube ([09.2004 - ] FUEL TANK (0409- )KUN15,16,2#,35..IV3) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2005 - 2011
- Sales region
- U.S.A.
- Frame
- KUN35
- grade
- DLX
- ENGINE
- 2KDFTV
- DESTINATION
- LA
- DECK
- SD
- CAB
- SCB
- Model
- HILUX
- From
- 02.2005
- To
- 10.2011
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux
- Driver's Position
- LHD
- Fuel Induction
- HDCR
- Building Condition
- IV3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
77017B
|
77017B
77010-0K010
Tube Sub-Assy, Fuel Tank Vent
[01.2005 - 12.2005] KUN2#,3#..ANCOM,LA |
77010-0K010 |
— | ||
| replacement | |||||
|
77017B
|
77017B
77010-0K011 Tube Sub-Assy, Fuel Tank VentFUEL TANK VENT [01.2005 - 12.2005] KUN2#,3#..ANCOM,LA |
77010-0K011 |
US $133.69 |
||
|
77017B
|
77017B
77010-0K011 Tube Sub-Assy, Fuel Tank VentFUEL TANK VENT [01.2006 - 12.2008] KUN2#,3#..ANCOM,LA |
77010-0K011 |
US $133.69 |
||
|
77026A
|
77026A
77027-0K010 Tube Sub-Assy, Fuel Evaporation, No.1FUEL EVAPORATION, NO.1 [08.2004 - 02.2012] KUN25..SCB..MA;TGN26..DCB..GEN;KUN16,36..XTR..TH;KUN26..DCB..5F..SA;KUN36..(DCB,SC B)..5F;KUN25..(DCB,XTR)..SR;KUN26,TGN16..LHD..GEN;KUN16,LAN15,25,35..DCB,SCB;KUN15 ..(DCB,SCB)..(PHL,SA)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26 |
77027-0K010 |
US $19.36 |
||
|
77100
|
77100
77001-0K101
Tank Assy, Fuel
[01.2005 - 12.2008] KUN2#,3#..ANCOM,LA |
77001-0K101 |
— | ||
|
77144
|
77144
77144-0K010 Retainer, Fuel Pump GaugeFUEL PUMP GAUGE [08.2004 - 02.2012] TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN 25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM, GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA).. |
77144-0K010 |
from US $7.53 |
||
|
77161C
|
77161C
77671-0K010
Protector, Fuel Tank, Lower
[08.2004 - 02.2012] TGN36..SCB;KUN25..SCB..MA;KUN16..DCB,SCB;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;K UN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCO M,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA) |
77671-0K010 |
— | ||
|
77169A
|
77169A
77169-0K010 Gasket, Fuel Suction Tube SetFUEL SUCTION TUBE SET [08.2004 - 02.2012] TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN 25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM, GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA).. |
77169-0K010 |
from US $1.93 |
||
|
77201
|
77201
77201-0K110
Pipe Sub-Assy, Fuel Tank Inlet
[09.2004 - 12.2008] TGN36..LA..IV3;KUN15,16,2#,35..(ANCOM,ARL,LA,TH)..IV3 |
77201-0K110 |
— | ||
|
77204A
|
77204A
77204-0K020
Tube, Fuel Tank Return
[08.2004 - 02.2012] KUN26..THDCB;KUN25..SCB..MA;KUN16,36..XTR..TH;KUN26..DCB..5F..SA;KUN25..(DCB,XTR). .SR;KUN36..(DCB,SCB)..5F;KUN16,LAN15,25,35..DCB,SCB;KUN15..(DCB,SCB)..(PHL,SA)..CB U;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA, |
77204-0K020 |
— | ||
|
77209D
|
77209D
77209-0K020 Tube Sub-Assy, Fuel Tank MainFUEL TANK MAIN [08.2004 - 02.2012] KUN26..THDCB;KUN25..SCB..MA;KUN16,36..XTR..TH;KUN26..DCB..5F..SA;KUN25..(DCB,XTR). .SR;KUN36..(DCB,SCB)..5F;KUN16,LAN15,25,35..DCB,SCB;KUN15..(DCB,SCB)..(PHL,SA)..CB U;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA, |
77209-0K020 |
US $25.23 |
||
|
77213B
|
77213B
77213-0K020
Hose, Fuel Tank To Filler Pipe
[08.2004 - 02.2012] KUN26..THDCB;KUN25..SCB..MA;KUN16..DCB,SCB;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR ;KUN36..(DCB,SCB)..5F;KUN16,36,TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN,SA);KUN15..( DCB,SCB)..(PHL,SA)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..( |
77213-0K020 |
— | ||
| replacement | |||||
|
77213B
|
77213B
77213-0K021 Hose, Fuel Tank To Filler Pipe[08.2004 - 02.2012] KUN26..THDCB;KUN25..SCB..MA;KUN16..DCB,SCB;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR ;KUN36..(DCB,SCB)..5F;KUN16,36,TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN,SA);KUN15..( DCB,SCB)..(PHL,SA)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..( |
77213-0K021 |
US $21.94 |
||
|
77241V
|
77241V
77241-35450 Tube, Fuel Tank Suction[08.2004 - 02.2012] KUN26..THDCB;KUN25..SCB..MA;KUN16,36..XTR..TH;KUN26..DCB..5F..SA;KUN25..(DCB,XTR). .SR;KUN36..(DCB,SCB)..5F;KUN10,16,LAN15,25,35..DCB,SCB;KUN15..(DCB,SCB)..(PHL,SA). .CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL, |
77241-35450 |
from US $0.98 |
||
|
77241W
|
77241W
77241-33011 Clip, Tube Joint[08.2004 - 02.2012] KUN26..THDCB;KUN25..SCB..MA;KUN16,36..XTR..TH;KUN26..DCB..5F..SA;KUN25..(DCB,XTR). .SR;KUN36..(DCB,SCB)..5F;KUN10,16,LAN15,25,35..DCB,SCB;KUN15..(DCB,SCB)..(PHL,SA). .CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL, |
77241-33011 |
from US $0.88 |
||
|
77269A
|
77269A
77269-0K020 Hose, Fuel Tank Breather[08.2004 - 02.2012] TGN36..SCB;KUN26..THDCB;KUN16..DCB,SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(D CB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..L A;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,S |
77269-0K020 |
US $16.89 |
||
|
77277T
|
77277T
77277-0K010
Bracket, Check Valve
[08.2004 - 02.2012] KUN25..SCB..MA;TGN26..DCB..GEN;KUN16,36..XTR..TH;KUN26..DCB..5F..SA;KUN36..(DCB,SC B)..5F;KUN25..(DCB,XTR)..SR;KUN26,TGN16..LHD..GEN;KUN10,16,LAN15,25,35..DCB,SCB;KU N15..(DCB,SCB)..(PHL,SA)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KU |
77277-0K010 |
— | ||
|
77281
|
77281
77281-0K040
Bracket, Fuel Main Tube, No.1
[08.2004 - 11.2010] TGN36..SCB;KUN26..THDCB;KUN16..DCB,SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(D CB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..L A;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,S |
77281-0K040 |
— | ||
| replacement | |||||
|
77281
|
77281
77281-0K070 Bracket, Fuel Main Tube, No.1[08.2004 - 11.2010] TGN36..SCB;KUN26..THDCB;KUN16..DCB,SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(D CB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..L A;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,S |
77281-0K070 |
US $0.99 |
||
|
77281
|
77281
77281-0K070 Bracket, Fuel Main Tube, No.1[12.2010 -] GGN15..DCB..DLX;TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;GGN15,KUN16..SCB,SMT,XT R;GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN2#, 3#,TGN36..ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH;GGN25,35,KUN16,LAN15,25,35,TG |
77281-0K070 |
US $0.99 |
||
|
77283C
|
77283C
77283-0K010
Bracket, Fuel Tank Protector
[08.2004 - 02.2012] TGN36..SCB;KUN26..THDCB;KUN16..DCB,SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(D CB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..L A;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,S |
77283-0K010 |
— | ||
|
77601A
|
77601A
77601-0K100
Band Sub-Assy, Fuel Tank, No.1
[01.2005 - 12.2008] TGN36..DLX;TGN26..ANCOM;TGN26..DCB..DLX..LA;GGN25,KUN2#,3#..ANCOM,LA |
77601-0K100 |
— | ||
|
77602B
|
77602B
77602-0K090
Band Sub-Assy, Fuel Tank, No.1 Lh
[01.2005 - 12.2008] TGN36..DLX;TGN26..ANCOM;TGN26..DCB..DLX..LA;GGN25,KUN2#,3#..ANCOM,LA |
77602-0K090 |
— | ||
|
77611A
|
77611A
77653-0K040
Pin (For Fuel Tank Band)
[08.2004 - 08.2006] GGN25,KUN2#,3#,TGN26,36..ANCOM,ARL,GCC,GEN,LA,MA,PHL,TH |
77653-0K040 |
— | ||
| replacement | |||||
|
77611A
|
77611A
77653-0K041 Pin (For Fuel Tank Band)[08.2004 - 08.2006] GGN25,KUN2#,3#,TGN26,36..ANCOM,ARL,GCC,GEN,LA,MA,PHL,TH |
77653-0K041 |
US $13.08 |
||
|
77611A
|
77611A
77653-0K041 Pin (For Fuel Tank Band)[09.2006 - 02.2012] KUN25..SCB..MA;TGN26..5F..GCC;TGN26..DCB..DLX..LA;KUN25..(DCB,XTR)..SR;TGN36..4FC. .(ANCOM,PHL);KUN26,36..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN25,35,TGN36..(DCB,SCB)..5 F..DLX..(ANCOM,GCC,GEN,LA);GGN25,TGN10,26..(DCB,SCB,XTR)..(DLX,SR)..( |
77653-0K041 |
US $13.08 |
||
|
77641A
|
77641A
77641-0K050 Protector, Fuel Tank, No.1FUEL TANK, NO.1 [08.2008 - 12.2008] TGN36..SCB;KUN25..SR..MA;KUN26..4FC..LA;KUN25..SCB..MA;TGN26..ANCOM,SA;KUN35..(DCB ,SCB)..DLX;TGN26,36..DCB..DLX..LA;TGN36..DCB..(ANCOM,SA);KUN26..DCB..5F..(LA,SA);G GN25,KUN25,36,LAN25,35..(5F,5FC)..(ANCOM,LA,SA) |
77641-0K050 |
US $296.34 |
||
|
77644
|
77644
77644-35030 Bolt, Fuel Tank[08.2004 - 02.2012] TGN36..SCB;KUN26..THDCB;KUN16..DCB,SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(D CB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..L A;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN25,35..DLX |
77644-35030 |
from US $1.44 |
||
|
77652
|
77652
77652-0K010
Cushion, Fuel Tank, No.1
[08.2004 - 02.2012] TGN36..SCB;KUN26..THDCB;KUN16..DCB,SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(D CB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..L A;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,S |
77652-0K010 |
— | ||
|
77652
|
77652
77652-0K020
Cushion, Fuel Tank, No.1
[08.2004 - 02.2012] TGN36..SCB;KUN26..THDCB;KUN16..DCB,SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(D CB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..L A;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,S |
77652-0K020 |
— | ||
|
77681A
|
77681A
77681-0K070
Seat, Fuel Tank Band
[01.2005 - 12.2008] TGN36..DLX;TGN26..ANCOM;TGN26..DCB..DLX..LA;GGN25,KUN2#,3#..ANCOM,LA |
77681-0K070 |
— | ||
|
77682
|
77682
77682-0K040
Seat, Fuel Tank Band, Lh
[01.2005 - 12.2008] TGN36..DLX;TGN26..ANCOM;TGN26..DCB..DLX..LA;GGN25,KUN2#,3#..ANCOM,LA |
77682-0K040 |
— | ||
|
77697
|
77697
77697-0K010
Insulator, Fuel Tank Heat, No.1
[08.2004 - 02.2012] TGN36..SCB;KUN26..THDCB;KUN16..DCB,SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(D CB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..L A;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,S |
77697-0K010 |
— | ||
|
90105T0204
|
90105T0204
90105-T0204
New Genuine Part
|
90105-T0204 |
— | ||
|
90178T0020
|
90178T0020
90178-T0020
New Genuine Part
|
90178-T0020 |
— | ||
|
90466T0037
|
90466T0037
90466-T0037
CLIP HOSE
|
90466-T0037 |
— | ||
|
90466T0040
|
90466T0040
90466-T0040 Clip(For Fuel Hose No.2) |
90466-T0040 |
US $1.79 |
||
|
776440K010
|
776440K010
77644-0K010 Bracket, Fuel Tank |
77644-0K010 |
US $0.76 |
||
|
9017906169
|
9017906169
90179-06169 Nut |
90179-06169 |
from US $0.99 |
||
|
9017908241
|
9017908241
90179-08241 NUT |
90179-08241 |
from US $0.92 |
||
|
9046046005
|
9046046005
90460-46005 Clamp (For Fuel Filler Pipe) |
90460-46005 |
from US $2.69 |
||
|
9046814039
|
9046814039
90468-14039 CLIP |
90468-14039 |
US $1.43 |
||
