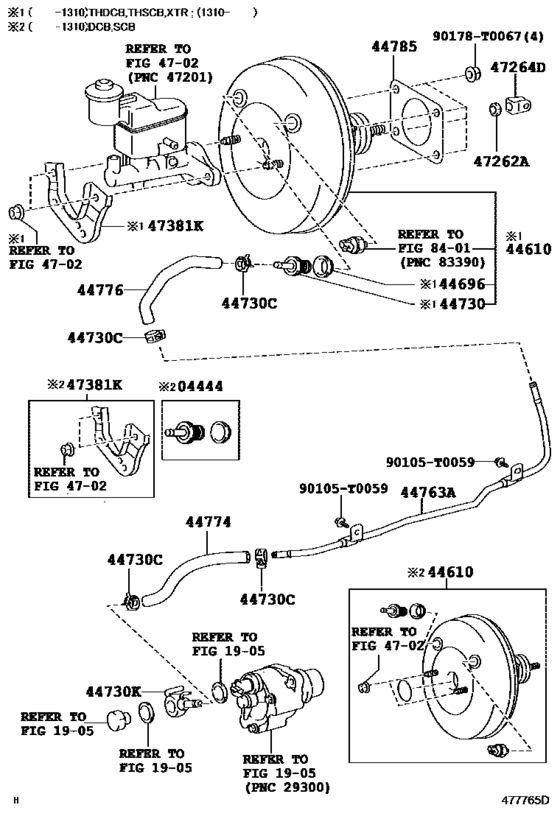

Brake Booster & Vacuum Tube ([07.2011 - ] (1107- )KUN25,35..LHD ; (1107- )KUN26..LHD ..SR) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2011 - 2015
- Sales region
- Europe
- Frame
- KUN35
- grade
- DLX
- ENGINE
- 2KDFTV
- DESTINATION
- EUR
- DECK
- SD
- CAB
- SCB
- Model
- HILUX
- From
- 08.2011
- To
- 12.2015
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux
- Driver's Position
- LHD
- Fuel Induction
- HDCR
- Building Condition
- IV3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04444
|
04444
04444-02010
Valve Kit, Booster Control
[08.2011 - 10.2013] KUN26..DCB..SR;KUN25,35..DCB,SCB |
04444-02010 |
— | ||
|
44610
|
44610
44610-09820
Booster Assy, Brake
[08.2011 - 10.2013] KUN26..LHD..DCB..SR;KUN25,35..LHD..(DCB,SCB) |
44610-09820 |
— | ||
|
44610
|
44610
44610-0K150
Booster Assy, Brake
[10.2013 - 10.2014] KUN35..SCB..SR;KUN25..DCB..IV3;KUN25..LHD..SCB;KUN35..(DCB,SCB)..DLX VSC-WITH |
44610-0K150 |
— | ||
|
44610
|
44610
44610-0K190 Booster Assy, Brake[10.2013 - 10.2014] KUN26..LHD..DCB..SR;KUN25,35..LHD..(DCB,SCB) |
44610-0K190 |
US $550.93 |
||
|
44696
|
44696
90080-48050
Grommet, Check Valve
[10.2013 - 10.2014] KUN26..DCB..SR;KUN25,35..DCB,SCB |
90080-48050 |
— | ||
|
44730
|
44730
44730-22150 Valve Assy, Vacuum Check(For Brake)[10.2013 - 12.2015] KUN26..DCB..SR;KUN25,35..DCB,SCB |
44730-22150 |
from US $21.84 |
||
|
44730C
|
44730C
90466-T0019 Clip(For Vacuum Hose)[07.2011 - 12.2015] KUN2#,35..LHD |
90466-T0019 |
US $1.37 |
||
|
44730K
|
44730K
90405-T0003
Union
[07.2011 - 12.2015] KUN2#,35 |
90405-T0003 |
— | ||
|
44763A
|
44763A
44763-0K020
Tube, Booster Vacuum
[07.2011 - 12.2015] KUN2#,35 |
44763-0K020 |
— | ||
|
44774
|
44774
44774-0K020
Hose, Union To Connector Tube
[07.2011 - 02.2015] KUN2#,35 |
44774-0K020 |
— | ||
|
44774
|
44774
44774-0K021
Hose, Union To Connector Tube
[03.2015 - 12.2015] KUN2#,35 |
44774-0K021 |
— | ||
|
44776
|
44776
44776-0K010
Hose, Brake Booster
[10.2013 - 10.2014] KUN26..LHD..DCB..SR;KUN25,35..LHD..(DCB,SCB) |
44776-0K010 |
— | ||
| replacement | |||||
|
44776
|
44776
44776-0K011
Hose, Brake Booster
[10.2013 - 10.2014] KUN26..LHD..DCB..SR;KUN25,35..LHD..(DCB,SCB) |
44776-0K011 |
— | ||
|
44776
|
44776
44776-0K040
Hose, Brake Booster
[08.2011 - 10.2013] KUN26..LHD..DCB..SR;KUN25,35..LHD..(DCB,SCB) |
44776-0K040 |
— | ||
|
44776
|
44776
44776-0K050
Hose, Brake Booster
[10.2013 - 10.2014] KUN35..SCB..SR;KUN25..DCB..IV3;KUN25..LHD..SCB;KUN35..(DCB,SCB)..DLX VSC-WITH |
44776-0K050 |
— | ||
| replacement | |||||
|
44776
|
44776
44776-0K051
Hose, Brake Booster
[10.2013 - 10.2014] KUN35..SCB..SR;KUN25..DCB..IV3;KUN25..LHD..SCB;KUN35..(DCB,SCB)..DLX VSC-WITH |
44776-0K051 |
— | ||
|
44776
|
44776
44776-0K051
Hose, Brake Booster
[03.2015 - 12.2015] KUN2#,35..LHD |
44776-0K051 |
— | ||
|
44785
|
44785
44785-17010 Gasket, Brake Booster[07.2011 - 12.2015] KUN2#,35 |
44785-17010 |
from US $2.16 |
||
|
47262A
|
47262A
47262-0K010
Nut, Master Cylinder Push Rod Clevis Lock
[08.2011 - 10.2013] KUN26..DCB..SR;KUN25,35..DCB,SCB |
47262-0K010 |
— | ||
|
47262A
|
47262A
90016-AC101
Nut, Master Cylinder Push Rod Clevis Lock
[10.2013 - 10.2014] KUN26..DCB..SR;KUN25,35..DCB,SCB (L) |
90016-AC101 |
— | ||
|
47262A
|
47262A
90179-10065 Nut, Master Cylinder Push Rod Clevis Lock[10.2013 - 10.2014] KUN25..SCB;KUN35..SCB..SR;KUN25..DCB..IV3;KUN35..(DCB,SCB)..DLX VSC-WITH |
90179-10065 |
from US $1.61 |
||
|
47262A
|
47262A
94120-41000 Nut(For Clutch Pedal Stopper)[10.2013 - 10.2014] KUN26..DCB..SR;KUN25,35..DCB,SCB (J) |
94120-41000 |
from US $0.76 |
||
| replacement | |||||
|
47262A
|
47262A
90170-A0002 Nut[10.2013 - 10.2014] KUN26..DCB..SR;KUN25,35..DCB,SCB (J) |
90170-A0002 |
US $2.33 |
||
|
47264D
|
47264D
47264-0K010
Clevis, Brake Master Cylinder Push Rod
[10.2013 - 10.2014] KUN26..DCB..SR;KUN25,35..DCB,SCB |
47264-0K010 |
— | ||
|
47264D
|
47264D
47264-0K020
Clevis, Brake Master Cylinder Push Rod
[08.2011 - 10.2013] KUN26..DCB..SR;KUN25,35..DCB,SCB |
47264-0K020 |
— | ||
|
47264D
|
47264D
47264-0K050
Clevis, Brake Master Cylinder Push Rod
[10.2013 - 10.2014] KUN25..SCB;KUN35..SCB..SR;KUN25..DCB..IV3;KUN35..(DCB,SCB)..DLX VSC-WITH |
47264-0K050 |
— | ||
|
47381K
|
47381K
47381-09020
Bracket, Brake Booster Tube Clamp
[08.2011 - 10.2013] KUN26..DCB..SR;KUN25,35..DCB,SCB |
47381-09020 |
— | ||
|
47381K
|
47381K
47381-0K010
Bracket, Brake Booster Tube Clamp
[10.2013 - 10.2014] KUN26..DCB..SR;KUN25,35..DCB,SCB |
47381-0K010 |
— | ||
|
90105T0059
|
90105T0059
90105-T0059
New Genuine Part
|
90105-T0059 |
— | ||
|
90178T0067
|
90178T0067
90178-T0067
New Genuine Part
|
90178-T0067 |
— | ||
