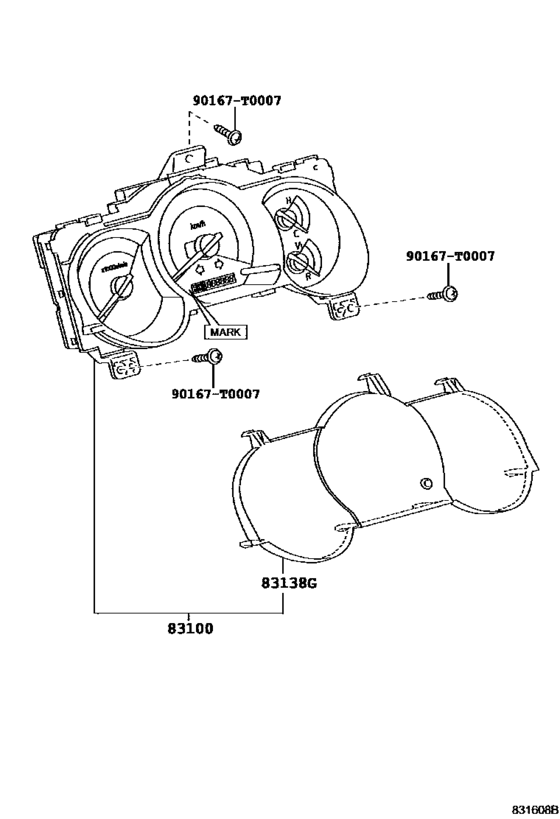

Meter ([07.2011 - ] METER (1107- )) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2011 - 2015
- Sales region
- Europe
- Frame
- KUN35
- grade
- DLX
- ENGINE
- 2KDFTV
- DESTINATION
- EUR
- DECK
- SD
- CAB
- SCB
- Model
- HILUX
- From
- 08.2011
- To
- 12.2015
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux
- Driver's Position
- LHD
- Fuel Induction
- HDCR
- Building Condition
- IV3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100
|
83100
83800-FAP20
Meter Assy, Combination
[08.2011 - 10.2014] KUN25..RHD..(DCB,SCB)..DLX KM/H METER COUNTRIES,MARK=N62-B; KUN25..RHD..SCB..SR KM/H METER COUNTRIES&DIFFERENTIAL LOCK-WITH,MARK=N62-B; KUN35..SCB..SR;KUN25..LHD..SCB;KUN25..LHD..DCB..DLX;KUN35..(DCB,SCB)..DLX DIFFERENTIAL LOCK-WITH,MA |
83800-FAP20 |
— | ||
|
83100
|
83100
83800-FAP30
Meter Assy, Combination
[08.2011 - 10.2014] KUN35..SCB..SR;KUN25..LHD..SCB;KUN25..LHD..DCB..DLX;KUN35..(DCB,SCB)..DLX MARK=N62-B; KUN25..RHD..SCB..SR KM/H METER COUNTRIES,MARK=N62-B; KUN25..RHD..(DCB,SCB)..DLX KM/H METER COUNTRIES&DIFFERENTIAL LOCK-WITH(LSD),MARK=N62-B |
83800-FAP30 |
— | ||
|
83100
|
83100
83800-FBV70
Meter Assy, Combination
[10.2013 - 10.2014] KUN25,35..LHD..SCB..SR VSC-WITH,MARK=N62-B; KUN35..DCB..DLX..CBU VSC-WITH&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,MARK=N62-B; KUN35..DCB..DLX..CBU VSC-WITH&TIRE & DISC WHEEL-265/65R17 7.5J,MARK=N62-B; KUN25..SCB..IV3;KUN35..SCB..DLX. |
83800-FBV70 |
— | ||
|
83138G
|
83138G
83852-F0D60 Glass, Combination Meter[07.2011 - 10.2014] KUN25..SCB;KUN35..SCB..SR;KUN25..DCB..DLX;KUN35..(DCB,SCB)..DLX |
83852-F0D60 |
US $22.74 |
||
|
83138G
|
83138G
83852-F0F10 Glass, Combination Meter[10.2013 - 10.2014] KUN25,35..LHD..SCB..SR NORWAY,FINLAND,SWEDEN,DENMARK,ICELAND&VSC-WITH; KUN25..SCB..SR DIFFERENTIAL LOCK-WITH&VSC-WITH; KUN25,35..SCB..SR VSC-WITH; KUN35..DCB..DLX..CBU VSC-WITH&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM; KUN35..DCB..DLX |
83852-F0F10 |
US $24.06 |
||
|
90167T0007
|
90167T0007
90167-T0007 Screw,pan Tapping |
90167-T0007 |
from US $0.21 |
