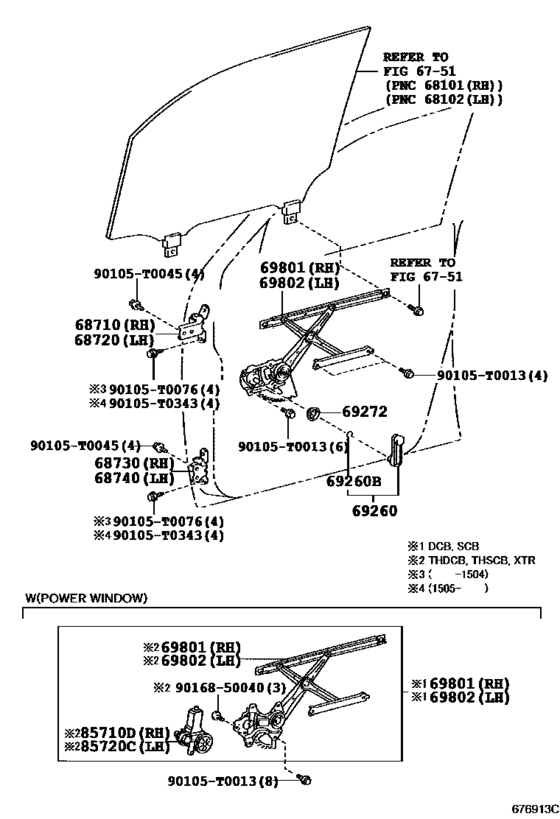

Front Door Window Regulator & Hinge ([07.2011 - ] (1107- )) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2011 - 2015
- Sales region
- Europe
- Frame
- KUN35
- grade
- SR
- ENGINE
- 2KDFTV
- DESTINATION
- EUR
- DECK
- SD
- CAB
- SCB
- Model
- HILUX
- From
- 08.2011
- To
- 12.2015
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux
- Driver's Position
- LHD
- Fuel Induction
- HDCR
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
68710
|
68710
68710-02070
Hinge Assy, Front Door, Upper Rh
[08.2011 - 12.2015] KUN2#,35..DCB,SCB |
68710-02070 |
— | ||
|
68720
|
68720
68720-02070
Hinge Assy, Front Door, Upper Lh
[08.2011 - 12.2015] KUN2#,35..DCB,SCB |
68720-02070 |
— | ||
|
68730
|
68730
68730-52010 Hinge Assy, Front Door, Lower Rh[07.2011 - 12.2015] KUN2#,35 |
68730-52010 |
from US $32.37 |
||
|
68740
|
68740
68740-52010 Hinge Assy, Front Door, Lower Lh[07.2011 - 12.2015] KUN2#,35 |
68740-52010 |
from US $28.72 |
||
|
69260
|
69260
69260-0K020-B1
Handle Assy, Front Door Window Regulator
[08.2011 - 12.2015] KUN35..SCB..SR;KUN25..LHD..SCB;KUN2#..LHD..DCB..DLX;KUN35..(DCB,SCB)..DLX MD.GRAY,TRIM1# |
69260-0K020-B1 |
— | ||
|
69260
|
69260
69260-0K020-C0
Handle Assy, Front Door Window Regulator
[10.2013 - 12.2015] KUN35..SCB..SR;KUN25..LHD..SCB;KUN2#..LHD..DCB..DLX;KUN35..(DCB,SCB)..DLX BLACK,TRIM2# |
69260-0K020-C0 |
— | ||
|
69260B
|
69260B
90520-01274 Ring, Shaft Snap(For Front Door Window Regulator Handle)[07.2011 - 12.2015] KUN35..DLX;KUN35..SCB..SR;KUN25..LHD..(SCB,THSCB);KUN2#..LHD..(DCB,THDCB,XTR)..DLX |
90520-01274 |
from US $0.94 |
||
|
69272
|
69272
69268-0K010
Plate, Front Door Regulator Inside Handle
[08.2011 - 12.2015] KUN35..SCB..SR;KUN25..LHD..SCB;KUN2#..LHD..DCB..DLX;KUN35..(DCB,SCB)..DLX |
69268-0K010 |
— | ||
|
69801
|
69801
69810-0K031
Regulator Sub-Assy, Front Door Window, Rh
[08.2011 - 12.2015] KUN35..SCB..SR;KUN25..LHD..SCB;KUN2#..LHD..DCB..DLX;KUN35..(DCB,SCB)..DLX |
69810-0K031 |
— | ||
|
69801
|
69801
69810-0K041
Regulator Sub-Assy, Front Door Window, Rh
[08.2011 - 10.2012] KUN35..SCB..SR;KUN25..LHD..SCB;KUN2#..LHD..DCB..DLX;KUN35..(DCB,SCB)..DLX POWER DOOR LOCK-WITH |
69810-0K041 |
— | ||
|
69802
|
69802
69820-0K031
Regulator Sub-Assy, Front Door Window, Lh
[08.2011 - 12.2015] KUN35..SCB..SR;KUN25..LHD..SCB;KUN2#..LHD..DCB..DLX;KUN35..(DCB,SCB)..DLX |
69820-0K031 |
— | ||
|
69802
|
69802
69820-0K041
Regulator Sub-Assy, Front Door Window, Lh
[08.2011 - 10.2012] KUN35..SCB..SR;KUN25..LHD..SCB;KUN2#..LHD..DCB..DLX;KUN35..(DCB,SCB)..DLX POWER DOOR LOCK-WITH |
69820-0K041 |
— | ||
|
90105T0013
|
90105T0013
90105-T0013
BOLT WASHER BASED H
|
90105-T0013 |
— | ||
|
90105T0045
|
90105T0045
90105-T0045
New Genuine Part
|
90105-T0045 |
— | ||
|
90105T0076
|
90105T0076
90105-T0076
BOLT FLANGE
|
90105-T0076 |
— | ||
|
9016850040
|
9016850040
90168-50040 SCREW TAPPING |
90168-50040 |
from US $0.82 |
