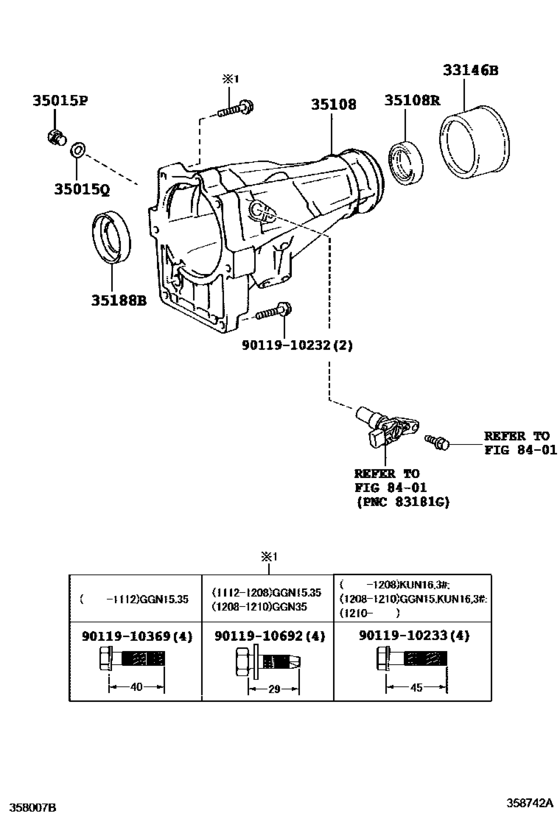

Extension Housing (Atm) ([07.2011 - ] A750E (1107- )GGN15,35,KUN16,3#..5FC) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2012 - 2015
- Sales region
- U.S.A.
- Frame
- KUN35
- grade
- SR
- ENGINE
- 2KDFTV
- DESTINATION
- TH
- DECK
- SD
- CAB
- DCB
- Model
- HILUX
- From
- 08.2012
- To
- 04.2015
- Gear Shift Type
- 5FC
- Vehicle Model
- Hilux
- Driver's Position
- RHD
- Fuel Induction
- HDCR
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33146B
|
33146B
33146-30020 Deflector, Extension Housing Dust(Mtm)[07.2011 -] GGN15,35,KUN16,3#,TGN16,36..4FC,5FC |
33146-30020 |
from US $17.74 |
||
|
35015P
|
35015P
90341-18059 Plug, W/head Straight Screw(For Transmission Case Adapter)[07.2011 -] GGN15,35,KUN16,3#..5FC |
90341-18059 |
from US $3.40 |
||
|
35015Q
|
35015Q
90301-15004 Ring, O(For Oil Cooler Tube Union)[07.2011 -] GGN15,35,KUN16,3#..5FC |
90301-15004 |
from US $1.56 |
||
|
35108
|
35108
35108-71020
Housing Sub-Assy, Extension (Atm)
[07.2011 -] GGN15,35,KUN16,3#..5FC |
35108-71020 |
— | ||
|
35108R
|
35108R
90311-40034
Seal, Oil (For Automatic Transmission Extension Housing)
[07.2011 - 12.2015] KUN36..(4FC,5FC)..TH;GGN15,35,KUN16,35..RHD..(4FC,5FC) |
90311-40034 |
— | ||
| replacement | |||||
|
35108R
|
35108R
90311-40045 Seal, Oil (For Automatic Transmission Extension Housing)[07.2011 - 12.2015] KUN36..(4FC,5FC)..TH;GGN15,35,KUN16,35..RHD..(4FC,5FC) |
90311-40045 |
from US $7.17 |
||
|
35188B
|
35188B
35188-35010 Retainer, Extension Housing BushEXTENSION HOUSING BUSH [07.2011 -] GGN15,35,KUN16,3#..5FC |
35188-35010 |
US $3.06 |
||
|
9011910232
|
9011910232
90119-10232 Bolt (For Transmission Housing & Case Setting) |
90119-10232 |
US $1.97 |
||
|
9011910233
|
9011910233
90119-10233 New Genuine Part |
90119-10233 |
US $1.05 |
||
|
9011910369
|
9011910369
90119-10369 New Genuine Part |
90119-10369 |
US $1.60 |
||
|
9011910692
|
9011910692
90119-10692 Bolt(For Front Lower Arm Bracket Rh) |
90119-10692 |
US $3.94 |
||
