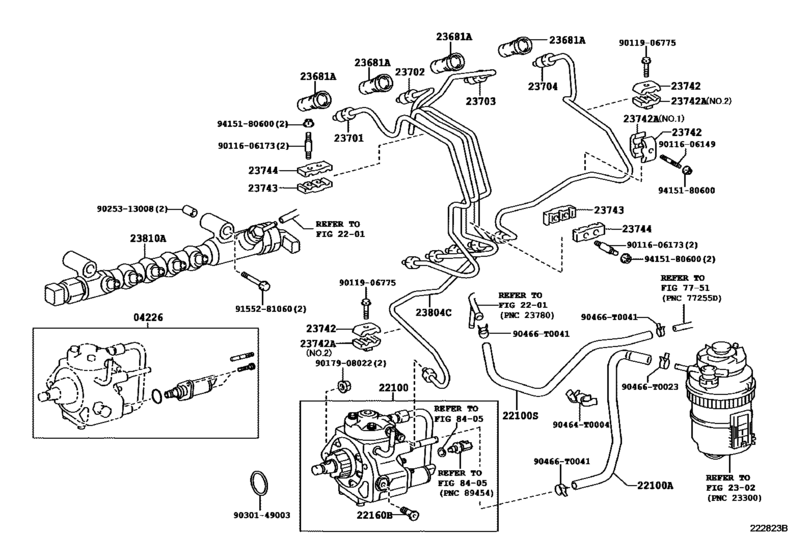

Injection Pump Assembly ([08.2012 - ] (1208- )2KDFTV..KUN35..5FC) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2012 - 2015
- Sales region
- General
- Frame
- KUN35
- grade
- SR
- ENGINE
- 2KDFTV
- DESTINATION
- TH
- DECK
- SD
- CAB
- DCB
- Model
- HILUX
- From
- 08.2012
- To
- 04.2015
- Gear Shift Type
- 5FC
- Vehicle Model
- Hilux
- Driver's Position
- RHD
- Fuel Induction
- HDCR
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04226
|
04226
04226-30020 Valve Kit, Suction ControlSUCTION CONTROL [08.2012 - 04.2015] 2KDFTV..KUN35..5FC;2KDFTV..KUN35..DCB..DLX..GEN |
04226-30020 |
from US $194.73 |
||
|
22100
|
22100
22100-30160
Pump Assy, Injection Or Supply
[08.2012 - 10.2014] 2KDFTV..KUN35..5FC;2KDFTV..KUN35..DCB..DLX..GEN |
22100-30160 |
— | ||
| replacement | |||||
|
22100
|
22100
22100-30161 Pump Assy, Injection Or Supply[08.2012 - 10.2014] 2KDFTV..KUN35..5FC;2KDFTV..KUN35..DCB..DLX..GEN |
22100-30161 |
US $2,249.60 |
||
|
22100
|
22100
22100-30161 Pump Assy, Injection Or Supply[11.2014 - 04.2015] 2KDFTV..KUN35..5FC;2KDFTV..KUN35..DCB..DLX..GEN; 1KDFTV,2KDFTV..KUN2#,35..THDCB..5F CHILE SPEC(EURO 5 REGULATION) |
22100-30161 |
US $2,249.60 |
||
|
22100A
|
22100A
23271-0L060
Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
[07.2011 -] 1KDFTV..KUN26..4FC..CO;1KDFTV,2KDFTV..KUN1#,2#,3#..(DCB,SCB,SMT,THDCB,THSCB,XTR).. (ARL,GCC,GEN,IDN,PHL,PKN,TH) |
23271-0L060 |
— | ||
|
22100S
|
22100S
23273-0L180
Hose, Fuel(For Injection Pump To Fuel Pipe)
[03.2013 - 10.2015] 2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN (L) |
23273-0L180 |
— | ||
|
22100S
|
22100S
23273-30350
Hose, Fuel(For Injection Pump To Fuel Pipe)
[04.2012 - 03.2013] 2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART |
23273-30350 |
— | ||
|
22160B
|
22160B
22569-30150 Screw[04.2012 - 10.2015] 2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN |
22569-30150 |
US $5.07 |
||
|
23681A
|
23681A
23681-30010 Seal, Nozzle Holder[08.2012 - 04.2015] 2KDFTV..KUN35..5FC;2KDFTV..KUN35..DCB..DLX..GEN |
23681-30010 |
from US $1.99 |
||
|
23701
|
23701
23701-30100
Pipe Sub-Assy, Injection, No.1
[04.2012 - 10.2015] 2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN |
23701-30100 |
— | ||
| replacement | |||||
|
23701
|
23701
23701-30101
Pipe Sub-Assy, Injection, No.1
[04.2012 - 10.2015] 2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN |
23701-30101 |
— | ||
|
23702
|
23702
23702-30100
Pipe Sub-Assy, Injection, No.2
[04.2012 - 10.2015] 2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN |
23702-30100 |
— | ||
| replacement | |||||
|
23702
|
23702
23702-30101
Pipe Sub-Assy, Injection, No.2
[04.2012 - 10.2015] 2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN |
23702-30101 |
— | ||
|
23703
|
23703
23703-30100
Pipe Sub-Assy, Injection, No.3
[04.2012 - 10.2015] 2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN |
23703-30100 |
— | ||
| replacement | |||||
|
23703
|
23703
23703-30101
Pipe Sub-Assy, Injection, No.3
[04.2012 - 10.2015] 2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN |
23703-30101 |
— | ||
|
23704
|
23704
23704-30090
Pipe Sub-Assy, Injection, No.4
[04.2012 - 10.2015] 2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN |
23704-30090 |
— | ||
| replacement | |||||
|
23704
|
23704
23704-30091
Pipe Sub-Assy, Injection, No.4
[04.2012 - 10.2015] 2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN |
23704-30091 |
— | ||
|
23742
|
23742
23742-27010 Clamp, Injection Pipe, No.2[08.2012 - 04.2015] 2KDFTV..KUN35..5FC |
23742-27010 |
from US $9.71 |
||
|
23742A
|
23742A
23742-30030 Clamp, Injection Pipe, No.3[08.2012 - 04.2015] 2KDFTV..KUN35..5FC NO.1 |
23742-30030 |
US $5.97 |
||
|
23742A
|
23742A
23742-58020 Clamp, Injection Pipe, No.2[08.2012 - 04.2015] 2KDFTV..KUN35..5FC NO.2 |
23742-58020 |
from US $13.34 |
||
|
23743
|
23743
23743-30011 Clamp, Injection Pipe, No.3[08.2012 - 04.2015] 2KDFTV..KUN35..5FC;2KDFTV..KUN35..DCB..DLX..GEN |
23743-30011 |
from US $4.70 |
||
|
23744
|
23744
23743-30011 Clamp, Injection Pipe, No.3[08.2012 - 04.2015] 2KDFTV..KUN35..5FC;2KDFTV..KUN35..DCB..DLX..GEN |
23743-30011 |
from US $4.70 |
||
|
23804C
|
23804C
23804-30100 Pipe Sub-Assy, Fuel Inlet[04.2012 - 10.2015] 2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN |
23804-30100 |
US $40.77 |
||
| replacement | |||||
|
23804C
|
23804C
23804-30101
Pipe Sub-Assy, Fuel Inlet
[04.2012 - 10.2015] 2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN |
23804-30101 |
— | ||
|
23810A
|
23810A
23810-30120
Rail Assy, Common
[08.2012 - 04.2015] 2KDFTV..KUN35..5FC;2KDFTV..KUN35..DCB..DLX..GEN |
23810-30120 |
— | ||
|
90464T0004
|
90464T0004
90464-T0004
New Genuine Part
|
90464-T0004 |
— | ||
|
90466T0023
|
90466T0023
90466-T0023
Clip(For Water By-Pass Hose No.2)
|
90466-T0023 |
— | ||
|
90466T0041
|
90466T0041
90466-T0041
Clip(For Fuel Vapor Feed Hose, No.2)
|
90466-T0041 |
— | ||
|
9011606149
|
9011606149
90116-06149 Bolt, Stud(For Head To Cylinder Head Cover) |
90116-06149 |
US $1.61 |
||
|
9011606173
|
9011606173
90116-06173 BOLT STUD |
90116-06173 |
US $1.51 |
||
|
9011906775
|
9011906775
90119-06775 BOLT WWASHER |
90119-06775 |
from US $1.07 |
||
|
9017908022
|
9017908022
90179-08022 NUT |
90179-08022 |
from US $1.52 |
||
|
9025313008
|
9025313008
90253-13008 Pin, Ring(For Crankshaft Bearing Cap Set) |
90253-13008 |
US $2.04 |
||
|
9030149003
|
9030149003
90301-49003 Gasket, Injection Pump |
90301-49003 |
from US $2.20 |
||
|
9155281060
|
9155281060
91552-81060 Bolt, No.3(For Alternator) |
91552-81060 |
from US $1.31 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.66 |
||
