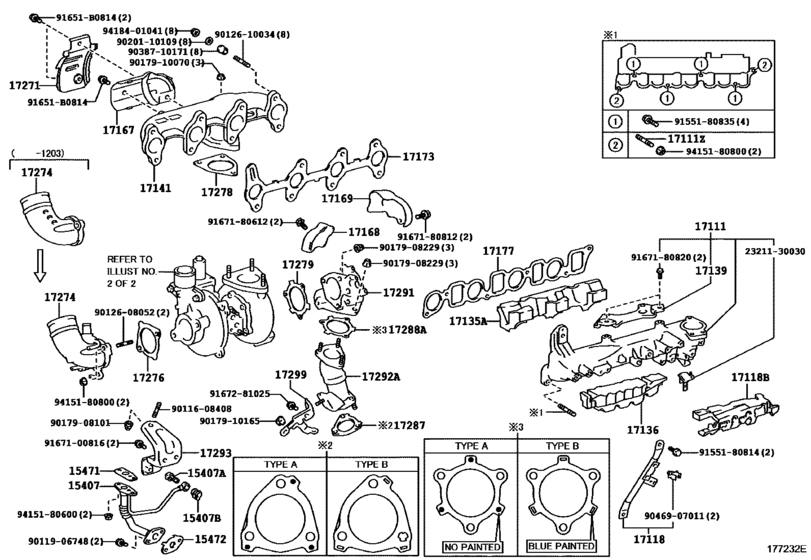

Manifold ([08.2013 - ] EURO 5 REGULATION (1107- )2KDFTV..KUN25,35..THDCB,THSCB ; (1308 - )2KDFTV..KUN35..DCB..DLX..GEN) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2013 - 2015
- Sales region
- General
- Frame
- KUN35
- grade
- DLX
- ENGINE
- 2KDFTV
- DESTINATION
- GEN
- DECK
- SD
- CAB
- DCB
- Model
- HILUX
- From
- 08.2013
- To
- 04.2015
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux
- Driver's Position
- RHD
- Fuel Induction
- HDCR
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
15407
|
15407
15407-30120
Pipe Sub-Assy, Turbo Oil Inlet
[08.2012 - 01.2016] 2KDFTV..KUN35..5F..PHL *130,(J); 2KDFTV..KUN25..IDN,TH;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KU N35..SR..(PHL,TH);2KDFTV..KUN35..DCB..DLX..(GEN,PHL) *360 |
15407-30120 |
— | ||
| replacement | |||||
|
15407
|
15407
15407-30130
Pipe Sub-Assy, Turbo Oil Inlet
[08.2012 - 01.2016] 2KDFTV..KUN35..5F..PHL *130,(J); 2KDFTV..KUN25..IDN,TH;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KU N35..SR..(PHL,TH);2KDFTV..KUN35..DCB..DLX..(GEN,PHL) *360 |
15407-30130 |
— | ||
|
15407A
|
15407A
90401-12097 Bolt, Union(For Turbo Oil Inlet Pipe)[07.2011 - 10.2016] 2KDFTV..KUN15..SMT..SR;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN26,36..4FC..TH;2KDFTV..KU N35..LHD..5F..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN15,25,36..SR..( GEN,IDN,PHL);1KDFTV..KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,PHL);2KDFTV |
90401-12097 |
from US $2.94 |
||
|
15407B
|
15407B
90904-30004 Gasket(For Turbo Oil Inlet Pipe)[07.2011 - 10.2016] 2KDFTV..KUN15..SMT..SR;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN26,36..4FC..TH;2KDFTV..KU N35..LHD..5F..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN15,25,36..SR..( GEN,IDN,PHL);1KDFTV..KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,PHL);2KDFTV |
90904-30004 |
from US $5.38 |
||
|
15471
|
15471
15471-30011 Gasket, Turbo Oil InletTURBO OIL INLET [07.2011 - 10.2016] 2KDFTV..KUN15..SMT..SR;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN26,36..4FC..TH;2KDFTV..KU N35..LHD..5F..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN15,25,36..SR..( GEN,IDN,PHL);1KDFTV..KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,PHL);2KDFTV |
15471-30011 |
from US $2.75 |
||
|
15472
|
15472
15472-30010 Gasket, Turbo Oil Outlet, No.1[07.2011 - 10.2016] 2KDFTV..KUN15..SMT..SR;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN26,36..4FC..TH;2KDFTV..KU N35..LHD..5F..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN15,25,36..SR..( GEN,IDN,PHL);1KDFTV..KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,PHL);2KDFTV |
15472-30010 |
from US $1.97 |
||
|
17111
|
17111
17101-30120 Manifold, Intake[08.2012 - 04.2015] 2KDFTV..KUN35..5FC;2KDFTV..KUN35..DCB..DLX..GEN |
17101-30120 |
US $200.93 |
||
|
17111Z
|
17111Z
90126-08052 Bolt, Stud(For Oil Pan)[06.2013 - 10.2016] 1KDFTV..KUN26..4FC..TH;2KDFTV..KUN35..GEN,PHL,TH;1KDFTV..KUN26,36..(DCB,SCB,THDCB, XTR)..(ARL,GEN,PHL);1KDFTV,2KDFTV..KUN1#,25..(4FC,5F)..(ARL,GCC,GEN,IDN,PHL,PKN,TH ) *360 |
90126-08052 |
from US $0.78 |
||
|
17118
|
17118
17118-30170
Stay, Manifold
[04.2012 - 10.2015] 2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN |
17118-30170 |
— | ||
|
17118B
|
17118B
17853-30020
Insulator, Intake Manifold
[04.2012 - 10.2015] 2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN |
17853-30020 |
— | ||
|
17135A
|
17135A
17135-30020
Insulator, Intake Manifold, No.1
[04.2012 - 10.2015] 2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN |
17135-30020 |
— | ||
|
17136
|
17136
17136-30030
Insulator, Intake Manifold, No.2
[04.2012 - 10.2015] 2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN |
17136-30030 |
— | ||
|
17139
|
17139
17139-30030
Stay, Manifold, No.2
[04.2012 - 10.2015] 2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN |
17139-30030 |
— | ||
|
17141
|
17141
17141-30060
Manifold, Exhaust
[07.2011 - 01.2016] 1KDFTV..KUN16..4FC,5F;2KDFTV..KUN15..SMT..SR;2KDFTV..KUN35..4FC,5FC;1KDFTV,2KDFTV. .KUN2#,36..4FC..(IDN,TH);2KDFTV..KUN15,35..(DCB,SCB,SMT)..DLX..HDCR..(GEN,TH);1KDF TV..KUN26,36..(DCB,SCB,THDCB,XTR)..(ARL,GEN,MA,PHL) *360 |
17141-30060 |
— | ||
|
17167
|
17167
17167-30020
Insulator, Exhaust Manifold Heat, No.1
[07.2011 - 01.2016] 1KDFTV..KUN16..4FC,5F;2KDFTV..KUN15..SMT..SR;2KDFTV..KUN35..4FC,5FC;1KDFTV,2KDFTV. .KUN2#,36..4FC..(IDN,TH);2KDFTV..KUN15,35..(DCB,SCB,SMT)..DLX..HDCR..(GEN,TH);1KDF TV..KUN26,36..(DCB,SCB,THDCB,XTR)..(ARL,GEN,MA,PHL) *360 |
17167-30020 |
— | ||
|
17168
|
17168
17168-30040
Insulator, Exhaust Manifold Heat, No.2
[08.2013 - 04.2015] 2KDFTV..KUN35..DCB..DLX..GEN |
17168-30040 |
— | ||
|
17169
|
17169
17169-0L010
Insulator, Exhaust Manifold Heat, No.3
[08.2013 - 04.2015] 2KDFTV..KUN35..DCB..DLX..GEN |
17169-0L010 |
— | ||
| replacement | |||||
|
17169
|
17169
17169-0L020
Insulator, Exhaust Manifold Heat, No.3
[08.2013 - 04.2015] 2KDFTV..KUN35..DCB..DLX..GEN |
17169-0L020 |
— | ||
|
17173
|
17173
17173-30030 Gasket, Exhaust Manifold To HeadEXHAUST MANIFOLD TO HEAD [07.2011 - 01.2016] 1KDFTV..KUN16..4FC,5F;2KDFTV..KUN15..SMT..SR;2KDFTV..KUN35..4FC,5FC;1KDFTV,2KDFTV. .KUN2#,36..4FC..(IDN,TH);2KDFTV..KUN15,35..(DCB,SCB,SMT)..DLX..HDCR..(GEN,TH);1KDF TV..KUN26,36..(DCB,SCB,THDCB,XTR)..(ARL,GEN,MA,PHL) *360 |
17173-30030 |
from US $27.65 |
||
|
17177
|
17177
17177-30011 Gasket, Intake Manifold To Head, No.1[07.2011 - 04.2015] 2KDFTV..KUN35..5FC;1KDFTV..KUN16,26..ARL;1KDFTV..KUN26..5FC..GEN;2KDFTV..KUN35..DC B..DLX..GEN; 1KDFTV,2KDFTV..KUN2#,35..THDCB..5F CHILE SPEC(EURO 5 REGULATION) |
17177-30011 |
from US $6.79 |
||
|
17271
|
17271
17271-0L020 Insulator, Turbo, No.1TURBO, NO.1 [08.2013 - 04.2015] 2KDFTV..KUN35..DCB..DLX..GEN; 2KDFTV..KUN25..LHD..DCB..GEN KAZAKHSTAN SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER |
17271-0L020 |
US $37.71 |
||
|
17274
|
17274
17274-30140 Elbow, Compressor Inlet[08.2013 - 04.2015] 2KDFTV..KUN35..DCB..DLX..GEN; 2KDFTV..KUN25..LHD..DCB..GEN KAZAKHSTAN SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER |
17274-30140 |
US $100.46 |
||
|
17276
|
17276
17276-67010 Gasket, Compressor Inlet[08.2013 - 04.2015] 2KDFTV..KUN35..DCB..DLX..GEN; 2KDFTV..KUN25..LHD..DCB..GEN KAZAKHSTAN SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER |
17276-67010 |
from US $2.09 |
||
|
17278
|
17278
17278-67010 Gasket, Turbo To Exhaust Manifold[07.2011 - 10.2016] 2KDFTV..KUN35..5FC;1KDFTV,2KDFTV..KUN2#,36..4FC..(IDN,TH);2KDFTV..KUN15,25,35..HDC R..(GCC,GEN,PHL,PKN);1KDFTV..KUN26,36..(DCB,SCB,THDCB,XTR)..(ARL,GEN,PHL);1KDFTV,2 KDFTV..KUN1#..(4FC,5F)..DCR..(ARL,GCC,GEN,IDN,PHL,PKN,TH) *360 |
17278-67010 |
from US $8.79 |
||
|
17279
|
17279
17279-30030
Gasket, Turbine Outlet Elbow
[08.2013 - 10.2014] 2KDFTV..KUN35..DCB..DLX..GEN; 2KDFTV..KUN25..LHD..DCB..GEN KAZAKHSTAN SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER |
17279-30030 |
— | ||
| replacement | |||||
|
17279
|
17279
17279-30031 Gasket, Turbine Outlet Elbow[08.2013 - 10.2014] 2KDFTV..KUN35..DCB..DLX..GEN; 2KDFTV..KUN25..LHD..DCB..GEN KAZAKHSTAN SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER |
17279-30031 |
from US $3.55 |
||
|
17279
|
17279
17279-30031 Gasket, Turbine Outlet Elbow[11.2014 - 04.2015] 2KDFTV..KUN35..DCB..DLX..GEN; 1KDFTV,2KDFTV..KUN2#,35..THDCB..5F CHILE SPEC(EURO 5 REGULATION); 2KDFTV..KUN15..SCB..TH;2KDFTV..KUN15..SMT..SR ENGINE-2KD-FTV,*360; 2KDFTV..KUN25..LHD..DCB..GEN KAZAKHSTAN SPEC&AIR CONDITIONER-SINGLE AIR |
17279-30031 |
from US $3.55 |
||
|
17287
|
17287
17287-0L011 Gasket, Turbine Outlet Elbow, No.2[08.2013 - 04.2015] 2KDFTV..KUN35..DCB..DLX..GEN TYPE A:REFER ILLUST. |
17287-0L011 |
US $6.03 |
||
|
17287
|
17287
17288-30020
Gasket, Turbine Outlet Elbow, No.2
[08.2013 - 04.2015] 2KDFTV..KUN35..DCB..DLX..GEN TYPE B:REFER ILLUST. |
17288-30020 |
— | ||
|
17288A
|
17288A
17279-0L031
Gasket, Turbine Outlet Elbow, No.3
[08.2013 - 04.2015] 2KDFTV..KUN35..DCB..DLX..GEN TYPE A:REFER ILLUST. |
17279-0L031 |
— | ||
|
17288A
|
17288A
17287-30010 Gasket, Turbine Outlet Elbow, No.2[08.2013 - 04.2015] 2KDFTV..KUN35..DCB..DLX..GEN TYPE B:REFER ILLUST. |
17287-30010 |
US $12.01 |
||
|
17291
|
17291
17291-30190
Elbow, Turbine Outlet
[08.2013 - 04.2015] 2KDFTV..KUN35..DCB..DLX..GEN |
17291-30190 |
— | ||
|
17292A
|
17292A
17292-0L010
Elbow, Turbine Outlet, No.2
[08.2013 - 04.2015] 2KDFTV..KUN35..DCB..DLX..GEN |
17292-0L010 |
— | ||
|
17293
|
17293
17293-30070
Stay, Turbocharger
[08.2013 - 04.2015] 2KDFTV..KUN35..DCB..DLX..GEN |
17293-30070 |
— | ||
|
17299
|
17299
17299-0L050
Stay, Turbine Outlet Elbow
[08.2013 - 04.2015] 2KDFTV..KUN35..DCB..DLX..GEN |
17299-0L050 |
— | ||
|
91651B0814
|
91651B0814
91651-B0814 Bolt with washer |
91651-B0814 |
from US $0.86 |
||
|
2321130030
|
2321130030
23211-30030
Bracket, Wire
|
23211-30030 |
— | ||
|
9011608408
|
9011608408
90116-08408 BOLT STUD |
90116-08408 |
US $1.25 |
||
|
9011906748
|
9011906748
90119-06748 BOLT WWASHER |
90119-06748 |
US $1.97 |
||
|
9012608052
|
9012608052
90126-08052 Bolt, Stud(For Oil Pan) |
90126-08052 |
from US $0.78 |
||
|
9012610034
|
9012610034
90126-10034 Bolt, Stud(For Exhaust Manifold, Rh) |
90126-10034 |
US $2.15 |
||
|
9017908101
|
9017908101
90179-08101 NUT |
90179-08101 |
from US $0.80 |
||
|
9017908229
|
9017908229
90179-08229 NUT |
90179-08229 |
from US $1.19 |
||
|
9017910070
|
9017910070
90179-10070 Nut, Exhaust Pipe Set Stud Bolt |
90179-10070 |
from US $1.37 |
||
| replacement | |||||
|
9017910070
|
9017910070
90080-17187 Nut, Exhaust Pipe Set Stud Bolt |
90080-17187 |
US $44.70 |
||
|
9017910165
|
9017910165
90179-10165 NUT |
90179-10165 |
from US $0.98 |
||
|
9020110109
|
9020110109
90201-10109 WASHER PLATE |
90201-10109 |
US $1.97 |
||
|
9038710171
|
9038710171
90387-10171 Collar(For Exhaust Manifold) |
90387-10171 |
US $3.58 |
||
|
9046907011
|
9046907011
90469-07011 Clamp No.1 (For Windseield Washer) |
90469-07011 |
from US $1.97 |
||
|
9155180814
|
9155180814
91551-80814 Bolt, Hexagon (For Rear Spring Seat Bolt) |
91551-80814 |
US $1.43 |
||
|
9155180835
|
9155180835
91551-80835 Bolt (For Front Oil Pump Setting) |
91551-80835 |
from US $0.80 |
||
|
9167100816
|
9167100816
91671-00816 New Genuine Part |
91671-00816 |
US $1.97 |
||
|
9167180612
|
9167180612
91671-80612 Bolt |
91671-80612 |
from US $0.66 |
||
|
9167180812
|
9167180812
91671-80812 BOLT FLANGE |
91671-80812 |
US $1.43 |
||
|
9167180820
|
9167180820
91671-80820 Bolt (For Transmission Control Cable Bracket) |
91671-80820 |
from US $0.86 |
||
|
9167281025
|
9167281025
91672-81025 Bolt, Center Support Bearing Bracket |
91672-81025 |
from US $1.13 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.66 |
||
|
9415180800
|
9415180800
94151-80800 Nut (For Transmission Control Cable) |
94151-80800 |
from US $0.80 |
||
|
9418401041
|
9418401041
94184-01041 Nut |
94184-01041 |
from US $0.78 |
||
