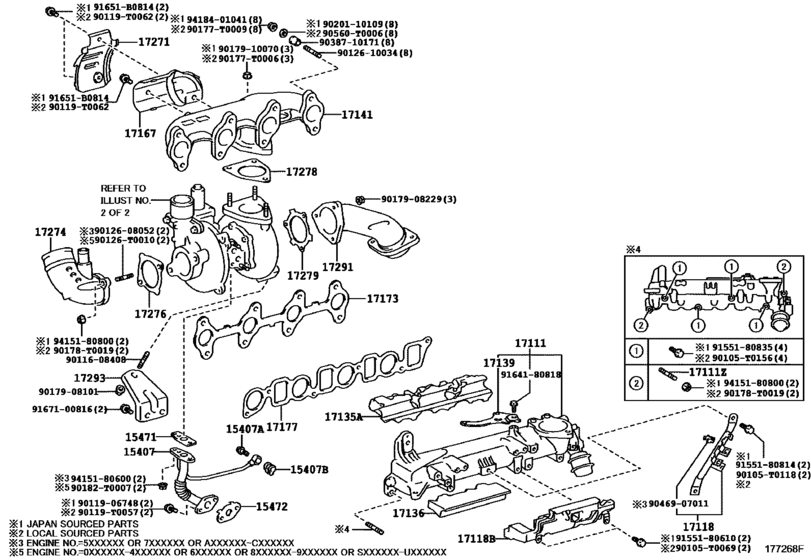

Manifold ([07.2011 - ] WATER COOLING TURBO (1107- )2KDFTV..KUN25..IDN,TH ; (1107- )2K DFTV..KUN35..5F..SR..TH ; (1107- )2KDFTV..KUN15.. DCB..SR..TH ; (1208- )2KDFTV..KUN35..PHL) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2011 - 2015
- Sales region
- General
- Frame
- KUN35
- grade
- SR
- ENGINE
- 2KDFTV
- DESTINATION
- TH
- DECK
- SD
- CAB
- DCB
- Model
- HILUX
- From
- 07.2011
- To
- 04.2015
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux
- Driver's Position
- RHD
- Fuel Induction
- HDCR
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
15407
|
15407
15407-0L050
Pipe Sub-Assy, Turbo Oil Inlet
[07.2011 - 01.2016] 2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15.. DCB..SR..TH *130,(L) |
15407-0L050 |
— | ||
|
15407
|
15407
15407-30120
Pipe Sub-Assy, Turbo Oil Inlet
[07.2011 - 01.2016] 2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15.. DCB..SR..TH *130,(J) |
15407-30120 |
— | ||
| replacement | |||||
|
15407
|
15407
15407-30130
Pipe Sub-Assy, Turbo Oil Inlet
[07.2011 - 01.2016] 2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15.. DCB..SR..TH *130,(J) |
15407-30130 |
— | ||
|
15407A
|
15407A
90401-12097 Bolt, Union(For Turbo Oil Inlet Pipe)[08.2012 - 10.2016] 2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25..5F..(IDN,TH) *360 |
90401-12097 |
from US $2.94 |
||
|
15407A
|
15407A
90401-T0004
Bolt, Union(For Turbo Oil Inlet Pipe)
[07.2011 -] 1KDFTV..KUN26..4FC..CO;2KDFTV..KUN15..RHD..(GEN,PKN,TH);2KDFTV..KUN25..GCC,GEN,IDN ,PKN,TH;2KDFTV..KUN35..(4FC,5F)..(PHL,TH);2KDFTV..KUN15..LHD..SCB..DCR..(GCC,GEN,P HL);2KDFTV..KUN15..LHD..(DCB,XTR)..(GCC,GEN,PHL);1KDFTV,2KDFTV..KUN10,16,26,3 |
90401-T0004 |
— | ||
|
15407B
|
15407B
90430-T0006
Gasket(For Turbo Oil Inlet Pipe)
[07.2011 -] 1KDFTV..KUN26..4FC..CO;2KDFTV..KUN15..RHD..(GEN,PKN,TH);2KDFTV..KUN25..GCC,GEN,IDN ,PKN,TH;2KDFTV..KUN35..(4FC,5F)..(PHL,TH);2KDFTV..KUN15..LHD..SCB..DCR..(GCC,GEN,P HL);2KDFTV..KUN15..LHD..(DCB,XTR)..(GCC,GEN,PHL);1KDFTV,2KDFTV..KUN10,16,26,3 |
90430-T0006 |
— | ||
|
15407B
|
15407B
90904-30004 Gasket(For Turbo Oil Inlet Pipe)[08.2012 - 10.2016] 2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25..5F..(IDN,TH) *360 |
90904-30004 |
from US $5.38 |
||
|
15471
|
15471
15471-0L011 Gasket, Turbo Oil Inlet[07.2011 -] 1KDFTV..KUN26..4FC..CO;2KDFTV..KUN15..RHD..(GEN,PKN,TH);2KDFTV..KUN25..GCC,GEN,IDN ,PKN,TH;2KDFTV..KUN35..(4FC,5F)..(PHL,TH);2KDFTV..KUN15..LHD..SCB..DCR..(GCC,GEN,P HL);2KDFTV..KUN15..LHD..(DCB,XTR)..(GCC,GEN,PHL);1KDFTV,2KDFTV..KUN10,16,26,3 |
15471-0L011 |
US $3 |
||
|
15471
|
15471
15471-30011 Gasket, Turbo Oil InletTURBO OIL INLET [08.2012 - 10.2016] 2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25..5F..(IDN,TH) *360 |
15471-30011 |
from US $2.83 |
||
|
15472
|
15472
15472-0L010 Gasket, Turbo Oil Outlet, No.1TURBO OIL OUTLET, NO.1 [07.2011 -] 1KDFTV..KUN26..4FC..CO;2KDFTV..KUN15..RHD..(GEN,PKN,TH);2KDFTV..KUN25..GCC,GEN,IDN ,PKN,TH;2KDFTV..KUN35..(4FC,5F)..(PHL,TH);2KDFTV..KUN15..LHD..SCB..DCR..(GCC,GEN,P HL);2KDFTV..KUN15..LHD..(DCB,XTR)..(GCC,GEN,PHL);1KDFTV,2KDFTV..KUN10,16,26,3 |
15472-0L010 |
US $3.69 |
||
|
15472
|
15472
15472-30010 Gasket, Turbo Oil Outlet, No.1[08.2012 - 10.2016] 2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25..5F..(IDN,TH) *360 |
15472-30010 |
from US $1.95 |
||
|
17111
|
17111
17101-0L030
Manifold, Intake
[07.2011 - 01.2016] 2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15.. DCB..SR..TH *130 |
17101-0L030 |
— | ||
|
17111Z
|
17111Z
90116-T0011
Bolt, Stud(For Intake Manifold To Cylinder Head)
[07.2011 -] 2KDFTV..KUN15..RHD..(GEN,PKN,TH);2KDFTV..KUN25..GCC,GEN,IDN,PKN,TH;2KDFTV..KUN35.. (4FC,5F)..(PHL,TH);2KDFTV..KUN15..LHD..SCB..DCR..(GCC,GEN,PHL);2KDFTV..KUN15..LHD. .(DCB,XTR)..(GCC,GEN,PHL);1KDFTV,2KDFTV..KUN10,16,26,36..GCC,IDN,PHL,TH;1KDFT |
90116-T0011 |
— | ||
|
17111Z
|
17111Z
90126-08052 Bolt, Stud(For Oil Pan)[06.2013 - 10.2016] 1KDFTV..KUN26..4FC..TH;2KDFTV..KUN35..GEN,PHL,TH;1KDFTV..KUN26,36..(DCB,SCB,THDCB, XTR)..(ARL,GEN,PHL);1KDFTV,2KDFTV..KUN1#,25..(4FC,5F)..(ARL,GCC,GEN,IDN,PHL,PKN,TH ) *360 |
90126-08052 |
from US $0.78 |
||
|
17111Z
|
17111Z
92122-80822 Bolt, Stud(For Water Outlet)[08.2012 - 06.2013] 2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25..5F..(IDN,TH) *360; 1KDFTV..KUN26,36..5F..TH THAI SPEC(EURO 3 REGULATION),*360 |
92122-80822 |
from US $1.03 |
||
|
17118
|
17118
17118-0L050
Stay, Manifold
[07.2011 - 01.2016] 2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15.. DCB..SR..TH *130 |
17118-0L050 |
— | ||
|
17118
|
17118
17118-30090
Stay, Manifold
[11.2013 - 04.2015] 2KDFTV..KUN15..SMT..DLX;2KDFTV..KUN25,35..5F..TH;2KDFTV..KUN15..(DCB,SCB)..TH *360 |
17118-30090 |
— | ||
|
17118
|
17118
17118-30180
Stay, Manifold
[08.2012 - 08.2014] 2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH THAI SPEC(EURO 3 REGULATION),*360; 2KDFTV..KUN15..SCB..TH;2KDFTV..KUN15..SMT..SR THAI SPEC(EURO 3 REGULATION)&ENGINE-2KD-FTV,*360 |
17118-30180 |
— | ||
|
17118B
|
17118B
17853-0L010
Insulator, Intake Manifold
[07.2011 - 01.2016] 2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15.. DCB..SR..TH *130 |
17853-0L010 |
— | ||
|
17118B
|
17118B
17853-30010
Insulator, Intake Manifold
[08.2012 - 11.2013] 2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH THAI SPEC(EURO 3 REGULATION),*360; 2KDFTV..KUN15..SCB..TH THAI SPEC(EURO 3 REGULATION)&ENGINE-2KD-FTV,*360 |
17853-30010 |
— | ||
|
17135A
|
17135A
17135-0L010
Insulator, Intake Manifold, No.1
[07.2011 - 01.2016] 1KDFTV..KUN26..5F..PHL;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV ,2KDFTV..KUN16,25..(4FC,5F)..(IDN,TH);1KDFTV,2KDFTV..KUN26,3#..4FC..(CO,MA,PHL,TH) ;1KDFTV..KUN26..LHD..(DCB,THDCB)..(4FC,5F)..GEN *130 |
17135-0L010 |
— | ||
|
17135A
|
17135A
17135-30011 Insulator, Intake Manifold, No.1[08.2012 - 11.2013] 2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH THAI SPEC(EURO 3 REGULATION),*360; 2KDFTV..KUN15..SCB..TH THAI SPEC(EURO 3 REGULATION)&ENGINE-2KD-FTV,*360 |
17135-30011 |
US $53.42 |
||
|
17136
|
17136
17136-0L010
Insulator, Intake Manifold, No.2
[07.2011 - 01.2016] 1KDFTV..KUN26..5F..PHL;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV ,2KDFTV..KUN16,25..(4FC,5F)..(IDN,TH);1KDFTV,2KDFTV..KUN26,3#..4FC..(CO,MA,PHL,TH) ;1KDFTV..KUN26..LHD..(DCB,THDCB)..(4FC,5F)..GEN *130 |
17136-0L010 |
— | ||
|
17136
|
17136
17136-30010 Insulator, Intake Manifold, No.2[08.2012 - 11.2013] 2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH THAI SPEC(EURO 3 REGULATION),*360; 2KDFTV..KUN15..SCB..TH THAI SPEC(EURO 3 REGULATION)&ENGINE-2KD-FTV,*360 |
17136-30010 |
US $19.74 |
||
|
17139
|
17139
17139-0L010
Stay, Manifold, No.2
[07.2011 - 01.2016] 2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15.. DCB..SR..TH *130 |
17139-0L010 |
— | ||
|
17141
|
17141
17141-0L030
Manifold, Exhaust
[07.2011 - 01.2016] 2KDFTV..KUN35..4FC;1KDFTV..KUN26..4FC..CO;1KDFTV..KUN26..MA,PHL,TH;2KDFTV..KUN15,3 5..5F..HDCR..TH;1KDFTV,2KDFTV..KUN16,25,36..IDN,TH;1KDFTV..KUN26..LHD..(DCB,THDCB) ..(4FC,5F)..GEN *130 |
17141-0L030 |
— | ||
|
17141
|
17141
17141-30060
Manifold, Exhaust
[08.2012 - 01.2016] 2KDFTV..KUN25..SCB..MA;2KDFTV..KUN35..DLX..PHL;2KDFTV..KUN15..DCB..SR..TH;2KDFTV.. KUN25..5F..(IDN,TH);2KDFTV..KUN35..5F..SR..(PHL,TH) *360 |
17141-30060 |
— | ||
|
17167
|
17167
17167-0L010
Insulator, Exhaust Manifold Heat, No.1
[07.2011 - 01.2016] 2KDFTV..KUN35..4FC;1KDFTV..KUN26..4FC..CO;1KDFTV..KUN26..MA,PHL,TH;2KDFTV..KUN15,3 5..5F..HDCR..TH;1KDFTV,2KDFTV..KUN16,25,36..IDN,TH;1KDFTV..KUN26..LHD..(DCB,THDCB) ..(4FC,5F)..GEN *130 |
17167-0L010 |
— | ||
|
17167
|
17167
17167-30020
Insulator, Exhaust Manifold Heat, No.1
[08.2012 - 01.2016] 2KDFTV..KUN25..SCB..MA;2KDFTV..KUN35..DLX..PHL;2KDFTV..KUN15..DCB..SR..TH;2KDFTV.. KUN25..5F..(IDN,TH);2KDFTV..KUN35..5F..SR..(PHL,TH) *360 |
17167-30020 |
— | ||
|
17173
|
17173
17173-0L020
Gasket, Exhaust Manifold To Head
[07.2011 - 12.2011] 1KDFTV..KUN26..THDCB;2KDFTV..KUN15..HDCR..TH;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH;1KD FTV,2KDFTV..KUN16,25,35..IDN,LA,TH *130 |
17173-0L020 |
— | ||
| replacement | |||||
|
17173
|
17173
17173-0L021
Gasket, Exhaust Manifold To Head
[07.2011 - 12.2011] 1KDFTV..KUN26..THDCB;2KDFTV..KUN15..HDCR..TH;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH;1KD FTV,2KDFTV..KUN16,25,35..IDN,LA,TH *130 |
17173-0L021 |
— | ||
|
17173
|
17173
17173-0L021
Gasket, Exhaust Manifold To Head
[04.2012 - 01.2016] 2KDFTV..KUN35..4FC;1KDFTV..KUN26..4FC..CO;1KDFTV..KUN26..MA,PHL,TH;2KDFTV..KUN15,3 5..5F..HDCR..TH;1KDFTV,2KDFTV..KUN16,25,36..IDN,TH;1KDFTV..KUN26..LHD..(DCB,THDCB) ..(4FC,5F)..GEN *130,(L) |
17173-0L021 |
— | ||
|
17173
|
17173
17173-30030 Gasket, Exhaust Manifold To HeadEXHAUST MANIFOLD TO HEAD [12.2011 - 06.2012] 2KDFTV..KUN15..HDCR..TH;1KDFTV..KUN26..THDCB..5F;1KDFTV..KUN26..(SADCB,THDCB)..4FC ;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25,35..IDN,LA,TH *130,(J) |
17173-30030 |
from US $27.96 |
||
|
17177
|
17177
17177-0L011
Gasket, Intake Manifold To Head, No.1
[07.2011 -] 1KDFTV..KUN26..5F..PHL;1KDFTV..KUN16..(4FC,5F)..TH;1KDFTV..KUN26,36..4FC..(CO,PHL, TH);2KDFTV..KUN10,25..GCC,GEN,IDN,PKN,TH;2KDFTV..KUN15..DLX..DCR..(GCC,GEN,PHL,TH) ;2KDFTV..KUN35..(4FC,5F)..SR..(GEN,PHL,TH);1KDFTV..KUN26..LHD..(DCB,THDCB)..( |
17177-0L011 |
— | ||
|
17177
|
17177
17177-30011 Gasket, Intake Manifold To Head, No.1[08.2012 - 11.2013] 2KDFTV..KUN15..SMT..DLX;2KDFTV..KUN25,35..5F..TH;2KDFTV..KUN15..(DCB,SCB)..TH THAI SPEC(EURO 3 REGULATION),*360; 2KDFTV..KUN15..SCB..TH THAI SPEC(EURO 3 REGULATION)&ENGINE-2KD-FTV,*360 |
17177-30011 |
from US $6.79 |
||
|
17271
|
17271
17271-0L020 Insulator, Turbo, No.1TURBO, NO.1 [07.2011 - 01.2016] 2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15.. DCB..SR..TH *130 |
17271-0L020 |
US $37.71 |
||
|
17274
|
17274
17274-0L010
Elbow, Compressor Inlet
[07.2011 - 01.2016] 2KDFTV..KUN35..4FC;1KDFTV..KUN26..MA,PHL,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN1 5..DCB..SR..TH;1KDFTV,2KDFTV..KUN16,25,36..IDN,TH;1KDFTV..KUN26..LHD..(DCB,THDCB). .(4FC,5F)..GEN *130 |
17274-0L010 |
— | ||
|
17274
|
17274
17274-30020
Elbow, Compressor Inlet
[08.2012 - 01.2016] 2KDFTV..KUN25..SCB..MA;2KDFTV..KUN35..DLX..PHL;2KDFTV..KUN15..DCB..SR..TH;2KDFTV.. KUN25..5F..(IDN,TH);2KDFTV..KUN35..5F..SR..(PHL,TH) *360 |
17274-30020 |
— | ||
|
17276
|
17276
17276-0L010
Gasket, Compressor Inlet
[07.2011 - 01.2016] 2KDFTV..KUN35..4FC;1KDFTV..KUN26..MA,PHL,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN1 5..DCB..SR..TH;1KDFTV,2KDFTV..KUN16,25,36..IDN,TH;1KDFTV..KUN26..LHD..(DCB,THDCB). .(4FC,5F)..GEN *130 |
17276-0L010 |
— | ||
|
17276
|
17276
17276-67010 Gasket, Compressor Inlet[08.2012 - 01.2016] 2KDFTV..KUN25..SCB..MA;2KDFTV..KUN35..DLX..PHL;2KDFTV..KUN15..DCB..SR..TH;2KDFTV.. KUN25..5F..(IDN,TH);2KDFTV..KUN35..5F..SR..(PHL,TH) *360 |
17276-67010 |
from US $2.03 |
||
|
17278
|
17278
17278-0L010
Gasket, Turbo To Exhaust Manifold
[07.2011 - 12.2011] 2KDFTV..KUN35..LA;1KDFTV..KUN26..THDCB;2KDFTV..KUN35..SR..TH;2KDFTV..KUN15..DCB..S R..TH;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25..IDN,LA,TH *130 |
17278-0L010 |
— | ||
|
17278
|
17278
17278-67010 Gasket, Turbo To Exhaust Manifold[12.2011 - 06.2012] 2KDFTV..KUN35..LA;1KDFTV..KUN26..THDCB;2KDFTV..KUN35..SR..TH;2KDFTV..KUN15..DCB..S R..TH;1KDFTV,2KDFTV..KUN16,25..IDN,LA,TH;1KDFTV..KUN26,36..DCR..(CO,LA,PHL,SA,TH) *130,(J) |
17278-67010 |
from US $8.79 |
||
|
17279
|
17279
17279-0L010
Gasket, Turbine Outlet Elbow
[07.2011 - 12.2011] 1KDFTV..KUN26..THDCB;1KDFTV..KUN16,26,36..PHL,SA,TH *130; 2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..SR..TH;1KDFTV..KUN26,36..CO,LA;2KDFTV..KUN15. .DCB..SR..TH |
17279-0L010 |
— | ||
| replacement | |||||
|
17279
|
17279
17279-0L011
Gasket, Turbine Outlet Elbow
[07.2011 - 12.2011] 1KDFTV..KUN26..THDCB;1KDFTV..KUN16,26,36..PHL,SA,TH *130; 2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..SR..TH;1KDFTV..KUN26,36..CO,LA;2KDFTV..KUN15. .DCB..SR..TH |
17279-0L011 |
— | ||
|
17279
|
17279
17279-0L011
Gasket, Turbine Outlet Elbow
[03.2012 - 01.2016] 2KDFTV..KUN35..4FC;1KDFTV..KUN26..MA,PHL,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN1 5..DCB..SR..TH;1KDFTV,2KDFTV..KUN16,25,36..IDN,TH;1KDFTV..KUN26..LHD..(DCB,THDCB). .(4FC,5F)..GEN *130,(L) |
17279-0L011 |
— | ||
|
17279
|
17279
17279-30030
Gasket, Turbine Outlet Elbow
[12.2011 - 06.2012] 1KDFTV..KUN26,36..CO,LA (J); 2KDFTV..KUN35..SR..TH;1KDFTV..KUN26..THDCB..5F;2KDFTV..KUN15..DCB..SR..TH;1KDFTV.. KUN26,36..PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26..(SADCB,THDCB).. 4FC *130,(J) |
17279-30030 |
— | ||
| replacement | |||||
|
17279
|
17279
17279-30031 Gasket, Turbine Outlet Elbow[12.2011 - 06.2012] 1KDFTV..KUN26,36..CO,LA (J); 2KDFTV..KUN35..SR..TH;1KDFTV..KUN26..THDCB..5F;2KDFTV..KUN15..DCB..SR..TH;1KDFTV.. KUN26,36..PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26..(SADCB,THDCB).. 4FC *130,(J) |
17279-30031 |
from US $3.55 |
||
|
17279
|
17279
17279-30031 Gasket, Turbine Outlet Elbow[11.2014 - 01.2016] 1KDFTV..KUN26..4FC..TH;2KDFTV..KUN35..DLX..PHL;2KDFTV..KUN25..IDN,MA,TH;2KDFTV..KU N15..DCB..SR..TH;2KDFTV..KUN35..SR..(PHL,TH);1KDFTV..KUN16,26,36..(DCB,SCB,THDCB,X TR)..(ARL,GEN,MA,PHL) *360 |
17279-30031 |
from US $3.55 |
||
|
17291
|
17291
17291-0L060
Elbow, Turbine Outlet
[07.2011 - 01.2016] 2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15.. DCB..SR..TH *130 |
17291-0L060 |
— | ||
|
17293
|
17293
17293-0L050
Stay, Turbocharger
[07.2011 - 01.2016] 2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15.. DCB..SR..TH *130 |
17293-0L050 |
— | ||
|
90105T0069
|
90105T0069
90105-T0069
New Genuine Part
|
90105-T0069 |
— | ||
|
90105T0118
|
90105T0118
90105-T0118 BOLT FLANGE |
90105-T0118 |
US $0.92 |
||
|
90105T0156
|
90105T0156
90105-T0156
New Genuine Part
|
90105-T0156 |
— | ||
|
90119T0057
|
90119T0057
90119-T0057
New Genuine Part
|
90119-T0057 |
— | ||
|
90119T0062
|
90119T0062
90119-T0062 BOLTWWSH |
90119-T0062 |
US $1.02 |
||
|
90126T0010
|
90126T0010
90126-T0010
New Genuine Part
|
90126-T0010 |
— | ||
|
90177T0006
|
90177T0006
90177-T0006 Nut, Exhaust Pipe Set Stud Bolt |
90177-T0006 |
from US $1.01 |
||
| replacement | |||||
|
90177T0006
|
90177T0006
90179-10070 Nut, Exhaust Pipe Set Stud Bolt |
90179-10070 |
from US $1.35 |
||
|
90177T0009
|
90177T0009
90177-T0009
New Genuine Part
|
90177-T0009 |
— | ||
|
90178T0019
|
90178T0019
90178-T0019 Nut (For Connecting Rod Swivel) |
90178-T0019 |
US $0.80 |
||
|
90182T0007
|
90182T0007
90182-T0007
New Genuine Part
|
90182-T0007 |
— | ||
|
90560T0006
|
90560T0006
90560-T0006
New Genuine Part
|
90560-T0006 |
— | ||
|
91651B0814
|
91651B0814
91651-B0814 Bolt with washer |
91651-B0814 |
from US $0.86 |
||
|
9011608408
|
9011608408
90116-08408 BOLT STUD |
90116-08408 |
US $1.25 |
||
|
9011906748
|
9011906748
90119-06748 BOLT WWASHER |
90119-06748 |
US $1.97 |
||
|
9012608052
|
9012608052
90126-08052 Bolt, Stud(For Oil Pan) |
90126-08052 |
from US $0.78 |
||
|
9012610034
|
9012610034
90126-10034 Bolt, Stud(For Exhaust Manifold, Rh) |
90126-10034 |
US $2.15 |
||
|
9017908101
|
9017908101
90179-08101 NUT |
90179-08101 |
from US $0.80 |
||
|
9017908229
|
9017908229
90179-08229 NUT |
90179-08229 |
from US $1.19 |
||
|
9017910070
|
9017910070
90179-10070 Nut, Exhaust Pipe Set Stud Bolt |
90179-10070 |
from US $1.35 |
||
|
9020110109
|
9020110109
90201-10109 WASHER PLATE |
90201-10109 |
US $1.97 |
||
|
9038710171
|
9038710171
90387-10171 Collar(For Exhaust Manifold) |
90387-10171 |
US $3.58 |
||
|
9046907011
|
9046907011
90469-07011 Clamp No.1 (For Windseield Washer) |
90469-07011 |
from US $1.97 |
||
|
9155180610
|
9155180610
91551-80610 BOLT FLANGE |
91551-80610 |
US $1.08 |
||
|
9155180814
|
9155180814
91551-80814 Bolt, Hexagon (For Rear Spring Seat Bolt) |
91551-80814 |
US $1.43 |
||
|
9155180835
|
9155180835
91551-80835 Bolt (For Front Oil Pump Setting) |
91551-80835 |
from US $0.80 |
||
|
9164180818
|
9164180818
91641-80818 BOLT WWASHER |
91641-80818 |
from US $0.78 |
||
|
9167100816
|
9167100816
91671-00816 New Genuine Part |
91671-00816 |
US $1.97 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.66 |
||
|
9415180800
|
9415180800
94151-80800 Nut (For Transmission Control Cable) |
94151-80800 |
from US $0.80 |
||
|
9418401041
|
9418401041
94184-01041 Nut |
94184-01041 |
from US $0.78 |
||
