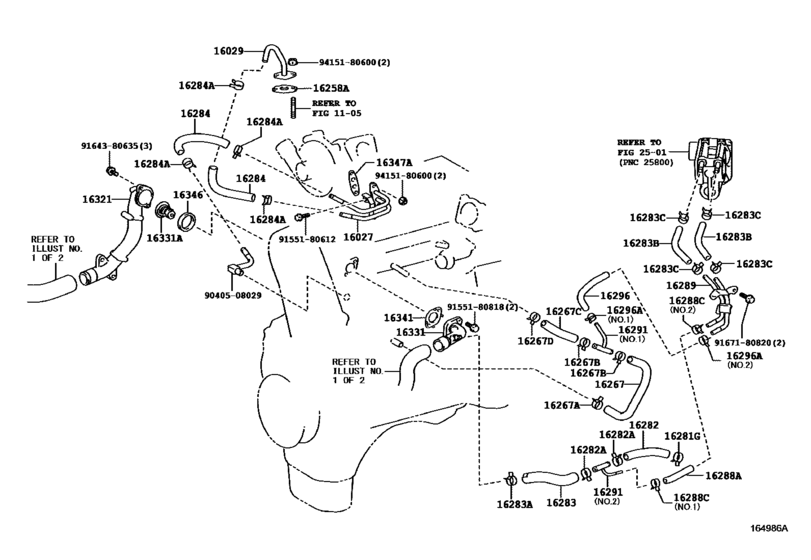

Radiator & Water Outlet ([08.2012 - ] (1208- )2KDFTV..KUN35..5FC) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2013 - 2015
- Sales region
- General
- Frame
- KUN35
- grade
- SR
- ENGINE
- 2KDFTV
- DESTINATION
- TH
- DECK
- SD
- CAB
- SMT
- Model
- HILUX
- From
- 08.2013
- To
- 04.2015
- Gear Shift Type
- 5FC
- Vehicle Model
- Hilux
- Driver's Position
- RHD
- Fuel Induction
- HDCR
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16027
|
16027
16027-0L020
Pipe Sub-Assy, Turbo Water, No.1
[08.2012 - 01.2016] 2KDFTV..KUN35..5F..PHL *130; 2KDFTV..KUN25..IDN,TH;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN35..DLX..PHL;2KDFTV..KUN15 ..DCB..SR..TH;2KDFTV..KUN35..SR..(PHL,TH) *360 |
16027-0L020 |
— | ||
|
16029
|
16029
16029-0L010
Pipe Sub-Assy, Turbo Water, No.3
[01.2012 - 01.2016] 1KDFTV..KUN26..5F..PHL;1KDFTV..KUN16..(4FC,5F)..TH;1KDFTV..KUN26,36..4FC..(MA,PHL, TH);2KDFTV..KUN25,35..(4FC,5FC)..(IDN,PHL,TH) *360,(L) |
16029-0L010 |
— | ||
|
16029
|
16029
16029-30030
Pipe Sub-Assy, Turbo Water, No.3
[01.2012 - 01.2016] 1KDFTV..KUN26..5F..PHL;1KDFTV..KUN16..(4FC,5F)..TH;1KDFTV..KUN26,36..4FC..(MA,PHL, TH);2KDFTV..KUN25,35..(4FC,5FC)..(IDN,PHL,TH) *360,(J) |
16029-30030 |
— | ||
| replacement | |||||
|
16029
|
16029
16029-0L010
Pipe Sub-Assy, Turbo Water, No.3
[01.2012 - 01.2016] 1KDFTV..KUN26..5F..PHL;1KDFTV..KUN16..(4FC,5F)..TH;1KDFTV..KUN26,36..4FC..(MA,PHL, TH);2KDFTV..KUN25,35..(4FC,5FC)..(IDN,PHL,TH) *360,(J) |
16029-0L010 |
— | ||
|
16258A
|
16258A
16258-67010 Gasket(For Heater Return)[07.2011 - 10.2016] 2KDFTV..KUN35..4FC,5FC;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN35..5F..SR..PHL;2KDFTV.. KUN35..DLX..(PHL,TH);1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN2#,36..4FC. .(IDN,TH);2KDFTV..KUN15..LHD..SCB..DCR..(GCC,GEN);2KDFTV..KUN15..RHD. |
16258-67010 |
from US $2.36 |
||
|
16267
|
16267
16267-30120
Hose, Water By-Pass, No.3
[04.2012 - 10.2015] 2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN |
16267-30120 |
— | ||
|
16267A
|
16267A
96136-42101 Clip, Hose(For Radiator Hose Sub-Assy)[04.2012 - 10.2015] 2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN |
96136-42101 |
from US $2.93 |
||
|
16267B
|
16267B
90467-19022 Clip(For Ventilation Hose No.2)[04.2012 - 10.2015] 2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN |
90467-19022 |
from US $2.20 |
||
|
16267C
|
16267C
16281-30140
Hose, Water By-Pass, No.4
[04.2012 - 10.2015] 2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN |
16281-30140 |
— | ||
|
16267D
|
16267D
96136-42101 Clip, Hose(For Radiator Hose Sub-Assy)[04.2012 - 10.2015] 2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN |
96136-42101 |
from US $2.93 |
||
|
16281G
|
16281G
96136-42101 Clip, Hose(For Radiator Hose Sub-Assy)[04.2012 - 10.2015] 2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN |
96136-42101 |
from US $2.93 |
||
|
16282
|
16282
16282-30050
Hose, Water By-Pass, No.5
[04.2012 - 10.2015] 2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN |
16282-30050 |
— | ||
|
16282A
|
16282A
90467-19022 Clip(For Ventilation Hose No.2)[04.2012 - 10.2015] 2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN |
90467-19022 |
from US $2.20 |
||
|
16283
|
16283
16283-30041
Hose, Water By-Pass, No.6
[04.2012 - 10.2015] 2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN |
16283-30041 |
— | ||
|
16283A
|
16283A
96136-42101 Clip, Hose(For Radiator Hose Sub-Assy)[04.2012 - 10.2015] 2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN |
96136-42101 |
from US $2.93 |
||
|
16283B
|
16283B
99555-10080 Hose, Water By-Pass, No.4[04.2012 - 10.2015] 2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN |
99555-10080 |
US $5.59 |
||
|
16283C
|
16283C
96137-41501 Clamp Or Clip, Hose(For Water By-Pass Hose)[04.2012 - 04.2015] 2KDFTV..KUN35..5FC;2KDFTV..KUN35..DCB..DLX..GEN |
96137-41501 |
from US $2.15 |
||
|
16284
|
16284
16284-30070 Hose, Turbo Water, No.1TURBO WATER, NO.1 [07.2011 - 01.2016] 1KDFTV..KUN16..4FC,5F;1KDFTV..KUN26,36..4FC..TH;2KDFTV..KUN25,35..(4FC,5FC)..(IDN, PHL,TH);1KDFTV..KUN26,36..(DCB,SCB,THDCB,XTR)..(ARL,GEN,MA,PHL) *360 |
16284-30070 |
US $5.87 |
||
|
16284A
|
16284A
96137-41501 Clamp Or Clip, Hose(For Water By-Pass Hose)[07.2011 - 01.2016] 1KDFTV..KUN16..4FC,5F;1KDFTV..KUN26,36..4FC..TH;2KDFTV..KUN25,35..(4FC,5FC)..(IDN, PHL,TH);1KDFTV..KUN26,36..(DCB,SCB,THDCB,XTR)..(ARL,GEN,MA,PHL) *360 |
96137-41501 |
from US $2.15 |
||
|
16288A
|
16288A
16294-30030
Hose(For Water By-Pass Pipe No.4)
[04.2012 - 10.2015] 2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN |
16294-30030 |
— | ||
|
16288C
|
16288C
90467-13128 Clamp Or Clip, Hose(For Water By-Pass Hose)[04.2012 - 10.2015] 2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN NO.1 |
90467-13128 |
from US $1.38 |
||
|
16288C
|
16288C
96137-41501 Clamp Or Clip, Hose(For Water By-Pass Hose)[04.2012 - 04.2015] 2KDFTV..KUN35..5FC;2KDFTV..KUN35..DCB..DLX..GEN NO.2 |
96137-41501 |
from US $2.15 |
||
|
16289
|
16289
16289-30011
Pipe, Water By-Pass, No.5
[04.2012 - 10.2015] 2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN |
16289-30011 |
— | ||
|
16291
|
16291
16291-30020
Joint, Water Hose
[04.2012 - 10.2015] 2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN NO.1 |
16291-30020 |
— | ||
|
16291
|
16291
16291-30030
Joint, Water Hose
[04.2012 - 10.2015] 2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN NO.2 |
16291-30030 |
— | ||
|
16296
|
16296
16296-30020
Hose, Water By-Pass, No.8
[04.2012 - 10.2015] 2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN |
16296-30020 |
— | ||
|
16296A
|
16296A
90467-13128 Clamp Or Clip, Hose(For Water By-Pass Hose)[04.2012 - 10.2015] 2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN NO.1 |
90467-13128 |
from US $1.38 |
||
|
16296A
|
16296A
96137-41501 Clamp Or Clip, Hose(For Water By-Pass Hose)[04.2012 - 04.2015] 2KDFTV..KUN35..5FC;2KDFTV..KUN35..DCB..DLX..GEN NO.2 |
96137-41501 |
from US $2.15 |
||
|
16321
|
16321
16321-30040
Inlet, Water
[07.2011 - 10.2016] 2KDFTV..KUN15..SMT..SR;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN26,36..4FC..TH;2KDFTV..KU N35..LHD..5F..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN15,25,36..SR..( GEN,IDN,PHL);1KDFTV..KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,PHL);2KDFTV |
16321-30040 |
— | ||
|
16331
|
16331
16304-0L020
Outlet, Water
[08.2012 - 04.2015] 1KDFTV..KUN16,26,36..5FC..TH *130; 2KDFTV..KUN35..5FC *360 |
16304-0L020 |
— | ||
|
16331A
|
16331A
90916-03118 Thermostat*WAX 82-95C [07.2011 - 10.2016] 2KDFTV..KUN15..SMT..SR;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN26,36..4FC..TH;2KDFTV..KU N35..LHD..5F..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN15,25,36..SR..( GEN,IDN,PHL);1KDFTV..KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,PHL);2KDFTV |
90916-03118 |
from US $20.94 |
||
|
16341
|
16341
16341-30020 Gasket, Water Outlet[07.2011 - 10.2016] 2KDFTV..KUN35..4FC,5FC;1KDFTV,2KDFTV..KUN2#,36..4FC..(IDN,TH);2KDFTV..KUN15,35..LH D..(DCB,THDCB,XTR)..5F..HDCR..(GEN,PHL);1KDFTV,2KDFTV..KUN1#..(4FC,5F)..DCR..(GCC, GEN,IDN,PHL,PKN,TH);1KDFTV,2KDFTV..KUN2#,36..(DCB,SCB,THDCB,THSCB,XTR |
16341-30020 |
from US $2.46 |
||
|
16346
|
16346
16346-0K010 Gasket, Thermostat[07.2011 - 10.2016] 2KDFTV..KUN15..SMT..SR;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN26,36..4FC..TH;2KDFTV..KU N35..LHD..5F..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN15,25,36..SR..( GEN,IDN,PHL);1KDFTV..KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,PHL);2KDFTV |
16346-0K010 |
from US $3.28 |
||
|
16346
|
16346
16346-67010
Gasket, Thermostat
[07.2011 - 10.2016] 2KDFTV..KUN15..SMT..SR;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN26,36..4FC..TH;2KDFTV..KU N35..LHD..5F..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN15,25,36..SR..( GEN,IDN,PHL);1KDFTV..KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,PHL);2KDFTV |
16346-67010 |
— | ||
| replacement | |||||
|
16346
|
16346
16346-30010 Gasket, Thermostat[07.2011 - 10.2016] 2KDFTV..KUN15..SMT..SR;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN26,36..4FC..TH;2KDFTV..KU N35..LHD..5F..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN15,25,36..SR..( GEN,IDN,PHL);1KDFTV..KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,PHL);2KDFTV |
16346-30010 |
from US $2.93 |
||
|
16347A
|
16347A
16347-30010 Gasket, Water By-Pass[07.2011 - 01.2016] 1KDFTV..KUN16..4FC,5F;1KDFTV..KUN26,36..4FC..TH;2KDFTV..KUN25,35..(4FC,5FC)..(IDN, PHL,TH);1KDFTV..KUN26,36..(DCB,SCB,THDCB,XTR)..(ARL,GEN,MA,PHL) *360 |
16347-30010 |
from US $0.49 |
||
|
9040508029
|
9040508029
90405-08029
Union(For Turbo Water Hose No.2)
|
90405-08029 |
— | ||
|
9155180612
|
9155180612
91551-80612 Bolt (For Front Differential Breather Plug Oil Deflector) |
91551-80612 |
from US $0.64 |
||
|
9155180818
|
9155180818
91551-80818 Bolt, Union(For Clutch Master Cylinder) |
91551-80818 |
US $1.43 |
||
|
9164380635
|
9164380635
91643-80635 New Genuine Part |
91643-80635 |
US $1.97 |
||
|
9167180820
|
9167180820
91671-80820 Bolt (For Transmission Control Cable Bracket) |
91671-80820 |
from US $0.86 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.66 |
||
