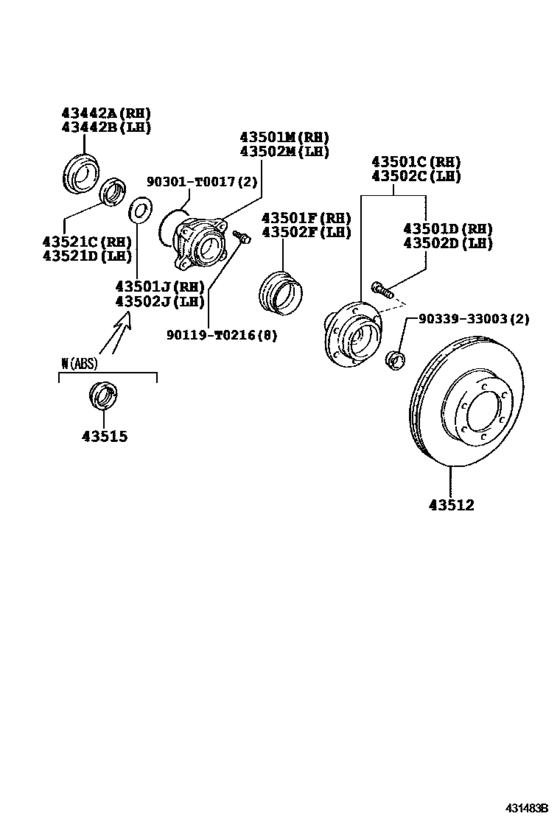

Front Axle Hub ([01.2005 - ] (0501- )GGN35,KUN3#,LAN35,TGN36) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2009 - 2011
- Sales region
- U.S.A.
- Frame
- KUN35
- grade
- SR
- ENGINE
- 2KDFTV
- DESTINATION
- TH
- DECK
- SD
- CAB
- SMT
- Model
- HILUX
- From
- 08.2009
- To
- 07.2011
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux
- Driver's Position
- RHD
- Fuel Induction
- HDCR
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
43442A
|
43442A
43442-0K010 Cap, Knuckle Grease Retainer, Inner[08.2008 - 04.2012] GGN15..DCB..DLX;TGN36..ANCOM..IV3;TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;GGN15 ,KUN16..SCB,SMT,XTR;GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN15..(DCB,SCB,SMT)..(GCC,GEN ,PHL,SA,TH);KUN16,TGN15,36..(DCB,SCB)..(ANCOM,ARL,GCC,GEN,LA,SA)..CBU |
43442-0K010 |
from US $13.22 |
||
|
43442B
|
43442B
43442-0K010 Cap, Knuckle Grease Retainer, Inner[08.2008 - 04.2012] GGN15..DCB..DLX;TGN36..ANCOM..IV3;TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;GGN15 ,KUN16..SCB,SMT,XTR;GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN15..(DCB,SCB,SMT)..(GCC,GEN ,PHL,SA,TH);KUN16,TGN15,36..(DCB,SCB)..(ANCOM,ARL,GCC,GEN,LA,SA)..CBU |
43442-0K010 |
from US $13.22 |
||
|
43501C
|
43501C
43502-0K050
Hub Sub-Assy, Front Axle, Rh
[08.2008 - 04.2012] TGN36..CBU;GGN35,KUN3#,LAN35;TGN36..ANCOM..IV3 |
43502-0K050 |
— | ||
|
43501D
|
43501D
90942-02049 Bolt, Hub[08.2008 -] TGN36..CBU;GGN25..5FC..SA;TGN36..ANCOM..IV3;TGN26..DLX..ANCOM..CBU;GGN25..DCB..(AN COM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN35,KUN2#,3#,LAN25,35..ANCOM,ARL,GCC,GEN ,LA,MA,PHL,PKN,SA,TH |
90942-02049 |
US $4.30 |
||
| replacement | |||||
|
43501D
|
43501D
90942-02082 Bolt, Hub[08.2008 -] TGN36..CBU;GGN25..5FC..SA;TGN36..ANCOM..IV3;TGN26..DLX..ANCOM..CBU;GGN25..DCB..(AN COM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN35,KUN2#,3#,LAN25,35..ANCOM,ARL,GCC,GEN ,LA,MA,PHL,PKN,SA,TH |
90942-02082 |
from US $2.32 |
||
|
43501F
|
43501F
90312-T0001 Seal, Oil (For Front Axle Hub Rh)OIL (FOR FRONT AXLE HUB RH) [08.2008 -] TGN36..CBU;GGN25..5FC..SA;TGN36..ANCOM..IV3;TGN26..DLX..ANCOM..CBU;GGN25..DCB..(AN COM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN35,KUN2#,3#,LAN25,35..ANCOM,ARL,GCC,GEN ,LA,MA,PHL,PKN,SA,TH |
90312-T0001 |
from US $8.33 |
||
|
43501J
|
43501J
90560-T0013 Spacer (For Front Axle Hub Rh)[08.2008 - 12.2011] KUN25,3#..SR..TH;GGN25..5FC..SR..ARL;TGN36..4FC..DLX..LA;TGN26..DLX..ANCOM..CBU;KU N26..RHD..4FC..(ARL,GEN);GGN25,KUN25,36,LAN25,35..DLX;KUN35..DLX..(ANCOM,GEN,PHL,S A,TH);KUN26,TGN26..LHD..DLX..(GCC,GEN,LA,SA);KUN26,TGN36..(DCB,SCB,SM |
90560-T0013 |
US $6.57 |
||
|
43501M
|
43501M
90369-T0003 Bearing (For Front Axle Hub Inner Rh)[08.2008 -] KUN26..XTR..SA;TGN26..GCC,GEN,LA;TGN36..ANCOM..IV3;TGN26..DLX..ANCOM..CBU;GGN25,TG N36..(DCB,SCB)..(ANCOM,ARL,LA)..CBU;KUN2#,3#..ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,TH |
90369-T0003 |
from US $73.13 |
||
|
43502C
|
43502C
43502-0K050
Hub Sub-Assy, Front Axle, Rh
[08.2008 - 04.2012] TGN36..CBU;GGN35,KUN3#,LAN35;TGN36..ANCOM..IV3 |
43502-0K050 |
— | ||
|
43502D
|
43502D
90942-02049 Bolt, Hub[08.2008 -] TGN36..CBU;GGN25..5FC..SA;TGN36..ANCOM..IV3;TGN26..DLX..ANCOM..CBU;GGN25..DCB..(AN COM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN35,KUN2#,3#,LAN25,35..ANCOM,ARL,GCC,GEN ,LA,MA,PHL,PKN,SA,TH |
90942-02049 |
US $4.30 |
||
| replacement | |||||
|
43502D
|
43502D
90942-02082 Bolt, Hub[08.2008 -] TGN36..CBU;GGN25..5FC..SA;TGN36..ANCOM..IV3;TGN26..DLX..ANCOM..CBU;GGN25..DCB..(AN COM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN35,KUN2#,3#,LAN25,35..ANCOM,ARL,GCC,GEN ,LA,MA,PHL,PKN,SA,TH |
90942-02082 |
from US $2.32 |
||
|
43502F
|
43502F
90312-T0001 Seal, Oil (For Front Axle Hub Rh)OIL (FOR FRONT AXLE HUB RH) [08.2008 -] TGN36..CBU;GGN25..5FC..SA;TGN36..ANCOM..IV3;TGN26..DLX..ANCOM..CBU;GGN25..DCB..(AN COM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN35,KUN2#,3#,LAN25,35..ANCOM,ARL,GCC,GEN ,LA,MA,PHL,PKN,SA,TH |
90312-T0001 |
from US $8.33 |
||
|
43502J
|
43502J
90560-T0013 Spacer (For Front Axle Hub Rh)[08.2008 - 12.2011] KUN25,3#..SR..TH;TGN36..ANCOM..IV3;TGN36..5F..DLX..CBU;GGN25..5FC..SR..ARL;TGN36.. 4FC..DLX..LA;TGN26..DLX..ANCOM..CBU;KUN26..RHD..4FC..(ARL,GEN);GGN25,KUN25,3#,LAN2 5,35..DLX;KUN26..RHD..5F..(ARL,GEN,IDN,TH);KUN26,TGN26..LHD..DLX..(GC |
90560-T0013 |
US $6.57 |
||
|
43502M
|
43502M
90369-T0003 Bearing (For Front Axle Hub Inner Rh)[08.2008 -] KUN26,36..XTR..SA;TGN26..GCC,GEN,LA;TGN36..ANCOM..IV3;TGN26..DLX..ANCOM..CBU;GGN25 ,TGN36..(DCB,SCB)..(ANCOM,ARL,LA)..CBU;KUN2#,3#..ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,T H |
90369-T0003 |
from US $73.13 |
||
|
43512
|
43512
43512-0K060 Disc, FrontFRONT [08.2008 -] KUN26,36..XTR..SA;KUN26..(DCB,SCB)..4FC..(ARL,GEN,PHL);KUN26..(DCB,SCB,SMT,XTR)..5 F..(ARL,GEN,PHL,TH);GGN25,KUN25,3#,TGN26..(DCB,SCB,SMT,THDCB,THSCB)..(ARL,GCC,GEN, MA,PHL,PKN,TH)..CBU |
43512-0K060 |
from US $108.30 |
||
|
43515
|
43515
43515-0K020 Rotor, Skid Control, FrontSKID CONTROL, FRONT [08.2008 - 10.2011] KUN2#..SMT;KUN3#..SR..TH;GGN25..5FC..SR..ARL;KUN26..RHD..(ARL,GEN,IDN);KUN25,3#,TG N26..DCB..DLX..LA;KUN26,TGN36..DLX..(GEN,LA)..CBU;TGN26..LHD..(DCB,SCB)..(GCC,GEN, SA);GGN25,KUN25,35,LAN25,35..(DCB,SCB,THDCB)..DLX..(ARL,GCC,GEN,SA) A |
43515-0K020 |
from US $14.33 |
||
|
43521C
|
43521C
43521-35010 Nut, Front Wheel Adjusting[08.2008 - 04.2012] TGN36..CBU;GGN35,KUN3#,LAN35;TGN36..ANCOM..IV3 |
43521-35010 |
from US $11.78 |
||
|
43521D
|
43521D
43521-35010 Nut, Front Wheel Adjusting[08.2008 - 04.2012] TGN36..CBU;GGN35,KUN3#,LAN35;TGN36..ANCOM..IV3 |
43521-35010 |
from US $11.78 |
||
|
90119T0216
|
90119T0216
90119-T0216 BOLT WWASHER |
90119-T0216 |
US $1.62 |
||
|
90301T0017
|
90301T0017
90301-T0017 RING O |
90301-T0017 |
US $3.26 |
||
|
9033933003
|
9033933003
90339-33003 PLUG |
90339-33003 |
US $3.93 |
||
