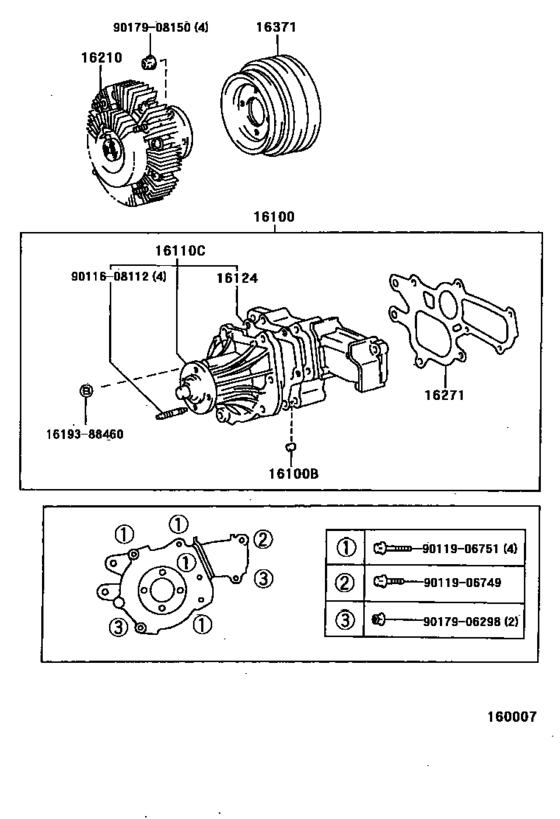

Water Pump ([09.1999 - ] (9909- )1KZTE) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2002 - 2005
- Sales region
- General
- Frame
- KZN190
- grade
- SR
- ENGINE
- 1KZTE
- TRANSMISSION
- MTM
- DESTINATION
- SA
- CAB
- DCB
- Model
- HILUX
- From
- 03.2002
- To
- 04.2005
- Vehicle Model
- Hilux
- Driver's Position
- RHD
- Fuel Induction
- TDE
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16100
|
16100
16100-69356
Pump Assy, Engine Water
[09.2001 - 04.2005] 1KZTE..KZN165;1KZTE..KZN190..SR;2KDFTV..KDN165,190..IV1 |
16100-69356 |
— | ||
| replacement | |||||
|
16100
|
16100
16100-69357 Pump Assy, Engine Water[09.2001 - 04.2005] 1KZTE..KZN165;1KZTE..KZN190..SR;2KDFTV..KDN165,190..IV1 |
16100-69357 |
from US $158.54 |
||
|
16100B
|
16100B
16159-70040 Pin, Ring(For Oil Pump Set)[09.2001 - 04.2005] 1KZTE..KZN165;1KZTE..KZN190..SR |
16159-70040 |
US $3.05 |
||
|
16110C
|
16110C
16110-69045 Pump Assy, Water, W/o Cover[09.2001 - 04.2005] 1KZTE..KZN165;1KZTE..KZN190..SR |
16110-69045 |
from US $158.54 |
||
|
16124
|
16124
16124-67010 Gasket, Water Pump Cover[09.2001 - 04.2005] 1KZTE..KZN165;1KZTE..KZN190..SR;2KDFTV..KDN165,190..IV1 |
16124-67010 |
from US $3.67 |
||
|
16210
|
16210
16210-67040 Coupling Assy, FluidFLUID [09.2001 - 04.2005] 1KZTE..KZN165;1KZTE..KZN190..SR |
16210-67040 |
US $509.60 |
||
|
16271
|
16271
16271-67020 Gasket, Water Pump[09.2001 - 04.2005] 1KZTE..KZN165;1KZTE..KZN190..SR;2KDFTV..KDN165,190..IV1 |
16271-67020 |
from US $7.82 |
||
|
16371
|
16371
16371-67020 Pulley, Fan[09.2001 - 04.2005] 1KZTE..KZN165;1KZTE..KZN190..SR |
16371-67020 |
US $72.74 |
||
|
1619388460
|
1619388460
16193-88460 Bolt, Stud(for Water Pump Cover) |
16193-88460 |
US $5.20 |
||
|
9011608112
|
9011608112
90116-08112 Bolt, Stud(For Water Pump Coupling) |
90116-08112 |
from US $0.84 |
||
|
9011906749
|
9011906749
90119-06749 BOLT WWASHER |
90119-06749 |
US $1.61 |
||
|
9011906751
|
9011906751
90119-06751 BOLT WWASHER |
90119-06751 |
US $1.61 |
||
|
9017906298
|
9017906298
90179-06298 NUT |
90179-06298 |
US $1.61 |
||
|
9017908150
|
9017908150
90179-08150 NUT |
90179-08150 |
from US $0.99 |
||
