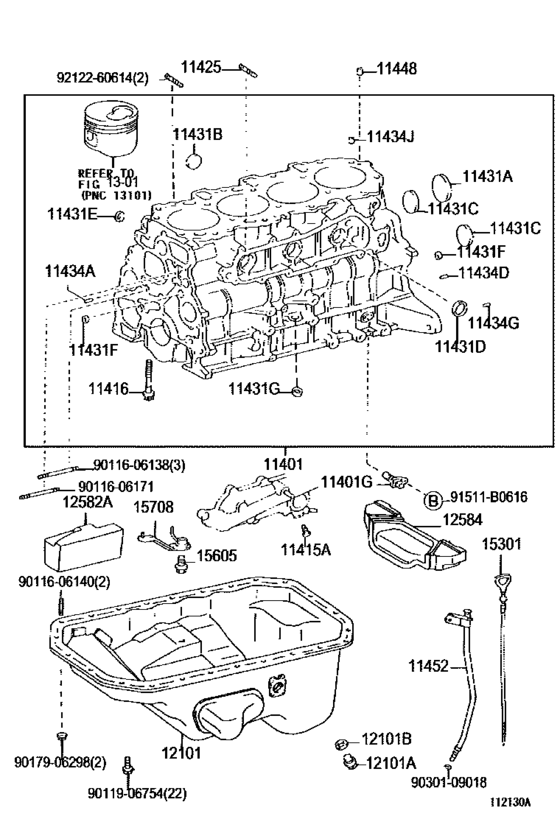

Cylinder Block ([08.2001 - ] (0108- )1KZTE) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2001 - 2004
- Sales region
- General
- Frame
- KZN205
- grade
- SR5
- ENGINE
- 1KZTE
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- HILUX
- From
- 08.2001
- To
- 12.2004
- Body
- DCB
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux
- Driver's Position
- LHD
- Fuel Induction
- EFI
- Body
- TW1
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11401
|
11401
11401-69837 Block Sub-Assy, Cylinder[08.2001 - 09.2001] 1KZTE..KZN205 |
11401-69837 |
US $4,047.68 |
||
| replacements | |||||
|
11401
|
11401
11401-80766 Block Sub-Assy, Cylinder[08.2001 - 09.2001] 1KZTE..KZN205 |
11401-80766 |
US $3,552.64 |
||
|
11401
|
11401
15708-30011 Nozzle Sub-Assy, Oil, No.1[08.2001 - 09.2001] 1KZTE..KZN205 |
15708-30011 |
from US $9.50 |
||
|
11401
|
11401
11401-69838 Block Sub-Assy, Cylinder[09.2001 - 02.2002] 1KZTE..KZN205 |
11401-69838 |
US $4,047.68 |
||
| replacement | |||||
|
11401
|
11401
11401-80766 Block Sub-Assy, Cylinder[09.2001 - 02.2002] 1KZTE..KZN205 |
11401-80766 |
US $3,552.64 |
||
|
11401
|
11401
11401-69839 Block Sub-Assy, Cylinder[02.2002 - 03.2004] 1KZTE..KZN205 |
11401-69839 |
US $4,062.24 |
||
| replacement | |||||
|
11401
|
11401
11401-80766 Block Sub-Assy, Cylinder[02.2002 - 03.2004] 1KZTE..KZN205 |
11401-80766 |
US $3,552.64 |
||
|
11401
|
11401
11401-80737 Block Sub-Assy, Cylinder[03.2004 - 12.2004] 1KZTE..KZN205 |
11401-80737 |
US $4,280.64 |
||
| replacement | |||||
|
11401
|
11401
11401-80766 Block Sub-Assy, Cylinder[03.2004 - 12.2004] 1KZTE..KZN205 |
11401-80766 |
US $3,552.64 |
||
|
11401G
|
11401G
90919-05005 Sensor, Crank Position[08.2001 - 12.2004] 1KZTE..KZN205 |
90919-05005 |
from US $65.02 |
||
|
11415A
|
11415A
90910-09087 Plug, Water Drain Cock(For Cylinder Block)[08.2001 - 12.2004] 1KZTE..KZN205 |
90910-09087 |
from US $3.02 |
||
|
11416
|
11416
90910-02113 Bolt(For Crankshaft Bearing Cap Set)[08.2001 - 12.2004] 1KZTE..KZN205 |
90910-02113 |
from US $17.56 |
||
|
11425
|
11425
90116-06171 Bolt, Stud(For Oil Filter)[08.2001 - 12.2004] 1KZTE..KZN205 |
90116-06171 |
US $1.79 |
||
|
11431A
|
11431A
96411-64500 Plug, Tight[08.2001 - 12.2004] 1KZTE..KZN205 |
96411-64500 |
from US $4.02 |
||
|
11431B
|
11431B
96411-63500 Plug, Tight[08.2001 - 12.2004] 1KZTE..KZN205 |
96411-63500 |
from US $3.58 |
||
|
11431C
|
11431C
96411-64000 Plug, Tight, No.2[08.2001 - 12.2004] 1KZTE..KZN205 |
96411-64000 |
from US $4.12 |
||
|
11431D
|
11431D
90331-35004 Plug, Tight, No.4(For Cylinder Block)[08.2001 - 12.2004] 1KZTE..KZN205 |
90331-35004 |
US $4.19 |
||
|
11431E
|
11431E
96411-62000 Plug, Tight[08.2001 - 12.2004] 1KZTE..KZN205 |
96411-62000 |
from US $2.97 |
||
|
11431F
|
11431F
96411-61800 Tight Plug(For Oil Seal Retainer)[08.2001 - 12.2004] 1KZTE..KZN205 |
96411-61800 |
US $2.15 |
||
|
11431G
|
11431G
90331-14006 Plug, Tight, No.1[08.2001 - 12.2004] 1KZTE..KZN205 |
90331-14006 |
US $0.35 |
||
|
11434A
|
11434A
90250-08120 Pin, Straight, No.1[08.2001 - 12.2004] 1KZTE..KZN205 L=18,OD=8 |
90250-08120 |
from US $1.01 |
||
|
11434D
|
11434D
90250-06068 Pin, Straight[08.2001 - 12.2004] 1KZTE..KZN205 L=11,OD=6 |
90250-06068 |
from US $0.99 |
||
|
11434G
|
11434G
90250-10192 Pin, Straight(For Timing Gear Cover Set)[08.2001 - 12.2004] 1KZTE..KZN205 |
90250-10192 |
from US $0.99 |
||
|
11434J
|
11434J
90253-15016 Pin, Straight(For End Plate)[08.2001 - 12.2004] 1KZTE..KZN205 |
90253-15016 |
from US $1.37 |
||
|
11448
|
11448
11448-67010 Orifice, Cylinder Block Oil[08.2001 - 12.2004] 1KZTE..KZN205 |
11448-67010 |
from US $1.89 |
||
|
11452
|
11452
11452-67020 Guide, Oil Level Gage[08.2001 - 12.2004] 1KZTE..KZN205 |
11452-67020 |
US $18.52 |
||
|
12101
|
12101
12101-67080 Pan Sub-Assy, OilOIL [08.2001 - 12.2004] 1KZTE..KZN205 |
12101-67080 |
US $306.68 |
||
|
12101A
|
12101A
90341-12012 Plug(For Oil Pan Drain)[08.2001 - 12.2004] 1KZTE..KZN205 |
90341-12012 |
from US $2.87 |
||
| replacement | |||||
|
12101A
|
12101A
90341-T0004 Plug(For Oil Pan Drain)[08.2001 - 12.2004] 1KZTE..KZN205 |
90341-T0004 |
US $3.59 |
||
|
12101B
|
12101B
90430-12031 Gasket (For Oil Pan Drain Plug)[08.2001 - 12.2004] 1KZTE..KZN205 |
90430-12031 |
from US $0.84 |
||
|
12582A
|
12582A
12582-67010 Insulator, Cylinder Block, No.2[08.2001 - 12.2004] 1KZTE..KZN205 |
12582-67010 |
US $64.68 |
||
|
12584
|
12584
12584-67020 Insulator, Cylinder Brock, No.4[08.2001 -] 1KZTE..KZN205 |
12584-67020 |
US $84.91 |
||
|
15301
|
15301
15301-67020 Gage Sub-Assy, Oil Level[08.2001 - 12.2004] 1KZTE..KZN205 |
15301-67020 |
US $19.99 |
||
|
15605
|
15605
15605-54010 Valve Sub-Assy, Oil Check[08.2001 - 12.2004] 1KZTE..KZN205 |
15605-54010 |
from US $9.36 |
||
|
15708
|
15708
15708-30010 Nozzle Sub-Assy, Oil, No.1[08.2001 - 07.2003] 1KZTE..KZN205 |
15708-30010 |
US $18.93 |
||
| replacement | |||||
|
15708
|
15708
15708-30011 Nozzle Sub-Assy, Oil, No.1[08.2001 - 07.2003] 1KZTE..KZN205 |
15708-30011 |
from US $9.50 |
||
|
15708
|
15708
15708-30011 Nozzle Sub-Assy, Oil, No.1[07.2003 - 12.2004] 1KZTE..KZN205 |
15708-30011 |
from US $9.50 |
||
|
91511B0616
|
91511B0616
91511-B0616 BOLTFLANGE |
91511-B0616 |
from US $0.86 |
||
| replacement | |||||
|
91511B0616
|
91511B0616
90080-10164 New Genuine Part |
90080-10164 |
US $2.67 |
||
|
9011606138
|
9011606138
90116-06138 New Genuine Part |
90116-06138 |
US $2.15 |
||
|
9011606140
|
9011606140
90116-06140 Bolt, Stud(For Oil Strainer) |
90116-06140 |
US $1.79 |
||
|
9011606171
|
9011606171
90116-06171 Bolt, Stud(For Oil Filter) |
90116-06171 |
US $1.79 |
||
|
9011906754
|
9011906754
90119-06754 BOLT WWASHER |
90119-06754 |
US $1.61 |
||
|
9017906298
|
9017906298
90179-06298 NUT |
90179-06298 |
US $1.61 |
||
|
9030109018
|
9030109018
90301-09018 Ring, O(For Timing Gear Case, Lower) |
90301-09018 |
from US $2.18 |
||
|
9212260614
|
9212260614
92122-60614 Bolt, Stud(For Oil Strainer) |
92122-60614 |
US $2.87 |
||
