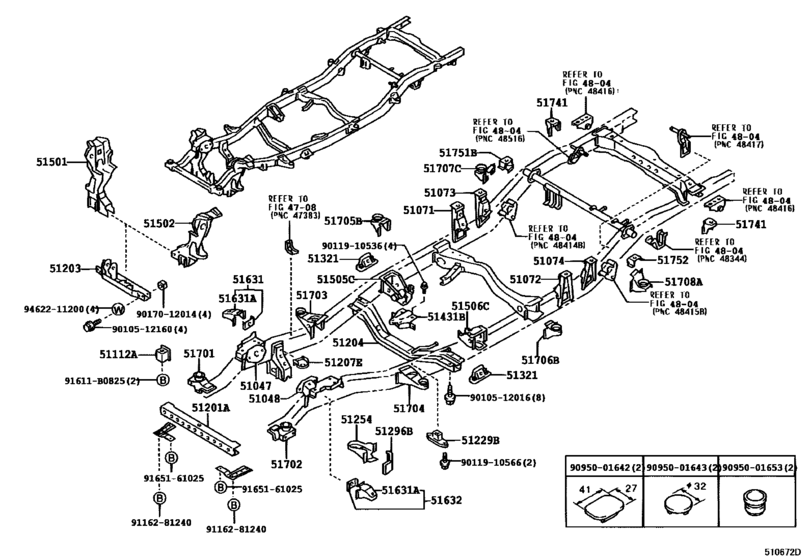

Frame ([06.2001 - ] (0106- )) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2001 - 2004
- Sales region
- General
- Frame
- KZN205
- grade
- SR5
- ENGINE
- 1KZTE
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- HILUX
- From
- 08.2001
- To
- 12.2004
- Body
- DCB
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux
- Driver's Position
- LHD
- Fuel Induction
- EFI
- Body
- TW1
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
51047
|
51047
51047-35080
Bracket Sub-Assy, Engine Mounting & Upper Arm, Rh
[08.2001 -] KZN205 |
51047-35080 |
— | ||
|
51048
|
51048
51048-35080
Bracket Sub-Assy, Engine Mounting & Upper Arm, Lh
[08.2001 -] KZN205 |
51048-35080 |
— | ||
|
51112A
|
51112A
51112-35070
Extension, Side Rail, Rh
[06.2001 -] KZN205,LN205 |
51112-35070 |
— | ||
|
51201A
|
51201A
51201-35320 Crossmember Sub-Assy, Frame, FrontFRAME, FRONT [06.2001 -] KZN205,LN205 |
51201-35320 |
US $116.48 |
||
|
51203
|
51203
51203-35270
Crossmember Sub-Assy, Frame, No.2
[06.2001 -] KZN205,LN205 |
51203-35270 |
— | ||
|
51204
|
51204
51202-35420 Crossmember Sub-Assy, Frame, No.3FRAME, NO.3 [11.2001 -] KZN205 |
51202-35420 |
US $449.90 |
||
|
51207E
|
51207E
51207-35010
Bracket Sub-Assy, Differential Support, Rh
[06.2001 - 12.2004] KZN205,LN205 |
51207-35010 |
— | ||
|
51254
|
51254
51254-35010 Bracket, Differential Support, Lh[06.2001 -] KZN205,LN205 |
51254-35010 |
US $36.40 |
||
|
51296B
|
51296B
51296-35010 Reinforcement, Differential Bracket, Lh[06.2001 -] KZN205,LN205 |
51296-35010 |
US $13.69 |
||
|
51321
|
51321
51321-35050 Bracket, Frame No.2 Crossmember, Rh[06.2001 -] KZN205,LN205 |
51321-35050 |
US $27.81 |
||
|
51431B
|
51431B
51431-35141 Bracket, Engine Rear Mounting[11.2001 -] KZN205 |
51431-35141 |
US $56.35 |
||
|
51501
|
51501
51501-35130 Support Sub-Assy, Suspension Arm, RhSUSPENSION ARM, RH [06.2001 -] KZN205,LN205 |
51501-35130 |
from US $350.82 |
||
|
51502
|
51502
51502-35130 Support Sub-Assy, Suspension Arm, LhSUSPENSION ARM, LH [06.2001 -] KZN205,LN205 |
51502-35130 |
from US $330.90 |
||
|
51505C
|
51505C
51505-35090 Support Sub-Assy, Anchor Arm, Rh[06.2001 -] KZN205,LN205 |
51505-35090 |
US $182 |
||
|
51506C
|
51506C
51506-35020 Support Sub-Assy, Anchor Arm, Lh[06.2001 -] KZN205,LN205 |
51506-35020 |
US $157.25 |
||
|
51631
|
51631
51061-35010 Stopper, Front Suspension Rebound, RhFRONT SUSPENSION REBOUND, RH [06.2001 -] KZN205,LN205 |
51061-35010 |
US $33.49 |
||
|
51631A
|
51631A
51631-35040 Stopper, Front Suspension Rebound, Rh[06.2001 -] KZN205,LN205 |
51631-35040 |
US $24.46 |
||
|
51632
|
51632
51061-35010 Stopper, Front Suspension Rebound, RhFRONT SUSPENSION REBOUND, RH [06.2001 -] KZN205,LN205 |
51061-35010 |
US $33.49 |
||
|
51701
|
51701
51701-35130 Bracket Sub-Assy, Cab Mounting, No.1 Rh[06.2001 -] KZN205,LN205 |
51701-35130 |
US $60.86 |
||
|
51702
|
51702
51702-35110
Bracket Sub-Assy, Cab Mounting, No.1 Lh
[06.2001 -] KZN205,LN205 |
51702-35110 |
— | ||
|
51703
|
51703
51703-35090 Bracket Sub-Assy, Cab Mounting, No.2, Rh[06.2001 -] KZN205,LN205 |
51703-35090 |
US $80.08 |
||
|
51704
|
51704
51704-35110 Bracket Sub-Assy, Cab Mounting, No.2 Lh[06.2001 -] KZN205,LN205 |
51704-35110 |
US $80.08 |
||
|
51705B
|
51705B
51705-35090
Bracket Sub-Assy, Cab Mounting, No.3 Rh
[06.2001 -] KZN205,LN205 |
51705-35090 |
— | ||
|
51706B
|
51706B
51705-35090
Bracket Sub-Assy, Cab Mounting, No.3 Rh
[06.2001 -] KZN205,LN205 |
51705-35090 |
— | ||
|
51707C
|
51707C
51707-35030 Bracket Sub-Assy, Cab Mounting, No.4 Rh[06.2001 -] KZN205,LN205..TW1 |
51707-35030 |
US $44.38 |
||
|
51708A
|
51708A
51708-35030
Bracket Sub-Assy, Cab Mounting, No.4 Lh
[06.2001 -] KZN205,LN205..TW1 |
51708-35030 |
— | ||
|
51741
|
51741
51741-35050
Bracket, Rear Body Mounting, No.1
[06.2001 -] KZN205,LN205 |
51741-35050 |
— | ||
|
51751B
|
51751B
51751-35070 Bracket, Body Support, No.1 Rh[06.2001 -] KZN205,LN205..TW1 |
51751-35070 |
US $18.78 |
||
|
51752
|
51752
51752-35040 Bracket, Body Support, No.1 Lh[06.2001 -] KZN205,LN205..TW1 |
51752-35040 |
US $18.78 |
||
|
91611B0825
|
91611B0825
91611-B0825 Bolt(For Clutch Release Cylinder Setting) |
91611-B0825 |
from US $1.11 |
||
|
9010512016
|
9010512016
90105-12016 New Genuine Part |
90105-12016 |
US $3.05 |
||
|
9010512160
|
9010512160
90105-12160 New Genuine Part |
90105-12160 |
US $5.42 |
||
|
9011910536
|
9011910536
90119-10536 BOLT WWASHER |
90119-10536 |
from US $1.48 |
||
|
9011910566
|
9011910566
90119-10566 New Genuine Part |
90119-10566 |
US $2.04 |
||
| replacement | |||||
|
9011910566
|
9011910566
90119-10393 New Genuine Part |
90119-10393 |
US $1.40 |
||
|
9017012014
|
9017012014
90170-12014 New Genuine Part |
90170-12014 |
US $1.75 |
||
|
9095001642
|
9095001642
90950-01642 Plug, Hole(For Frame) |
90950-01642 |
US $3.58 |
||
|
9095001643
|
9095001643
90950-01643
New Genuine Part
|
90950-01643 |
— | ||
|
9095001653
|
9095001653
90950-01653
New Genuine Part
|
90950-01653 |
— | ||
|
9116281240
|
9116281240
91162-81240 New Genuine Part |
91162-81240 |
US $3.49 |
||
|
9165161025
|
9165161025
91651-61025 Bolt with washer |
91651-61025 |
from US $1.52 |
||
|
9462211200
|
9462211200
94622-11200 WASHER |
94622-11200 |
US $3.58 |
||
