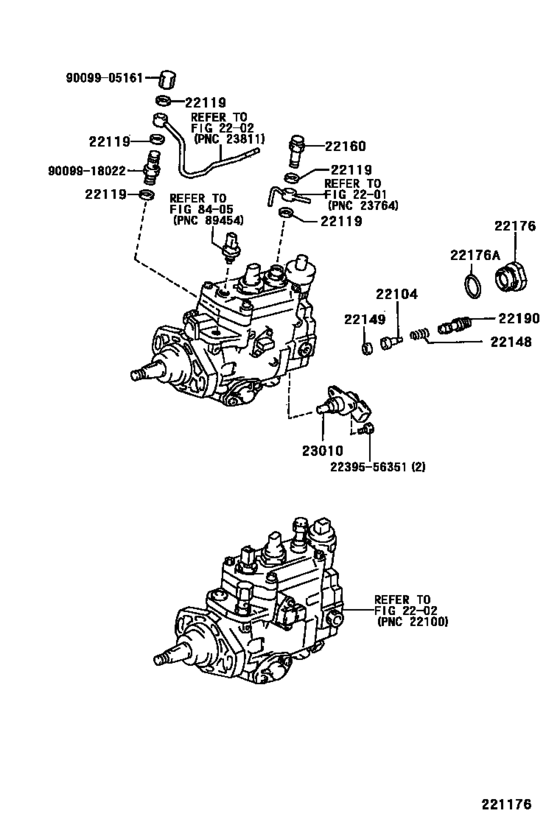

Injection Pump Body ([08.2001 - ] (0108- )1KZTE) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2001 - 2004
- Sales region
- General
- Frame
- KZN205
- grade
- SR5
- ENGINE
- 1KZTE
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- HILUX
- From
- 08.2001
- To
- 12.2004
- Body
- DCB
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux
- Driver's Position
- LHD
- Fuel Induction
- EFI
- Body
- TW1
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22104
|
22104
22104-67100 Valve Sub-Assy, Injection Pump Delivery[08.2001 - 12.2004] 1KZTE..KZN205 |
22104-67100 |
US $41.23 |
||
|
22119
|
22119
90201-12109 Washer, Air Bleeder Nipple[08.2001 - 12.2004] 1KZTE..KZN205 |
90201-12109 |
from US $1.33 |
||
|
22148
|
22148
22148-54010 Spring, Delivery Valve[08.2001 - 12.2004] 1KZTE..KZN205 |
22148-54010 |
from US $1.40 |
||
|
22149
|
22149
22149-56351 Gasket, Delivery Valve[08.2001 - 12.2004] 1KZTE..KZN205 |
22149-56351 |
US $0.70 |
||
|
22160
|
22160
22160-67100 Screw Sub-Assy, Overflow[08.2001 - 12.2004] 1KZTE..KZN205 |
22160-67100 |
from US $30.05 |
||
|
22176
|
22176
22176-54640
Plug, Distributive Head
[08.2001 - 12.2004] 1KZTE..KZN205 |
22176-54640 |
— | ||
|
22176A
|
22176A
22193-54772 Ring, O(For Distributive Head Plug)[08.2001 - 12.2004] 1KZTE..KZN205 |
22193-54772 |
from US $2.97 |
||
|
22190
|
22190
22190-6A680 Holder, Delivery Valve[08.2001 - 12.2004] 1KZTE..KZN205 |
22190-6A680 |
US $16.85 |
||
|
23010
|
23010
23010-67010 Valve Assy, Timing Control[08.2001 - 12.2004] 1KZTE..KZN205 |
23010-67010 |
from US $207.25 |
||
|
2239556351
|
2239556351
22395-56351
Bolt, Socket(for Injection Pump Governor Cover)
|
22395-56351 |
— | ||
|
9009905161
|
9009905161
90099-05161 Nut, Timer Round |
90099-05161 |
from US $1.25 |
||
|
9009918022
|
9009918022
90099-18022
SCREW
|
90099-18022 |
— |
