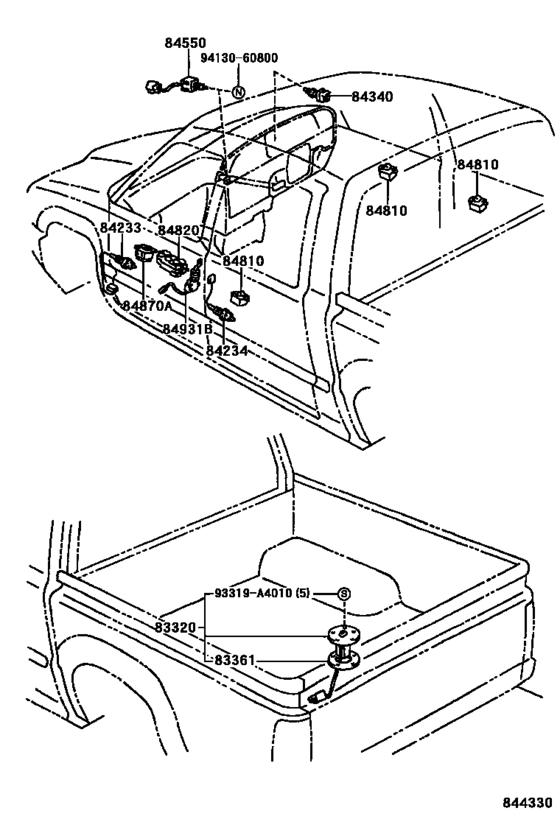

Switch & Relay & Computer ([08.2001 - ] ROOF,CONSOLE,DOOR & FLOOR (0108- )KZN205) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2001 - 2004
- Sales region
- General
- Frame
- KZN205
- grade
- SR5
- ENGINE
- 1KZTE
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- HILUX
- From
- 08.2001
- To
- 12.2004
- Body
- DCB
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux
- Driver's Position
- LHD
- Fuel Induction
- EFI
- Body
- TW1
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83320
|
83320
83320-80119 Gage Assy, Fuel Sender[06.2001 - 12.2004] KZN205,LN205..TW1 |
83320-80119 |
from US $70.36 |
||
|
83361
|
83361
83361-20030 Gasket, Fuel Tank Vent[06.2001 - 12.2004] KZN205,LN205 |
83361-20030 |
from US $2.30 |
||
|
84233
|
84233
84230-12120
Switch Assy, Courtesy Lamp (For Front Door)
[06.2001 -] KZN205,LN205 |
84230-12120 |
— | ||
| replacement | |||||
|
84233
|
84233
84231-22060 Switch Assy, Courtesy Lamp (For Front Door)[06.2001 -] KZN205,LN205 |
84231-22060 |
from US $13.26 |
||
|
84234
|
84234
84230-12120
Switch Assy, Courtesy Lamp (For Front Door)
[06.2001 -] KZN205,LN205..TW1 |
84230-12120 |
— | ||
| replacement | |||||
|
84234
|
84234
84231-22060 Switch Assy, Courtesy Lamp (For Front Door)[06.2001 -] KZN205,LN205..TW1 |
84231-22060 |
from US $13.26 |
||
|
84340
|
84340
84340-32050 Switch Assy, Stop Lamp[06.2001 -] KZN205,LN205 |
84340-32050 |
from US $18.82 |
||
|
84550
|
84550
84550-35010 Switch Assy, Parking Brake[06.2001 -] KZN205,LN205 |
84550-35010 |
from US $35.41 |
||
|
84810
|
84810
84810-32070 Switch Assy, Power Window Regulator[06.2001 - 12.2004] KZN205,LN205..SR5,SRV |
84810-32070 |
from US $39.48 |
||
|
84820
|
84820
84820-35010 Master Switch Assy, Power Window RegulatorPOWER WINDOW REGULATOR [06.2001 - 12.2004] KZN205,LN205..SR5,SRV |
84820-35010 |
from US $197.96 |
||
|
84870A
|
84870A
84870-89101 Switch Assy, Outer Mirror[06.2001 - 12.2004] KZN205,LN205..SR5,SRV |
84870-89101 |
US $79.32 |
||
|
84931B
|
84931B
84931-35060
Switch, Door Control
[06.2001 - 12.2004] KZN205,LN205..SR5,SRV |
84931-35060 |
— | ||
|
93319A4010
|
93319A4010
93319-A4010 SCREW WWASHER |
93319-A4010 |
from US $0.68 |
||
|
9413060800
|
9413060800
94130-60800 Nut(For Clutch Pedal Stopper) |
94130-60800 |
from US $0.68 |
||
| replacement | |||||
|
9413060800
|
9413060800
90170-A0003 New Genuine Part |
90170-A0003 |
US $2.22 |
||
