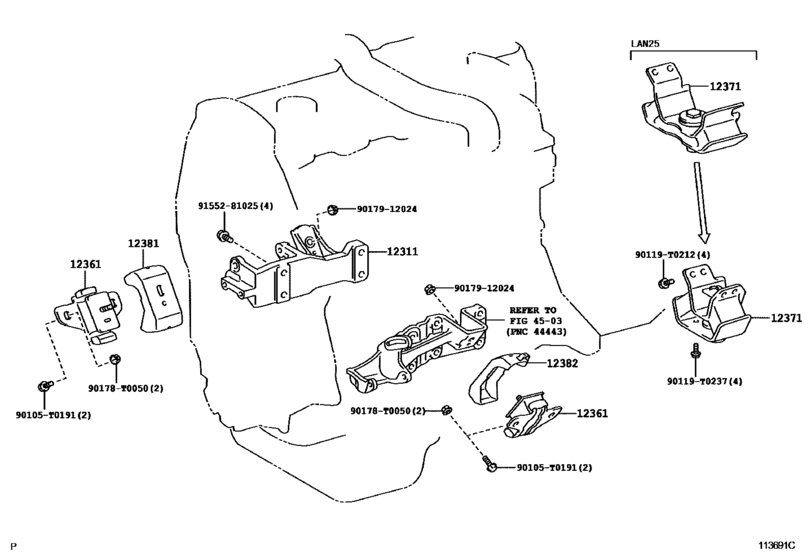

Mounting ([07.2005 - ] (0507- )5LE) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2007 - 2010
- Sales region
- U.S.A.
- Frame
- LAN15
- grade
- STD
- ENGINE
- 5LE
- DESTINATION
- PKN
- DECK
- SD
- CAB
- SCB
- Model
- HILUX
- From
- 10.2007
- To
- 09.2010
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux
- Driver's Position
- RHD
- Fuel Induction
- DEFI
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12311
|
12311
12311-54181 Bracket, Engine Mounting, Front No.1 Rh[07.2005 - 09.2010] 5LE..LAN15,25,35 |
12311-54181 |
US $49.97 |
||
|
12361
|
12361
12361-54250 Insulator, Engine Mounting, FrontENGINE MOUNTING, FRONT [07.2005 - 09.2010] 5LE..LAN15,25,35 |
12361-54250 |
US $50.78 |
||
|
12371
|
12371
12371-05020
Insulator, Engine Mounting, Rear No.1
[07.2005 - 09.2010] 5LE..LAN15,35 |
12371-05020 |
— | ||
| replacement | |||||
|
12371
|
12371
12371-05021
Insulator, Engine Mounting, Rear No.1
[07.2005 - 09.2010] 5LE..LAN15,35 |
12371-05021 |
— | ||
|
12381
|
12381
12381-54110 Stabilizer, Engine MountingENGINE MOUNTING [07.2005 - 09.2010] 5LE..LAN15,25,35 |
12381-54110 |
US $24.75 |
||
|
12382
|
12382
12382-54020 Stabilizer, Engine Mounting, LhENGINE MOUNTING, LH [07.2005 - 09.2010] 5LE..LAN15,25,35 |
12382-54020 |
US $32.61 |
||
|
90105T0191
|
90105T0191
90105-T0191 BOLT FLANGE |
90105-T0191 |
US $1.31 |
||
|
90119T0212
|
90119T0212
90119-T0212
BOLT WWASHER
|
90119-T0212 |
— | ||
| replacement | |||||
|
90119T0212
|
90119T0212
90119-T0511 BOLT W/WASHER |
90119-T0511 |
US $0.98 |
||
|
90119T0237
|
90119T0237
90119-T0237
BOLT WWASHER
|
90119-T0237 |
— | ||
|
90178T0050
|
90178T0050
90178-T0050 Nut(For Front Suspension Support) |
90178-T0050 |
US $0.92 |
||
|
9017912024
|
9017912024
90179-12024 NUT |
90179-12024 |
from US $1.09 |
||
|
9155281025
|
9155281025
91552-81025 BOLT TLANGE |
91552-81025 |
US $1.79 |
||
