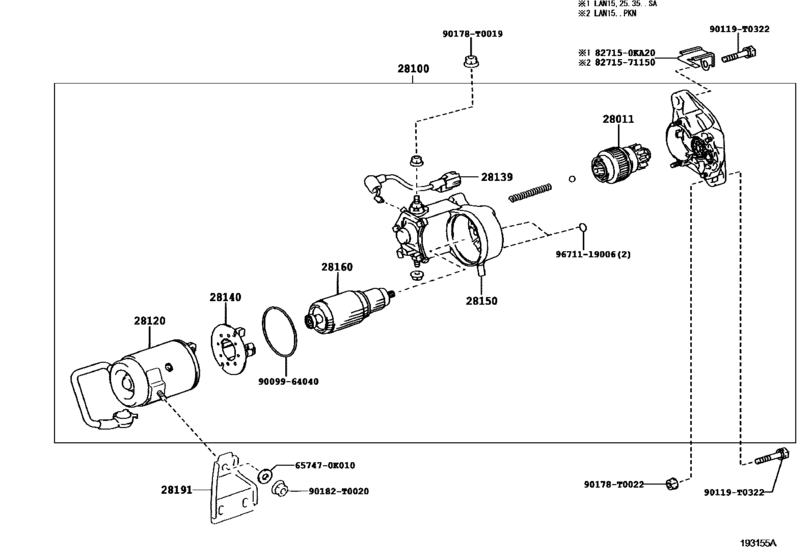

Starter ([07.2005 - ] 12V 2.2KW (0507- )5LE) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2007 - 2010
- Sales region
- U.S.A.
- Frame
- LAN15
- grade
- STD
- ENGINE
- 5LE
- DESTINATION
- PKN
- DECK
- SD
- CAB
- SCB
- Model
- HILUX
- From
- 10.2007
- To
- 09.2010
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux
- Driver's Position
- RHD
- Fuel Induction
- DEFI
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28011
|
28011
28011-54260 Clutch Sub-Assy, Starter[07.2005 - 09.2010] 5LE..LAN15,25,35 |
28011-54260 |
from US $155.26 |
||
|
28100
|
28100
28100-54490
Starter Assy
[07.2005 - 10.2009] 5LE..LAN15,25,35 12V 2.2KW |
28100-54490 |
— | ||
| replacement | |||||
|
28100
|
28100
28100-54491 Starter Assy[07.2005 - 10.2009] 5LE..LAN15,25,35 12V 2.2KW |
28100-54491 |
US $668.95 |
||
|
28100
|
28100
28100-54491 Starter Assy[11.2009 - 09.2010] 5LE..LAN15..PKN 12V 2.2KW |
28100-54491 |
US $668.95 |
||
|
28120
|
28120
28120-54260
Yoke Assy, Starter
[07.2005 - 09.2010] 5LE..LAN15,25,35 |
28120-54260 |
— | ||
|
28139
|
28139
28139-56280
Wire, Lead, No.1(For Starter)
[07.2005 - 09.2010] 5LE..LAN15,25,35 |
28139-56280 |
— | ||
|
28140
|
28140
28140-64040 Holder Assy, Starter Brush[08.2004 - 09.2010] 1KDFTV..KUN26..THDCB;1KDFTV..KUN16..XTR..TH;1KDFTV,5LE..KUN16,LAN15,25,35..DCB,SCB ;1KDFTV..KUN26,36..(DCB,SCB,XTR)..(ARL,PHL,TH) |
28140-64040 |
from US $35.49 |
||
|
28150
|
28150
28150-54330 Switch Assy, Magnet Starter[07.2005 - 09.2010] 5LE..LAN15,25,35 |
28150-54330 |
from US $188.27 |
||
|
28160
|
28160
28160-64041 Armature Assy, Starter[08.2004 - 02.2012] 2KDFTV..KUN15..PKN;1KDFTV..KUN16..XTR..TH;1KDFTV..KUN26..THDCB..5F;1KDFTV..KUN26.. LHD..4FC..(GEN,LA);1KDFTV,5LE..KUN16,LAN15,25,35..DCB,SCB;1KDFTV..KUN26,36..(DCB,S CB,XTR)..(ARL,PHL,TH) |
28160-64041 |
US $242.86 |
||
|
28191
|
28191
28191-54040 Stay, Starter[07.2005 - 09.2010] 5LE..LAN15,25,35 |
28191-54040 |
US $17.62 |
||
|
90119T0322
|
90119T0322
90119-T0322
New Genuine Part
|
90119-T0322 |
— | ||
|
90178T0019
|
90178T0019
90178-T0019 Nut (For Connecting Rod Swivel) |
90178-T0019 |
US $0.80 |
||
|
90178T0022
|
90178T0022
90178-T0022
NUT FLANGE
|
90178-T0022 |
— | ||
|
90182T0020
|
90182T0020
90182-T0020
New Genuine Part
|
90182-T0020 |
— | ||
|
657470K010
|
657470K010
65747-0K010 Plate, Tail Gate Seal, RhTAIL GATE SEAL, RH |
65747-0K010 |
US $1.50 |
||
|
827150KA20
|
827150KA20
82715-0KA20
Bracket,wiring Harness Clamp
|
82715-0KA20 |
— | ||
|
8271571150
|
8271571150
82715-71150
Bracket,wiring Harness Clamp
|
82715-71150 |
— | ||
|
9009964040
|
9009964040
90099-64040
Rubber(For Starter Yoke)
|
90099-64040 |
— | ||
|
9671119006
|
9671119006
96711-19006 Packing(For Radiator Drain Cock) |
96711-19006 |
US $3.23 |
||
