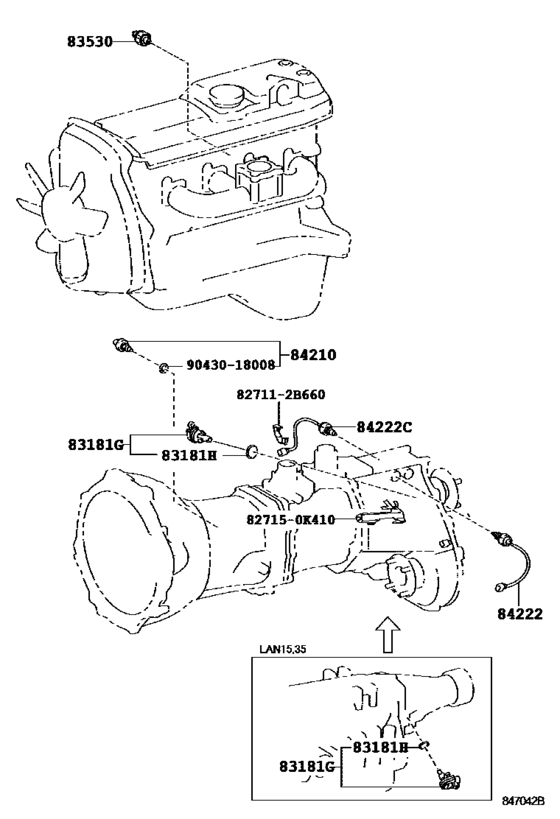

Switch & Relay & Computer ([07.2005 - ] ENGINE & TRANSMISSION (0507- )LAN15,25,35) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2007 - 2010
- Sales region
- U.S.A.
- Frame
- LAN15
- grade
- STD
- ENGINE
- 5LE
- DESTINATION
- PKN
- DECK
- SD
- CAB
- SCB
- Model
- HILUX
- From
- 10.2007
- To
- 09.2010
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux
- Driver's Position
- RHD
- Fuel Induction
- DEFI
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83181G
|
83181G
83181-35040 Sensor, Speedometer[08.2004 - 07.2009] KUN10,15,LAN15,35,TGN10,15..DCR,DEFI,HTWC |
83181-35040 |
from US $141.23 |
||
|
83181G
|
83181G
83181-35041
Sensor, Speedometer
[08.2009 - 01.2012] KUN15,LAN15..PKN |
83181-35041 |
— | ||
|
83181H
|
83181H
90301-18018 Ring, O (For Atm Speedometer Driven Hole Cover)[08.2004 - 01.2012] TGN15;KUN10,LAN15,35,TGN10..CBU;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN15..(DCB,SCB,XT R)..DCR..(GCC,GEN,PKN,TH) |
90301-18018 |
from US $3.16 |
||
|
83530
|
83530
83530-60030 Switch Assy, Oil Pressure (For Engine)[07.2005 - 09.2010] LAN15,25,35 |
83530-60030 |
from US $23.52 |
||
|
84210
|
84210
84210-04010 Switch Assy, Back-Up Lamp[08.2004 - 02.2012] KUN15..PHL..CBU;KUN10,LAN15,TGN10,15..(GCC,GEN,IDN,PKN)..CBU;KUN15..(DCB,SCB,XTR). .(DLX,STD)..(GCC,GEN,PKN,TH) |
84210-04010 |
from US $10.98 |
||
|
827112B660
|
827112B660
82711-2B660 Clamp, Wiring Harness |
82711-2B660 |
US $3.40 |
||
|
827150K410
|
827150K410
82715-0K410
Bracket,wiring Harness Clamp
|
82715-0K410 |
— | ||
|
9043018008
|
9043018008
90430-18008 Gasket |
90430-18008 |
from US $0.90 |
||
| replacement | |||||
|
9043018008
|
9043018008
90430-T0021 Gasket(For Manual Transmission Filler Plug) |
90430-T0021 |
US $1.01 |
||
