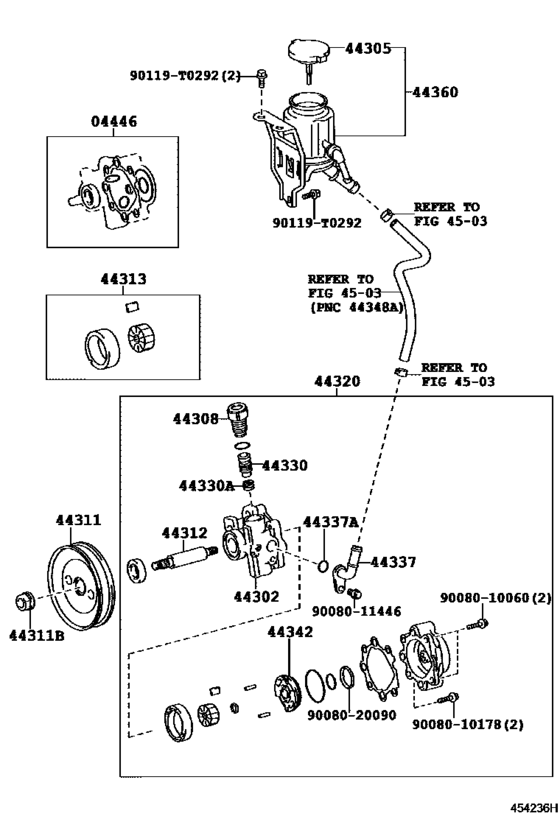

Vane Pump & Reservoir (Power Steering) ([07.2005 - ] (0507- )LAN15,25,35) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2007 - 2010
- Sales region
- U.S.A.
- Frame
- LAN15
- grade
- STD
- ENGINE
- 5LE
- DESTINATION
- PKN
- DECK
- SD
- CAB
- SCB
- Model
- HILUX
- From
- 10.2007
- To
- 09.2010
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux
- Driver's Position
- RHD
- Fuel Induction
- DEFI
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04446
|
04446
04446-0B030 Gasket Kit, Power Steering Pump[07.2005 - 09.2010] LAN15,25,35 |
04446-0B030 |
US $20.96 |
||
|
44302
|
44302
44302-04050 Housing Sub-Assy, Vane Pump, FrontVANE PUMP, FRONT [07.2005 - 09.2010] LAN15,25,35 |
44302-04050 |
US $167.44 |
||
|
44305
|
44305
44305-0K040
Cap Sub-Assy, Vane Pump Oil Reservoir
[10.2007 - 02.2011] KUN15..DCB;KUN26..THDCB;KUN25..SCB..MA;KUN16..DCB,SCB;KUN35..DCB..ANCOM;KUN26..DCB ..5F..SA;KUN25..(DCB,XTR)..SR;KUN36..(DCB,SCB)..5F;KUN35..DLX..(GEN,LA,SA);KUN15,1 6,36..XTR..SR..TH;KUN25..ANCOM,GCC,GEN,LA,SA;KUN15..SCB..(GCC,GEN,PKN |
44305-0K040 |
— | ||
| replacement | |||||
|
44305
|
44305
44305-0K042 Cap Sub-Assy, Vane Pump Oil Reservoir[10.2007 - 02.2011] KUN15..DCB;KUN26..THDCB;KUN25..SCB..MA;KUN16..DCB,SCB;KUN35..DCB..ANCOM;KUN26..DCB ..5F..SA;KUN25..(DCB,XTR)..SR;KUN36..(DCB,SCB)..5F;KUN35..DLX..(GEN,LA,SA);KUN15,1 6,36..XTR..SR..TH;KUN25..ANCOM,GCC,GEN,LA,SA;KUN15..SCB..(GCC,GEN,PKN |
44305-0K042 |
US $15.87 |
||
|
44308
|
44308
44308-0K030
Union Sub-Assy, Pressure Port
[07.2005 - 09.2010] LAN15 |
44308-0K030 |
— | ||
|
44311
|
44311
44311-26060 Pulley, Vane Pump[07.2005 - 09.2010] LAN15,25,35 |
44311-26060 |
from US $42.11 |
||
|
44311B
|
44311B
90080-17158
Nut(For Vane Pump Pulley)
[07.2005 - 09.2010] LAN15,25,35 |
90080-17158 |
— | ||
|
44312
|
44312
44312-06030
Shaft, Vane Pump
[07.2005 - 09.2010] LAN15,25,35 OD=17.999-18.004 |
44312-06030 |
— | ||
|
44312
|
44312
44312-06040
Shaft, Vane Pump
[07.2005 - 09.2010] LAN15,25,35 OD=17.994-17.999 |
44312-06040 |
— | ||
|
44313
|
44313
44313-09020
Rotor, Vane Pump
[07.2005 - 09.2010] LAN15 |
44313-09020 |
— | ||
|
44320
|
44320
44320-0K010
Pump Assy, Vane
[07.2005 - 09.2010] LAN15 |
44320-0K010 |
— | ||
|
44330
|
44330
44330-04010
Valve Assy, Flow Control
[07.2005 - 09.2010] LAN15,25,35 MARK A |
44330-04010 |
— | ||
|
44330
|
44330
44330-04020
Valve Assy, Flow Control
[07.2005 - 09.2010] LAN15,25,35 MARK B |
44330-04020 |
— | ||
|
44330
|
44330
44330-04030
Valve Assy, Flow Control
[07.2005 - 09.2010] LAN15,25,35 MARK C |
44330-04030 |
— | ||
|
44330
|
44330
44330-04040
Valve Assy, Flow Control
[07.2005 - 09.2010] LAN15,25,35 MARK D |
44330-04040 |
— | ||
|
44330
|
44330
44330-04050
Valve Assy, Flow Control
[07.2005 - 09.2010] LAN15,25,35 MARK E |
44330-04050 |
— | ||
|
44330
|
44330
44330-04060
Valve Assy, Flow Control
[07.2005 - 09.2010] LAN15,25,35 MARK F |
44330-04060 |
— | ||
|
44330A
|
44330A
90080-50247
Spring, Compression(For Flow Control Valve)
[07.2005 - 09.2010] LAN15,25,35 |
90080-50247 |
— | ||
|
44337
|
44337
44337-0K020
Union, Power Steering Suction Port
[07.2005 - 09.2010] LAN15,25,35 |
44337-0K020 |
— | ||
|
44337A
|
44337A
90080-30049
Ring, O(For Power Steering Suction Port)
[07.2005 - 09.2010] LAN15,25,35 |
90080-30049 |
— | ||
|
44342
|
44342
44342-26020 Plate, Vane Pump Side, Rear[07.2005 - 09.2010] LAN15,25,35 |
44342-26020 |
US $19.92 |
||
|
44360
|
44360
44360-0K010
Reservoir Assy, Vane Pump Oil
[08.2004 - 02.2012] KUN15..DCB;KUN26..THDCB;KUN25..SCB..MA;KUN35..DCB..ANCOM;KUN26..DCB..5F..SA;KUN25. .(DCB,XTR)..SR;KUN36..(DCB,SCB)..5F;KUN35..DLX..(GEN,LA,SA);KUN15,16,36..XTR..SR.. TH;KUN25..ANCOM,GCC,GEN,LA,SA;KUN15..SCB..(GCC,GEN,PKN,SA);KUN10,16,L |
44360-0K010 |
— | ||
| replacement | |||||
|
44360
|
44360
44360-0K011 Reservoir Assy, Vane Pump Oil[08.2004 - 02.2012] KUN15..DCB;KUN26..THDCB;KUN25..SCB..MA;KUN35..DCB..ANCOM;KUN26..DCB..5F..SA;KUN25. .(DCB,XTR)..SR;KUN36..(DCB,SCB)..5F;KUN35..DLX..(GEN,LA,SA);KUN15,16,36..XTR..SR.. TH;KUN25..ANCOM,GCC,GEN,LA,SA;KUN15..SCB..(GCC,GEN,PKN,SA);KUN10,16,L |
44360-0K011 |
US $118.52 |
||
|
90119T0292
|
90119T0292
90119-T0292 New Genuine Part |
90119-T0292 |
US $0.73 |
||
|
9008010060
|
9008010060
90080-10060
New Genuine Part
|
90080-10060 |
— | ||
|
9008010178
|
9008010178
90080-10178
New Genuine Part
|
90080-10178 |
— | ||
|
9008011446
|
9008011446
90080-11446
New Genuine Part
|
90080-11446 |
— | ||
|
9008020090
|
9008020090
90080-20090
New Genuine Part
|
90080-20090 |
— | ||
