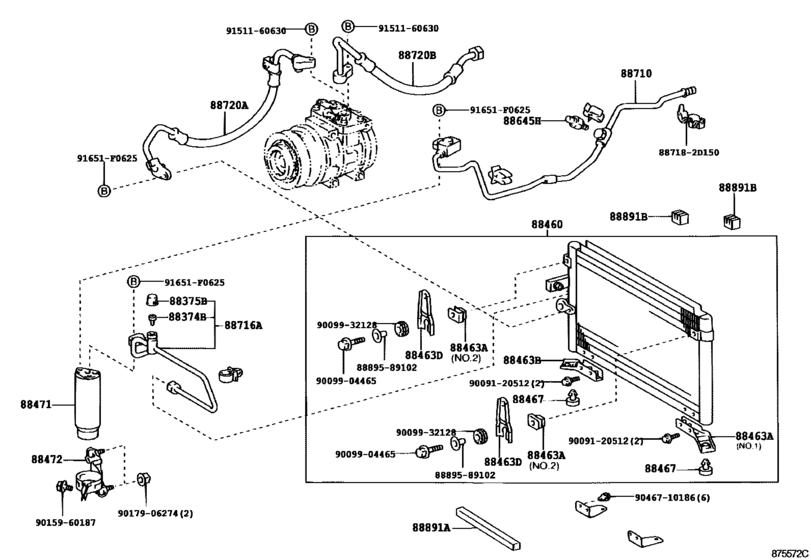

Heating & Air Conditioning - Cooler Piping ([09.2001 - ] (0109- )LHD..TH) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2001 - 2004
- Sales region
- General
- Frame
- LN145
- grade
- SR
- ENGINE
- 2L
- TRANSMISSION
- MTM
- DESTINATION
- TH
- CAB
- DCB
- Model
- HILUX
- From
- 09.2001
- To
- 08.2004
- Vehicle Model
- Hilux
- Driver's Position
- LHD
- Fuel Induction
- DSL
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88374B
|
88374B
88374-30010 Valve, Service, No.1[09.2001 - 07.2004] LN145,155..LHD..TH |
88374-30010 |
from US $3.12 |
||
|
88375B
|
88375B
88375-30280 Cap, Service Valve (For Cooler Pipe)[09.2001 - 07.2004] RZN147..ARL;LN145,155..LHD..TH |
88375-30280 |
from US $0.98 |
||
|
88460
|
88460
88460-35280
Condenser Assy, Cooler
[08.2001 - 03.2004] LN145,155..LHD..TH |
88460-35280 |
— | ||
|
88460
|
88460
88460-35340
Condenser Assy, Cooler
[03.2004 - 11.2005] LN145,155..LHD..TH |
88460-35340 |
— | ||
|
88463A
|
88463A
88463-35100
Bracket, Cooler Condenser, No.2
[08.2001 - 11.2005] LN145..LHD..IV3;RZN149..SCB..GCC;KZN165,190,RZN169,194..SR..SA;LN145,RZN148,149..L HD..DCB..(CO,GCC,TH);LN145,166,RZN147,148,169..(GCC,GEN,MA)..CBU;LN141,146,155,171 ,191,RZN142,144,154,168,193..LHD..CBU NO.1 |
88463-35100 |
— | ||
|
88463A
|
88463A
88463-35120
Bracket, Cooler Condenser, No.1
[08.2001 - 07.2004] LN145,155..LHD..TH NO.2 |
88463-35120 |
— | ||
|
88463B
|
88463B
88463-35110
Bracket, Cooler Condenser, No.3
[08.2001 - 11.2005] LN145..LHD..IV3;RZN149..SCB..GCC;KZN165,190,RZN169,194..SR..SA;LN145,RZN148,149..L HD..DCB..(CO,GCC,TH);LN145,166,RZN147,148,169..(GCC,GEN,MA)..CBU;LN141,146,155,171 ,191,RZN142,144,154,168,193..LHD..CBU |
88463-35110 |
— | ||
|
88463D
|
88463D
88463-35180
Bracket, Cooler Condenser, No.5
[08.2001 - 11.2005] KZN190..SR;LN147..IV3;RZN149..ARL;RZN147..ARL,GEN;LN145..LHD..IV3;LN147..DCB,THDCB ;RZN169..ARL,GEN,SA;LN145,152,RZN148..(ARL,GEN)..CBU;LN145,RZN148,149..LHD..DCB..( CO,TH);LN155,RZN142,168..LHD..(CO,GEN,TH)..CBU;KZN165,LN141,146,16#,1 |
88463-35180 |
— | ||
|
88467
|
88467
88467-35030
Cushion, Cooler Condenser, No.1
[08.2001 - 11.2005] KZN190..SR;LN147..IV3;LN145..LHD..IV3;RZN149..ARL,GCC;LN147..DCB,THDCB;RZN147..ARL ,GCC,GEN;LN155,RZN142,168..LHD..CBU;LN145,152,RZN148..(ARL,GEN)..CBU;LN145,RZN148, 149..LHD..DCB..(CO,TH);KZN165,LN141,146,16#,17#,19#,RZN144,154,169,17 |
88467-35030 |
— | ||
|
88471
|
88471
88471-34010 Receiver & Dryer Assy, Cooler[08.2001 -] KZN190..SR;LN147..IV3;LN145..LHD..IV3;RZN149..ARL,GCC;LN147..DCB,THDCB;RZN147..ARL ,GCC,GEN;LN155,RZN142,168..LHD..CBU;LN145,152,RZN148..(ARL,GEN)..CBU;LN145,RZN148, 149..LHD..DCB..(CO,TH);KDN165,190,KZN165,LN141,146,16#,17#,19#,RZN144,154,169 |
88471-34010 |
from US $47.25 |
||
|
88472
|
88472
88472-35060
Bracket, Receiver Tank, No.1
[08.2001 -] RZN168..CBU;RZN148..GEN..CBU;RZN149..SCB..GCC;RZN148,149..DCB..(CO,GCC);LN141,145, 146,155,166,171,191,RZN142,144,147,154,169,193..LHD |
88472-35060 |
— | ||
|
88710
|
88710
88710-35500
Tube Assy, Air Conditioner
[08.2001 - 02.2004] LN145,155..LHD..TH |
88710-35500 |
— | ||
|
88710
|
88710
88710-35501 Tube Assy, Air ConditionerAIRCONDITIONER [02.2004 - 11.2005] LN145,155..LHD..TH |
88710-35501 |
from US $222.77 |
||
|
88716A
|
88716A
88716-35610
Pipe, Cooler Refrigerant Liquid, A
[08.2001 - 03.2004] LN145,155..LHD..TH |
88716-35610 |
— | ||
|
88716A
|
88716A
88716-35690
Pipe, Cooler Refrigerant Liquid, A
[03.2004 - 11.2005] LN145,155..LHD..TH |
88716-35690 |
— | ||
|
88720A
|
88720A
88720-35460 Hose & Accessory, Air ConditionerAIRCONDITIONER [08.2001 - 03.2004] LN145,155..LHD..TH DEALER OPTION |
88720-35460 |
US $186.37 |
||
|
88720A
|
88720A
88720-35520
Hose & Accessory, Air Conditioner
[03.2004 - 09.2004] LN145,155..LHD..TH |
88720-35520 |
— | ||
|
88720B
|
88720B
88720-35410 Hose, Cooler Refrigerant Suction, No.1AIRCONDITIONER [09.2001 - 09.2004] LN145,155..LHD..TH |
88720-35410 |
US $195.74 |
||
|
88891A
|
88891A
88578-89119
Packing A (For Cooler)
[08.2001 - 11.2005] LN145..GEN..CBU;LN145..LHD..IV3;RZN149..SCB..GCC;KZN165,190..SR..SA;RZN148,149..DC B..(CO,GCC);RZN142,147,148,154..LHD..(GCC,GEN)..CBU;LN141,145,146,155,166,RZN144,1 69..LHD..(GCC,TH) |
88578-89119 |
— | ||
|
88891B
|
88891B
88578-35120
Packing B (For Cooler)
[08.2001 - 11.2005] LN145..LHD..IV3;RZN169..SCB..SA;RZN142,147,149,154,169..ARL,GCC;LN141,146,155,171, 191,RZN144..LHD;LN145,166,RZN174..(ARL,GCC,GEN,MA)..CBU;LN145,RZN148,149,168..LHD. .DCB..(CO,TH) |
88578-35120 |
— | ||
|
91651F0625
|
91651F0625
91651-F0625 BOLT WWASHER |
91651-F0625 |
US $1.43 |
||
|
887182D150
|
887182D150
88718-2D150 Clamp(For Cooler Refrigerant Pipe), No.1 |
88718-2D150 |
from US $5.69 |
||
|
8889589102
|
8889589102
88895-89102 Bush |
88895-89102 |
US $1.67 |
||
|
9009120512
|
9009120512
90091-20512 BOLT WWASHER |
90091-20512 |
US $0.28 |
||
|
9009904465
|
9009904465
90099-04465
New Genuine Part
|
90099-04465 |
— | ||
|
9009932128
|
9009932128
90099-32128 New Genuine Part |
90099-32128 |
US $2.61 |
||
|
9015960187
|
9015960187
90159-60187 SCREW |
90159-60187 |
from US $0.86 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.70 |
||
|
9046710186
|
9046710186
90467-10186 Clip(For Front Fender Apron Seal) |
90467-10186 |
from US $1.33 |
||
|
9151160630
|
9151160630
91511-60630 BOLT |
91511-60630 |
US $2.15 |
