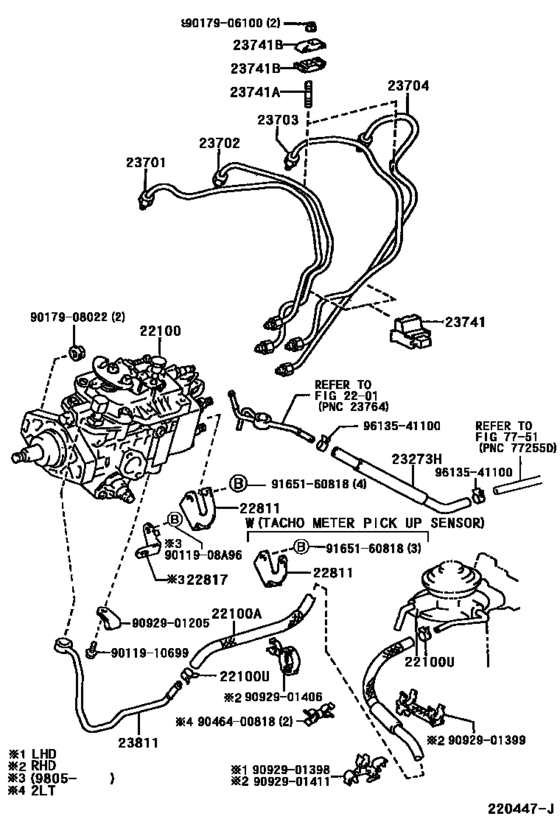

Injection Pump Assembly ([08.1997 - 08.2001] (9708-0108)2LT ; (9708-0108)2L..LN145..RHD) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 1997 - 1999
- Sales region
- Europe
- Frame
- LN145
- grade
- DLX
- ENGINE
- 2L
- TRANSMISSION
- MTM
- CAB
- SCB
- Model
- HILUX
- From
- 08.1997
- To
- 08.1999
- Vehicle Model
- Hilux
- Driver's Position
- RHD
- Building Condition
- IV3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22100
|
22100
22100-5B320
Pump Assy, Injection Or Supply
[08.1997 - 05.1998] 2L..LN145,150 |
22100-5B320 |
— | ||
| replacement | |||||
|
22100
|
22100
22100-5B360
Pump Assy, Injection Or Supply
[08.1997 - 05.1998] 2L..LN145,150 |
22100-5B360 |
— | ||
|
22100
|
22100
22100-5B830 Pump Assy, Injection Or SupplyINJECTION OR SUPPLY [05.1998 - 08.2001] 2L..LN145,150 W(ENGINE IMMOBILIZER SYSTEM) |
22100-5B830 |
US $4,950.40 |
||
|
22100A
|
22100A
23271-54100 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)[08.1997 - 08.2001] 2L#..LN145,165..RHD |
23271-54100 |
US $33.55 |
||
|
22100U
|
22100U
90467-13050
Clamp Or Clip, Hose(For Water By-Pass Hose)
[08.1997 - 08.2001] 2L#..LN145,150,165,170,190 |
90467-13050 |
— | ||
| replacement | |||||
|
22100U
|
22100U
96135-51300 Clamp, Hose[08.1997 - 08.2001] 2L#..LN145,150,165,170,190 |
96135-51300 |
from US $2.13 |
||
|
22811
|
22811
22811-54041
Stay, Injection Pump, No.1
[08.1997 - 04.1998] 2L#..LN145,150,165,170..DLX |
22811-54041 |
— | ||
| replacement | |||||
|
22811
|
22811
22811-54042 Stay, Injection Pump, No.1[08.1997 - 04.1998] 2L#..LN145,150,165,170..DLX |
22811-54042 |
US $6.99 |
||
|
22811
|
22811
22811-54042 Stay, Injection Pump, No.1[04.1998 - 05.1998] 2L#..LN145,150,165,170..DLX |
22811-54042 |
US $6.99 |
||
|
22817
|
22817
22817-54011 Bracket, Pump StayPUMP STAY [05.1998 - 08.2001] 2L#..LN145,150,165,170,190 |
22817-54011 |
US $4.95 |
||
|
23273H
|
23273H
23273-54050
Hose, Fuel, No.2
[08.1997 - 02.1998] 2L..LN145..RHD;2LT..LN165,170 |
23273-54050 |
— | ||
|
23273H
|
23273H
23273-54060 Hose, Fuel, No.2[02.1998 - 08.2001] 2L#..LN145,165..RHD |
23273-54060 |
US $7.28 |
||
|
23701
|
23701
23701-54140 Pipe Sub-Assy, Injection, No.1[08.1997 - 08.2001] 2L#..LN145,150,165,170,190 |
23701-54140 |
from US $28.73 |
||
|
23702
|
23702
23702-54140 Pipe Sub-Assy, Injection, No.2[08.1997 - 08.2001] 2L#..LN145,150,165,170,190 |
23702-54140 |
from US $28.73 |
||
|
23703
|
23703
23703-54100 Pipe Sub-Assy, Injection, No.3[08.1997 - 08.2001] 2L#..LN145,150,165,170,190 |
23703-54100 |
from US $28.73 |
||
| replacement | |||||
|
23703
|
23703
23703-05011
Pipe Sub-Assy, Injection, No.3
[08.1997 - 08.2001] 2L#..LN145,150,165,170,190 |
23703-05011 |
— | ||
|
23704
|
23704
23704-54100 Pipe Sub-Assy, Injection, No.4[08.1997 - 08.2001] 2L#..LN145,150,165,170,190 |
23704-54100 |
from US $28.73 |
||
| replacement | |||||
|
23704
|
23704
23704-05010
Pipe Sub-Assy, Injection, No.4
[08.1997 - 08.2001] 2L#..LN145,150,165,170,190 |
23704-05010 |
— | ||
|
23741
|
23741
23741-54030 Clamp, Injection Pipe, No.1[08.1997 - 08.2001] 2L#..LN145,150,165,170,190 |
23741-54030 |
US $7.43 |
||
|
23741A
|
23741A
90116-06095 Bolt, Stud(For Head To Cylinder Head Cover)[08.1997 - 08.2001] 2L#..LN145,150,165,170,190 |
90116-06095 |
US $1.61 |
||
|
23741B
|
23741B
23741-56010 Clamp, Injection Pipe, No.1[08.1997 - 08.2001] 2L#..LN145,150,165,170,190 |
23741-56010 |
from US $6.20 |
||
|
23811
|
23811
23811-54151 Pipe, Fuel(For Fuel Filter To Injection Pump)[08.1997 - 08.2001] 2L#..LN145,150,165,170,190 |
23811-54151 |
US $35.29 |
||
| replacement | |||||
|
23811
|
23811
2381105020
Pipe Fuel No.1
[08.1997 - 08.2001] 2L#..LN145,150,165,170,190 |
2381105020 |
— | ||
|
9011908A96
|
9011908A96
90119-08A96 BOLT WWASHER |
90119-08A96 |
from US $0.73 |
||
|
9011910699
|
9011910699
90119-10699
BOLT WWASHER
|
90119-10699 |
— | ||
|
9017906100
|
9017906100
90179-06100
New Genuine Part
|
90179-06100 |
— | ||
| replacement | |||||
|
9017906100
|
9017906100
90179-06204 NUT |
90179-06204 |
US $2.15 |
||
|
9017908022
|
9017908022
90179-08022 NUT |
90179-08022 |
from US $1.52 |
||
|
9046400818
|
9046400818
90464-00818 New Genuine Part |
90464-00818 |
US $2.62 |
||
|
9092901205
|
9092901205
90929-01205 CLAMP |
90929-01205 |
US $6.81 |
||
|
9092901398
|
9092901398
90929-01398 New Genuine Part |
90929-01398 |
US $4.80 |
||
|
9092901399
|
9092901399
90929-01399 New Genuine Part |
90929-01399 |
US $3.79 |
||
|
9092901406
|
9092901406
90929-01406 New Genuine Part |
90929-01406 |
US $3.79 |
||
|
9092901411
|
9092901411
90929-01411 New Genuine Part |
90929-01411 |
US $3.79 |
||
|
9165160818
|
9165160818
91651-60818 BOLTWWASHER |
91651-60818 |
from US $1.11 |
||
|
9613541100
|
9613541100
96135-41100
Clamp Or Clip, Hose(For Water By-Pass Pipe)
|
96135-41100 |
— | ||
| replacement | |||||
|
9613541100
|
9613541100
96135-51100 Clamp Or Clip(For Turbo Oil Outlet Hose) |
96135-51100 |
from US $1.83 |
||
