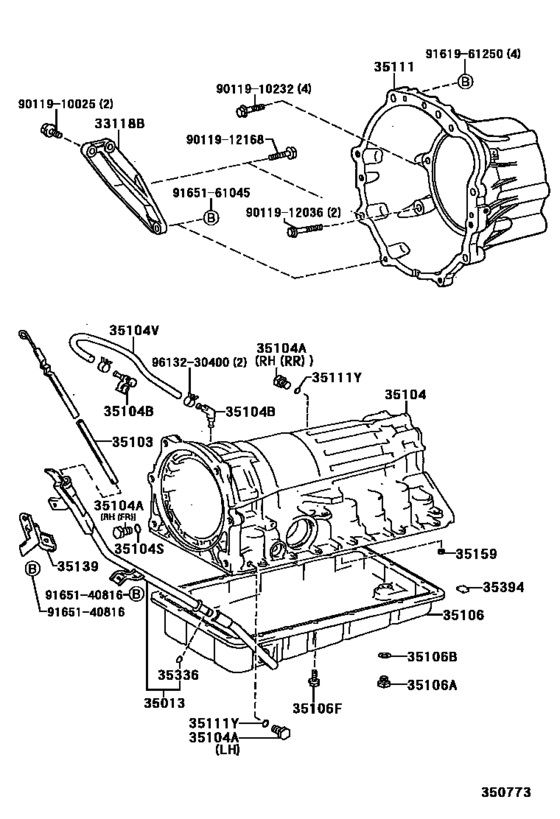

Transmission Case & Oil Pan (Atm) ([08.1997 - ] A343F (9708- )LN165) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 1997 - 1999
- Sales region
- Japan
- Frame
- LN165
- grade
- Q
- ENGINE
- 2LTE
- TRANSMISSION
- ATM
- CAB
- DCB
- Model
- HILUX
- From
- 08.1997
- To
- 08.1999
- Vehicle Model
- Hilux
- Body Shape
- NOB
- Deck,cab
- TW1
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33118B
|
33118B
33118-35060
Plate, Stiffener, Rh(Mtm)
[08.1997 - 08.1999] LN165,170 |
33118-35060 |
— | ||
|
35013
|
35013
35013-35330 Tube Sub-Assy, Transmission Oil Filler[08.1997 - 08.1999] LN165,170 |
35013-35330 |
US $44.41 |
||
|
35103
|
35103
35103-35380 Gage Sub-Assy, Transmission Oil Level[08.1997 - 08.1999] LN165,170 |
35103-35380 |
US $21.55 |
||
|
35104
|
35104
35104-35011
Case Sub-Assy, Automatic Transmission
[08.1997 - 08.2001] LN165,170,RZN169,174 |
35104-35011 |
— | ||
|
35104A
|
35104A
90341-08001 Plug, Transaxle Case, No.1[08.1997 - 08.1999] LN165,170 右側（リア） 又は 左側 |
90341-08001 |
from US $1.52 |
||
|
35104A
|
35104A
90341-14011 Plug, Automatic Transmission Case[08.1997 - 08.1999] LN165,170 右側（フロント） |
90341-14011 |
from US $3.22 |
||
|
35104B
|
35104B
90930-03098 Plug, Breather, No.1 (Atm)[08.1997 - 08.2001] LN165,170,RZN169,174 ミッション ケース側 |
90930-03098 |
from US $7.20 |
||
|
35104B
|
35104B
90930-03099 Plug, Breather, No.1 (Atm)[08.1997 - 08.2001] LN165,170,RZN169,174 ボデー側 |
90930-03099 |
US $7.86 |
||
|
35104S
|
35104S
90301-11006 O Ring, Transaxle Case Elbow[08.1997 - 08.1999] LN165,170 |
90301-11006 |
from US $2.50 |
||
|
35104V
|
35104V
90445-10020 Hose (For Breather Plug)[08.1997 - 08.1999] LN165,170 |
90445-10020 |
US $4.54 |
||
|
35106
|
35106
35106-35080
Pan Sub-Assy, Automatic Transmission Oil
[08.1997 - 08.1999] LN165,170 |
35106-35080 |
— | ||
|
35106A
|
35106A
90341-10006
Plug (For Transfer Oil Pan)
[08.1997 - 08.2001] LN165,170,RZN147,152,169,174..ATM |
90341-10006 |
— | ||
| replacement | |||||
|
35106A
|
35106A
90341-10011 Drain Plug (No Type)[08.1997 - 08.2001] LN165,170,RZN147,152,169,174..ATM |
90341-10011 |
from US $1.79 |
||
|
35106B
|
35106B
35178-30010 Drain Plug Gasket[08.1997 - 08.2001] LN165,170,RZN147,152,169,174..ATM |
35178-30010 |
from US $1.77 |
||
|
35106F
|
35106F
90119-06513 Bolt (For Automatic Transmission Oil Pan)[08.1997 - 08.2001] LN165,170,RZN169,174 |
90119-06513 |
US $1.61 |
||
|
35111
|
35111
35111-60062
Housing, Automatic Transmission
[08.1997 - 08.1999] LN165,170 |
35111-60062 |
— | ||
|
35111Y
|
35111Y
90301-06196 O Ring, Transaxle Case, No.1[08.1997 - 08.2001] LN165,170,RZN147,152,169,174..ATM |
90301-06196 |
from US $2.24 |
||
|
35139
|
35139
35109-35020 Bracket, Oil Filler Tube[08.1997 - 08.1999] LN165,170 |
35109-35020 |
US $10.92 |
||
|
35159
|
35159
35159-30010 Gasket, Brake Drum[08.1997 - 08.2001] LN165,170,RZN169,174 |
35159-30010 |
US $13.26 |
||
|
35336
|
35336
90301-09173 Ring, O(For Transmission Oil Filler Tube)[08.1997 - 08.2001] LN165,170,RZN147,152,169,174..ATM |
90301-09173 |
from US $2.01 |
||
|
35394
|
35394
35394-30011 Magnet, Oil Cleaner (For Transmission)[08.1997 - 08.1999] LN165,170 |
35394-30011 |
from US $5.62 |
||
|
9011910025
|
9011910025
90119-10025 Bolt (For Transmission Control Cable Bracket) |
90119-10025 |
US $1.89 |
||
| replacement | |||||
|
9011910025
|
9011910025
91612-61030 Bolt (For Transmission Control Cable Bracket) |
91612-61030 |
from US $1.07 |
||
|
9011910232
|
9011910232
90119-10232 Bolt (For Transmission Housing & Case Setting) |
90119-10232 |
US $1.97 |
||
|
9011912036
|
9011912036
90119-12036 Bolt (For Transmission Housing & Case Setting) |
90119-12036 |
US $1.89 |
||
|
9011912168
|
9011912168
90119-12168 Bolt(For Transaxle & Engine Setting) |
90119-12168 |
from US $2.01 |
||
|
9161961250
|
9161961250
91619-61250 Bolt(For Transmission Case & Engine Setting) |
91619-61250 |
from US $1.95 |
||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
from US $0.98 |
||
|
9165161045
|
9165161045
91651-61045 BOLT |
91651-61045 |
US $0.96 |
||
|
9613230400
|
9613230400
96132-30400
Clip Or Clamp(For Ventilation Hose)
|
96132-30400 |
— | ||
| replacement | |||||
|
9613230400
|
9613230400
96132-51000 Clip Or Clamp(For Ventilation Hose) |
96132-51000 |
from US $1.48 |
||
