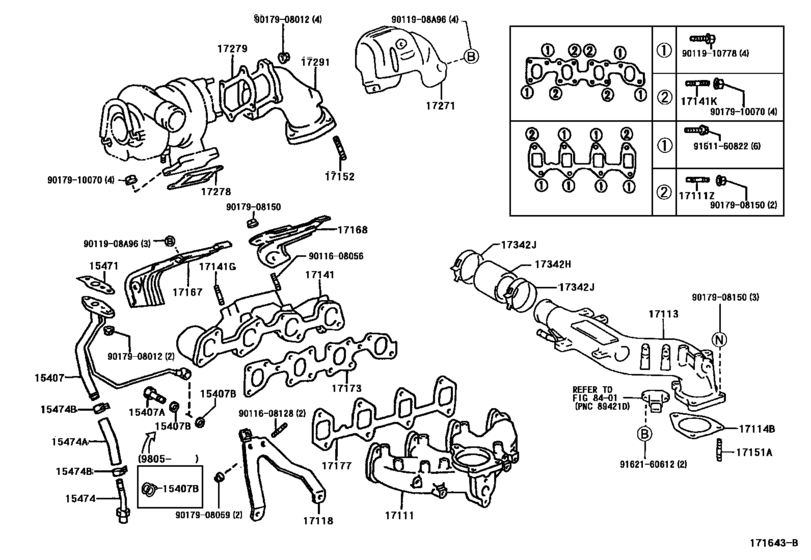

Manifold ([05.1998 - 08.2001] (9805-0108)2LT) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 1998 - 2001
- Sales region
- Europe
- Frame
- LN165
- grade
- DLX
- ENGINE
- 2LT
- TRANSMISSION
- MTM
- CAB
- DCB
- Model
- HILUX
- From
- 05.1998
- To
- 08.2001
- Vehicle Model
- Hilux
- Driver's Position
- LHD
- Building Condition
- IV3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
15407
|
15407
15407-54041
Pipe Sub-Assy, Turbo Oil Inlet
[05.1998 - 08.2001] 2LT..LN165,170,190 |
15407-54041 |
— | ||
|
15407A
|
15407A
90401-12097 Bolt, Union(For Turbo Oil Inlet Pipe)[05.1998 - 08.2001] 2LT..LN165,170,190 |
90401-12097 |
from US $2.94 |
||
|
15407B
|
15407B
90904-30004 Gasket(For Turbo Oil Inlet Pipe)[05.1998 - 08.2001] 2LT..LN165,170,190 |
90904-30004 |
from US $5.38 |
||
|
15471
|
15471
15471-58010 Gasket, Turbo Oil Inlet[08.1997 - 08.2001] 2LT..LN165,170,190 |
15471-58010 |
from US $2.48 |
||
|
15474
|
15474
15476-54020 Pipe, Turbo Oil Outlet[08.1997 - 08.2001] 2LT..LN165,170,190 |
15476-54020 |
US $11.88 |
||
|
15474A
|
15474A
15491-54020 Hose, Turbo Oil Outlet[08.1997 - 08.2001] 2LT..LN165,170,190 |
15491-54020 |
US $33.10 |
||
|
15474B
|
15474B
90467-26003
Clamp Or Clip(For Turbo Oil Outlet Hose)
[08.1997 - 08.2001] 2LT..LN165,170,190 |
90467-26003 |
— | ||
| replacement | |||||
|
15474B
|
15474B
90467-26007 Clip(For Ventilation Hose No.2)[08.1997 - 08.2001] 2LT..LN165,170,190 |
90467-26007 |
US $4.84 |
||
|
17111
|
17111
17101-54092
Manifold, Intake
[05.1998 - 08.2001] 2L#..LN145,150,165,170,190 |
17101-54092 |
— | ||
|
17111Z
|
17111Z
90116-08220 Bolt, Stud(For Intake Manifold To Cylinder Head)[08.1997 - 08.2001] 2L#..LN145,150,165,170,190 |
90116-08220 |
US $3.40 |
||
|
17113
|
17113
17113-54140 Pipe, IntakeINTAKE [05.1998 - 08.2001] 2LT..LN165,170,190 |
17113-54140 |
US $198.02 |
||
|
17114B
|
17114B
17116-54021
Gasket, Intake Flange
[08.1997 - 08.2000] 2L#..LN145,150,165,170,190 |
17116-54021 |
— | ||
| replacement | |||||
|
17114B
|
17114B
17116-54030 Gasket, Intake Flange[08.1997 - 08.2000] 2L#..LN145,150,165,170,190 |
17116-54030 |
from US $4.04 |
||
|
17114B
|
17114B
17116-54030 Gasket, Intake Flange[08.2000 - 08.2001] 2L#..LN145,150,165,170,190 |
17116-54030 |
from US $4.04 |
||
|
17118
|
17118
17118-54040 Stay, Manifold[08.1997 - 08.2001] 2LT..LN165,170,190 |
17118-54040 |
US $69.60 |
||
|
17141
|
17141
17141-54100
Manifold, Exhaust
[05.1998 - 08.2001] 2LT..LN165,170,190 |
17141-54100 |
— | ||
|
17141G
|
17141G
90116-10094 Bolt, Stud(For Turbine Housing)[08.1997 - 08.2001] 2LT..LN165,170,190 |
90116-10094 |
US $2.51 |
||
|
17141K
|
17141K
90116-10140 Bolt, Stud(For Exhaust Manifold To Cylinder Head)[08.1997 - 08.2001] 2LT..LN165,170,190 |
90116-10140 |
US $4.12 |
||
|
17151A
|
17151A
90116-08293 Bolt, Stud(For Manifold To Venturi)[08.1997 - 08.2001] 2L#..LN145,150,165,170,190 |
90116-08293 |
US $1.75 |
||
|
17152
|
17152
90116-10088 Bolt, Stud(For Manifold To Exhaust Pipe)[08.1997 - 08.2001] 2L#..LN145,150,165,170,190 |
90116-10088 |
from US $1.01 |
||
|
17167
|
17167
17167-54100
Insulator, Exhaust Manifold Heat, No.1
[08.1997 - 08.2001] 2LT..LN165,170,190 |
17167-54100 |
— | ||
|
17168
|
17168
17168-54040 Insulator, Exhaust Manifold Heat, No.2[08.1997 - 08.2001] 2LT..LN165,170,190 |
17168-54040 |
US $17.91 |
||
|
17173
|
17173
17173-54050 Gasket, Exhaust Manifold To Head[08.1997 - 08.2001] 2LT..LN165,170,190 |
17173-54050 |
from US $42.32 |
||
|
17177
|
17177
17177-54021 Gasket, Intake Manifold To Head, No.1[08.1997 - 08.2001] 2L#..LN145,150,165,170,190 |
17177-54021 |
from US $6.94 |
||
|
17271
|
17271
17271-54100 Insulator, Turbo, No.1[05.1998 - 08.2001] 2LT..LN165,170,190 |
17271-54100 |
US $81.54 |
||
|
17278
|
17278
17278-54021 Gasket, Turbo To Exhaust Manifold[08.1997 - 08.2001] 2LT..LN165,170,190 |
17278-54021 |
from US $13.07 |
||
|
17279
|
17279
17279-54020 Gasket, Turbine Outlet Elbow[05.1998 - 08.2001] 2LT..LN165,170,190 |
17279-54020 |
US $10.13 |
||
|
17291
|
17291
17291-54090 Elbow, Turbine Outlet[05.1998 - 08.2001] 2LT..LN165,170,190 |
17291-54090 |
US $138.32 |
||
|
17342H
|
17342H
17342-54030 Hose, Air, No.2(For Turbocharger)[05.1998 - 08.2001] 2LT..LN165,170,190 |
17342-54030 |
US $24.32 |
||
|
17342J
|
17342J
90467-48002 Clamp Or Clip(For Air Hose, No.1)[05.1998 - 08.2001] 2LT..LN165,170,190 |
90467-48002 |
US $6.99 |
||
|
9011908A96
|
9011908A96
90119-08A96 BOLT WWASHER |
90119-08A96 |
from US $0.73 |
||
|
9011608056
|
9011608056
90116-08056 Bolt, Stud(For Manifold Stay) |
90116-08056 |
US $3.32 |
||
|
9011608128
|
9011608128
90116-08128 Bolt, Stud(For Manifold Stay) |
90116-08128 |
US $4.66 |
||
|
9011910778
|
9011910778
90119-10778 BOLT W-WASHER |
90119-10778 |
US $2.51 |
||
|
9017908012
|
9017908012
90179-08012 NUT |
90179-08012 |
from US $2.03 |
||
|
9017908059
|
9017908059
90179-08059
Nut
|
90179-08059 |
— | ||
| replacement | |||||
|
9017908059
|
9017908059
90179-08101 NUT |
90179-08101 |
from US $0.80 |
||
|
9017908150
|
9017908150
90179-08150 NUT |
90179-08150 |
from US $0.99 |
||
|
9017910070
|
9017910070
90179-10070 Nut, Exhaust Pipe Set Stud Bolt |
90179-10070 |
from US $1.35 |
||
| replacement | |||||
|
9017910070
|
9017910070
90080-17187 Nut, Exhaust Pipe Set Stud Bolt |
90080-17187 |
US $44.70 |
||
|
9161160822
|
9161160822
91611-60822 Bolt |
91611-60822 |
from US $1.19 |
||
|
9162160612
|
9162160612
91621-60612
BOLTWWASHER
|
91621-60612 |
— | ||
| replacement | |||||
|
9162160612
|
9162160612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.66 |
||
