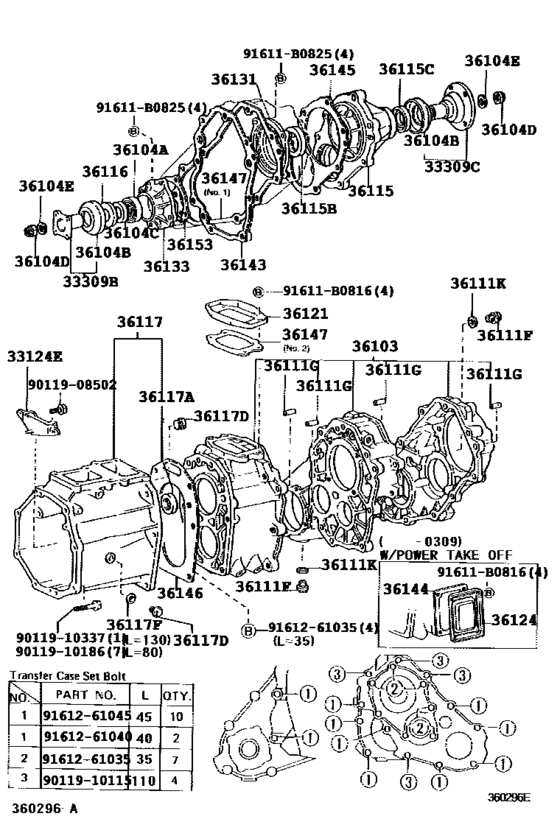

Transfer Case & Extension Housing ([08.1997 - ] (9708- )LN166,171..GEN,MA) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 1997 - 2005
- Sales region
- General
- Frame
- LN171
- grade
- DLX
- ENGINE
- 3L
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- CAB
- XTR
- Model
- HILUX
- From
- 11.1997
- To
- 06.2005
- Vehicle Model
- Hilux
- Driver's Position
- LHD
- Fuel Induction
- DSL
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33124E
|
33124E
33124-35020 Pipe, Oil Receiver(For Transfer)[08.1997 - 08.2001] LN166,171..LHD..GEN |
33124-35020 |
US $9.90 |
||
|
33309B
|
33309B
33309-35030 Flange Sub-Assy, Output Shaft Companion[08.1997 -] LN166,171..DSL..GEN |
33309-35030 |
US $211.41 |
||
|
33309C
|
33309C
33309-35040 Flange Sub-Assy, Output Shaft Companion[08.1997 -] LN166,171..DSL..GEN |
33309-35040 |
US $216.65 |
||
|
36103
|
36103
36103-35014 Case Sub-Assy, TransferTRANSFER [08.1997 -] LN166,171..DSL..GEN |
36103-35014 |
US $1,105.10 |
||
|
36103
|
36103
36103-35024 Case Sub-Assy, TransferTRANSFER [08.1997 - 09.2003] LN166,171..DSL..GEN W(POWER TAKE OFF) |
36103-35024 |
US $981.34 |
||
|
36104A
|
36104A
90311-38016 Seal, Type T, Oil (For Transfer Output Shaft)[08.1997 -] LN166,171..DSL..GEN |
90311-38016 |
from US $5.20 |
||
|
36104B
|
36104B
33325-35020 Deflector, Dust (For Transfer Output Shaft)[08.1997 -] LN166,171..DSL..GEN |
33325-35020 |
US $13.28 |
||
|
36104C
|
36104C
90303-38010 Seal, Dust(For Manual Transmission Extension Housing)[08.1997 -] LN166,171..DSL..GEN |
90303-38010 |
from US $1.91 |
||
|
36104D
|
36104D
90179-20001 Nut (For Manual Transmission Output Shaft Rear Set)[08.1997 -] LN166,171..DSL..GEN |
90179-20001 |
from US $4.97 |
||
|
36104E
|
36104E
90201-20005 Washer, Plate (For Flange Yoke)[08.1997 -] LN166,171..DSL..GEN |
90201-20005 |
from US $2.07 |
||
|
36111F
|
36111F
90341-18006 Plug (No magnet)[08.1997 -] LN166,171..DSL..GEN FILLER |
90341-18006 |
from US $3.23 |
||
|
36111F
|
36111F
90341-18057 Drain Plug (with Magnet)[08.1997 -] LN166,171..DSL..GEN DRAIN |
90341-18057 |
from US $6.27 |
||
|
36111G
|
36111G
90250-10232 Pin, Straight(For Engine Rear Oil Seal)[08.1997 -] LN166,171..DSL..GEN L=15,OD=8 |
90250-10232 |
US $1.79 |
||
|
36111K
|
36111K
90430-18008 Gasket[08.1997 -] LN166,171..DSL..GEN |
90430-18008 |
from US $0.90 |
||
| replacement | |||||
|
36111K
|
36111K
90430-T0021 Gasket(For Manual Transmission Filler Plug)[08.1997 -] LN166,171..DSL..GEN |
90430-T0021 |
US $1.01 |
||
|
36115
|
36115
36115-35010
Housing, Transfer Extension
[08.1997 -] LN166,171..DSL..GEN |
36115-35010 |
— | ||
|
36115B
|
36115B
90312-48001 Seal, Type V Oil (For Transfer Extension Housing)[08.1997 -] LN166,171..DSL..GEN |
90312-48001 |
US $2.10 |
||
|
36115C
|
36115C
90311-38140 Seal, Oil(For Manual Transmission Extension Housing)[08.1997 -] LN166,171..DSL..GEN |
90311-38140 |
from US $5.20 |
||
|
36116
|
36116
33145-30010 Retainer, Extension Housing Dust Seal(Mtm)[08.1997 -] LN166,171..DSL..GEN |
33145-30010 |
from US $2.30 |
||
|
36117
|
36117
36107-35092 Adapter, Transfer[08.1997 - 08.2001] LN166,171..LHD..GEN |
36107-35092 |
US $815.36 |
||
|
36117A
|
36117A
90311-32009 Seal, Oil(For Transfer Adapter)[08.1997 - 08.2001] LN166,171..LHD..GEN |
90311-32009 |
from US $6.98 |
||
|
36117D
|
36117D
90341-18006 Plug (No magnet)[08.1997 - 08.2001] LN166,171..LHD..GEN FILLER |
90341-18006 |
from US $3.23 |
||
|
36117D
|
36117D
90341-30003 Plug(For Transfer Adapter)[08.1997 - 08.2001] LN166,171..LHD..GEN DRAIN |
90341-30003 |
US $5.53 |
||
|
36117F
|
36117F
90430-18008 Gasket[08.1997 - 08.2001] LN166,171..LHD..GEN |
90430-18008 |
from US $0.90 |
||
| replacement | |||||
|
36117F
|
36117F
90430-T0021 Gasket(For Manual Transmission Filler Plug)[08.1997 - 08.2001] LN166,171..LHD..GEN |
90430-T0021 |
US $1.01 |
||
|
36121
|
36121
36121-35010 Cover, Transfer Case, No.1[08.1997 -] LN166,171..DSL..GEN |
36121-35010 |
US $70.32 |
||
|
36124
|
36124
33161-25010 Cover, Manual Transmission Power Take-Off[08.1997 - 09.2003] LN166,171..DSL..GEN |
33161-25010 |
US $7.57 |
||
|
36131
|
36131
36131-35010 Retainer, Transfer Output Shaft Front Bearing[08.1997 -] LN166,171..DSL..GEN |
36131-35010 |
US $22.57 |
||
|
36133
|
36133
36133-35010
Retainer, Transfer Front Drive Gear Bearing
[08.1997 -] LN166,171..DSL..GEN |
36133-35010 |
— | ||
|
36143
|
36143
36143-35010 Gasket, Transfer Case, Front[08.1997 -] LN166,171..DSL..GEN |
36143-35010 |
US $5.07 |
||
|
36144
|
36144
33162-25010
Gasket, Transmission Power Take-Off Cover(Mtm)
[08.1997 - 09.2003] LN166,171..DSL..GEN |
33162-25010 |
— | ||
|
36145
|
36145
36145-35010
Gasket, Transfer Extension Housing
[08.1997 -] LN166,171..DSL..GEN |
36145-35010 |
— | ||
|
36146
|
36146
36146-35021 Gasket, Transfer Reduction Case[08.1997 -] LN166,171..DSL..GEN |
36146-35021 |
US $3.49 |
||
|
36147
|
36147
36141-35010
Gasket, Transfer Case
[08.1997 -] LN166,171..DSL..GEN NO.1 |
36141-35010 |
— | ||
|
36147
|
36147
36147-35010 Gasket, Transfer Case Cover[08.1997 -] LN166,171..DSL..GEN NO.2 |
36147-35010 |
US $5.10 |
||
|
36153
|
36153
36153-35010 Gasket, Front Drive Gear Bearing Retainer[08.1997 -] LN166,171..DSL..GEN |
36153-35010 |
US $2.89 |
||
|
91611B0816
|
91611B0816
91611-B0816 Bolt |
91611-B0816 |
from US $1.01 |
||
|
91611B0825
|
91611B0825
91611-B0825 Bolt(For Clutch Release Cylinder Setting) |
91611-B0825 |
from US $1.11 |
||
|
9011908502
|
9011908502
90119-08502 New Genuine Part |
90119-08502 |
US $1.16 |
||
|
9011910115
|
9011910115
90119-10115 New Genuine Part |
90119-10115 |
US $1.40 |
||
|
9011910186
|
9011910186
90119-10186 BOLT |
90119-10186 |
US $2.51 |
||
|
9011910337
|
9011910337
90119-10337
BOLT
|
90119-10337 |
— | ||
|
9161261035
|
9161261035
91612-61035 Bolt(For Hybrid Vehicle Transaxle & Engine Setting) |
91612-61035 |
from US $1.13 |
||
|
9161261040
|
9161261040
91612-61040 Bolt(For Transmission Case & Engine Setting) |
91612-61040 |
US $2.33 |
||
|
9161261045
|
9161261045
91612-61045 Bolt(For Transaxle & Engine Setting) |
91612-61045 |
from US $1.15 |
||
