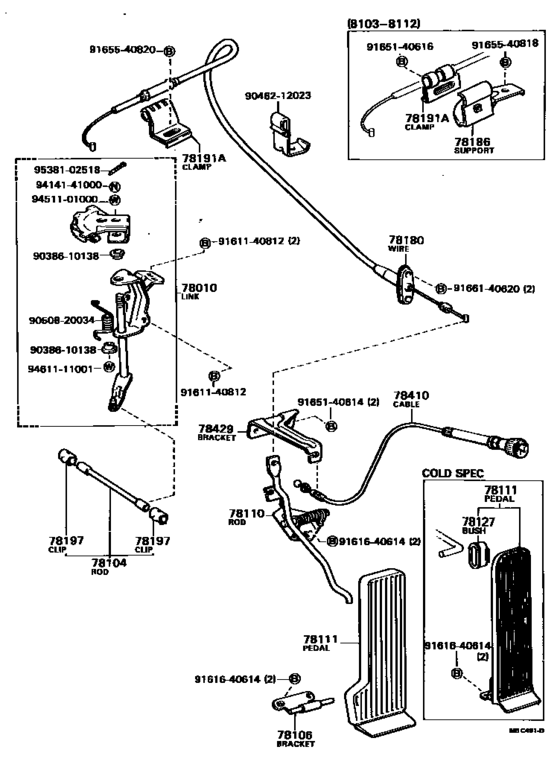

Accelerator Link ([03.1981 - 07.1983] (8103-8307)LN36,46..RHD) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 1981 - 1983
- Sales region
- General
- Frame
- LN46
- grade
- STD
- body
- T1
- ENGINE
- L
- DESTINATION
- GEN
- CAB
- ECB
- Model
- HILUX
- From
- 03.1981
- To
- 07.1983
- Gear Shift Type
- 4F
- Vehicle Model
- Hilux
- Driver's Position
- RHD
- Building Condition
- IV
- Incomplete Vehicles
- IV3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78010
|
78010
78100-89102 Link, Accelerator[01.1981 - 04.1981] LN3#,4# |
78100-89102 |
US $48.05 |
||
|
78010
|
78010
78100-95110
Link, Accelerator
[04.1981 - 07.1983] LN46..TW;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN) |
78100-95110 |
— | ||
|
78104
|
78104
78104-89105 Rod Sub-Assy, Accelerator Connecting, No.2[01.1981 - 03.1984] LN3#,40;LN46..TW;LN46..ARL..IV3;RN46..ARL..CBU;LN46..T1..(EUR,GEN) |
78104-89105 |
US $6.29 |
||
|
78106
|
78106
78011-95110
Bracket Sub-Assy, Accelerator Pedal Support
[03.1981 - 07.1983] LN46..TW..ARL;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..RHD..(EUR,GEN) |
78011-95110 |
— | ||
|
78110
|
78110
78120-95128 Rod Assy, Accelerator Pedal[03.1981 - 07.1983] LN46..TW..ARL;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..RHD..(EUR,GEN) |
78120-95128 |
US $25.19 |
||
|
78111
|
78111
78111-89102
Pedal, Accelerator
[08.1978 - 11.1981] LN3#,4#,RN3#,4# |
78111-89102 |
— | ||
| replacement | |||||
|
78111
|
78111
78111-89103
Pedal, Accelerator
[08.1978 - 11.1981] LN3#,4#,RN3#,4# |
78111-89103 |
— | ||
|
78111
|
78111
78111-89103
Pedal, Accelerator
[11.1981 - 03.1984] LN3#,4#,RN3#,4# |
78111-89103 |
— | ||
|
78180
|
78180
78180-95118 Wire Assy, Accelerator[03.1981 - 12.1981] LN46..TW..ARL;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..RHD..(EUR,GEN) |
78180-95118 |
US $52.42 |
||
|
78180
|
78180
78180-95120 Wire Assy, Accelerator[12.1981 - 07.1983] LN46..TW..ARL;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..RHD..(EUR,GEN) |
78180-95120 |
US $64.65 |
||
|
78186
|
78186
78186-89106 Support, Accelerator Control Cable, No.1[01.1981 - 12.1981] LN3#,40;LN46..TW;LN46..ARL..IV3;RN46..ARL..CBU;LN46..T1..(EUR,GEN) |
78186-89106 |
US $23.44 |
||
|
78191A
|
78191A
90461-10287
Clamp (For Accelerator Wire Set)
[12.1981 - 07.1983] LN46..TW;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN) |
90461-10287 |
— | ||
|
78191A
|
78191A
90461-10559 Clamp (For Accelerator Wire Set)[01.1981 - 12.1981] LN3#,40;LN46..TW;LN46..ARL..IV3;RN46..ARL..CBU;LN46..T1..(EUR,GEN) |
90461-10559 |
US $4.95 |
||
|
78197
|
78197
78197-10010 Clip(For Throttle Link Connecting Rod)[09.1979 - 03.1984] LN3#,40;LN46..TW;LN46..ARL..IV3;RN46..ARL..CBU;LN46..T1..(EUR,GEN) |
78197-10010 |
from US $1.25 |
||
|
78410
|
78410
78410-95113 Cable Assy, Throttle Control[08.1980 - 08.1981] LN36,46,RN36,46..ARL,GEN |
78410-95113 |
US $38.58 |
||
|
78429
|
78429
78484-95113
Bracket, Throttle Rod
[01.1979 - 07.1983] LN36,46,RN36,46..RHD..(ARL,GEN,SA) |
78484-95113 |
— | ||
|
9038610138
|
9038610138
90386-10138 Bush (For Throttle Cam Shaft) |
90386-10138 |
US $4.30 |
||
|
9046212023
|
9046212023
90462-12023 New Genuine Part |
90462-12023 |
US $7.72 |
||
|
9050820034
|
9050820034
90508-20034
Spring, Torsion (For Accelerator Link)
|
90508-20034 |
— | ||
|
9161140812
|
9161140812
91611-40812
Bolt(for Drive Plate & Torque Converter Setting)
|
91611-40812 |
— | ||
| replacement | |||||
|
9161140812
|
9161140812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
|
9161640614
|
9161640614
91616-40614
Bolt(for Dust Cover To Steering Knuckle Arm Setting)
|
91616-40614 |
— | ||
| replacement | |||||
|
9161640614
|
9161640614
91611-G0612 Bolt(For Dust Cover To Steering Knuckle Arm Setting) |
91611-G0612 |
from US $0.78 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.78 |
||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.74 |
||
| replacement | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.46 |
||
|
9165540818
|
9165540818
91655-40818
New Genuine Part
|
91655-40818 |
— | ||
| replacement | |||||
|
9165540818
|
9165540818
91651-60816 BOLT |
91651-60816 |
from US $1.01 |
||
|
9165540820
|
9165540820
91655-40820
New Genuine Part
|
91655-40820 |
— | ||
| replacement | |||||
|
9165540820
|
9165540820
91653-40820 BOLT, W/WASHER |
91653-40820 |
US $1.97 |
||
|
9166140620
|
9166140620
91661-40620 New Genuine Part |
91661-40620 |
US $1.43 |
||
|
9414141000
|
9414141000
94141-41000 NUT |
94141-41000 |
US $3.23 |
||
|
9451101000
|
9451101000
94511-01000 Washer(For Rear Drive Shaft) |
94511-01000 |
US $1.97 |
||
|
9461111001
|
9461111001
94611-11001 Plate, Rear Seat Back Stopper |
94611-11001 |
US $1.43 |
||
|
9538102518
|
9538102518
95381-02518
PIN
|
95381-02518 |
— | ||
