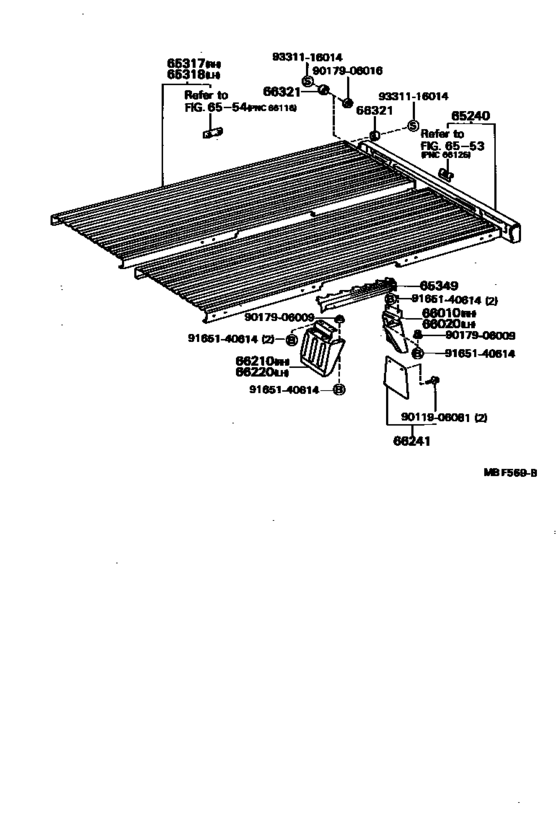

Rear Body Floor & Fender ([08.1983 - ] (8308- )T3) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 1984 - 1988
- Sales region
- Europe
- Frame
- LN56
- grade
- STD
- body
- T3
- ENGINE
- 2L
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- CAB
- RCB
- Model
- HILUX
- From
- 08.1984
- To
- 08.1988
- Gear Shift Type
- 4F
- Vehicle Model
- Hilux
- Driver's Position
- LHD
- Fuel Induction
- DSL
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
65240
|
65240
65240-95701 Crossmember, Rear Body Floor, Tail[08.1983 - 07.1998] LN55,56,YN55..T3 |
65240-95701 |
US $275.18 |
||
|
65317
|
65317
65037-89101 Panel Sub-Assy, Floor Side, Rh[08.1983 - 07.1998] LN55,56,YN55..T3 |
65037-89101 |
US $364 |
||
|
65318
|
65318
65038-89101 Panel Sub-Assy, Floor Side, Lh[08.1983 - 07.1998] LN55,56,YN55..T3 |
65038-89101 |
US $364 |
||
|
65349
|
65349
65349-95701 Fender, Floor Side[08.1983 - 07.1998] LN55,56,YN55..T3 |
65349-95701 |
US $101.92 |
||
|
66010
|
66010
66210-89101 Fender Assy, Rear Body, Rear Rh[08.1983 - 07.1998] LN55,56,YN55..T3 |
66210-89101 |
US $37.42 |
||
|
66020
|
66020
66220-89101 Fender Assy, Rear Body, Rear Lh[08.1983 - 07.1998] LN55,56,YN55..T3 |
66220-89101 |
US $37.42 |
||
|
66210
|
66210
66010-89101 Fender Assy, Rear No.2 Rh[08.1983 - 07.1998] LN55,56,YN55..T3 |
66010-89101 |
US $37.42 |
||
|
66220
|
66220
66020-89101 Fender Assy, Rear No.2 Lh[08.1983 - 07.1998] LN55,56,YN55..T3 |
66020-89101 |
US $37.42 |
||
|
66241
|
66241
66241-39015
Mudguard, Rear
[08.1983 - 08.1984] LN5#,YN5#..(RCB,XTR)..CBU |
66241-39015 |
— | ||
| replacement | |||||
|
66241
|
66241
66241-39016 Mudguard, Rear[08.1983 - 08.1984] LN5#,YN5#..(RCB,XTR)..CBU |
66241-39016 |
US $15.77 |
||
|
66241
|
66241
66241-39016 Mudguard, Rear[08.1984 - 08.1985] LN56,YN55,57..TW; LN5#,YN5#..(RCB,XTR)..CBU |
66241-39016 |
US $15.77 |
||
|
66321
|
66321
66303-87403 Bumper, Tail Gate[08.1983 - 07.1998] LN55,56,YN55..T3 |
66303-87403 |
US $8.60 |
||
|
9011906081
|
9011906081
90119-06081 New Genuine Part |
90119-06081 |
US $2.87 |
||
|
9017906009
|
9017906009
90179-06009
Nut (For Transmission Control Cable)
|
90179-06009 |
— | ||
| replacement | |||||
|
9017906009
|
9017906009
90179-06156 Nut (For Transmission Control Cable) |
90179-06156 |
from US $0.64 |
||
|
9017906016
|
9017906016
90179-06016 New Genuine Part |
90179-06016 |
US $1.05 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.78 |
||
|
9331116014
|
9331116014
93311-16014 Screw |
93311-16014 |
US $1.25 |
||
