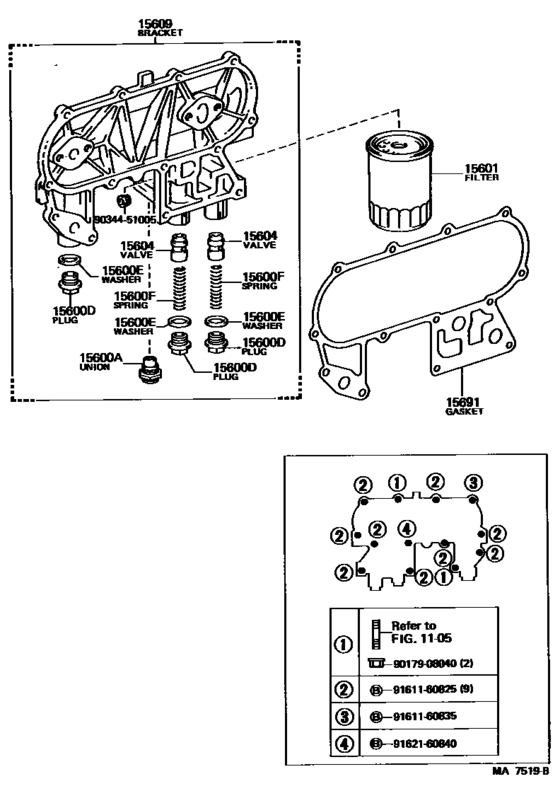

Oil Filter ([08.1984 - 08.1985] (8408-8508)2LT..LN56) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 1984 - 1985
- Sales region
- U.S.A.
- Frame
- LN56
- grade
- DLX
- body
- T1
- ENGINE
- 2LT
- TRANSMISSION
- MTM
- DESTINATION
- USA
- CAB
- RCB
- Model
- 4RUNNER TRUCK
- From
- 08.1984
- To
- 08.1985
- Gear Shift Type
- 5F
- Vehicle Model
- 4RUNNER
- Loading Capacity
- HLF
- Fuel Induction
- TD
- Building Condition
- IV
- Transmission Model
- W
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
15600A
|
15600A
15116-54020 Union(For Oil Filter)[08.1984 - 08.1985] 2LT..LN56 |
15116-54020 |
US $104.83 |
||
| replacement | |||||
|
15600A
|
15600A
15116-54021 Union(For Oil Filter)[08.1984 - 08.1985] 2LT..LN56 |
15116-54021 |
from US $15.42 |
||
|
15600D
|
15600D
90341-18015 Plug, W/head Straight Screw(For Timing Gear Case)[08.1983 - 08.1987] 2L#..LN5# |
90341-18015 |
US $2.62 |
||
|
15600E
|
15600E
90430-18001 Gasket, Straight Screw Plug No.1(For Cylinder Block)[08.1983 - 11.1984] 2L#..LN5#,65 |
90430-18001 |
US $3.05 |
||
|
15600E
|
15600E
90430-18011 Washer(For Oil Filter)[11.1984 - 08.1987] 2L#..LN5#,6# |
90430-18011 |
US $2.33 |
||
| replacement | |||||
|
15600E
|
15600E
90430-18001 Gasket, Straight Screw Plug No.1(For Cylinder Block)[11.1984 - 08.1987] 2L#..LN5#,6# |
90430-18001 |
US $3.05 |
||
|
15600F
|
15600F
90501-16026 Spring, Compression(For Oil Filter)[08.1983 - 08.1987] 2L#..LN5#,6# |
90501-16026 |
from US $0.96 |
||
|
15601
|
15601
15600-54010 Filter Sub-Assy, OilOIL [08.1984 - 08.1985] 2LT..LN56 |
15600-54010 |
US $64.21 |
||
| replacement | |||||
|
15601
|
15601
90915-30002 Filter Sub-Assy, Oil[08.1984 - 08.1985] 2LT..LN56 |
90915-30002 |
from US $48.93 |
||
|
15604
|
15604
15131-54010 Valve, Oil Pump Relief[08.1983 - 08.1987] 2L#..LN5#,6# |
15131-54010 |
from US $5.07 |
||
|
15609
|
15609
15609-54060 Bracket Sub-Assy, Oil Filter[08.1984 - 08.1985] 2LT..LN56 |
15609-54060 |
US $343.62 |
||
|
15691
|
15691
15691-54012
Gasket, Oil Filter
[08.1983 - 08.1986] 2L#..LN5#,6# |
15691-54012 |
— | ||
| replacement | |||||
|
15691
|
15691
15692-54040 Gasket, Oil Filter[08.1983 - 08.1986] 2L#..LN5#,6# |
15692-54040 |
US $18.70 |
||
|
9017908040
|
9017908040
90179-08040 Nut, Cap(For Cylinder Head Cover) |
90179-08040 |
from US $1.03 |
||
|
9034451005
|
9034451005
90344-51005 Plug, W/head Taper Screw, No.1 |
90344-51005 |
US $3.58 |
||
|
9161160825
|
9161160825
91611-60825
Bolt(For Head To Camshaft Bearing Cap)
|
91611-60825 |
— | ||
| replacement | |||||
|
9161160825
|
9161160825
91611-B0825 Bolt(For Clutch Release Cylinder Setting) |
91611-B0825 |
from US $1.11 |
||
|
9161160835
|
9161160835
91611-60835 Bolt(For Clutch Release Cylinder Setting) |
91611-60835 |
from US $1.61 |
||
|
9162160840
|
9162160840
91621-60840 Bolt(For Rocker Support Set) |
91621-60840 |
from US $0.86 |
||
