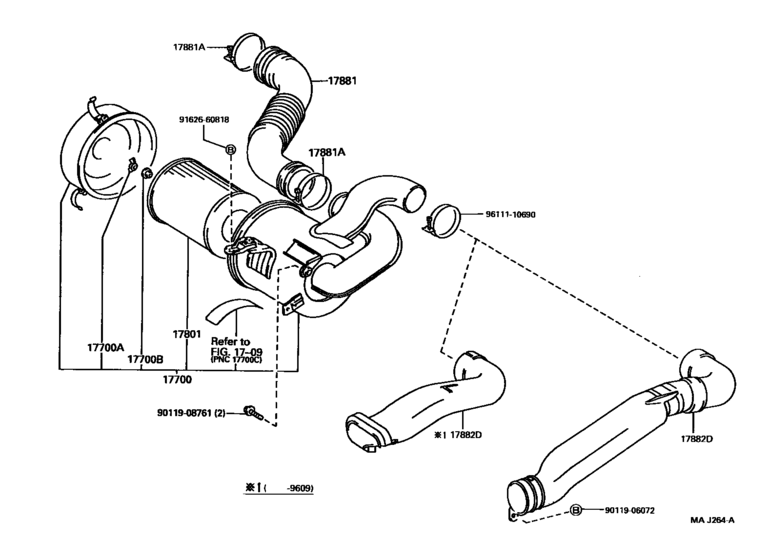

Air Cleaner ([08.1995 - ] (9508- )2L,3L) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 1984 - 1998
- Sales region
- Europe
- Frame
- LN56
- grade
- STD
- body
- T1
- ENGINE
- 2L
- TRANSMISSION
- MTM
- DESTINATION
- SA
- CAB
- RCB
- Model
- HILUX
- From
- 08.1984
- To
- 07.1998
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux
- Driver's Position
- RHD
- Fuel Induction
- DSL
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17700
|
17700
17700-54270 Cleaner Assy, AirAIR [08.1983 - 08.1995] L,2L..LN5#,6#..ARL,GEN,SA |
17700-54270 |
US $559.10 |
||
|
17700
|
17700
17700-54491 Cleaner Assy, AirAIR [08.1995 - 07.1998] 2L..LN51,56 |
17700-54491 |
from US $304.61 |
||
|
17700A
|
17700A
94271-00800 Nut, Wing(For Air Cleaner)[12.1987 - 08.1995] 2L..LN5#,6#..ARL,GEN,SA |
94271-00800 |
US $1.12 |
||
|
17700B
|
17700B
90210-08024
Washer, Seal(For Air Cleaner)
[12.1987 - 08.1995] 2L..LN5#,6#..ARL,GEN,SA |
90210-08024 |
— | ||
|
17801
|
17801
17801-31050 Element Sub-Assy, Air Cleaner Filter[08.1983 - 08.1985] 2L..LN56..LHD..EUR..CBU;L,2L..LN5#,6#..ARL,GEN,SA CYCLONE TYPE; 1Y#,3Y..YN50,52,55,57,6#..ARL,GEN,ME,SA CYCLONE TYPE |
17801-31050 |
US $65.35 |
||
|
17801
|
17801
17801-54080 Element Sub-Assy, Air Cleaner FilterAIR CLEANER FILTER [08.1995 - 07.1998] 2L,3L..LN5#,67 |
17801-54080 |
from US $60 |
||
|
17881
|
17881
17881-54200
Hose, Air Cleaner, No.1
[08.1983 - 08.1995] L,2L..LN5#,6#..ARL,GEN,SA |
17881-54200 |
— | ||
|
17881
|
17881
17881-54410 Hose, Air Cleaner, No.1AIR CLEANER, NO.1 [08.1995 - 07.1998] 2L,3L..LN5#,67 |
17881-54410 |
from US $71.28 |
||
|
17881A
|
17881A
96111-10690 Clamp, Hose[08.1983 - 07.1998] L,2L..LN50,51,55,56,60,61,65..ARL,GEN,SA INTAKE MANIFOLD SIDE |
96111-10690 |
from US $2.87 |
||
|
17881A
|
17881A
96111-10780 Clamp, Hose(For Air Connector)[08.1983 - 07.1998] L,2L..LN50,51,55,56,60,61,65..ARL,GEN,SA AIR CLEANER SIDE |
96111-10780 |
from US $3.53 |
||
|
17882D
|
17882D
17880-35071
Hose, Cool Air Intake
[08.1995 - 04.1996] 2L..LN51,56 |
17880-35071 |
— | ||
|
17882D
|
17882D
17880-89102 Hose, Cool Air IntakeAIR CLEANER, NO.2 [04.1996 - 07.1998] 2L..LN51,56 |
17880-89102 |
US $55.91 |
||
| replacement | |||||
|
17882D
|
17882D
17880-35150 Hose, Cool Air IntakeAIR CLEANER, NO.2 [04.1996 - 07.1998] 2L..LN51,56 |
17880-35150 |
US $55.91 |
||
|
9011906072
|
9011906072
90119-06072 Bolt |
90119-06072 |
US $1.65 |
||
|
9011908761
|
9011908761
90119-08761 New Genuine Part |
90119-08761 |
US $2.62 |
||
| replacement | |||||
|
9011908761
|
9011908761
90119-08806 BOLT WWASHER |
90119-08806 |
US $3.58 |
||
|
9162660818
|
9162660818
91626-60818
Bolt (For Transmission Control Cable Bracket)
|
91626-60818 |
— | ||
| replacement | |||||
|
9162660818
|
9162660818
91621-J0814 Bolt (For Transmission Control Cable Bracket) |
91621-J0814 |
from US $0.80 |
||
|
9611110690
|
9611110690
96111-10690 Clamp, Hose |
96111-10690 |
from US $2.87 |
||
