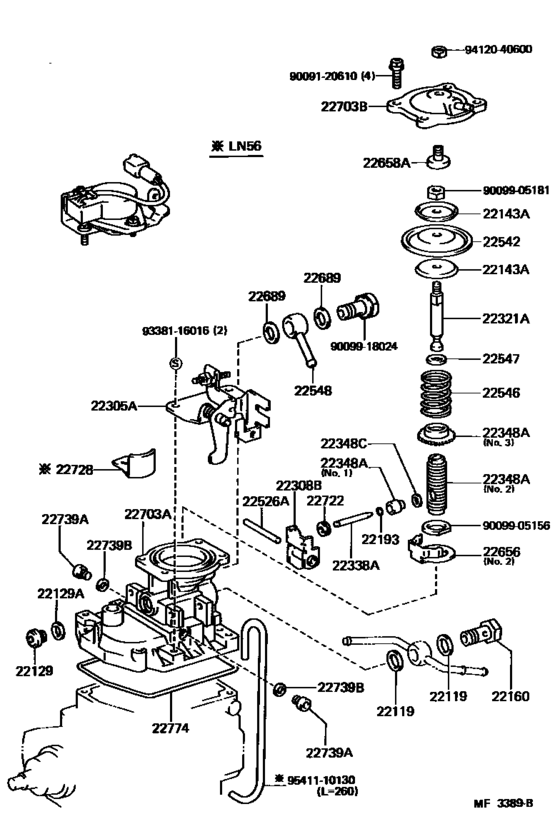

Injection Pump Body ([08.1984 - 08.1987] (8408-8708)2LT) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 1984 - 1985
- Sales region
- U.S.A.
- Frame
- LN65
- grade
- DLX
- body
- T1
- ENGINE
- 2LT
- TRANSMISSION
- MTM
- DESTINATION
- USA
- CAB
- RCB
- Model
- 4RUNNER TRUCK
- From
- 08.1984
- To
- 08.1985
- Gear Shift Type
- 5F
- Vehicle Model
- 4RUNNER
- Loading Capacity
- HLF
- Fuel Induction
- TD
- Building Condition
- IV
- Transmission Model
- W
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22119
|
22119
22119-77020
Washer, Air Bleeder Nipple
[08.1983 - 05.1987] 2L#..LN5#,6# |
22119-77020 |
— | ||
| replacement | |||||
|
22119
|
22119
90201-12109 Washer, Air Bleeder Nipple[08.1983 - 05.1987] 2L#..LN5#,6# |
90201-12109 |
from US $1.29 |
||
|
22129
|
22129
22129-54120
Plug, Screw
[08.1983 - 08.1987] 2L#..LN5#,6# |
22129-54120 |
— | ||
|
22129A
|
22129A
22119-77020
Washer, Air Bleeder Nipple
[08.1984 - 05.1987] 2LT..LN56,6# |
22119-77020 |
— | ||
| replacement | |||||
|
22129A
|
22129A
90201-12109 Washer, Air Bleeder Nipple[08.1984 - 05.1987] 2LT..LN56,6# |
90201-12109 |
from US $1.29 |
||
|
22143A
|
22143A
22143-54260
Seat, Spring Upper
[08.1984 - 08.1987] 2LT..LN56,6# |
22143-54260 |
— | ||
|
22160
|
22160
22160-64010 Screw Sub-Assy, Overflow[08.1983 - 08.1987] 2L#..LN5#,6# |
22160-64010 |
US $26.58 |
||
|
22193
|
22193
22193-54121
Ring, O(For Lever Connecting Pin)
[08.1984 - 08.1987] 2LT..LN56,6# |
22193-54121 |
— | ||
| replacement | |||||
|
22193
|
22193
22193-55031
Ring, O(For Lever Connecting Pin)
[08.1984 - 08.1987] 2LT..LN56,6# |
22193-55031 |
— | ||
|
22305A
|
22305A
22305-54330
Idle-Up Sub-Assy
[08.1984 - 08.1987] 2LT..LN6# |
22305-54330 |
— | ||
|
22308B
|
22308B
22308-54140
Lever Sub-Assy, Control
[08.1984 - 08.1987] 2LT..LN6# |
22308-54140 |
— | ||
| replacement | |||||
|
22308B
|
22308B
22308-17570
Lever Sub-Assy, Control
[08.1984 - 08.1987] 2LT..LN6# |
22308-17570 |
— | ||
|
22321A
|
22321A
22321-54491
Rod, Push
[08.1984 - 08.1987] 2LT..LN56,6# |
22321-54491 |
— | ||
|
22338A
|
22338A
22338-54120
Pin, Lever Connecting
[08.1983 - 08.1987] 2L#..LN5#,6# |
22338-54120 |
— | ||
|
22348A
|
22348A
22348-54121
Bushing, Guide
[08.1984 - 08.1987] 2LT..LN56,6# NO.1 |
22348-54121 |
— | ||
|
22348A
|
22348A
22348-54490 Bushing, Guide[08.1984 - 08.1987] 2LT..LN56,6# NO.3 |
22348-54490 |
US $17.61 |
||
|
22348A
|
22348A
22348-64360
Bushing, Guide
[08.1984 - 08.1987] 2LT..LN56,6# NO.2 |
22348-64360 |
— | ||
|
22348C
|
22348C
90099-01473
Washer(For Guide Bushing)
[08.1984 - 08.1987] 2LT..LN56,6# |
90099-01473 |
— | ||
|
22526A
|
22526A
22526-54120
Pin, Lever Support
[08.1983 - 08.1987] 2L#..LN5#,6# |
22526-54120 |
— | ||
|
22542
|
22542
22542-54260 Diaphragm(For Boost Compensator)[08.1984 - 08.1987] 2LT..LN56,6# |
22542-54260 |
from US $5.24 |
||
|
22546
|
22546
22546-54490
Spring, Boost Compensator
[08.1984 - 08.1987] 2LT..LN56,6# K=2.10,L=20.3,CW=3.53 |
22546-54490 |
— | ||
|
22546
|
22546
22546-54491
Spring, Boost Compensator
[08.1984 - 08.1987] 2LT..LN56,6# K=2.30,L=19.7,CW=3.4 |
22546-54491 |
— | ||
|
22546
|
22546
22546-54492
Spring, Boost Compensator
[08.1984 - 08.1987] 2LT..LN56,6# K=2.50,L=19.2,CW=3.47 |
22546-54492 |
— | ||
|
22547
|
22547
22547-54265
Shim, Boost Compensator
[08.1984 - 08.1987] 2LT..LN56,6# T=1.3,T=1.3 |
22547-54265 |
— | ||
|
22547
|
22547
22547-54266
Shim, Boost Compensator
[08.1984 - 08.1987] 2LT..LN56,6# T=1.5,T=1.5 |
22547-54266 |
— | ||
|
22547
|
22547
22547-54490
Shim, Boost Compensator
[08.1984 - 08.1987] 2LT..LN56,6# T=1.1 |
22547-54490 |
— | ||
|
22547
|
22547
22547-54491
Shim, Boost Compensator
[08.1984 - 08.1987] 2LT..LN56,6# T=0.3 |
22547-54491 |
— | ||
|
22547
|
22547
22547-54492
Shim, Boost Compensator
[08.1984 - 08.1987] 2LT..LN56,6# T=0.5 |
22547-54492 |
— | ||
|
22547
|
22547
22547-54493
Shim, Boost Compensator
[08.1984 - 08.1987] 2LT..LN56,6# T=0.7 |
22547-54493 |
— | ||
|
22547
|
22547
22547-54494
Shim, Boost Compensator
[08.1984 - 08.1987] 2LT..LN56,6# T=0.9 |
22547-54494 |
— | ||
|
22548
|
22548
22548-54491
Nipple, Swivel
[08.1984 - 08.1987] 2LT..LN56,6# |
22548-54491 |
— | ||
|
22656
|
22656
22656-54010
Clip, Timer
[08.1983 - 08.1987] 2L#..LN5#,6# NO.1 |
22656-54010 |
— | ||
| replacement | |||||
|
22656
|
22656
22656-17840
Clip, Timer
[08.1983 - 08.1987] 2L#..LN5#,6# NO.1 |
22656-17840 |
— | ||
|
22656
|
22656
22656-54490
Clip, Timer
[08.1984 - 08.1987] 2LT..LN56,6# NO.2 |
22656-54490 |
— | ||
|
22658A
|
22658A
22658-64518
Stopper, Timer
[08.1984 - 08.1987] 2LT..LN56,6# |
22658-64518 |
— | ||
|
22689
|
22689
22119-77020
Washer, Air Bleeder Nipple
[08.1984 - 05.1987] 2LT..LN56,6# |
22119-77020 |
— | ||
| replacement | |||||
|
22689
|
22689
90201-12109 Washer, Air Bleeder Nipple[08.1984 - 05.1987] 2LT..LN56,6# |
90201-12109 |
from US $1.29 |
||
|
22703A
|
22703A
22703-54490
Cover Sub-Assy, Governor
[08.1984 - 08.1987] 2LT..LN6# |
22703-54490 |
— | ||
|
22703B
|
22703B
22703-64520
Cover, Governor
[08.1984 - 03.1986] 2LT..LN6# |
22703-64520 |
— | ||
|
22722
|
22722
22722-54120
Nut, Governor Shaft Rock
[08.1984 - 08.1987] 2LT..LN56,6# |
22722-54120 |
— | ||
|
22739A
|
22739A
22739-54120
Bolt, Governor Link Support
[08.1983 - 08.1987] 2L#..LN5#,6# |
22739-54120 |
— | ||
|
22739B
|
22739B
22378-76010
Washer, Drain Screw
[08.1984 - 08.1986] 2LT..LN56,6# |
22378-76010 |
— | ||
| replacement | |||||
|
22739B
|
22739B
22113-77090
Washer, Drain Screw
[08.1984 - 08.1986] 2LT..LN56,6# |
22113-77090 |
— | ||
|
22774
|
22774
22774-54010
Gasket, Governor Cover
[08.1983 - 08.1987] 2L#..LN5#,6# |
22774-54010 |
— | ||
| replacement | |||||
|
22774
|
22774
22774-54270 Gasket, Governor Cover[08.1983 - 08.1987] 2L#..LN5#,6# |
22774-54270 |
from US $3.14 |
||
|
9009120610
|
9009120610
90091-20610
New Genuine Part
|
90091-20610 |
— | ||
|
9009905156
|
9009905156
90099-05156
New Genuine Part
|
90099-05156 |
— | ||
|
9009905181
|
9009905181
90099-05181
New Genuine Part
|
90099-05181 |
— | ||
| replacement | |||||
|
9009905181
|
9009905181
90099-05252
New Genuine Part
|
90099-05252 |
— | ||
|
9009918024
|
9009918024
90099-18024
New Genuine Part
|
90099-18024 |
— | ||
|
9338116016
|
9338116016
93381-16016 SCREWWWASHER |
93381-16016 |
US $3.05 |
||
|
9412040600
|
9412040600
94120-40600 Nut, Wire Adjusting, No.1 |
94120-40600 |
US $3.05 |
||
|
9541110130
|
9541110130
95411-10130
Pipe Or Hose
|
95411-10130 |
— | ||
| replacement | |||||
|
9541110130
|
9541110130
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
