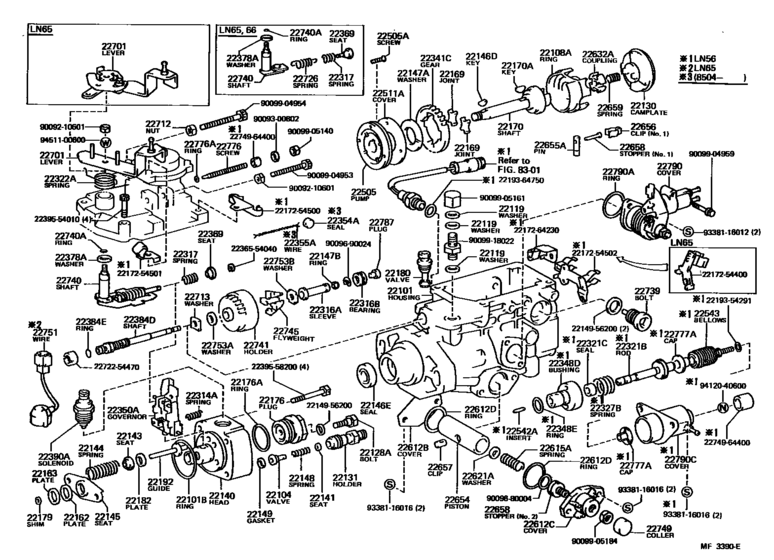

Injection Pump Body ([08.1984 - 08.1985] (8408-8508)2LT) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 1984 - 1985
- Sales region
- U.S.A.
- Frame
- LN65
- grade
- DLX
- body
- T1
- ENGINE
- 2LT
- TRANSMISSION
- MTM
- DESTINATION
- USA
- CAB
- RCB
- Model
- 4RUNNER TRUCK
- From
- 08.1984
- To
- 08.1985
- Gear Shift Type
- 5F
- Vehicle Model
- 4RUNNER
- Loading Capacity
- HLF
- Fuel Induction
- TD
- Building Condition
- IV
- Transmission Model
- W
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22101
|
22101
22101-64010
Housing Sub-Assy, Injection Pump
[08.1984 - 08.1987] 2LT..LN6# |
22101-64010 |
— | ||
|
22101B
|
22101B
90099-14053 Ring, O(For Injection Pump Housing)[08.1983 - 08.1987] 2L#..LN5#,6# |
90099-14053 |
from US $3.84 |
||
|
22104
|
22104
22104-54490 Valve Sub-Assy, Injection Pump DeliveryINJECTION PUMP DELIVERY [08.1984 - 08.1987] 2LT..LN56,6# |
22104-54490 |
US $42.81 |
||
|
22108A
|
22108A
22108-54180
Ring Sub-Assy, Roller
[08.1983 - 08.1987] 2L#..LN5#,6# |
22108-54180 |
— | ||
|
22119
|
22119
22119-77020
Washer, Air Bleeder Nipple
[08.1983 - 05.1987] 2L#..LN5#,6# |
22119-77020 |
— | ||
| replacement | |||||
|
22119
|
22119
90201-12109 Washer, Air Bleeder Nipple[08.1983 - 05.1987] 2L#..LN5#,6# |
90201-12109 |
from US $1.29 |
||
|
22128A
|
22128A
22128-54010
Bolt, Distributive Head
[08.1983 - 08.1987] 2L#..LN5#,6# |
22128-54010 |
— | ||
|
22130
|
22130
22130-54010 Camplate Sub-Assy, Face[08.1984 - 08.1987] 2LT..LN56,6# |
22130-54010 |
US $231.09 |
||
|
22131
|
22131
22190-54170 Holder, Delivery Valve[08.1983 - 07.1986] 2L#..LN5#,6# |
22190-54170 |
US $38.44 |
||
|
22140
|
22140
22140-54410
Head Sub-Assy, Distributive Pump
[08.1984 - 08.1987] 2LT..LN56,6# |
22140-54410 |
— | ||
|
22141
|
22141
22141-54250
Seat, Delivery Valve Spring
[08.1983 - 08.1987] 2L#..LN5#,6# |
22141-54250 |
— | ||
|
22143
|
22143
22143-54010
Seat, Spring Upper
[08.1983 - 08.1987] 2L#..LN5#,6# |
22143-54010 |
— | ||
|
22144
|
22144
22144-54180 Spring, Pump Plunger[08.1984 - 08.1987] 2LT..LN56,6# |
22144-54180 |
US $8.48 |
||
|
22145
|
22145
22145-54010
Seat, Spring, Lower
[08.1983 - 08.1987] 2L#..LN5#,6# |
22145-54010 |
— | ||
|
22146D
|
22146D
90099-13018 Key(For Drive Gear)[08.1983 - 08.1987] 2L#..LN5#,6# |
90099-13018 |
US $7.71 |
||
|
22146E
|
22146E
90099-15028
Seal(For Drive Shaft)
[08.1983 - 07.1986] 2L#..LN5#,6# |
90099-15028 |
— | ||
| replacement | |||||
|
22146E
|
22146E
22544-64740 Seal, Oil, Injection Pump Camshaft[08.1983 - 07.1986] 2L#..LN5#,6# |
22544-64740 |
US $4.23 |
||
|
22147A
|
22147A
22161-54010 Washer, Drive Shaft[08.1983 - 08.1987] 2L#..LN5#,6# |
22161-54010 |
US $6.99 |
||
|
22147B
|
22147B
22147-54290
Ring, Governor Sleeve
[06.1984 - 08.1987] 2L#..LN5#,6# |
22147-54290 |
— | ||
|
22148
|
22148
22148-54010 Spring, Delivery Valve[08.1983 - 08.1987] 2L#..LN5#,6# |
22148-54010 |
from US $1.40 |
||
|
22149
|
22149
22149-54010 Gasket, Delivery Valve[08.1983 - 08.1987] 2L#..LN5#,6# |
22149-54010 |
US $1.25 |
||
|
22162
|
22162
22162-54010 Plate, Plunger Upper[08.1983 - 08.1987] 2L#..LN5#,6# |
22162-54010 |
US $3.52 |
||
|
22163
|
22163
22163-54010 Plate, Plunger Lower[08.1983 - 08.1987] 2L#..LN5#,6# |
22163-54010 |
from US $2.85 |
||
|
22169
|
22169
22169-54180
Joint, Rubber
[08.1983 - 08.1987] 2L#..LN5#,6# |
22169-54180 |
— | ||
|
22170
|
22170
22170-54180 Shaft Sub-Assy, Drive[08.1983 - 08.1987] 2L#..LN5#,6# |
22170-54180 |
US $47.17 |
||
|
22170A
|
22170A
90099-13017 Key(For Drive Gear)[08.1983 - 08.1987] 2L#..LN5#,6# |
90099-13017 |
US $9.03 |
||
|
22176
|
22176
22176-54020 Plug, Distributive Head[08.1983 - 08.1987] 2L#..LN5#,6# |
22176-54020 |
from US $10.48 |
||
|
22176A
|
22176A
90099-14052
Ring, O(For Distributive Head Plug)
[08.1983 - 08.1987] 2L#..LN5#,6# |
90099-14052 |
— | ||
| replacement | |||||
|
22176A
|
22176A
22193-54772 Ring, O(For Distributive Head Plug)[08.1983 - 08.1987] 2L#..LN5#,6# |
22193-54772 |
from US $2.97 |
||
|
22179
|
22179
22179-54010
Shim, Plunger Adjusting
[08.1983 - 08.1987] 2L#..LN5#,6# T=1.9,T=1.9 |
22179-54010 |
— | ||
|
22179
|
22179
22179-54011
Shim, Plunger Adjusting
[08.1983 - 08.1987] 2L#..LN5#,6# T=2.0,T=2.0 |
22179-54011 |
— | ||
|
22179
|
22179
22179-54012
Shim, Plunger Adjusting
[08.1983 - 08.1987] 2L#..LN5#,6# T=2.1,T=2.1 |
22179-54012 |
— | ||
|
22179
|
22179
22179-54013
Shim, Plunger Adjusting
[08.1983 - 08.1987] 2L#..LN5#,6# T=2.2,T=2.2 |
22179-54013 |
— | ||
|
22179
|
22179
22179-54014
Shim, Plunger Adjusting
[08.1983 - 08.1987] 2L#..LN5#,6# T=2.3,T=2.3 |
22179-54014 |
— | ||
|
22179
|
22179
22179-54015
Shim, Plunger Adjusting
[08.1983 - 08.1987] 2L#..LN5#,6# T=2.4,T=2.4 |
22179-54015 |
— | ||
|
22179
|
22179
22179-54016
Shim, Plunger Adjusting
[08.1983 - 08.1987] 2L#..LN5#,6# T=2.5,T=2.5 |
22179-54016 |
— | ||
|
22179
|
22179
22179-54017
Shim, Plunger Adjusting
[08.1983 - 08.1987] 2L#..LN5#,6# T=2.6,T=2.6 |
22179-54017 |
— | ||
|
22179
|
22179
22179-54018
Shim, Plunger Adjusting
[08.1983 - 08.1987] 2L#..LN5#,6# T=2.7,T=2.7 |
22179-54018 |
— | ||
|
22179
|
22179
22179-54019
Shim, Plunger Adjusting
[08.1983 - 08.1987] 2L#..LN5#,6# T=2.8,T=2.8 |
22179-54019 |
— | ||
|
22179
|
22179
22179-54020
Shim, Plunger Adjusting
[08.1983 - 08.1987] 2L#..LN5#,6# T=2.9,T=2.9 |
22179-54020 |
— | ||
|
22180
|
22180
22180-58200 Valve Sub-Assy, Regulator[08.1984 - 08.1987] 2LT..LN6# |
22180-58200 |
US $93.29 |
||
|
22182
|
22182
22182-54010
Plate, Tappet Adjusting Shim
[08.1983 - 08.1987] 2L#..LN5#,6# T=0.5,T=0.5 |
22182-54010 |
— | ||
|
22182
|
22182
22183-54010
Plate, Tappet Adjusting Shim
[08.1983 - 08.1987] 2L#..LN5#,6# T=0.8,T=0.8 |
22183-54010 |
— | ||
|
22182
|
22182
22184-54010
Plate, Tappet Adjusting Shim
[08.1983 - 08.1987] 2L#..LN5#,6# T=1.0,T=1.0 |
22184-54010 |
— | ||
|
22182
|
22182
22185-54010
Plate, Tappet Adjusting Shim
[08.1983 - 08.1987] 2L#..LN5#,6# T=1.2,T=1.2 |
22185-54010 |
— | ||
|
22182
|
22182
22186-54010
Plate, Tappet Adjusting Shim
[08.1983 - 08.1987] 2L#..LN5#,6# T=1.5,T=1.5 |
22186-54010 |
— | ||
|
22182
|
22182
22187-54010
Plate, Tappet Adjusting Shim
[08.1983 - 08.1987] 2L#..LN5#,6# T=1.8,T=1.8 |
22187-54010 |
— | ||
|
22182
|
22182
22188-54010 Plate, Tappet Adjusting Shim[08.1983 - 08.1987] 2L#..LN5#,6# T=2.0,T=2.0 |
22188-54010 |
US $4.25 |
||
|
22192
|
22192
22192-54010 Plate, Tappet Adjusting Shim[08.1983 - 08.1987] 2L#..LN5#,6# |
22192-54010 |
US $12.29 |
||
|
22314A
|
22314A
22314-54010
Spring, Lever Support
[08.1983 - 08.1987] 2L#..LN5#,6# |
22314-54010 |
— | ||
|
22316A
|
22316A
22316-64640
Sleeve, Governor
[08.1984 - 08.1987] 2LT..LN6# MARK 23 |
22316-64640 |
— | ||
|
22316B
|
22316B
90099-10148
Bearing, Ball(For Governor Sleeve)
[08.1984 - 08.1987] 2LT..LN56,6# |
90099-10148 |
— | ||
|
22317
|
22317
22317-54040
Spring, Governor Domper
[08.1984 - 08.1987] 2LT..LN6# |
22317-54040 |
— | ||
|
22322A
|
22322A
22322-54450
Spring, Return
[08.1984 - 08.1987] 2LT..LN6# |
22322-54450 |
— | ||
|
22341C
|
22341C
22341-54010
Gear, Governor Drive
[08.1983 - 08.1987] 2L#..LN5#,6# |
22341-54010 |
— | ||
|
22350A
|
22350A
22350-54060
Governor Assy, Torque Control
[08.1984 - 08.1987] 2LT..LN6# |
22350-54060 |
— | ||
|
22354A
|
22354A
22354-77050 Seal, Lead[04.1985 - 08.1987] 2L#..LN5#,6# |
22354-77050 |
from US $0.28 |
||
|
22355A
|
22355A
22355-78030 Wire, Governor Housing Seal[04.1985 - 08.1987] 2L#..LN5#,6# |
22355-78030 |
from US $1.23 |
||
|
22369
|
22369
22369-54010
Seat, Governor Spring
[08.1983 - 08.1987] 2L#..LN5#,6# |
22369-54010 |
— | ||
|
22378A
|
22378A
22378-64010 Washer, Governor Thrust[08.1983 - 08.1987] 2L#..LN5#,6# |
22378-64010 |
from US $0.42 |
||
|
22384D
|
22384D
22384-54010
Shaft, Governor
[08.1984 - 08.1987] 2LT..LN6# |
22384-54010 |
— | ||
|
22384E
|
22384E
90099-14049 Ring, O(For Governor Main Shaft)[08.1983 - 08.1987] 2L#..LN5#,6# |
90099-14049 |
US $2.20 |
||
|
22390A
|
22390A
22390-54110
Solenoid Assy, Fuel Cut
[08.1983 - 08.1987] 2L#..LN5#,6# |
22390-54110 |
— | ||
| replacement | |||||
|
22390A
|
22390A
22019-6A511
Solenoid Assy, Fuel Cut
[08.1983 - 08.1987] 2L#..LN5#,6# |
22019-6A511 |
— | ||
|
22505
|
22505
22505-54010 Pump Sub-Assy, Fuel Feed[08.1983 - 08.1987] 2L#..LN5#,6# |
22505-54010 |
from US $104.83 |
||
|
22505A
|
22505A
90099-00723
Screw(For Fuel Feed Pump)
[08.1983 - 08.1987] 2L#..LN5#,6# |
90099-00723 |
— | ||
|
22511A
|
22511A
22511-54020
Cover, Feed Pump
[08.1983 - 08.1987] 2L#..LN5#,6# |
22511-54020 |
— | ||
|
22612B
|
22612B
22612-54010
Cover, Timer
[08.1983 - 08.1987] 2L#..LN5#,6# |
22612-54010 |
— | ||
|
22612C
|
22612C
22612-54450
Cover, Timer
[08.1984 - 08.1987] 2LT..LN56,6# |
22612-54450 |
— | ||
|
22612D
|
22612D
90099-14051
Ring, O, Distributor Housing
[08.1983 - 08.1987] 2L#..LN5#,6# |
90099-14051 |
— | ||
| replacement | |||||
|
22612D
|
22612D
22193-17840 Ring, O(For Timer Cover)[08.1983 - 08.1987] 2L#..LN5#,6# |
22193-17840 |
from US $2.71 |
||
|
22615A
|
22615A
22615-54290
Spring, Timer Outer
[08.1984 - 08.1987] 2LT..LN6# K=2.30,L=37.9,CW=8.0 |
22615-54290 |
— | ||
|
22615A
|
22615A
22615-54490
Spring, Timer Outer
[08.1984 - 08.1987] 2LT..LN6# K=2.50,L=38.2,CW=8.6 |
22615-54490 |
— | ||
|
22615A
|
22615A
22615-58200
Spring, Timer Outer
[08.1984 - 08.1987] 2LT..LN56,6# K=2.10,CW=8.6 |
22615-58200 |
— | ||
|
22621A
|
22621A
22625-54272
Washer, Timer Adjusting
[08.1984 - 08.1987] 2LT..LN56,6# T=0.5 |
22625-54272 |
— | ||
|
22632A
|
22632A
22632-54010 Coupling, Injection Pump[08.1983 - 08.1987] 2L#..LN5#,6# |
22632-54010 |
from US $49.10 |
||
|
22654
|
22654
22654-54491
Piston, Timer
[08.1984 - 08.1987] 2LT..LN6# |
22654-54491 |
— | ||
|
22655A
|
22655A
22655-54010
Pin, Timer Slide
[08.1983 - 08.1987] 2L#..LN5#,6# |
22655-54010 |
— | ||
|
22656
|
22656
22656-54010
Clip, Timer
[08.1983 - 08.1987] 2L#..LN5#,6# NO.1 |
22656-54010 |
— | ||
| replacement | |||||
|
22656
|
22656
22656-17840
Clip, Timer
[08.1983 - 08.1987] 2L#..LN5#,6# NO.1 |
22656-17840 |
— | ||
|
22656
|
22656
22656-54490
Clip, Timer
[08.1984 - 08.1987] 2LT..LN56,6# NO.2 |
22656-54490 |
— | ||
|
22657
|
22657
22657-54010
Clip, Timer
[08.1983 - 08.1987] 2L#..LN5#,6# |
22657-54010 |
— | ||
|
22658
|
22658
22658-54010
Stopper, Timer
[08.1983 - 08.1987] 2L#..LN5#,6# NO.1 |
22658-54010 |
— | ||
| replacement | |||||
|
22658
|
22658
22658-17840
Stopper, Timer
[08.1983 - 08.1987] 2L#..LN5#,6# NO.1 |
22658-17840 |
— | ||
|
22658
|
22658
22658-54450
Stopper, Timer
[08.1984 - 08.1987] 2LT..LN56,6# NO.2 |
22658-54450 |
— | ||
|
22659
|
22659
22659-64150
Spring, Coupling
[08.1983 - 08.1987] 2L#..LN5#,6# |
22659-64150 |
— | ||
|
22701
|
22701
22701-54451
Lever Sub-Assy, Adjusting
[08.1984 - 08.1987] 2LT..LN6# NO MARK |
22701-54451 |
— | ||
|
22701
|
22701
22701-54452
Lever Sub-Assy, Adjusting
[08.1984 - 08.1987] 2LT..LN6# MARK"0" |
22701-54452 |
— | ||
|
22712
|
22712
22775-77121
Nut, Rock
[08.1983 - 08.1987] 2L#..LN5#,6# |
22775-77121 |
— | ||
|
22713
|
22713
22713-54010
Washer, Governor Gear Adjusting
[08.1983 - 08.1987] 2L#..LN5#,6# T=1.05,T=1.05 |
22713-54010 |
— | ||
|
22713
|
22713
22714-54010
Washer, Governor Gear Adjusting
[08.1983 - 08.1987] 2L#..LN5#,6# T=1.25,T=1.25 |
22714-54010 |
— | ||
|
22713
|
22713
22715-54010
Washer, Governor Gear Adjusting
[08.1983 - 08.1987] 2L#..LN5#,6# T=1.45,T=1.45 |
22715-54010 |
— | ||
|
22713
|
22713
22716-54010
Washer, Governor Gear Adjusting
[08.1983 - 08.1987] 2L#..LN5#,6# T=1.65,T=1.65 |
22716-54010 |
— | ||
|
22713
|
22713
22717-54010 Washer, Governor Gear Adjusting[08.1983 - 08.1987] 2L#..LN5#,6# T=1.85,T=1.85 |
22717-54010 |
US $7.04 |
||
|
22726
|
22726
22726-54490
Spring, Speed Control
[08.1984 - 08.1987] 2LT..LN6# |
22726-54490 |
— | ||
|
22739
|
22739
22739-54020
Bolt, Governor Link Support
[08.1983 - 08.1987] 2L#..LN5#,6# |
22739-54020 |
— | ||
|
22740
|
22740
22740-54491
Shaft Sub-Assy, Governor Adjusting
[08.1984 - 08.1987] 2LT..LN6# |
22740-54491 |
— | ||
|
22740A
|
22740A
90099-14048
Bearing, Ball(For Governor Sleeve)
[08.1983 - 08.1987] 2L#..LN5#,6# |
90099-14048 |
— | ||
| replacement | |||||
|
22740A
|
22740A
22193-54770 Ring, O(For Governor Adjusting Shaft)[08.1983 - 08.1987] 2L#..LN5#,6# |
22193-54770 |
from US $2.03 |
||
|
22741
|
22741
22741-54020
Holder Sub-Assy, Flyweight
[08.1983 - 08.1987] 2L#..LN5#,6# |
22741-54020 |
— | ||
|
22745
|
22745
22745-54010 Flyweight, Distributive Pump[08.1983 - 08.1987] 2L#..LN5#,6# |
22745-54010 |
US $37.28 |
||
|
22749
|
22749
22749-54450
Collar, Smoke Set Adjusting
[08.1984 - 08.1987] 2LT..LN56,6# |
22749-54450 |
— | ||
|
22751
|
22751
22751-54400
Wire Sub-Assy, Fuel Cut Solenoid
[08.1984 - 07.1986] 2LT..LN6# |
22751-54400 |
— | ||
|
22753A
|
22753A
22753-54010
Washer, Flyweight, No.1
[08.1983 - 08.1987] 2L#..LN5#,6# |
22753-54010 |
— | ||
|
22753B
|
22753B
22753-54290
Washer, Flyweight, No.1
[08.1983 - 08.1987] 2L#..LN5#,6# |
22753-54290 |
— | ||
| replacement | |||||
|
22753B
|
22753B
22753-54020 Washer, Flyweight, No.2[08.1983 - 08.1987] 2L#..LN5#,6# |
22753-54020 |
US $1.58 |
||
|
22776
|
22776
22776-54110 Screw, Smoke Set Adjusting[08.1983 - 08.1987] 2L#..LN5#,6# |
22776-54110 |
US $4.72 |
||
|
22776A
|
22776A
90099-14047
Ring, O(For Smoke Set Screw)
[08.1983 - 08.1987] 2L#..LN5#,6# |
90099-14047 |
— | ||
| replacement | |||||
|
22776A
|
22776A
22193-54771 Ring, O(For Smoke Set Screw)[08.1983 - 08.1987] 2L#..LN5#,6# |
22193-54771 |
US $1.31 |
||
|
22787
|
22787
22787-54026
Plug, Governor Sleeve
[06.1984 - 08.1987] 2L#..LN5#,6# L=3.3,L=4.3 |
22787-54026 |
— | ||
|
22787
|
22787
22787-54027
Plug, Governor Sleeve
[06.1984 - 08.1987] 2L#..LN5#,6# L=3.4,L=4.5 |
22787-54027 |
— | ||
|
22787
|
22787
22787-54028
Plug, Governor Sleeve
[06.1984 - 08.1987] 2L#..LN5#,6# L=3.5,L=4.7 |
22787-54028 |
— | ||
|
22787
|
22787
22787-54029
Plug, Governor Sleeve
[06.1984 - 08.1987] 2L#..LN5#,6# L=3.6,L=4.9 |
22787-54029 |
— | ||
|
22787
|
22787
22787-54030
Plug, Governor Sleeve
[06.1984 - 08.1987] 2L#..LN5#,6# L=3.7,L=5.1 |
22787-54030 |
— | ||
|
22787
|
22787
22787-54031
Plug, Governor Sleeve
[06.1984 - 08.1987] 2L#..LN5#,6# L=3.8,L=5.3 |
22787-54031 |
— | ||
|
22787
|
22787
22787-54032
Plug, Governor Sleeve
[06.1984 - 08.1987] 2L#..LN5#,6# L=3.9,L=5.5 |
22787-54032 |
— | ||
|
22787
|
22787
22787-54033
Plug, Governor Sleeve
[06.1984 - 08.1987] 2L#..LN5#,6# L=4.0,L=5.7 |
22787-54033 |
— | ||
|
22790
|
22790
22790-54400 Cover Sub-Assy, TimerTIMER [08.1983 - 08.1985] 2L#..LN5#,65 |
22790-54400 |
US $483.39 |
||
| replacement | |||||
|
22790
|
22790
22790-54551
Cover Sub-Assy, Timer
[08.1983 - 08.1985] 2L#..LN5#,65 |
22790-54551 |
— | ||
|
22790
|
22790
22790-54551
Cover Sub-Assy, Timer
[08.1985 - 08.1987] 2L#..LN56,66 |
22790-54551 |
— | ||
|
22790A
|
22790A
90099-14051
Ring, O, Distributor Housing
[08.1983 - 08.1987] 2L#..LN5#,6# |
90099-14051 |
— | ||
| replacement | |||||
|
22790A
|
22790A
22193-17840 Ring, O(For Timer Cover)[08.1983 - 08.1987] 2L#..LN5#,6# |
22193-17840 |
from US $2.71 |
||
|
2214956200
|
2214956200
22149-56200 Gasket, Delivery Valve |
22149-56200 |
US $1.40 |
||
|
2217254400
|
2217254400
22172-54400
Clip, Connector Support, Solenoid
|
22172-54400 |
— | ||
|
2217254500
|
2217254500
22172-54500
Clip, Connector Support, Solenoid
|
22172-54500 |
— | ||
|
2217254501
|
2217254501
22172-54501
Clip, Connector Support, Solenoid
|
22172-54501 |
— | ||
|
2217254502
|
2217254502
22172-54502
Clip, Connector Support, Solenoid
|
22172-54502 |
— | ||
|
2217264230
|
2217264230
22172-64230
Clip, Connector Support, Solenoid
|
22172-64230 |
— | ||
|
2219354291
|
2219354291
22193-54291
Ring, O(For Bellows Sub-Assy)
|
22193-54291 |
— | ||
|
2219364750
|
2219364750
22193-64750 Ring, O(For Lever Connecting Pin) |
22193-64750 |
from US $0.84 |
||
|
2236554040
|
2236554040
22365-54040
Ring, E(for Injection Pump Lever)
|
22365-54040 |
— | ||
|
2239554010
|
2239554010
22395-54010
Bolt, Socket(For Injection Pump Governor Cover)
|
22395-54010 |
— | ||
|
2239558200
|
2239558200
22395-58200
Bolt, Socket(For Injection Pump Governor Cover)
|
22395-58200 |
— | ||
|
2272254470
|
2272254470
22722-54470
Nut, Governor Shaft Rock
|
22722-54470 |
— | ||
|
2274964400
|
2274964400
22749-64400
Collar, Smoke Set Adjusting
|
22749-64400 |
— | ||
|
9009210601
|
9009210601
90092-10601
Nut, Rock
|
90092-10601 |
— | ||
| replacement | |||||
|
9009210601
|
9009210601
90092-10101
Nut (For Front Wiper Arm Setting)
|
90092-10101 |
— | ||
|
9009300802
|
9009300802
90093-00802
Washer, Plate(For Connecting Pin)
|
90093-00802 |
— | ||
|
9009680004
|
9009680004
90096-80004
New Genuine Part
|
90096-80004 |
— | ||
|
9009690024
|
9009690024
90096-90024
Ring, O(For Stopper Lever)
|
90096-90024 |
— | ||
|
9009904953
|
9009904953
90099-04953
New Genuine Part
|
90099-04953 |
— | ||
|
9009904954
|
9009904954
90099-04954
BOLT
|
90099-04954 |
— | ||
|
9009904959
|
9009904959
90099-04959
New Genuine Part
|
90099-04959 |
— | ||
|
9009905140
|
9009905140
90099-05140
New Genuine Part
|
90099-05140 |
— | ||
|
9009905161
|
9009905161
90099-05161 Nut, Timer Round |
90099-05161 |
from US $1.25 |
||
|
9009905184
|
9009905184
90099-05184
New Genuine Part
|
90099-05184 |
— | ||
| replacement | |||||
|
9009905184
|
9009905184
90099-05225
New Genuine Part
|
90099-05225 |
— | ||
|
9009918022
|
9009918022
90099-18022
SCREW
|
90099-18022 |
— | ||
|
9338116012
|
9338116012
93381-16012 Screw |
93381-16012 |
US $2.51 |
||
|
9338116016
|
9338116016
93381-16016 SCREWWWASHER |
93381-16016 |
US $3.05 |
||
|
9412040600
|
9412040600
94120-40600 Nut, Wire Adjusting, No.1 |
94120-40600 |
US $3.05 |
||
|
9451100600
|
9451100600
94511-00600 Washer, Lock, No.2 |
94511-00600 |
US $2.15 |
||
