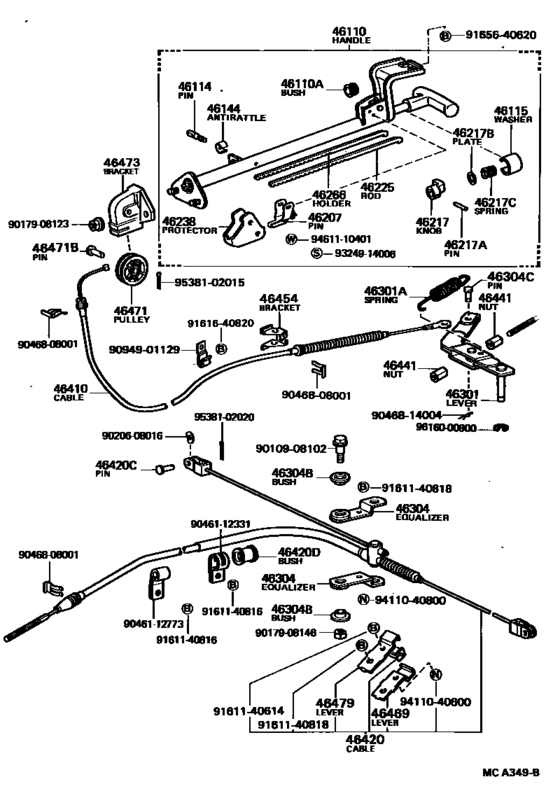

Parking Brake & Cable ([08.1983 - 08.1984] NEW ZEALAND SPEC (8308-8408)LN60,YN60..ARL ; (8308-8408)LN65,YN65 ..RHD..ARL,GEN) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 1983 - 1988
- Sales region
- General
- Frame
- LN65
- grade
- STD
- body
- T1
- ENGINE
- 2L
- TRANSMISSION
- MTM
- DESTINATION
- ARL
- CAB
- RCB
- Model
- HILUX
- From
- 08.1983
- To
- 08.1988
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux
- Driver's Position
- RHD
- Fuel Induction
- DSL
- Building Condition
- IV
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
46110
|
46110
46110-35170
Handle Assy, Parking Brake Control
[08.1983 - 08.1984] LN55,56,6#,YN55,57,6#..ARL; LN55,YN57..RHD..GEN NEW ZEALAND SPEC |
46110-35170 |
— | ||
|
46110
|
46110
46110-35190
Handle Assy, Parking Brake Control
[08.1984 - 07.1994] LN5#,6#,YN50,51,55,56,57,58,60,63,65,67..RHD |
46110-35190 |
— | ||
|
46110A
|
46110A
90386-12048 Bush Or Ring, O (For Parking Brake Plunger)[08.1983 - 07.1994] LN5#,6#,RN5#,61,YN5#,6# |
90386-12048 |
US $2.97 |
||
|
46114
|
46114
46114-20010 Pin(For Parking Brake Handle Set)[08.1983 - 07.1994] LN5#,6#,RN5#,61,YN5#,6# |
46114-20010 |
from US $2.46 |
||
|
46115
|
46115
46115-35010
Washer, Parking Brake Plunger
[08.1983 - 09.1983] LN55,56,65,YN55,57,65..ARL; LN65,YN65..RHD..GEN NEW ZEALAND SPEC; LN55,YN57..RHD..GEN NEW ZEALAND SPEC |
46115-35010 |
— | ||
| replacement | |||||
|
46115
|
46115
46115-36010 Washer, Parking Brake PlungerPARKING BRAKE PLUNGER [08.1983 - 09.1983] LN55,56,65,YN55,57,65..ARL; LN65,YN65..RHD..GEN NEW ZEALAND SPEC; LN55,YN57..RHD..GEN NEW ZEALAND SPEC |
46115-36010 |
US $5.39 |
||
|
46115
|
46115
46115-36010 Washer, Parking Brake PlungerPARKING BRAKE PLUNGER [09.1983 - 08.1984] LN55,56,6#,YN55,57,6#..ARL; LN55,YN57..RHD..GEN NEW ZEALAND SPEC; LN65,YN65..RHD..GEN NEW ZEALAND SPEC |
46115-36010 |
US $5.39 |
||
|
46144
|
46144
46144-20010 Anti-Rattle, Parking Brake Plunger[08.1983 - 07.1994] LN5#,6#,RN5#,61,YN5#,6# |
46144-20010 |
US $3.14 |
||
|
46207
|
46207
46207-35010 Pin Sub-Assy, Plunger LockPLUNGER LOCK [08.1983 - 08.1984] LN55,56,6#,YN55,57,6#..ARL; LN55,YN57..RHD..GEN NEW ZEALAND SPEC |
46207-35010 |
US $8.44 |
||
|
46217
|
46217
46217-35010 Knob, Parking Brake Release RodPARKING BRAKE RELEASE ROD [08.1983 - 08.1984] LN55,56,6#,YN55,57,6#..ARL; LN55,YN57..RHD..GEN NEW ZEALAND SPEC |
46217-35010 |
US $9.17 |
||
|
46217A
|
46217A
90254-02002 Pin, Slotted Spring(For Parking Brake Release Rod Knob)SLOTTED SPRING(FOR PARKING BRAKE RELEASE ROD KNOB) [08.1983 - 08.1984] LN55,56,6#,YN55,57,6#..ARL; LN55,YN57..RHD..GEN NEW ZEALAND SPEC |
90254-02002 |
US $2.77 |
||
|
46217B
|
46217B
90201-12017 Washer, Plate(For Parking Brake Release Rod Knob)PLATE(FOR PARKING BRAKE RELEASE ROD KNOB) [08.1983 - 08.1984] LN55,56,6#,YN55,57,6#..ARL; LN55,YN57..RHD..GEN NEW ZEALAND SPEC |
90201-12017 |
US $2.18 |
||
|
46217C
|
46217C
90501-10023 Spring, Compression(For Parking Brake Release Rod Knob)COMPRESSION(FOR PARKING BRAKE RELEASE ROD KNOB) [08.1983 - 08.1984] LN55,56,6#,YN55,57,6#..ARL; LN55,YN57..RHD..GEN NEW ZEALAND SPEC |
90501-10023 |
US $2.91 |
||
|
46225
|
46225
46225-35030 Rod, Parking Brake Pawl ReleasePARKING BRAKE PAWL RELEASE [08.1983 - 08.1984] LN55,56,6#,YN55,57,6#..ARL; LN55,YN57..RHD..GEN NEW ZEALAND SPEC |
46225-35030 |
US $8.44 |
||
|
46238
|
46238
46238-35010 Protector, Plunger Lock PinPLUNGER LOCK PIN [08.1983 - 08.1984] LN55,56,6#,YN55,57,6#..ARL; LN55,YN57..RHD..GEN NEW ZEALAND SPEC |
46238-35010 |
US $8.59 |
||
|
46266
|
46266
46266-35010 Holder, Plunger Lock PinPLUNGER LOCK PIN [08.1983 - 08.1984] LN55,56,6#,YN55,57,6#..ARL; LN55,YN57..RHD..GEN NEW ZEALAND SPEC |
46266-35010 |
US $9.17 |
||
|
46301
|
46301
46301-35140
Lever Sub-Assy, Parking Brake Intermediate
[08.1983 - 07.1998] LN6#,RN67,YN6# |
46301-35140 |
— | ||
|
46301A
|
46301A
90507-20011
Spring, Tension(For Intermediate Lever)
[08.1983 - 07.1998] LN60,61,65,RN6#,YN6# |
90507-20011 |
— | ||
|
46304
|
46304
46341-35030 Equalizer Sub-Assy, Parking Brake[08.1983 - 07.1998] LN60,61,65,RN6#,YN6# |
46341-35030 |
from US $6.10 |
||
|
46304B
|
46304B
90385-12029 Bush(For Parking Brake Equalizer)[08.1983 - 07.1998] LN60,65,RN6#,YN60,65 |
90385-12029 |
from US $1.62 |
||
|
46304C
|
46304C
90240-08040 Pin, W/hole(For Clutch Master Cylinder Push Rod Clevis)[08.1983 - 07.1998] LN60,61,65,RN6#,YN6# |
90240-08040 |
US $4.30 |
||
|
46410
|
46410
46410-35290 Cable Assy, Parking Brake, No.1[08.1983 - 07.1998] LN6#..RHD |
46410-35290 |
US $54.86 |
||
|
46420
|
46420
46420-35250 Cable Assy, Parking Brake, No.2[08.1983 - 01.1992] LN60,65,YN60,62,65,67..T1,TW |
46420-35250 |
US $87.36 |
||
|
46420C
|
46420C
90240-08028 Pin, W/hole (For Column Shift Gear Selecting Rod)[08.1983 - 12.1988] LN6#,RN61,YN6# L=21.5 |
90240-08028 |
US $2.87 |
||
|
46420D
|
46420D
90385-13051
Grommet Or Bush(For Parking Brake Cable Clamp)
[08.1983 - 07.1998] LN60,61,65,RN6#,YN6# |
90385-13051 |
— | ||
|
46441
|
46441
46441-30030 Nut, Wire Adjusting, No.1[08.1983 - 07.1998] LN60,61,65,RN6#,YN6# |
46441-30030 |
US $4.66 |
||
|
46454
|
46454
46454-35080
Bracket, Cable Retainer, Front
[08.1983 - 12.1984] LN6#,YN6#..T1,TW |
46454-35080 |
— | ||
| replacement | |||||
|
46454
|
46454
46454-35090
Bracket, Cable Retainer, Front
[08.1983 - 12.1984] LN6#,YN6#..T1,TW |
46454-35090 |
— | ||
|
46469
|
46469
46469-35020
Lever, Cable Guide Support
[08.1983 - 07.1998] LN60,61,65,RN6#,YN6# |
46469-35020 |
— | ||
|
46471
|
46471
46471-20010 Pulley, Wire[08.1983 - 07.1998] RN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6# |
46471-20010 |
US $9.26 |
||
|
46471B
|
46471B
90240-08070 Pin, W/hole(For Clutch Master Cylinder Push Rod Clevis)[08.1983 - 07.1998] RN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6# |
90240-08070 |
US $2.97 |
||
|
46473
|
46473
46473-35020
Bracket, Pulley
[08.1983 - 07.1998] RN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6# |
46473-35020 |
— | ||
|
46479
|
46479
46479-35010
Lever, Cable Guide Sapport, No.2
[08.1983 - 07.1998] LN60,61,65,RN6#,YN6# |
46479-35010 |
— | ||
|
9010908102
|
9010908102
90109-08102 NUT |
90109-08102 |
from US $1.31 |
||
|
9017908123
|
9017908123
90179-08123 Nut (For Front Wiper Arm Setting) |
90179-08123 |
from US $0.80 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.07 |
||
|
9020608016
|
9020608016
90206-08016 Washer, Wave (For Low Speed Connecting Rod) |
90206-08016 |
US $3.40 |
||
|
9046112331
|
9046112331
90461-12331
New Genuine Part
|
90461-12331 |
— | ||
|
9046112773
|
9046112773
90461-12773 New Genuine Part |
90461-12773 |
US $3.84 |
||
|
9046808001
|
9046808001
90468-08001 CLIP |
90468-08001 |
US $3.76 |
||
|
9046814004
|
9046814004
90468-14004 Union, Auxiliary Fuel Band |
90468-14004 |
from US $0.66 |
||
|
9094901129
|
9094901129
90949-01129
New Genuine Part
|
90949-01129 |
— | ||
|
9161140614
|
9161140614
91611-40614
Bolt, Hexagon(For Steering Column Bracket)
|
91611-40614 |
— | ||
| replacement | |||||
|
9161140614
|
9161140614
91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector) |
91611-B0614 |
from US $0.80 |
||
|
9161140816
|
9161140816
91611-40816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-40816 |
— | ||
| replacement | |||||
|
9161140816
|
9161140816
91611-B0816 Bolt |
91611-B0816 |
from US $1.01 |
||
|
9161140818
|
9161140818
91611-40818
Bolt(for Oil Receiver Pipe)
|
91611-40818 |
— | ||
| replacement | |||||
|
9161140818
|
9161140818
90119-08830 Bolt(For Oil Receiver Pipe) |
90119-08830 |
US $1.79 |
||
|
9161640820
|
9161640820
91616-40820 Bolt, Engine Rear Cover Hinge Set |
91616-40820 |
US $1.93 |
||
|
9165640620
|
9165640620
91656-40620
Bolt(For Oil Receiver Pipe)
|
91656-40620 |
— | ||
| replacement | |||||
|
9165640620
|
9165640620
91651-60618 Bolt(For Oil Receiver Pipe) |
91651-60618 |
from US $1.19 |
||
|
9324914006
|
9324914006
93249-14006 New Genuine Part |
93249-14006 |
US $1.16 |
||
|
9411040600
|
9411040600
94110-40600 Nut, Rock |
94110-40600 |
from US $0.66 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.84 |
||
|
9461110401
|
9461110401
94611-10401 New Genuine Part |
94611-10401 |
US $1.31 |
||
|
9538102015
|
9538102015
95381-02015 New Genuine Part |
95381-02015 |
US $1.79 |
||
|
9538102020
|
9538102020
95381-02020 PIN |
95381-02020 |
US $1.08 |
||
|
9616000900
|
9616000900
96160-00900 Ring, E(For Injection Pump Lever) |
96160-00900 |
from US $1.61 |
||
