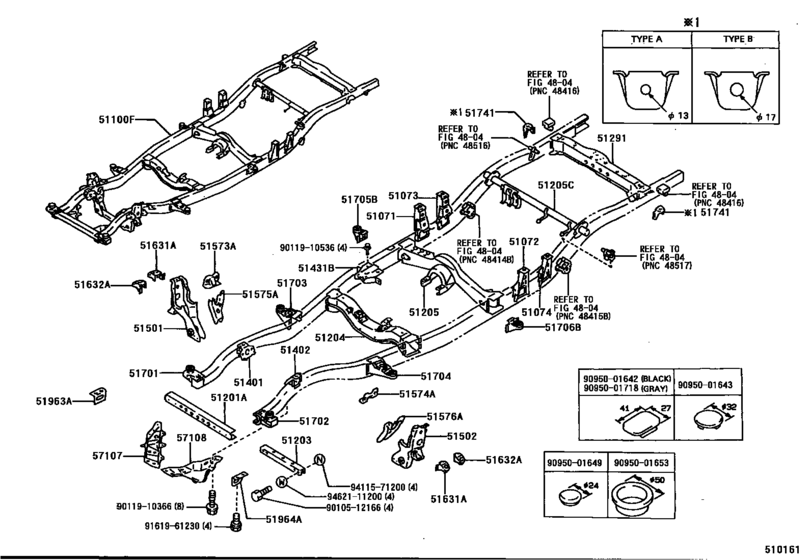

Frame ([01.1989 - ] (8901- )VWP) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 1991 - 1997
- Sales region
- Europe
- Frame
- LN85
- grade
- STD
- ENGINE
- 2L
- TRANSMISSION
- MTM
- PRODUCT
- VWP
- DECK
- T1
- CAB
- RCB
- Model
- HILUX
- From
- 03.1991
- To
- 02.1997
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux (VWP)
- Driver's Position
- LHD
- Fuel Induction
- DSL
- Building Condition
- IV3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
51071
|
51071
51071-35050 Bracket Sub-Assy, Rear Body Mounting, No.1 Rh[01.1989 - 02.1997] LN85,YN85..VWP |
51071-35050 |
US $77.17 |
||
|
51072
|
51072
51071-35050 Bracket Sub-Assy, Rear Body Mounting, No.1 Rh[01.1989 - 02.1997] LN85,YN85..VWP |
51071-35050 |
US $77.17 |
||
|
51073
|
51073
51073-35020
Bracket Sub-Assy, Rear Body Mounting, No.2 Rh
[01.1989 - 02.1997] LN85,YN85..VWP |
51073-35020 |
— | ||
|
51074
|
51074
51074-35020
Bracket Sub-Assy, Rear Body Mounting, No.2 Lh
[01.1989 - 02.1997] LN85,YN85..VWP |
51074-35020 |
— | ||
|
51100F
|
51100F
51001-3D810 Frame Sub-Assy[01.1989 - 02.1997] LN85..VWP..LHD |
51001-3D810 |
US $3,130.40 |
||
|
51201A
|
51201A
51201-35170 Crossmember Sub-Assy, Frame, Front[01.1989 - 02.1997] LN85,YN85..VWP |
51201-35170 |
US $144.14 |
||
|
51203
|
51203
51202-35220 Crossmember Sub-Assy, Frame, No.2[01.1989 - 02.1997] LN85,YN85..VWP |
51202-35220 |
US $64.79 |
||
|
51204
|
51204
51203-35250
Crossmember Sub-Assy, Frame, No.3
[01.1989 - 02.1997] LN85,YN85..VWP..LHD |
51203-35250 |
— | ||
|
51205
|
51205
51204-35360
Crossmember Sub-Assy, Frame, No.4
[01.1989 - 02.1997] LN85,YN85..VWP |
51204-35360 |
— | ||
|
51205C
|
51205C
51205-35140 Crossmember Sub-Assy, Frame, No.5[01.1989 - 02.1997] LN85,YN85..VWP |
51205-35140 |
US $151.42 |
||
|
51291
|
51291
51291-35100
Crossmember, Frame, Rear
[01.1989 - 02.1997] LN85,YN85..VWP |
51291-35100 |
— | ||
|
51401
|
51401
51401-35170 Bracket Sub-Assy, Engine Front Mounting, Rh[01.1989 - 02.1997] LN85..VWP |
51401-35170 |
US $55.76 |
||
|
51402
|
51402
51402-35170 Bracket Sub-Assy, Engine Front Mounting, Lh[01.1989 - 02.1997] LN85..VWP |
51402-35170 |
US $55.76 |
||
|
51431B
|
51431B
51431-35060 Bracket, Engine Rear Mounting[01.1989 - 02.1997] LN85,YN85..VWP |
51431-35060 |
US $104.83 |
||
|
51501
|
51501
51501-35060 Support Sub-Assy, Suspension Arm, Rh[01.1989 - 02.1997] LN85,YN85..VWP |
51501-35060 |
US $336.34 |
||
|
51502
|
51502
51502-35060 Support Sub-Assy, Suspension Arm, Lh[01.1989 - 02.1997] LN85,YN85..VWP |
51502-35060 |
US $336.34 |
||
|
51573A
|
51573A
51573-35010 Reinforcement, Suspension Arm Support, No.1 Rh[01.1989 - 02.1997] LN85,YN85..VWP |
51573-35010 |
US $15.87 |
||
|
51574A
|
51574A
51573-35010 Reinforcement, Suspension Arm Support, No.1 Rh[01.1989 - 02.1997] LN85,YN85..VWP |
51573-35010 |
US $15.87 |
||
|
51575A
|
51575A
51575-35040 Reinforcement, Suspension Arm Support, No.2 Rh[01.1989 - 02.1997] LN85..VWP |
51575-35040 |
US $38 |
||
|
51576A
|
51576A
51575-35040 Reinforcement, Suspension Arm Support, No.2 Rh[01.1989 - 02.1997] LN85..VWP |
51575-35040 |
US $38 |
||
|
51631A
|
51631A
51631-35050 Stopper, Front Suspension Rebound, No.1[01.1989 - 02.1997] LN85,YN85..VWP |
51631-35050 |
US $15.58 |
||
|
51632A
|
51632A
51632-35040 Stopper, Front Suspension Rebound, No.2[01.1989 - 02.1997] LN85,YN85..VWP |
51632-35040 |
US $15.58 |
||
|
51701
|
51701
51701-35110
Bracket Sub-Assy, Cab Mounting, No.1 Rh
[01.1989 - 02.1997] LN85,YN85..VWP |
51701-35110 |
— | ||
|
51702
|
51702
51702-35090
Bracket Sub-Assy, Cab Mounting, No.1 Lh
[01.1989 - 02.1997] LN85,YN85..VWP |
51702-35090 |
— | ||
|
51703
|
51703
51703-35060
Bracket Sub-Assy, Cab Mounting, No.2, Rh
[01.1989 - 02.1997] LN85,YN85..VWP |
51703-35060 |
— | ||
|
51704
|
51704
51704-35080
Bracket Sub-Assy, Cab Mounting, No.2 Lh
[01.1989 - 02.1997] LN85,YN85..VWP |
51704-35080 |
— | ||
|
51705B
|
51705B
51705-35090
Bracket Sub-Assy, Cab Mounting, No.3 Rh
[01.1989 - 02.1997] LN85,YN85..VWP |
51705-35090 |
— | ||
|
51706B
|
51706B
51705-35090
Bracket Sub-Assy, Cab Mounting, No.3 Rh
[01.1989 - 02.1997] LN85,YN85..VWP |
51705-35090 |
— | ||
|
51741
|
51741
51741-35050
Bracket, Rear Body Mounting, No.1
[01.1989 - 02.1997] LN85,YN85..VWP |
51741-35050 |
— | ||
|
51963A
|
51963A
51963-35070 Hook, Transport, Front Rh[01.1989 - 02.1997] LN85,YN85..VWP |
51963-35070 |
from US $11.53 |
||
|
51964A
|
51964A
51964-35050 Hook, Transport, Front Lh[01.1989 - 02.1997] LN85,YN85..VWP |
51964-35050 |
from US $11.53 |
||
|
57107
|
57107
57107-35050
Bracket Sub-Assy, Strut Bar, Rh
[01.1989 - 02.1997] LN85,YN85..VWP |
57107-35050 |
— | ||
|
57108
|
57108
57108-35050 Bracket Sub-Assy, Strut Bar, Lh[01.1989 - 02.1997] LN85,YN85..VWP |
57108-35050 |
US $77.17 |
||
|
9010512166
|
9010512166
90105-12166 New Genuine Part |
90105-12166 |
US $5.53 |
||
|
9011910366
|
9011910366
90119-10366 New Genuine Part |
90119-10366 |
US $1.46 |
||
|
9011910536
|
9011910536
90119-10536 BOLT WWASHER |
90119-10536 |
from US $1.48 |
||
|
9095001642
|
9095001642
90950-01642 Plug, Hole(For Frame) |
90950-01642 |
US $3.58 |
||
|
9095001643
|
9095001643
90950-01643
New Genuine Part
|
90950-01643 |
— | ||
|
9095001649
|
9095001649
90950-01649
Plug, Hole(For Frame)
|
90950-01649 |
— | ||
|
9095001653
|
9095001653
90950-01653
New Genuine Part
|
90950-01653 |
— | ||
|
9095001718
|
9095001718
90950-01718 New Genuine Part |
90950-01718 |
US $3.06 |
||
|
9161961230
|
9161961230
91619-61230 BOLT |
91619-61230 |
US $1.97 |
||
|
9411571200
|
9411571200
94115-71200 Nut(For Backing Plate To Steering Knuckle Setting) |
94115-71200 |
from US $0.98 |
||
|
9462111200
|
9462111200
94621-11200 New Genuine Part |
94621-11200 |
US $3.58 |
