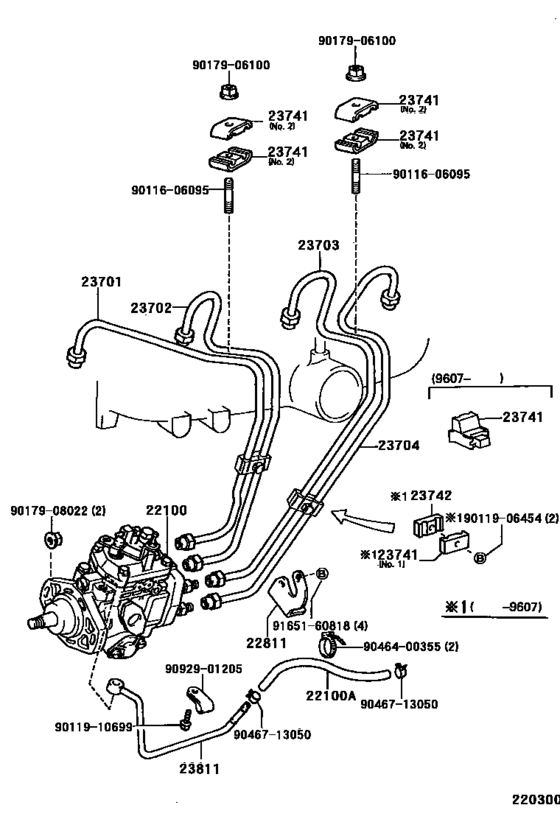

Injection Pump Assembly ([01.1989 - 02.1997] (8901-9702)2L..VWP) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 1991 - 1997
- Sales region
- Europe
- Frame
- LN85
- grade
- STD
- ENGINE
- 2L
- TRANSMISSION
- MTM
- PRODUCT
- VWP
- DECK
- T1
- CAB
- RCB
- Model
- HILUX
- From
- 03.1991
- To
- 02.1997
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux (VWP)
- Driver's Position
- LHD
- Fuel Induction
- DSL
- Building Condition
- IV3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22100
|
22100
22100-54750 Pump Assy, Injection Or SupplyINJECTION OR SUPPLY [01.1989 - 08.1991] 2L..LN85..VWP |
22100-54750 |
US $4,135.04 |
||
| replacement | |||||
|
22100
|
22100
22100-54760 Pump Assy, Injection Or SupplyINJECTION OR SUPPLY [01.1989 - 08.1991] 2L..LN85..VWP |
22100-54760 |
US $4,280.64 |
||
|
22100
|
22100
22100-54760 Pump Assy, Injection Or SupplyINJECTION OR SUPPLY [01.1989 - 08.1991] 2L..LN85..VWP W(POWER STEERING) |
22100-54760 |
US $4,280.64 |
||
|
22100
|
22100
22100-5B080 Pump Assy, Injection Or SupplyINJECTION OR SUPPLY [10.1991 - 01.1994] 2L..LN85..VWP |
22100-5B080 |
US $4,193.28 |
||
| replacement | |||||
|
22100
|
22100
22100-5B310 Pump Assy, Injection Or SupplyINJECTION OR SUPPLY [10.1991 - 01.1994] 2L..LN85..VWP |
22100-5B310 |
US $4,324.32 |
||
|
22100
|
22100
22100-5B310 Pump Assy, Injection Or SupplyINJECTION OR SUPPLY [08.1992 - 01.1994] 2L..LN85..VWP..LHD W(POWER STEERING) |
22100-5B310 |
US $4,324.32 |
||
|
22100
|
22100
22100-5B320
Pump Assy, Injection Or Supply
[10.1991 - 10.1992] 2L..LN85..VWP NORWAY SPEC |
22100-5B320 |
— | ||
| replacement | |||||
|
22100
|
22100
22100-5B360
Pump Assy, Injection Or Supply
[10.1991 - 10.1992] 2L..LN85..VWP NORWAY SPEC |
22100-5B360 |
— | ||
|
22100A
|
22100A
90447-14063 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)FUEL(FOR INJECTION PUMP TO FUEL FILTER) [01.1989 - 03.1993] 2L..LN85..VWP..LHD L=505 |
90447-14063 |
US $25.63 |
||
|
22811
|
22811
22811-54041
Stay, Injection Pump, No.1
[01.1989 - 08.1991] 2L..LN85..VWP |
22811-54041 |
— | ||
| replacement | |||||
|
22811
|
22811
22811-54042 Stay, Injection Pump, No.1[01.1989 - 08.1991] 2L..LN85..VWP |
22811-54042 |
US $6.99 |
||
|
23701
|
23701
23701-54140 Pipe Sub-Assy, Injection, No.1[08.1989 - 02.1997] 2L..LN85..VWP |
23701-54140 |
from US $28.73 |
||
|
23702
|
23702
23702-54140 Pipe Sub-Assy, Injection, No.2[08.1989 - 02.1997] 2L..LN85..VWP |
23702-54140 |
from US $28.73 |
||
|
23703
|
23703
23703-54100 Pipe Sub-Assy, Injection, No.3[08.1989 - 02.1997] 2L..LN85..VWP |
23703-54100 |
from US $28.73 |
||
| replacement | |||||
|
23703
|
23703
23703-05011
Pipe Sub-Assy, Injection, No.3
[08.1989 - 02.1997] 2L..LN85..VWP |
23703-05011 |
— | ||
|
23704
|
23704
23704-54100 Pipe Sub-Assy, Injection, No.4[08.1989 - 02.1997] 2L..LN85..VWP |
23704-54100 |
from US $28.73 |
||
| replacement | |||||
|
23704
|
23704
23704-05010
Pipe Sub-Assy, Injection, No.4
[08.1989 - 02.1997] 2L..LN85..VWP |
23704-05010 |
— | ||
|
23741
|
23741
23741-54010 Clamp, Injection Pipe, No.1[01.1989 - 07.1996] 2L..LN85..VWP NO.1 |
23741-54010 |
US $22.34 |
||
|
23741
|
23741
23741-54030 Clamp, Injection Pipe, No.1[07.1996 - 02.1997] 2L..LN85..VWP NO.1 |
23741-54030 |
US $7.43 |
||
|
23741
|
23741
23741-56010 Clamp, Injection Pipe, No.1[01.1989 - 02.1997] 2L..LN85..VWP NO.2 |
23741-56010 |
from US $6.20 |
||
|
23742
|
23742
23742-54010 Clamp, Injection Pipe, No.2[01.1989 - 07.1996] 2L..LN85..VWP |
23742-54010 |
US $22.34 |
||
|
23811
|
23811
23811-54150
Pipe, Fuel(For Fuel Filter To Injection Pump)
[01.1989 - 08.1991] 2L..LN85..VWP NO.1 |
23811-54150 |
— | ||
| replacement | |||||
|
23811
|
23811
23811-54151 Pipe, Fuel(For Fuel Filter To Injection Pump)[01.1989 - 08.1991] 2L..LN85..VWP NO.1 |
23811-54151 |
US $35.29 |
||
| replacement | |||||
|
23811
|
23811
2381105020
Pipe Fuel No.1
[01.1989 - 08.1991] 2L..LN85..VWP NO.1 |
2381105020 |
— | ||
|
23811
|
23811
23811-54151 Pipe, Fuel(For Fuel Filter To Injection Pump)[08.1991 - 10.1991] 2L..LN85..VWP NO.1 |
23811-54151 |
US $35.29 |
||
| replacement | |||||
|
23811
|
23811
2381105020
Pipe Fuel No.1
[08.1991 - 10.1991] 2L..LN85..VWP NO.1 |
2381105020 |
— | ||
|
9011606095
|
9011606095
90116-06095 Bolt, Stud(For Head To Cylinder Head Cover) |
90116-06095 |
US $1.61 |
||
|
9011906454
|
9011906454
90119-06454 Bolt |
90119-06454 |
US $1.65 |
||
|
9011910699
|
9011910699
90119-10699
BOLT WWASHER
|
90119-10699 |
— | ||
|
9017906100
|
9017906100
90179-06100
New Genuine Part
|
90179-06100 |
— | ||
| replacement | |||||
|
9017906100
|
9017906100
90179-06204 NUT |
90179-06204 |
US $2.15 |
||
|
9017908022
|
9017908022
90179-08022 NUT |
90179-08022 |
from US $1.52 |
||
|
9046400355
|
9046400355
90464-00355 Clamp, Hood Lock Control Wire |
90464-00355 |
US $2.62 |
||
| replacement | |||||
|
9046400355
|
9046400355
90464-00356 Clamp, Hood Lock Control Wire |
90464-00356 |
US $2.48 |
||
|
9046713050
|
9046713050
90467-13050
Clamp Or Clip, Hose(For Water By-Pass Hose)
|
90467-13050 |
— | ||
| replacement | |||||
|
9046713050
|
9046713050
96135-51300 Clamp, Hose |
96135-51300 |
from US $2.13 |
||
|
9092901205
|
9092901205
90929-01205 CLAMP |
90929-01205 |
US $6.81 |
||
|
9165160818
|
9165160818
91651-60818 BOLTWWASHER |
91651-60818 |
from US $1.11 |
||
