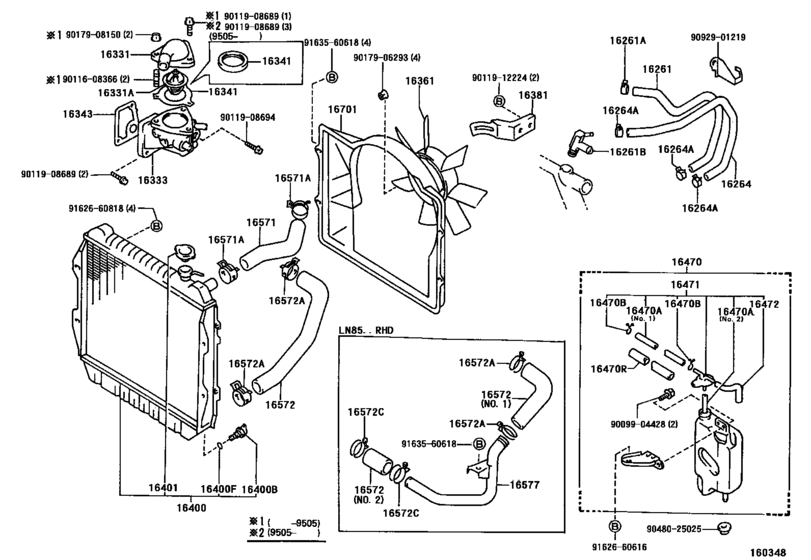

Radiator & Water Outlet ([01.1989 - 02.1997] (8901-9702)2L..VWP) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 1991 - 1997
- Sales region
- Europe
- Frame
- LN85
- grade
- STD
- ENGINE
- 2L
- TRANSMISSION
- MTM
- PRODUCT
- VWP
- DECK
- T1
- CAB
- RCB
- Model
- HILUX
- From
- 03.1991
- To
- 02.1997
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux (VWP)
- Driver's Position
- LHD
- Fuel Induction
- DSL
- Building Condition
- IV3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16261
|
16261
16261-54080 Hose, Water By-Pass[01.1989 - 02.1997] 2L..LN85..VWP |
16261-54080 |
US $20.50 |
||
|
16261A
|
16261A
90467-15022 Clip Or Clamp(For Ventilation Hose)[09.1989 - 02.1997] 2L..LN85..VWP |
90467-15022 |
from US $1.07 |
||
|
16261B
|
16261B
90404-54037 Union(For Water By-Pass Hose)[01.1989 - 08.1991] 2L..LN85..VWP |
90404-54037 |
from US $9.68 |
||
|
16261B
|
16261B
90404-54040
Union(For Water By-Pass Hose)
[08.1991 - 01.1995] 2L..LN85..VWP |
90404-54040 |
— | ||
| replacement | |||||
|
16261B
|
16261B
90404-54037 Union(For Water By-Pass Hose)[08.1991 - 01.1995] 2L..LN85..VWP |
90404-54037 |
from US $9.68 |
||
|
16264
|
16264
16264-54070 Hose, Water By-Pass, No.2[01.1989 - 02.1997] 2L..LN85..VWP |
16264-54070 |
US $20.83 |
||
|
16264A
|
16264A
90467-15022 Clip Or Clamp(For Ventilation Hose)[09.1989 - 02.1997] 2L..LN85..VWP |
90467-15022 |
from US $1.07 |
||
|
16331
|
16331
16331-54090 Outlet, Water[01.1989 - 02.1997] 2L..LN85..VWP |
16331-54090 |
from US $25.23 |
||
|
16331A
|
16331A
16340-54010 Thermostat[05.1995 - 05.1996] 2L..LN85..VWP *WAX 88-100 |
16340-54010 |
from US $21.78 |
||
|
16331A
|
16331A
90916-03099 Thermostat[03.1991 - 05.1995] 2L..LN85..VWP *WAX 88-100 |
90916-03099 |
from US $20.22 |
||
|
16333
|
16333
16333-54111 Housing, Water Outlet[06.1989 - 08.1991] 2L..LN85..VWP |
16333-54111 |
US $109.20 |
||
| replacement | |||||
|
16333
|
16333
16333-54112 Housing, Water Outlet[06.1989 - 08.1991] 2L..LN85..VWP |
16333-54112 |
from US $70.84 |
||
|
16333
|
16333
16333-54112 Housing, Water Outlet[08.1991 - 05.1995] 2L..LN85..VWP |
16333-54112 |
from US $70.84 |
||
|
16333
|
16333
16333-54113 Housing, Water Outlet[05.1995 - 02.1997] 2L..LN85..VWP |
16333-54113 |
US $42.98 |
||
|
16341
|
16341
16341-35010 Gasket, Water Outlet[05.1995 - 02.1997] 2L..LN85..VWP |
16341-35010 |
from US $1.89 |
||
|
16341
|
16341
16341-54030
Gasket, Water Outlet
[01.1989 - 10.1991] 2L..LN85..VWP |
16341-54030 |
— | ||
| replacement | |||||
|
16341
|
16341
16341-54040 Gasket, Water Outlet[01.1989 - 10.1991] 2L..LN85..VWP |
16341-54040 |
from US $3.47 |
||
|
16341
|
16341
16341-54040 Gasket, Water Outlet[10.1991 - 05.1995] 2L..LN85..VWP |
16341-54040 |
from US $3.47 |
||
|
16343
|
16343
16343-54030
Gasket, Water Outlet Housing
[01.1989 - 10.1991] 2L..LN85..VWP |
16343-54030 |
— | ||
| replacement | |||||
|
16343
|
16343
16343-54040 Gasket, Water Outlet Housing[01.1989 - 10.1991] 2L..LN85..VWP |
16343-54040 |
from US $2.26 |
||
|
16343
|
16343
16343-54040 Gasket, Water Outlet Housing[10.1991 - 02.1997] 2L..LN85..VWP |
16343-54040 |
from US $2.26 |
||
|
16361
|
16361
16361-54020 Fan[01.1989 - 02.1997] 2L..LN85..VWP |
16361-54020 |
US $112.43 |
||
|
16381
|
16381
16381-54060
Bar, Fan Belt Adjusting
[01.1989 - 02.1997] 2L..LN85..VWP |
16381-54060 |
— | ||
| replacement | |||||
|
16381
|
16381
16381-54061 Bar, Fan Belt Adjusting[01.1989 - 02.1997] 2L..LN85..VWP |
16381-54061 |
US $42.81 |
||
|
16400
|
16400
16400-04010
Radiator Assy
[10.1991 - 04.1996] 2L..LN85..VWP..LHD (L) |
16400-04010 |
— | ||
| replacement | |||||
|
16400
|
16400
16400-04040
Radiator Assy
[10.1991 - 04.1996] 2L..LN85..VWP..LHD (L) |
16400-04040 |
— | ||
|
16400
|
16400
16400-04040
Radiator Assy
[04.1996 - 02.1997] 2L..LN85..VWP..LHD |
16400-04040 |
— | ||
|
16400
|
16400
16400-54610
Radiator Assy
[01.1989 - 04.1996] 2L..LN85..VWP..LHD (J) |
16400-54610 |
— | ||
| replacement | |||||
|
16400
|
16400
16400-5B470
Radiator Assy
[01.1989 - 04.1996] 2L..LN85..VWP..LHD (J) |
16400-5B470 |
— | ||
|
16400B
|
16400B
90910-09054
Plug, Radiator Drain Cock
[01.1989 - 02.1997] 2L..LN85..VWP..LHD |
90910-09054 |
— | ||
| replacement | |||||
|
16400B
|
16400B
90910090541
Drain Plug
[01.1989 - 02.1997] 2L..LN85..VWP..LHD |
90910090541 |
— | ||
|
16400F
|
16400F
96711-19007 Packing(For Radiator Drain Cock)[01.1989 - 02.1997] 2L..LN85..VWP..LHD |
96711-19007 |
from US $2.22 |
||
|
16401
|
16401
16401-63010 Cap Sub-Assy,[01.1989 - 02.1997] 2L..LN85..VWP |
16401-63010 |
from US $19.66 |
||
|
16470
|
16470
16470-54120
Tank Assy, Radiator Reserve
[01.1989 - 02.1997] 2L..LN85..VWP |
16470-54120 |
— | ||
|
16470A
|
16470A
90445-12078 Hose(For Radiator Breather)[01.1989 - 10.1991] 2L..LN85..VWP *H,L=260,NO.1 |
90445-12078 |
from US $6.75 |
||
|
16470B
|
16470B
90467-11085 Clamp Or Clip(For Radiator Breather Hose)[01.1989 - 02.1997] 2L..LN85..VWP |
90467-11085 |
from US $0.72 |
||
|
16470R
|
16470R
16483-55020
Hose, No.2(For Radiator Reserve Tank)
[03.1993 - 02.1997] 2L..LN85..VWP |
16483-55020 |
— | ||
|
16471
|
16471
16405-54180
Cap Sub-Assy, Reserve Tank
[01.1989 - 02.1997] 2L..LN85..VWP |
16405-54180 |
— | ||
|
16472
|
16472
85338-71030
Hose, Breather
[01.1989 - 02.1997] 2L..LN85..VWP |
85338-71030 |
— | ||
|
16571
|
16571
16571-54270 Hose, Radiator, Inlet[01.1989 - 02.1997] 2L..LN85..VWP |
16571-54270 |
US $29.57 |
||
|
16571A
|
16571A
90467-37003 Clamp Or Clip, Hose(For Radiator Inlet)[01.1989 - 02.1997] 2L..LN85..VWP |
90467-37003 |
from US $4.56 |
||
|
16572
|
16572
16572-54250 Hose, Radiator, Outlet[01.1989 - 02.1997] 2L..LN85..VWP..LHD |
16572-54250 |
US $42.98 |
||
|
16572A
|
16572A
90467-37002
Clip(For Water Inlet Hose)
[01.1989 - 02.1997] 2L..LN85..VWP RADIATOR SIDE |
90467-37002 |
— | ||
| replacement | |||||
|
16572A
|
16572A
90467-37005 Clip(For Water Inlet Hose)[01.1989 - 02.1997] 2L..LN85..VWP RADIATOR SIDE |
90467-37005 |
from US $3.98 |
||
|
16572A
|
16572A
90467-41001 Clip, Radiator Hose, No.1[01.1989 - 02.1997] 2L..LN85..VWP ENGINE SIDE |
90467-41001 |
US $9.14 |
||
|
16572A
|
16572A
91656-40818
Clamp Or Clip, Hose(For Radiator Outlet No.1)
[10.1991 - 02.1997] 2L..LN85..VWP..LHD |
91656-40818 |
— | ||
| replacement | |||||
|
16572A
|
16572A
91651-B0814 Bolt with washer[10.1991 - 02.1997] 2L..LN85..VWP..LHD |
91651-B0814 |
from US $0.86 |
||
|
16701
|
16701
16711-54260 Shroud Sub-Assy, Fan[01.1989 - 02.1997] 2L..LN85..VWP..LHD |
16711-54260 |
US $51.83 |
||
|
9009904428
|
9009904428
90099-04428
Hose Or Pipe(For Radiator Reserve Tank)
|
90099-04428 |
— | ||
|
9011608366
|
9011608366
90116-08366 Stud |
90116-08366 |
US $0.79 |
||
|
9011908689
|
9011908689
90119-08689
Bolt(For Clutch Release Cylinder Setting)
|
90119-08689 |
— | ||
| replacement | |||||
|
9011908689
|
9011908689
91611-G0820 Bolt |
91611-G0820 |
from US $1.21 |
||
|
9011908694
|
9011908694
90119-08694 BOLT |
90119-08694 |
US $3.32 |
||
|
9011912224
|
9011912224
90119-12224 BOLT WWASHER |
90119-12224 |
from US $1.40 |
||
|
9017906293
|
9017906293
90179-06293 NUT |
90179-06293 |
from US $0.84 |
||
|
9017908150
|
9017908150
90179-08150 NUT |
90179-08150 |
from US $0.99 |
||
|
9048025025
|
9048025025
90480-25025 Grommet, Radiator Reserve Tank Hose |
90480-25025 |
US $2.33 |
||
|
9092901219
|
9092901219
90929-01219 Clamp Or Clip(For Water By-Pass Hose) |
90929-01219 |
US $4.89 |
||
|
9162660616
|
9162660616
91626-60616
New Genuine Part
|
91626-60616 |
— | ||
| replacement | |||||
|
9162660616
|
9162660616
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.66 |
||
|
9162660818
|
9162660818
91626-60818
Bolt (For Transmission Control Cable Bracket)
|
91626-60818 |
— | ||
| replacement | |||||
|
9162660818
|
9162660818
91621-J0814 Bolt (For Transmission Control Cable Bracket) |
91621-J0814 |
from US $0.80 |
||
|
9163560618
|
9163560618
91635-60618 New Genuine Part |
91635-60618 |
US $2.62 |
||
| replacement | |||||
|
9163560618
|
9163560618
91631-B0614 BOLT WWASHER |
91631-B0614 |
from US $0.86 |
||
