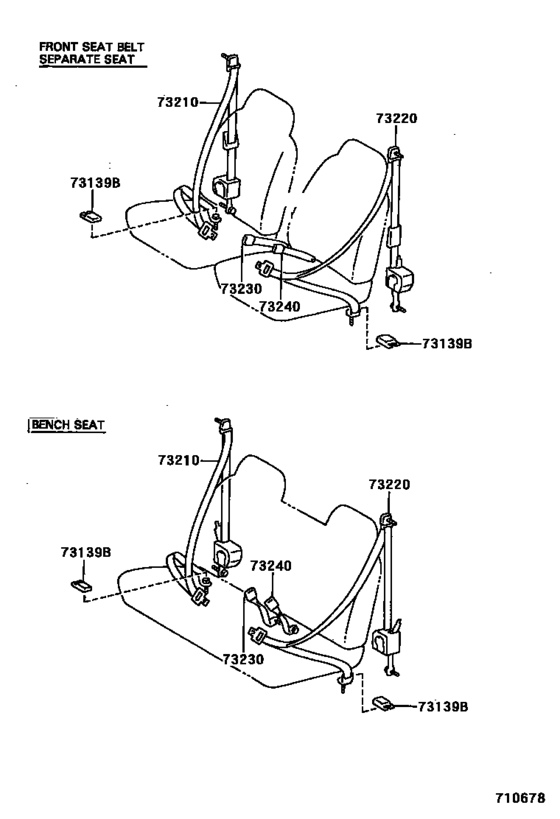

Seat Belt ([01.1989 - ] (8901- )VWP) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 1991 - 1997
- Sales region
- Europe
- Frame
- LN85
- grade
- STD
- ENGINE
- 2L
- TRANSMISSION
- MTM
- PRODUCT
- VWP
- DECK
- T1
- CAB
- RCB
- Model
- HILUX
- From
- 03.1991
- To
- 02.1997
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux (VWP)
- Driver's Position
- LHD
- Fuel Induction
- DSL
- Building Condition
- IV3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
73139B
|
73139B
73139-04010-B0
Cover, Seat Belt Anchor
[10.1991 - 02.1997] LN85,YN85..VWP GRAY,TRIM1# |
73139-04010-B0 |
— | ||
|
73139B
|
73139B
73139-04010-J0
Cover, Seat Belt Anchor
[10.1991 - 10.1994] LN85,YN85..VWP BLUE,TRIM8# |
73139-04010-J0 |
— | ||
|
73210
|
73210
73210-04010-B0
Belt Assy, Front Seat Outer, Rh
[10.1991 - 11.1993] LN85,YN85..VWP GRAY,TRIM1# |
73210-04010-B0 |
— | ||
| replacement | |||||
|
73210
|
73210
73210-04012-B0
Belt Assy, Front Seat Outer, Rh
[10.1991 - 11.1993] LN85,YN85..VWP GRAY,TRIM1# |
73210-04012-B0 |
— | ||
|
73210
|
73210
73210-04010-J0
Belt Assy, Front Seat Outer, Rh
[10.1991 - 11.1993] LN85,YN85..VWP BLUE,TRIM8# |
73210-04010-J0 |
— | ||
| replacement | |||||
|
73210
|
73210
73210-04011-J0
Belt Assy, Front Seat Outer, Rh
[10.1991 - 11.1993] LN85,YN85..VWP BLUE,TRIM8# |
73210-04011-J0 |
— | ||
|
73210
|
73210
73210-04011-B0
Belt Assy, Front Seat Outer, Rh
[11.1993 - 03.1995] LN85,YN85..VWP MEDIUM GRAY,TRIM1# |
73210-04011-B0 |
— | ||
| replacement | |||||
|
73210
|
73210
73210-04012-B0
Belt Assy, Front Seat Outer, Rh
[11.1993 - 03.1995] LN85,YN85..VWP MEDIUM GRAY,TRIM1# |
73210-04012-B0 |
— | ||
|
73210
|
73210
73210-04011-J0
Belt Assy, Front Seat Outer, Rh
[11.1993 - 10.1994] LN85,YN85..VWP MEDIUM BLUE,TRIM8# |
73210-04011-J0 |
— | ||
|
73210
|
73210
73210-04012-B0
Belt Assy, Front Seat Outer, Rh
[03.1995 - 02.1997] LN85..VWP MEDIUM GRAY,TRIM1# |
73210-04012-B0 |
— | ||
|
73220
|
73220
73210-04010-B0
Belt Assy, Front Seat Outer, Rh
[10.1991 - 11.1993] LN85,YN85..VWP GRAY,TRIM1# |
73210-04010-B0 |
— | ||
| replacement | |||||
|
73220
|
73220
73210-04012-B0
Belt Assy, Front Seat Outer, Rh
[10.1991 - 11.1993] LN85,YN85..VWP GRAY,TRIM1# |
73210-04012-B0 |
— | ||
|
73220
|
73220
73210-04010-J0
Belt Assy, Front Seat Outer, Rh
[10.1991 - 11.1993] LN85,YN85..VWP BLUE,TRIM8# |
73210-04010-J0 |
— | ||
| replacement | |||||
|
73220
|
73220
73210-04011-J0
Belt Assy, Front Seat Outer, Rh
[10.1991 - 11.1993] LN85,YN85..VWP BLUE,TRIM8# |
73210-04011-J0 |
— | ||
|
73220
|
73220
73210-04011-B0
Belt Assy, Front Seat Outer, Rh
[11.1993 - 03.1995] LN85,YN85..VWP MEDIUM GRAY,TRIM1# |
73210-04011-B0 |
— | ||
| replacement | |||||
|
73220
|
73220
73210-04012-B0
Belt Assy, Front Seat Outer, Rh
[11.1993 - 03.1995] LN85,YN85..VWP MEDIUM GRAY,TRIM1# |
73210-04012-B0 |
— | ||
|
73220
|
73220
73210-04011-J0
Belt Assy, Front Seat Outer, Rh
[11.1993 - 10.1994] LN85,YN85..VWP MEDIUM BLUE,TRIM8# |
73210-04011-J0 |
— | ||
|
73220
|
73220
73210-04012-B0
Belt Assy, Front Seat Outer, Rh
[03.1995 - 02.1997] LN85..VWP MEDIUM GRAY,TRIM1# |
73210-04012-B0 |
— | ||
|
73230
|
73230
73230-04010-B0
Belt Assy, Front Seat Inner, Rh
[10.1991 - 11.1993] LN85,YN85..VWP..LHD GRAY,TRIM1# |
73230-04010-B0 |
— | ||
| replacement | |||||
|
73230
|
73230
73230-04011-B0
Belt Assy, Front Seat Inner, Rh
[10.1991 - 11.1993] LN85,YN85..VWP..LHD GRAY,TRIM1# |
73230-04011-B0 |
— | ||
|
73230
|
73230
73230-04010-J0
Belt Assy, Front Seat Inner, Rh
[10.1991 - 11.1993] LN85,YN85..VWP..LHD BLUE,TRIM8# |
73230-04010-J0 |
— | ||
| replacement | |||||
|
73230
|
73230
73230-04011-J0
Belt Assy, Front Seat Inner, Rh
[10.1991 - 11.1993] LN85,YN85..VWP..LHD BLUE,TRIM8# |
73230-04011-J0 |
— | ||
|
73230
|
73230
73230-04011-B0
Belt Assy, Front Seat Inner, Rh
[11.1993 - 02.1997] LN85,YN85..VWP..LHD MEDIUM GRAY,TRIM1# |
73230-04011-B0 |
— | ||
|
73230
|
73230
73230-04011-J0
Belt Assy, Front Seat Inner, Rh
[11.1993 - 10.1994] LN85,YN85..VWP..LHD MEDIUM BLUE,TRIM8# |
73230-04011-J0 |
— | ||
|
73230
|
73230
73230-04020-B0
Belt Assy, Front Seat Inner, Rh
[10.1991 - 11.1993] LN85,YN85..VWP..RHD GRAY,TRIM1#; LN85,YN85..VWP..LHD W(SEPALATE SEAT),GRAY,TRIM1# |
73230-04020-B0 |
— | ||
| replacement | |||||
|
73230
|
73230
73230-04021-B0
Belt Assy, Front Seat Inner, Rh
[10.1991 - 11.1993] LN85,YN85..VWP..RHD GRAY,TRIM1#; LN85,YN85..VWP..LHD W(SEPALATE SEAT),GRAY,TRIM1# |
73230-04021-B0 |
— | ||
|
73230
|
73230
73230-04020-J0
Belt Assy, Front Seat Inner, Rh
[10.1991 - 11.1993] LN85,YN85..VWP..RHD BLUE,TRIM8#; LN85,YN85..VWP..LHD W(SEPALATE SEAT),BLUE,TRIM8# |
73230-04020-J0 |
— | ||
| replacement | |||||
|
73230
|
73230
73230-04021-J0
Belt Assy, Front Seat Inner, Rh
[10.1991 - 11.1993] LN85,YN85..VWP..RHD BLUE,TRIM8#; LN85,YN85..VWP..LHD W(SEPALATE SEAT),BLUE,TRIM8# |
73230-04021-J0 |
— | ||
|
73230
|
73230
73230-04021-B0
Belt Assy, Front Seat Inner, Rh
[11.1993 - 02.1997] LN85,YN85..VWP..RHD MEDIUM GRAY,TRIM1#; LN85,YN85..VWP..LHD W(SEPALATE SEAT),MEDIUM GRAY,TRIM1# |
73230-04021-B0 |
— | ||
|
73230
|
73230
73230-04021-J0
Belt Assy, Front Seat Inner, Rh
[11.1993 - 10.1994] LN85,YN85..VWP..RHD MEDIUM BLUE,TRIM8#; LN85,YN85..VWP..LHD W(SEPALATE SEAT),MEDIUM BLUE,TRIM8# |
73230-04021-J0 |
— | ||
|
73240
|
73240
73230-04020-B0
Belt Assy, Front Seat Inner, Rh
[10.1991 - 11.1993] LN85,YN85..VWP..RHD GRAY,TRIM1#; LN85,YN85..VWP..LHD W(SEPALATE SEAT),GRAY,TRIM1# |
73230-04020-B0 |
— | ||
| replacement | |||||
|
73240
|
73240
73230-04021-B0
Belt Assy, Front Seat Inner, Rh
[10.1991 - 11.1993] LN85,YN85..VWP..RHD GRAY,TRIM1#; LN85,YN85..VWP..LHD W(SEPALATE SEAT),GRAY,TRIM1# |
73230-04021-B0 |
— | ||
|
73240
|
73240
73230-04020-J0
Belt Assy, Front Seat Inner, Rh
[10.1991 - 11.1993] LN85,YN85..VWP..RHD BLUE,TRIM8#; LN85,YN85..VWP..LHD W(SEPALATE SEAT),BLUE,TRIM8# |
73230-04020-J0 |
— | ||
| replacement | |||||
|
73240
|
73240
73230-04021-J0
Belt Assy, Front Seat Inner, Rh
[10.1991 - 11.1993] LN85,YN85..VWP..RHD BLUE,TRIM8#; LN85,YN85..VWP..LHD W(SEPALATE SEAT),BLUE,TRIM8# |
73230-04021-J0 |
— | ||
|
73240
|
73240
73230-04021-B0
Belt Assy, Front Seat Inner, Rh
[11.1993 - 02.1997] LN85,YN85..VWP..RHD MEDIUM GRAY,TRIM1#; LN85,YN85..VWP..LHD W(SEPALATE SEAT),MEDIUM GRAY,TRIM1# |
73230-04021-B0 |
— | ||
|
73240
|
73240
73230-04021-J0
Belt Assy, Front Seat Inner, Rh
[11.1993 - 10.1994] LN85,YN85..VWP..RHD MEDIUM BLUE,TRIM8#; LN85,YN85..VWP..LHD W(SEPALATE SEAT),MEDIUM BLUE,TRIM8# |
73230-04021-J0 |
— | ||
|
73240
|
73240
73240-04010-B0
Belt Assy, Front Seat Inner, Lh
[10.1991 - 11.1993] LN85,YN85..VWP..LHD GRAY,TRIM1# |
73240-04010-B0 |
— | ||
| replacement | |||||
|
73240
|
73240
73240-04011-B0
Belt Assy, Front Seat Inner, Lh
[10.1991 - 11.1993] LN85,YN85..VWP..LHD GRAY,TRIM1# |
73240-04011-B0 |
— | ||
|
73240
|
73240
73240-04010-J0
Belt Assy, Front Seat Inner, Lh
[10.1991 - 11.1993] LN85,YN85..VWP..LHD BLUE,TRIM8# |
73240-04010-J0 |
— | ||
| replacement | |||||
|
73240
|
73240
73240-04011-J0
Belt Assy, Front Seat Inner, Lh
[10.1991 - 11.1993] LN85,YN85..VWP..LHD BLUE,TRIM8# |
73240-04011-J0 |
— | ||
|
73240
|
73240
73240-04011-B0
Belt Assy, Front Seat Inner, Lh
[11.1993 - 02.1997] LN85,YN85..VWP..LHD MEDIUM GRAY,TRIM1# |
73240-04011-B0 |
— | ||
|
73240
|
73240
73240-04011-J0
Belt Assy, Front Seat Inner, Lh
[11.1993 - 10.1994] LN85,YN85..VWP..LHD MEDIUM BLUE,TRIM8# |
73240-04011-J0 |
— | ||
