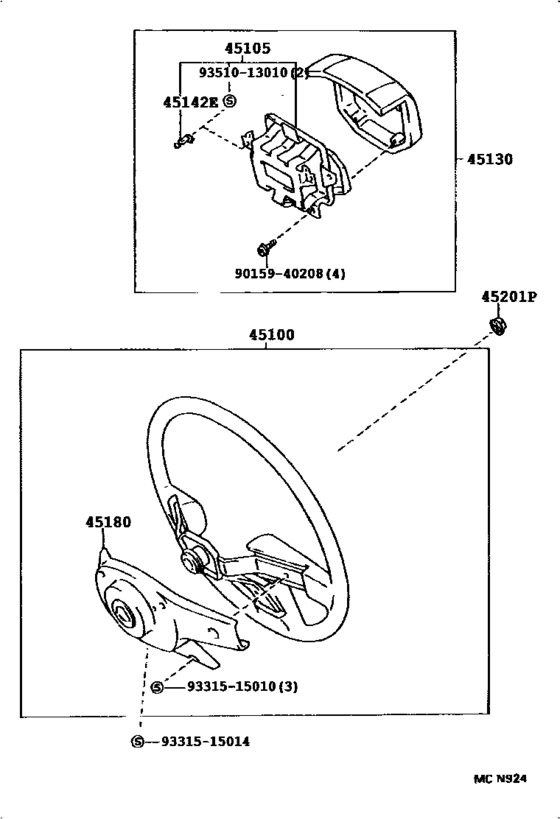

Steering Wheel ([08.1988 - ] 3-SPOKE (8808- )) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 1992 - 1995
- Sales region
- U.S.A.
- Frame
- RN101
- grade
- DLX
- ENGINE
- 22RE
- TRANSMISSION
- MTM
- PRODUCT
- NAP
- DESTINATION
- USA
- DECK
- T1
- CAB
- RCB
- Model
- 4RUNNER TRUCK
- From
- 02.1992
- To
- 01.1995
- Gear Shift Type
- 5F
- Vehicle Model
- 4RUNNER
- Fuel Induction
- EFI
- Building Condition
- CBU
- Transmission Model
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45100
|
45100
45100-04010-B0
Wheel Assy, Steering
[03.1993 - 01.1995] RN101,110,VZN100,110 2-SPOKE,POLYPROPYLENE,MEDIUM GRAY,TRIM1# |
45100-04010-B0 |
— | ||
|
45100
|
45100
45100-04010-J0
Wheel Assy, Steering
[03.1993 - 01.1995] RN101,110,VZN100,110 2-SPOKE,POLYPROPYLENE,MEDIUM BLUE,TRIM8# |
45100-04010-J0 |
— | ||
|
45100
|
45100
45100-35320-B0 Wheel Assy, Steering[03.1993 - 01.1995] RN101,110,VZN100,110 3-SPOKE,URETHANE,*CRC,MEDIUM GRAY,TRIM1# |
45100-35320-B0 |
US $843.02 |
||
|
45100
|
45100
45100-35320-J0 Wheel Assy, Steering[03.1993 - 01.1995] RN101,110,VZN100,110 3-SPOKE,URETHANE,*CRC,MEDIUM BLUE,TRIM8# |
45100-35320-J0 |
US $843.02 |
||
| replacement | |||||
|
45100
|
45100
45100-35320-B0 Wheel Assy, Steering[03.1993 - 01.1995] RN101,110,VZN100,110 3-SPOKE,URETHANE,*CRC,MEDIUM BLUE,TRIM8# |
45100-35320-B0 |
US $843.02 |
||
|
45100
|
45100
45100-35340-B0 Wheel Assy, Steering[02.1992 - 12.1992] RN101,VZN100 2-SPOKE,POLYPROPYLENE,MEDIUM GRAY,TRIM1# |
45100-35340-B0 |
US $244.61 |
||
|
45100
|
45100
45100-35340-J0 Wheel Assy, Steering[02.1992 - 12.1992] RN101,VZN100 2-SPOKE,POLYPROPYLENE,MEDIUM BLUE,TRIM8# |
45100-35340-J0 |
US $243.15 |
||
| replacement | |||||
|
45100
|
45100
45100-35340-B0 Wheel Assy, Steering[02.1992 - 12.1992] RN101,VZN100 2-SPOKE,POLYPROPYLENE,MEDIUM BLUE,TRIM8# |
45100-35340-B0 |
US $244.61 |
||
|
45105
|
45105
45105-04010
Plate Sub-Assy, Horn Button Contact, No.1
[12.1992 - 01.1995] RN101,110,VZN100,110 |
45105-04010 |
— | ||
|
45105
|
45105
45105-35060 Plate Sub-Assy, Horn Button Contact, No.1[02.1992 - 12.1992] RN101,VZN100 |
45105-35060 |
US $66.83 |
||
|
45105
|
45105
45105-35070 Plate Sub-Assy, Horn Button Contact, No.1[02.1992 - 01.1995] RN101,110,VZN100,110 *CRC |
45105-35070 |
US $66.10 |
||
|
45130
|
45130
45130-04010-B0
Button Assy, Horn
[03.1993 - 01.1995] RN101,110,VZN100,110 MEDIUM GRAY,TRIM1# |
45130-04010-B0 |
— | ||
|
45130
|
45130
45130-04010-J0 Button Assy, HornHORN [03.1993 - 01.1995] RN101,110,VZN100,110 MEDIUM BLUE,TRIM8# |
45130-04010-J0 |
US $183.46 |
||
| replacement | |||||
|
45130
|
45130
45130-04010-B0
Button Assy, Horn
[03.1993 - 01.1995] RN101,110,VZN100,110 MEDIUM BLUE,TRIM8# |
45130-04010-B0 |
— | ||
|
45130
|
45130
45130-35252-B0 Button Assy, Horn[03.1993 - 01.1995] RN101,110,VZN100,110 *CRC,MEDIUM GRAY,TRIM1# |
45130-35252-B0 |
US $208.21 |
||
|
45130
|
45130
45130-35252-J0 Button Assy, Horn[03.1993 - 01.1995] RN101,110,VZN100,110 *CRC,MEDIUM BLUE,TRIM8# |
45130-35252-J0 |
US $208.21 |
||
| replacement | |||||
|
45130
|
45130
45130-35252-B0 Button Assy, Horn[03.1993 - 01.1995] RN101,110,VZN100,110 *CRC,MEDIUM BLUE,TRIM8# |
45130-35252-B0 |
US $208.21 |
||
|
45130
|
45130
45130-35270-B0 Button Assy, Horn[02.1992 - 12.1992] RN101,VZN100 MEDIUM GRAY,TRIM1# |
45130-35270-B0 |
US $227.14 |
||
|
45130
|
45130
45130-35270-J0 Button Assy, Horn[02.1992 - 12.1992] RN101,VZN100 MEDIUM BLUE,TRIM8# |
45130-35270-J0 |
US $227.14 |
||
| replacement | |||||
|
45130
|
45130
45130-35270-B0 Button Assy, Horn[02.1992 - 12.1992] RN101,VZN100 MEDIUM BLUE,TRIM8# |
45130-35270-B0 |
US $227.14 |
||
|
45142E
|
45142E
45142-20060 Seat, Horn Button Contact, No.1[02.1992 - 01.1995] RN101,110,VZN100,110 |
45142-20060 |
US $5.39 |
||
|
45180
|
45180
45180-04010-B0
Cover Sub-Assy, Steering Wheel
[03.1993 - 01.1995] RN101,110,VZN100,110 MEDIUM GRAY,TRIM1# |
45180-04010-B0 |
— | ||
|
45180
|
45180
45180-04010-J0
Cover Sub-Assy, Steering Wheel
[03.1993 - 01.1995] RN101,110,VZN100,110 MEDIUM BLUE,TRIM8# |
45180-04010-J0 |
— | ||
|
45180
|
45180
45180-35060-B0 Cover Sub-Assy, Steering Wheel[02.1992 - 12.1992] RN101,VZN100 GRAY,TRIM1# |
45180-35060-B0 |
US $29.27 |
||
|
45180
|
45180
45180-35060-J0 Cover Sub-Assy, Steering Wheel[02.1992 - 12.1992] RN101,VZN100 BLUE,TRIM8# |
45180-35060-J0 |
US $29.12 |
||
| replacement | |||||
|
45180
|
45180
45180-35060-B0 Cover Sub-Assy, Steering Wheel[02.1992 - 12.1992] RN101,VZN100 BLUE,TRIM8# |
45180-35060-B0 |
US $29.27 |
||
|
45180
|
45180
45184-35050-B0 Cover Sub-Assy, Steering Wheel[03.1993 - 01.1995] RN101,110,VZN100,110 *CRC,MEDIUM GRAY,TRIM1# |
45184-35050-B0 |
US $24.32 |
||
|
45180
|
45180
45184-35050-J0 Cover Sub-Assy, Steering Wheel[03.1993 - 01.1995] RN101,110,VZN100,110 *CRC,MEDIUM BLUE,TRIM8# |
45184-35050-J0 |
US $24.32 |
||
| replacement | |||||
|
45180
|
45180
45184-35050-B0 Cover Sub-Assy, Steering Wheel[03.1993 - 01.1995] RN101,110,VZN100,110 *CRC,MEDIUM BLUE,TRIM8# |
45184-35050-B0 |
US $24.32 |
||
|
45201P
|
45201P
90179-12071 Nut, Steering Wheel Set[06.1993 - 01.1995] RN101,110,VZN100,110 |
90179-12071 |
from US $1.52 |
||
|
45201P
|
45201P
90179-12086 Nut, Steering Wheel Set[02.1992 - 06.1993] RN101,110,VZN100,110 |
90179-12086 |
US $5.38 |
||
|
9015940208
|
9015940208
90159-40208 New Genuine Part |
90159-40208 |
US $1.60 |
||
|
9331515010
|
9331515010
93315-15010 New Genuine Part |
93315-15010 |
US $1.25 |
||
|
9331515014
|
9331515014
93315-15014 New Genuine Part |
93315-15014 |
US $2.33 |
||
|
9351013010
|
9351013010
93510-13010 Bolt Or Pin (For Shift Lever Knob Setting) |
93510-13010 |
US $1.97 |
||
