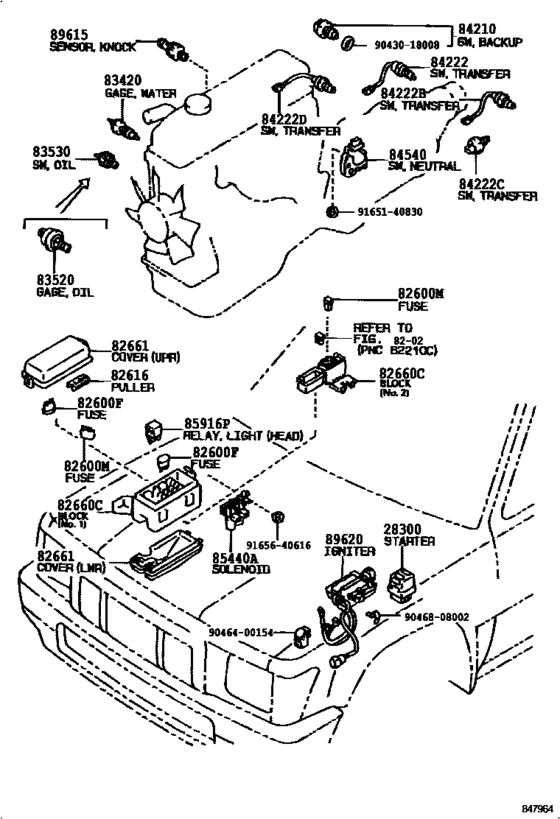

Switch & Relay & Computer ([02.1992 - 01.1995] (9202-9501)RN101,110) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 1992 - 1995
- Sales region
- U.S.A.
- Frame
- RN101
- grade
- DLX
- ENGINE
- 22RE
- TRANSMISSION
- MTM
- PRODUCT
- NAP
- DESTINATION
- USA
- DECK
- T1
- CAB
- RCB
- Model
- 4RUNNER TRUCK
- From
- 02.1992
- To
- 01.1995
- Gear Shift Type
- 5F
- Vehicle Model
- 4RUNNER
- Fuel Induction
- EFI
- Building Condition
- CBU
- Transmission Model
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28300
|
28300
28300-10020 Relay Assy, Starter[06.1992 - 01.1995] 22RE,3VZE..RN101,110,VZN100,110 |
28300-10020 |
from US $42.38 |
||
|
28300
|
28300
90987-02009 Relay Assy[02.1992 - 06.1992] 22RE,3VZE..RN101,VZN100 |
90987-02009 |
from US $26.14 |
||
|
82600F
|
82600F
90080-82012
Fuse, Fuse Block
[02.1992 - 01.1995] RN101,110,VZN100,110 10A |
90080-82012 |
— | ||
|
82600F
|
82600F
90080-82013 Fuse, Fuse Block[02.1992 - 01.1995] RN101,110,VZN100,110 15A |
90080-82013 |
US $1.60 |
||
|
82600F
|
82600F
90080-82014
Fuse, Fuse Block
[03.1992 - 01.1995] RN101,110,VZN100,110 20A |
90080-82014 |
— | ||
| replacement | |||||
|
82600F
|
82600F
90982-09004 Fusible Link[03.1992 - 01.1995] RN101,110,VZN100,110 20A |
90982-09004 |
from US $0.87 |
||
|
82600F
|
82600F
90080-82015
Fuse, Fuse Block
[03.1992 - 09.1992] RN101,VZN100 7.5A |
90080-82015 |
— | ||
|
82600F
|
82600F
90982-09004 Fusible Link[02.1992 - 03.1992] RN101..G 20A; RN101..4FC;RN101,VZN100..R,W 20A |
90982-09004 |
from US $0.87 |
||
|
82600F
|
82600F
90982-09005 Fuse, Fuse Block[02.1992 - 03.1992] RN101,VZN100 7.5A |
90982-09005 |
from US $0.87 |
||
|
82600M
|
82600M
90982-10001 Instrument Panel Fusible Link[02.1992 - 09.1992] RN101,VZN100 30A |
90982-10001 |
from US $2.93 |
||
|
82616
|
82616
82616-89102
Puller, Fuse
[02.1992 - 01.1995] RN101,110,VZN100,110 |
82616-89102 |
— | ||
|
82660C
|
82660C
82660-35030 Block Assy, Relay[03.1992 - 05.1992] RN101 |
82660-35030 |
US $202.68 |
||
|
82660C
|
82660C
82660-35090 Block Assy, Relay[05.1992 - 01.1995] RN101,110,VZN100,110 |
82660-35090 |
US $313.04 |
||
|
82661
|
82661
82662-35010
Cover, Relay Block, No.1
[02.1992 - 01.1995] RN101,110,VZN100,110 UPR |
82662-35010 |
— | ||
|
82661
|
82661
82663-35010 Cover, Relay Block, No.1[02.1992 - 01.1995] RN101,110,VZN100,110 LWR |
82663-35010 |
US $13.10 |
||
|
83420
|
83420
83420-20020 Gage Assy, Water Temperature Sender[02.1992 - 09.1992] RN101 |
83420-20020 |
from US $28.01 |
||
|
83420
|
83420
83420-20030
Gage Assy, Water Temperature Sender
[09.1992 - 01.1995] RN101,110 YAZAKI |
83420-20030 |
— | ||
| replacement | |||||
|
83420
|
83420
83420-16040 Gage Assy, Water Temperature Sender[09.1992 - 01.1995] RN101,110 YAZAKI |
83420-16040 |
from US $27.49 |
||
|
83520
|
83520
83520-14023
Gage Assy,oil Pressure Sender
[02.1992 - 09.1992] RN101,VZN100..5F NIPPONDENSO |
83520-14023 |
— | ||
| replacement | |||||
|
83520
|
83520
83520-35032 Gage Assy,oil Pressure Sender[02.1992 - 09.1992] RN101,VZN100..5F NIPPONDENSO |
83520-35032 |
from US $29.55 |
||
|
83520
|
83520
83520-34010 Gage Assy,oil Pressure Sender[09.1992 - 01.1995] RN101,110,VZN100,110..5F |
83520-34010 |
US $51.37 |
||
|
83520
|
83520
83520-55011 Gage Assy,oil Pressure Sender[02.1992 - 09.1992] RN101,VZN100..5F YAZAKI |
83520-55011 |
from US $49.77 |
||
|
83530
|
83530
83530-14030
Switch Assy, Oil Pressure (For Engine)
[02.1992 - 09.1992] RN101 |
83530-14030 |
— | ||
| replacement | |||||
|
83530
|
83530
83530-28030 Switch Assy, Oil Pressure (For Engine)[02.1992 - 09.1992] RN101 |
83530-28030 |
from US $22.19 |
||
|
83530
|
83530
83530-14070
Switch Assy, Oil Pressure (For Engine)
[09.1992 - 01.1995] RN101,110 |
83530-14070 |
— | ||
| replacement | |||||
|
83530
|
83530
83530-28010 Switch Assy, Oil Pressure (For Engine)[09.1992 - 01.1995] RN101,110 |
83530-28010 |
from US $25.50 |
||
|
84210
|
84210
84210-12040
Switch Assy, Back-Up Lamp
[02.1992 - 01.1995] RN101,110,VZN100,110..5F |
84210-12040 |
— | ||
| replacement | |||||
|
84210
|
84210
84210-52050 Switch Assy, Back-Up Lamp[02.1992 - 01.1995] RN101,110,VZN100,110..5F |
84210-52050 |
from US $16.33 |
||
|
84222
|
84222
84222-35050 Switch, Transfer Indicator, No.1[02.1992 - 01.1995] RN101,110..W |
84222-35050 |
US $73.56 |
||
|
85916P
|
85916P
90987-02006 Relay[02.1992 - 01.1995] RN101,110,VZN100,110 |
90987-02006 |
from US $25.14 |
||
|
89615
|
89615
89615-22040 Sensor, Knock Control[02.1992 - 01.1995] RN101,110 |
89615-22040 |
US $193.12 |
||
|
89620
|
89620
89620-35280
Igniter Assy
[02.1992 - 09.1992] RN101 |
89620-35280 |
— | ||
|
89620
|
89620
89620-35310 Igniter Assy[09.1992 - 01.1995] RN101,110 |
89620-35310 |
US $426.32 |
||
|
9043018008
|
9043018008
90430-18008 Gasket |
90430-18008 |
from US $0.82 |
||
| replacement | |||||
|
9043018008
|
9043018008
90430-T0021
Gasket(For Manual Transmission Filler Plug)
|
90430-T0021 |
— | ||
|
9046400154
|
9046400154
90464-00154
New Genuine Part
|
90464-00154 |
— | ||
|
9046808002
|
9046808002
90468-08002
New Genuine Part
|
90468-08002 |
— | ||
|
9165140830
|
9165140830
91651-40830 Bolt, Radiator Side Support Plate |
91651-40830 |
US $1.02 |
||
|
9165640616
|
9165640616
91656-40616
Bolt
|
91656-40616 |
— | ||
| replacement | |||||
|
9165640616
|
9165640616
91651-60614 Bolt |
91651-60614 |
US $0.83 |
||
