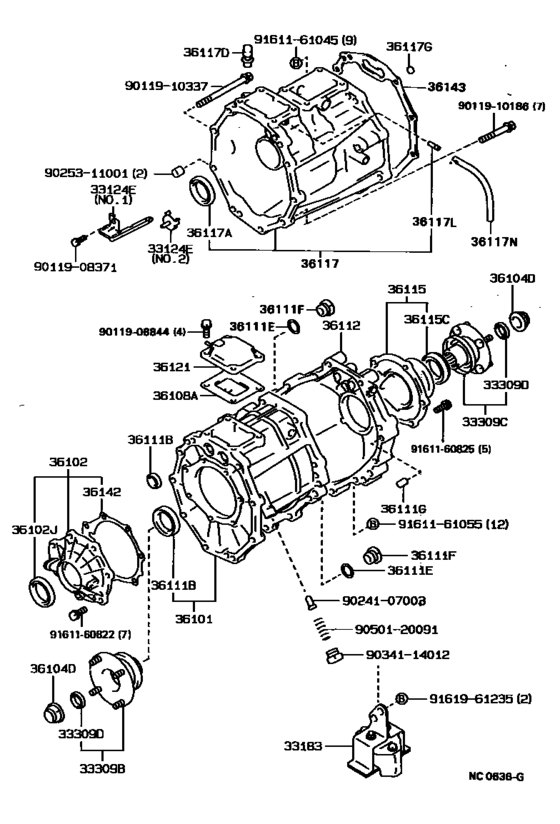

Transfer Case & Extension Housing ([08.1988 - ] (8808- )RN101,110) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 1992 - 1995
- Sales region
- U.S.A.
- Frame
- RN101
- grade
- DLX
- ENGINE
- 22RE
- TRANSMISSION
- MTM
- PRODUCT
- NAP
- DESTINATION
- USA
- DECK
- T1
- CAB
- RCB
- Model
- 4RUNNER TRUCK
- From
- 02.1992
- To
- 01.1995
- Gear Shift Type
- 5F
- Vehicle Model
- 4RUNNER
- Fuel Induction
- EFI
- Building Condition
- CBU
- Transmission Model
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33124E
|
33124E
33106-35020 Pipe, Oil Receiver(For Transfer)[02.1992 - 01.1995] RN101,110..W |
33106-35020 |
US $9.90 |
||
|
33309B
|
33309B
33309-35030 Flange Sub-Assy, Output Shaft Companion[02.1992 - 01.1995] RN101,110..W |
33309-35030 |
from US $132.66 |
||
|
33309C
|
33309C
33309-35040 Flange Sub-Assy, Output Shaft Companion[02.1992 - 01.1995] RN101,110..W |
33309-35040 |
US $216.65 |
||
|
36104D
|
36104D
90179-20001 Nut (For Manual Transmission Output Shaft Rear Set)[02.1992 - 01.1995] RN101,110..W |
90179-20001 |
from US $4.66 |
||
|
36111F
|
36111F
90341-18006 Plug (No magnet)[02.1992 - 01.1995] RN101..4FC;RN101,110..W FILLER |
90341-18006 |
from US $2.20 |
||
|
36111F
|
36111F
90341-18057 Drain Plug (with Magnet)[02.1992 - 01.1995] VZN110..R;RN101,110,VZN100 DRAIN |
90341-18057 |
from US $4.40 |
||
|
36111G
|
36111G
90250-10232 Pin, Straight(For Engine Rear Oil Seal)[02.1992 - 01.1995] RN101,110..W L=15,OD=8 |
90250-10232 |
US $1.24 |
||
|
36115
|
36115
36115-35010
Housing, Transfer Extension
[02.1992 - 01.1995] RN101,110..W |
36115-35010 |
— | ||
|
36115C
|
36115C
90311-38140 Seal, Oil(For Manual Transmission Extension Housing)[02.1992 - 01.1995] RN101,110..W |
90311-38140 |
from US $3.99 |
||
|
36117
|
36117
36107-35140 Adapter, TransferTRANSFER [02.1992 - 01.1995] RN101,110..W |
36107-35140 |
US $840.11 |
||
|
36117A
|
36117A
90311-32009 Seal, Oil(For Transfer Adapter)[02.1992 - 01.1995] RN101,110..W |
90311-32009 |
from US $5.37 |
||
|
36117G
|
36117G
90341-10065 Plug, Straight, No.1[02.1992 - 01.1995] RN101,110..W |
90341-10065 |
US $2.75 |
||
|
36121
|
36121
36121-35010 Cover, Transfer Case, No.1[02.1992 - 01.1995] RN101,110..W |
36121-35010 |
US $70.32 |
||
|
36143
|
36143
36143-35010 Gasket, Transfer Case, Front[02.1992 - 01.1995] RN101,110..W |
36143-35010 |
US $4.72 |
||
|
9011908371
|
9011908371
90119-08371 New Genuine Part |
90119-08371 |
US $1.46 |
||
|
9011908844
|
9011908844
90119-08844
New Genuine Part
|
90119-08844 |
— | ||
| replacement | |||||
|
9011908844
|
9011908844
90119-08336 BOLT |
90119-08336 |
US $1.93 |
||
|
9011910186
|
9011910186
90119-10186 BOLT |
90119-10186 |
US $1.79 |
||
|
9011910337
|
9011910337
90119-10337 BOLT |
90119-10337 |
US $3.14 |
||
|
9024107003
|
9024107003
90241-07003 Pin, Slotted Spring (For Transfer Case) |
90241-07003 |
US $0.79 |
||
|
9025311001
|
9025311001
90253-11001 Pin, Ring(For Camshaft Bearing Cap Setting) |
90253-11001 |
US $1.51 |
||
|
9034114012
|
9034114012
90341-14012 Plug (For Transfer Case) |
90341-14012 |
US $2.34 |
||
|
9050120091
|
9050120091
90501-20091 Spring, Compression (For Transfer Case) |
90501-20091 |
US $0.87 |
||
|
9161160822
|
9161160822
91611-60822 Bolt |
91611-60822 |
from US $1.05 |
||
|
9161160825
|
9161160825
91611-60825
Bolt(For Head To Camshaft Bearing Cap)
|
91611-60825 |
— | ||
| replacement | |||||
|
9161160825
|
9161160825
91611-B0825 Bolt(For Clutch Release Cylinder Setting) |
91611-B0825 |
from US $1.03 |
||
|
9161161045
|
9161161045
91611-61045
Bolt, Hexagon(For Idle Gear Bolt Lock)
|
91611-61045 |
— | ||
| replacement | |||||
|
9161161045
|
9161161045
91612-61045 Bolt(For Transaxle & Engine Setting) |
91612-61045 |
from US $1.08 |
||
|
9161161055
|
9161161055
91611-61055 Bolt(For Clutch Release Cylinder Setting) |
91611-61055 |
US $1.31 |
||
|
9161961235
|
9161961235
91619-61235 BOLT |
91619-61235 |
from US $1.65 |
||
