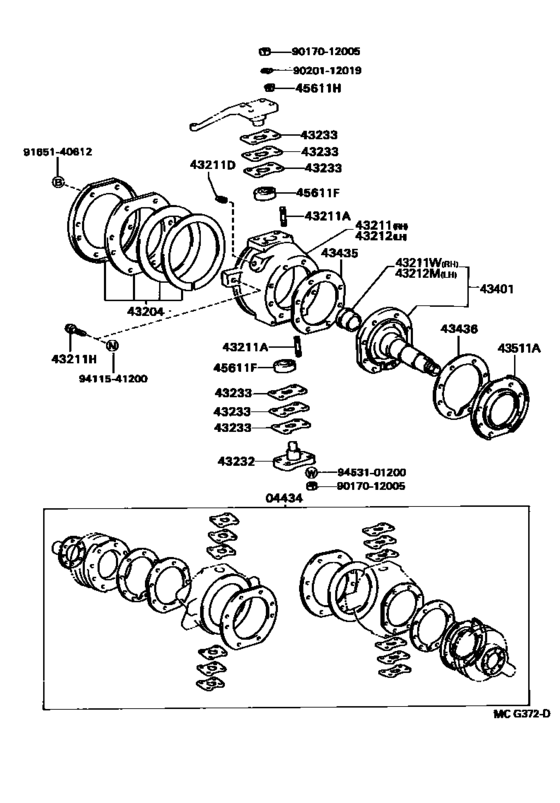

Front Axle Arm & Steering Knuckle ([08.1988 - 06.2001] (8808-0106)LN106,RN105,YN106) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 1988 - 1997
- Sales region
- General
- Frame
- RN105
- grade
- DLX
- ENGINE
- 22R
- TRANSMISSION
- MTM
- DESTINATION
- V
- Model
- HILUX
- From
- 08.1988
- To
- 08.1997
- Body
- RCB
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux
- Driver's Position
- LHD
- Fuel Induction
- CBR
- Body
- T1
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04434
|
04434
04434-60012
Gasket Kit, Front Axle Overhaul
[08.1988 - 06.1995] LN106,RN105,YN106 |
04434-60012 |
— | ||
| replacement | |||||
|
04434
|
04434
04434-60015 Gasket Kit, Front Axle Overhaul[08.1988 - 06.1995] LN106,RN105,YN106 |
04434-60015 |
from US $123 |
||
|
04434
|
04434
04434-60015 Gasket Kit, Front Axle Overhaul[06.1995 - 09.1999] LN106,RN105,YN106 |
04434-60015 |
from US $123 |
||
|
43204
|
43204
43204-60020 Seal Sub-Assy, Steering Knuckle Oil[08.1988 - 09.1999] LN106,RN105,YN106 |
43204-60020 |
from US $24.26 |
||
|
43211
|
43211
43211-35090
Knuckle, Steering, Rh
[08.1988 - 09.1999] LN106,RN105,YN106 |
43211-35090 |
— | ||
|
43211A
|
43211A
90116-12007
Bolt, Stud (For Steering Set)
[08.1988 - 09.1999] LN106,RN105,YN106 |
90116-12007 |
— | ||
| replacement | |||||
|
43211A
|
43211A
90126-12005
Bolt, Stud (For Steering Set)
[08.1988 - 09.1999] LN106,RN105,YN106 |
90126-12005 |
— | ||
|
43211D
|
43211D
90345-53020 Plug, W/head Taper Screw (For Winch Gear Case)[08.1988 - 09.1999] LN106,RN105,YN106 |
90345-53020 |
from US $4.30 |
||
|
43211H
|
43211H
90106-12022 Bolt, Round Hexagon (For Steering Knuckle Stopper Bolt)[08.1988 - 09.1999] LN106,RN105,YN106 |
90106-12022 |
from US $3.63 |
||
|
43211W
|
43211W
90381-33001 Bush (For Steering Knuckle)[08.1988 - 02.1990] LN106,RN105,YN106 |
90381-33001 |
from US $67.37 |
||
|
43211W
|
43211W
90381-33002 Bush (For Steering Knuckle)[02.1990 - 09.1999] LN106,RN105,YN106 |
90381-33002 |
from US $56.28 |
||
|
43212
|
43212
43212-35050
Knuckle, Steering, Lh
[08.1988 - 09.1999] LN106,RN105,YN106 |
43212-35050 |
— | ||
|
43212M
|
43212M
90381-33001 Bush (For Steering Knuckle)[08.1988 - 02.1990] LN106,RN105,YN106 |
90381-33001 |
from US $67.37 |
||
|
43212M
|
43212M
90381-33002 Bush (For Steering Knuckle)[02.1990 - 09.1999] LN106,RN105,YN106 |
90381-33002 |
from US $56.28 |
||
|
43232
|
43232
43232-35010 Cap, Steering Knuckle Bearing[08.1988 - 09.1999] LN106,RN105,YN106 |
43232-35010 |
from US $55.36 |
||
|
43233
|
43233
43233-60011 Shim, Steering Knuckle Adjust, No.1[08.1988 - 09.1999] LN106,RN105,YN106 T=0.20 |
43233-60011 |
from US $1.21 |
||
|
43233
|
43233
43234-60011 Shim, Steering Knuckle Adjust, No.1[08.1988 - 09.1999] LN106,RN105,YN106 T=0.50 |
43234-60011 |
from US $1.76 |
||
|
43233
|
43233
43235-60010 Shim, Steering Knuckle Adjust, No.1[08.1988 - 09.1999] LN106,RN105,YN106 T=1.0 |
43235-60010 |
from US $2.36 |
||
|
43233
|
43233
43236-60010 Shim, Steering Knuckle Adjust, No.1[08.1988 - 09.1999] LN106,RN105,YN106 T=0.1 |
43236-60010 |
from US $1.21 |
||
|
43401
|
43401
43401-60012
Spindle Sub-Assy, Steering Knuckle
[08.1988 - 02.1990] LN106,RN105,YN106 |
43401-60012 |
— | ||
| replacement | |||||
|
43401
|
43401
43401-60060 Spindle Sub-Assy, Steering Knuckle[08.1988 - 02.1990] LN106,RN105,YN106 |
43401-60060 |
from US $267.20 |
||
|
43401
|
43401
43401-60060 Spindle Sub-Assy, Steering Knuckle[02.1990 - 09.1999] LN106,RN105,YN106 |
43401-60060 |
from US $267.20 |
||
|
43435
|
43435
43435-60011 Gasket, Knuckle Spindle[08.1988 - 09.1999] LN106,RN105,YN106 |
43435-60011 |
from US $1.05 |
||
|
43436
|
43436
43436-60011 Gasket, Brake Drum Oil Deflector[08.1988 - 09.1999] LN106,RN105,YN106 |
43436-60011 |
from US $1.19 |
||
|
43511A
|
43511A
90313-93011 Seal, Oil (For Front Axle Hub)[08.1988 - 09.1999] LN106,RN105,YN106 |
90313-93011 |
from US $31.92 |
||
|
45611F
|
45611F
90366-17001
Bearing(For Steering Knuckle Arm)
[08.1988 - 09.1999] LN106,RN105,YN106 |
90366-17001 |
— | ||
| replacement | |||||
|
45611F
|
45611F
90366-17007 Bearing(For Steering Knuckle Arm)[08.1988 - 09.1999] LN106,RN105,YN106 |
90366-17007 |
from US $26.38 |
||
|
45611H
|
45611H
42323-60020 Washer, Cone (For Steering Knuckle Arm)[08.1988 - 09.1999] LN106,RN105,YN106 |
42323-60020 |
from US $2.75 |
||
|
9017012005
|
9017012005
90170-12005 Nut (For Propeller Shaft) |
90170-12005 |
from US $0.84 |
||
|
9020112019
|
9020112019
90201-12019 WASHER |
90201-12019 |
from US $1.11 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
from US $0.98 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.97 |
||
|
9411541200
|
9411541200
94115-41200
Nut
|
94115-41200 |
— | ||
| replacement | |||||
|
9411541200
|
9411541200
94130-61200 Nut |
94130-61200 |
from US $0.98 |
||
|
9453101200
|
9453101200
94531-01200 WASHER |
94531-01200 |
from US $0.74 |
||
