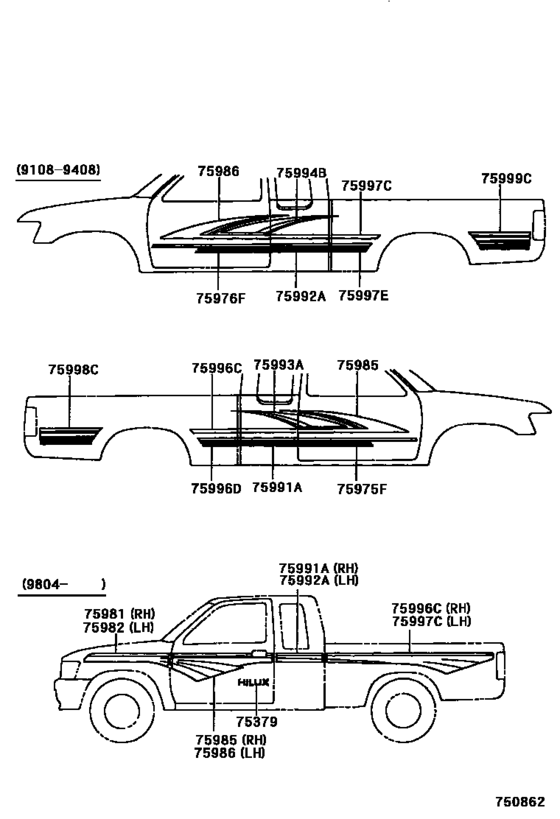

Body Stripe ([08.1991 - ] (9108- )LN111,RN110) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 1988 - 1997
- Sales region
- General
- Frame
- RN110
- grade
- SR5
- ENGINE
- 22R
- TRANSMISSION
- MTM
- DESTINATION
- ARL
- Model
- HILUX
- From
- 08.1988
- To
- 08.1997
- Body
- XTR
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux
- Driver's Position
- RHD
- Fuel Induction
- CBR
- Body
- T1
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
75379
|
75379
75379-35080
Mark, Side Panel
[08.1994 - 06.2001] RN106..STD;RN10#..(ARL,V)..CBU;LN10#,111,RN110,YN106..CBU |
75379-35080 |
— | ||
|
75975F
|
75975F
75975-35060-A0
Stripe, Front Door Outside, Lower Rh
[08.1991 - 08.1993] RN105..T1..V SILVER,202 ,3H7 ,3K3 ,4J9 ,6J7; LN106,111,YN106..T1..GEN..CBU SILVER,3H7 ,3K3 ,4J9 ,6J7; LN106,111,RN105,110..T1..ARL..CBU SILVER,3H7 ,3K3 ,4J9 |
75975-35060-A0 |
— | ||
|
75975F
|
75975F
75975-35060-K0
Stripe, Front Door Outside, Lower Rh
[08.1991 - 08.1992] LN106,111,RN105,110,YN106..T1..CBU BLUE SILVER,045 ,147 ,179 ,8E2 ,8H8 |
75975-35060-K0 |
— | ||
|
75976F
|
75976F
75976-35060-A0
Stripe, Front Door Outside, Lower Lh
[08.1991 - 08.1993] RN105..T1..V SILVER,202 ,3H7 ,3K3 ,4J9 ,6J7; LN106,111,YN106..T1..GEN..CBU SILVER,3H7 ,3K3 ,4J9 ,6J7; LN106,111,RN105,110..T1..ARL..CBU SILVER,3H7 ,3K3 ,4J9 |
75976-35060-A0 |
— | ||
|
75976F
|
75976F
75976-35060-K0
Stripe, Front Door Outside, Lower Lh
[08.1991 - 08.1992] LN106,111,RN105,110,YN106..T1..CBU BLUE SILVER,045 ,147 ,179 ,8E2 ,8H8 |
75976-35060-K0 |
— | ||
|
75981
|
75981
75981-35150 Stripe, Front Fender, Rh No.1FRONT FENDER, RH NO.1 [08.1994 - 12.1998] LN10#,111,RN10#,110..ARL..CBU |
75981-35150 |
US $131.04 |
||
|
75982
|
75982
75982-35150 Stripe, Front Fender, Lh No.1FRONT FENDER, LH NO.1 [08.1994 - 12.1998] LN10#,111,RN10#,110..ARL..CBU |
75982-35150 |
US $131.04 |
||
|
75985
|
75985
75975-35180 Stripe, Front Door, Rh[08.1994 - 06.2001] LN10#,111,RN105,110,YN106..T1..CBU |
75975-35180 |
US $196.56 |
||
|
75985
|
75985
75985-35150-A0
Stripe, Front Door, Rh
[08.1991 - 08.1993] RN105..T1..V SILVER,202 ,3H7 ,3K3 ,4J9 ,6J7; LN106,111,YN106..T1..GEN..CBU SILVER,3H7 ,3K3 ,4J9 ,6J7; LN106,111,RN105,110..T1..ARL..CBU SILVER,3H7 ,3K3 ,4J9 |
75985-35150-A0 |
— | ||
|
75985
|
75985
75985-35150-K0
Stripe, Front Door, Rh
[08.1991 - 08.1992] LN106,111,RN105,110,YN106..T1..CBU BLUE SILVER,045 ,147 ,179 ,8E2 ,8H8 |
75985-35150-K0 |
— | ||
|
75985
|
75985
75985-89179 Stripe, Front Door, RhFRONT DOOR, RH [08.1988 - 08.1991] LN106,111,RN105,110,YN106..T1..CBU |
75985-89179 |
US $104.83 |
||
|
75986
|
75986
75976-35180 Stripe, Front Door, Lh[08.1994 - 06.2001] LN10#,111,RN105,110,YN106..T1..CBU |
75976-35180 |
US $196.56 |
||
|
75986
|
75986
75986-35150-A0
Stripe, Front Door, Lh
[08.1991 - 08.1993] RN105..T1..V SILVER,202 ,3H7 ,3K3 ,4J9 ,6J7; LN106,111,YN106..T1..GEN..CBU SILVER,3H7 ,3K3 ,4J9 ,6J7; LN106,111,RN105,110..T1..ARL..CBU SILVER,3H7 ,3K3 ,4J9 |
75986-35150-A0 |
— | ||
|
75986
|
75986
75986-35150-K0
Stripe, Front Door, Lh
[08.1991 - 08.1992] LN106,111,RN105,110,YN106..T1..CBU BLUE SILVER,045 ,147 ,179 ,8E2 ,8H8 |
75986-35150-K0 |
— | ||
|
75986
|
75986
75986-89177
Stripe, Front Door, Lh
[08.1988 - 08.1991] LN106,111,RN105,110,YN106..T1..CBU |
75986-89177 |
— | ||
|
75991A
|
75991A
75991-35060-A0
Stripe, Quarter, Rh
[08.1991 - 08.1993] LN111,RN110..ARL SILVER,3H7 ,3K3 ,4J9; LN111..GEN..CBU SILVER,3H7 ,3K3 ,4J9 ,6J7 |
75991-35060-A0 |
— | ||
|
75991A
|
75991A
75991-35060-K0 Stripe, Quarter, RhQUARTER, RH [08.1991 - 08.1992] LN111,RN110..CBU BLUE SILVER,045 ,147 ,179 ,8E2 ,8H8 |
75991-35060-K0 |
US $53.73 |
||
|
75991A
|
75991A
75991-35280 Stripe, Quarter, RhQUARTER, RH [08.1994 - 08.1997] LN111,RN110..CBU |
75991-35280 |
US $122.30 |
||
|
75991A
|
75991A
75991-89110
Stripe, Quarter, Rh
[08.1988 - 08.1991] LN111,RN110..CBU |
75991-89110 |
— | ||
|
75992A
|
75992A
75992-35060-A0
Stripe, Quarter, Lh
[08.1991 - 08.1993] LN111,RN110..ARL SILVER,3H7 ,3K3 ,4J9; LN111..GEN..CBU SILVER,3H7 ,3K3 ,4J9 ,6J7 |
75992-35060-A0 |
— | ||
|
75992A
|
75992A
75992-35060-K0 Stripe, Quarter, LhQUARTER, LH [08.1991 - 08.1992] LN111,RN110..CBU BLUE SILVER,045 ,147 ,179 ,8E2 ,8H8 |
75992-35060-K0 |
US $53.73 |
||
|
75992A
|
75992A
75992-35280 Stripe, Quarter, LhQUARTER, LH [08.1994 - 08.1997] LN111,RN110..CBU |
75992-35280 |
US $122.30 |
||
|
75992A
|
75992A
75992-89110
Stripe, Quarter, Lh
[08.1988 - 08.1991] LN111,RN110..CBU |
75992-89110 |
— | ||
|
75993A
|
75993A
75993-35040-A0
Stripe, Quarter, Rear Rh
[08.1991 - 08.1993] LN111,RN110..ARL SILVER,3H7 ,3K3 ,4J9; LN111..GEN..CBU SILVER,3H7 ,3K3 ,4J9 ,6J7 |
75993-35040-A0 |
— | ||
|
75993A
|
75993A
75993-35040-K0 Stripe, Quarter, Rear RhQUARTER, REAR RH [08.1991 - 08.1992] LN111,RN110..CBU BLUE SILVER,045 ,147 ,179 ,8E2 ,8H8 |
75993-35040-K0 |
US $57.95 |
||
|
75994B
|
75994B
75994-35040-A0
Strip, Quarter, Rear Lh
[08.1991 - 08.1993] LN111,RN110..ARL SILVER,3H7 ,3K3 ,4J9; LN111..GEN..CBU SILVER,3H7 ,3K3 ,4J9 ,6J7 |
75994-35040-A0 |
— | ||
|
75994B
|
75994B
75994-35040-K0 Strip, Quarter, Rear LhQUARTER, REAR LH [08.1991 - 08.1992] LN111,RN110..CBU BLUE SILVER,045 ,147 ,179 ,8E2 ,8H8 |
75994-35040-K0 |
US $57.95 |
||
|
75996C
|
75996C
75996-35120-A0
Stripe, Rear Body, Rh
[08.1991 - 08.1993] LN111,RN110..ARL SILVER,3H7 ,3K3 ,4J9; LN111..GEN..CBU SILVER,3H7 ,3K3 ,4J9 ,6J7 |
75996-35120-A0 |
— | ||
|
75996C
|
75996C
75996-35120-K0 Stripe, Rear Body, RhREAR BODY, RH [08.1991 - 08.1992] LN111,RN110..CBU BLUE SILVER,045 ,147 ,179 ,8E2 ,8H8 |
75996-35120-K0 |
US $91.73 |
||
|
75996C
|
75996C
75996-35620 Stripe, Rear Body, RhREAR BODY, RH [08.1994 - 08.1997] LN111,RN110..CBU |
75996-35620 |
US $202.38 |
||
|
75996D
|
75996D
75996-35130-A0
Stripe, Rear Body, Rh
[08.1991 - 08.1993] LN111,RN110..ARL SILVER,3H7 ,3K3 ,4J9; LN111..GEN..CBU SILVER,3H7 ,3K3 ,4J9 ,6J7 |
75996-35130-A0 |
— | ||
|
75996D
|
75996D
75996-35130-K0 Stripe, Rear Body, RhREAR BODY, RH [08.1991 - 08.1992] LN111,RN110..CBU BLUE SILVER,045 ,147 ,179 ,8E2 ,8H8 |
75996-35130-K0 |
US $17.18 |
||
|
75997C
|
75997C
75997-35120-A0
Stripe, Rear Body, Lh
[08.1991 - 08.1993] LN111,RN110..ARL SILVER,3H7 ,3K3 ,4J9; LN111..GEN..CBU SILVER,3H7 ,3K3 ,4J9 ,6J7 |
75997-35120-A0 |
— | ||
|
75997C
|
75997C
75997-35120-K0 Stripe, Rear Body, LhREAR BODY, LH [08.1991 - 08.1992] LN111,RN110..CBU BLUE SILVER,045 ,147 ,179 ,8E2 ,8H8 |
75997-35120-K0 |
US $91.73 |
||
|
75997C
|
75997C
75997-35620 Stripe, Rear Body, LhREAR BODY, LH [08.1994 - 08.1997] LN111,RN110..CBU |
75997-35620 |
US $202.38 |
||
| replacement | |||||
|
75997C
|
75997C
75997-35610
Stripe, Rear Body, Lh
[08.1994 - 08.1997] LN111,RN110..CBU |
75997-35610 |
— | ||
|
75997E
|
75997E
75997-35130-A0
Stripe, Rear Body, Lh
[08.1991 - 08.1993] LN111,RN110..ARL SILVER,3H7 ,3K3 ,4J9; LN111..GEN..CBU SILVER,3H7 ,3K3 ,4J9 ,6J7 |
75997-35130-A0 |
— | ||
|
75997E
|
75997E
75997-35130-K0 Stripe, Rear Body, LhREAR BODY, LH [08.1991 - 08.1992] LN111,RN110..CBU BLUE SILVER,045 ,147 ,179 ,8E2 ,8H8 |
75997-35130-K0 |
US $17.18 |
||
|
75998C
|
75998C
75998-35010-A0
Stripe, Rear Deck, Rear Rh
[08.1991 - 08.1993] LN111,RN110..ARL SILVER,3H7 ,3K3 ,4J9; LN111..GEN..CBU SILVER,3H7 ,3K3 ,4J9 ,6J7 |
75998-35010-A0 |
— | ||
|
75998C
|
75998C
75998-35010-K0
Stripe, Rear Deck, Rear Rh
[08.1991 - 08.1992] LN111,RN110..CBU BLUE SILVER,045 ,147 ,179 ,8E2 ,8H8 |
75998-35010-K0 |
— | ||
|
75998C
|
75998C
75998-89127
Stripe, Rear Deck, Rear Rh
[08.1988 - 08.1991] LN111,RN110..CBU |
75998-89127 |
— | ||
|
75999C
|
75999C
75999-35010-A0
Stripe, Rear Deck, Rear Lh
[08.1991 - 08.1993] LN111,RN110..ARL SILVER,3H7 ,3K3 ,4J9; LN111..GEN..CBU SILVER,3H7 ,3K3 ,4J9 ,6J7 |
75999-35010-A0 |
— | ||
|
75999C
|
75999C
75999-35010-K0
Stripe, Rear Deck, Rear Lh
[08.1991 - 08.1992] LN111,RN110..CBU BLUE SILVER,045 ,147 ,179 ,8E2 ,8H8 |
75999-35010-K0 |
— | ||
|
75999C
|
75999C
75999-89127
Stripe, Rear Deck, Rear Lh
[08.1988 - 08.1991] LN111,RN110..CBU |
75999-89127 |
— | ||
