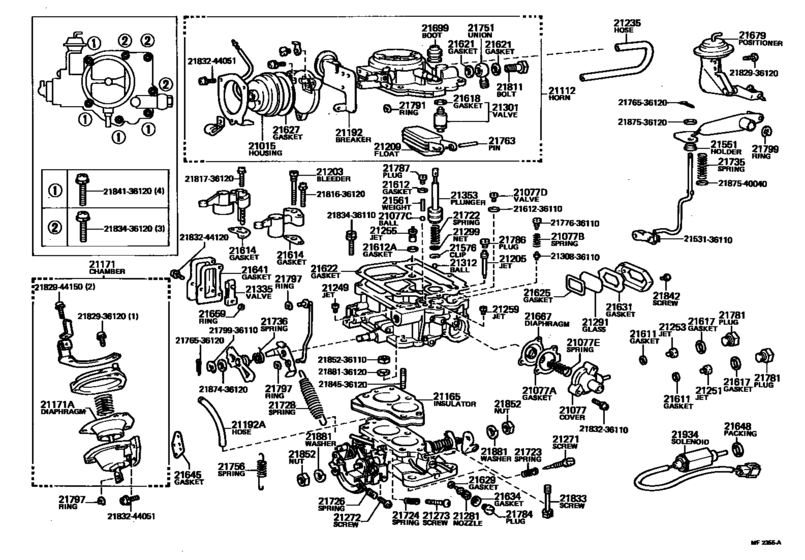

Carburetor ([10.1979 - 10.1981] (7910-8110)18RJ) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 1979 - 1981
- Sales region
- Japan
- Frame
- RN36
- grade
- DLX
- ENGINE
- 18RJ
- TRANSMISSION
- MTM
- Model
- HILUX
- From
- 10.1979
- To
- 10.1981
- Gear Shift Type
- 4F
- Vehicle Model
- Hilux
- Deck,cab
- T1
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
21015
|
21015
21141-34400 Housing Sub-Assy, Coil[10.1979 - 10.1981] 18RJ..RN36 |
21141-34400 |
US $142.69 |
||
|
21077
|
21077
21399-34400
Cover(For Auxiliary Acceleration Pump)
[10.1979 - 10.1981] 18RJ..RN36 |
21399-34400 |
— | ||
|
21077A
|
21077A
21638-36110 Gasket(For Auxiliary Acceleration Pump)[10.1979 - 10.1981] 18RJ..RN36 |
21638-36110 |
US $3.49 |
||
|
21077C
|
21077C
21312-40020 Ball, Steel(For Auxiliary Acceleration Pump)[10.1979 - 10.1981] 18RJ..RN36 |
21312-40020 |
US $3.64 |
||
|
21077D
|
21077D
21308-34400 Valve, Check(For Auxiliary Acceleration Pump)[10.1979 - 10.1981] 18RJ..RN36 |
21308-34400 |
US $16.74 |
||
|
21077E
|
21077E
21747-36110 Spring(For Auxiliary Acceleration Pump Cover)[10.1979 - 10.1981] 18RJ..RN36 |
21747-36110 |
US $3.06 |
||
|
21112
|
21112
21012-34630
Horn, Air
[10.1979 - 10.1981] 18RJ..RN36 |
21012-34630 |
— | ||
|
21165
|
21165
21106-34420 Insulator[10.1979 - 10.1981] 18RJ..RN36 |
21106-34420 |
US $60.86 |
||
|
21171
|
21171
21171-34630
Chamber, Diaphragm
[10.1979 - 10.1981] 18RJ..RN36 |
21171-34630 |
— | ||
|
21171A
|
21171A
21173-36120
Diaphragm(For Didphragm Chamber)
[10.1979 - 10.1981] 18RJ..RN36 |
21173-36120 |
— | ||
|
21192
|
21192
21502-36110
Breaker
[10.1979 - 10.1981] 18RJ..RN36 |
21502-36110 |
— | ||
|
21192A
|
21192A
95411-19930
Hose(For Carburetor To Manifold)
[10.1979 - 10.1981] 18RJ..RN36 *H,L=120 |
95411-19930 |
— | ||
| replacement | |||||
|
21192A
|
21192A
90999-92002
Air Hose (300 mm)
[10.1979 - 10.1981] 18RJ..RN36 *H,L=120 |
90999-92002 |
— | ||
|
21203
|
21203
21203-34630
Bleeder Sub-Assy, 1St Main Air
[10.1979 - 10.1981] 18RJ..RN36 |
21203-34630 |
— | ||
|
21205
|
21205
21205-34400 Jet Sub-Assy, Slow[10.1979 - 10.1981] 18RJ..RN36 |
21205-34400 |
US $9.17 |
||
|
21209
|
21209
21209-36120
Float Sub-Assy
[10.1979 - 10.1981] 18RJ..RN36 |
21209-36120 |
— | ||
|
21235
|
21235
95411-19930
Hose(For Carburetor To Manifold)
[10.1979 - 10.1981] 18RJ..RN36 *H,L=120 |
95411-19930 |
— | ||
| replacement | |||||
|
21235
|
21235
90999-92002
Air Hose (300 mm)
[10.1979 - 10.1981] 18RJ..RN36 *H,L=120 |
90999-92002 |
— | ||
|
21249
|
21249
21249-44280 Jet, Air Bleed, No.2[10.1979 - 10.1981] 18RJ..RN36 |
21249-44280 |
US $6.84 |
||
|
21251
|
21251
21251-34630
Jet, 1St Main
[10.1979 - 10.1981] 18RJ..RN36 |
21251-34630 |
— | ||
|
21253
|
21253
21253-34400 Jet, 2Nd Main[10.1979 - 10.1981] 18RJ..RN36 |
21253-34400 |
US $4.08 |
||
|
21255
|
21255
21302-44122 Jet, Power[10.1979 - 10.1981] 18RJ..RN36 |
21302-44122 |
US $13.25 |
||
| replacement | |||||
|
21255
|
21255
21302-72210
Jet, Power
[10.1979 - 10.1981] 18RJ..RN36 |
21302-72210 |
— | ||
|
21259
|
21259
21259-34400
Jet, Air Bleed
[10.1979 - 10.1981] 18RJ..RN36 |
21259-34400 |
— | ||
|
21271
|
21271
21271-34400 Screw, Idle Adjusting[10.1979 - 10.1981] 18RJ..RN36 |
21271-34400 |
US $15.43 |
||
|
21272
|
21272
21833-36110 Screw, 1St Idle Adjusting[10.1979 - 10.1981] 18RJ..RN36 |
21833-36110 |
US $2.04 |
||
| replacement | |||||
|
21272
|
21272
21841-36120 Screw, 1St Idle Adjusting[10.1979 - 10.1981] 18RJ..RN36 |
21841-36120 |
US $2.33 |
||
|
21273
|
21273
21273-34401
Screw, Throttle Adjusting
[10.1979 - 10.1981] 18RJ..RN36 |
21273-34401 |
— | ||
|
21281
|
21281
21281-36110
Nozzle, Idle
[10.1979 - 10.1981] 18RJ..RN36 |
21281-36110 |
— | ||
|
21291
|
21291
21291-36120 Glass, Level Gage[10.1979 - 10.1981] 18RJ..RN36 |
21291-36120 |
US $5.24 |
||
|
21299
|
21299
21299-36120 Net, Pump Filter[10.1979 - 10.1981] 18RJ..RN36 |
21299-36120 |
US $2.18 |
||
|
21312
|
21312
21312-40020 Ball, Steel(For Auxiliary Acceleration Pump)[10.1979 - 10.1981] 18RJ..RN36 |
21312-40020 |
US $3.64 |
||
|
21335
|
21335
21038-34630
Valve, Thermostatic
[10.1979 - 10.1981] 18RJ..RN36 |
21038-34630 |
— | ||
|
21353
|
21353
21353-44101
Plunger, Pump
[10.1979 - 10.1983] 18RJ..RN36,39 |
21353-44101 |
— | ||
|
21551
|
21551
21551-36120 Holder, Back Spring[10.1979 - 10.1981] 18RJ..RN36 |
21551-36120 |
US $3.20 |
||
|
21561
|
21561
21561-36120
Weight, Pump Discharge
[10.1979 - 10.1981] 18RJ..RN36 |
21561-36120 |
— | ||
|
21576
|
21576
21576-36120 Clip, Pump Strainer[10.1979 - 10.1981] 18RJ..RN36 |
21576-36120 |
US $2.62 |
||
|
21611
|
21611
21611-40021
Gasket, Main Jet
[10.1979 - 10.1981] 18RJ..RN36 |
21611-40021 |
— | ||
|
21612
|
21612
21612-36120
Gasket, Power Valve
[10.1979 - 10.1981] 18RJ..RN36 |
21612-36120 |
— | ||
|
21612A
|
21612A
21612-31100
Gasket, Power Valve
[10.1979 - 10.1981] 18RJ..RN36 |
21612-31100 |
— | ||
|
21614
|
21614
21614-36120 Gasket, Venturi[10.1979 - 10.1981] 18RJ..RN36 1ST |
21614-36120 |
US $2.62 |
||
| replacement | |||||
|
21614
|
21614
21614-34600 Gasket, Venturi[10.1979 - 10.1981] 18RJ..RN36 1ST |
21614-34600 |
US $2.77 |
||
|
21614
|
21614
21639-36120 Gasket, Venturi[10.1979 - 10.1981] 18RJ..RN36 2ND |
21639-36120 |
US $2.62 |
||
| replacement | |||||
|
21614
|
21614
21639-34600 Gasket, Venturi[10.1979 - 10.1981] 18RJ..RN36 2ND |
21639-34600 |
US $2.18 |
||
|
21617
|
21617
21633-44150
Gasket, Main Passage Plug
[10.1979 - 10.1981] 18RJ..RN36 |
21633-44150 |
— | ||
|
21618
|
21618
21643-36110
Gasket, Needle Valve Seat
[10.1979 - 10.1981] 18RJ..RN36 |
21643-36110 |
— | ||
|
21621
|
21621
21637-36120 Gasket, Union Nipple[10.1979 - 10.1981] 18RJ..RN36 |
21637-36120 |
US $2.18 |
||
|
21622
|
21622
21622-36120
Gasket, Air Horn
[10.1979 - 10.1981] 18RJ..RN36 |
21622-36120 |
— | ||
| replacement | |||||
|
21622
|
21622
21622-34600 Gasket, Air Horn[10.1979 - 10.1981] 18RJ..RN36 |
21622-34600 |
US $9.61 |
||
|
21625
|
21625
21625-36120
Gasket, Level Gage
[10.1979 - 10.1981] 18RJ..RN36 |
21625-36120 |
— | ||
|
21627
|
21627
21642-36110 Gasket, Coil Housing[10.1979 - 10.1981] 18RJ..RN36 |
21642-36110 |
US $3.49 |
||
| replacement | |||||
|
21627
|
21627
21642-34600 Gasket, Coil HousingCOIL HOUSING [10.1979 - 10.1981] 18RJ..RN36 |
21642-34600 |
US $2.33 |
||
|
21629
|
21629
21626-36110
Gasket, Idle Nozzle
[10.1979 - 10.1981] 18RJ..RN36 |
21626-36110 |
— | ||
|
21631
|
21631
21631-36120
Gasket, Main Guide
[10.1979 - 10.1981] 18RJ..RN36 |
21631-36120 |
— | ||
|
21634
|
21634
21634-36120
Gasket, Slow Passage Plug
[10.1979 - 10.1981] 18RJ..RN36 |
21634-36120 |
— | ||
|
21641
|
21641
21626-36120 Gasket(For Thermostatic Valve Cover)[10.1979 - 10.1981] 18RJ..RN36 |
21626-36120 |
US $3.20 |
||
| replacement | |||||
|
21641
|
21641
21626-34600 Gasket(For Thermostatic Valve Cover)[10.1979 - 10.1981] 18RJ..RN36 |
21626-34600 |
US $2.18 |
||
|
21645
|
21645
21638-36120 Gasket, Diaphragm, Cap[10.1979 - 10.1981] 18RJ..RN36 |
21638-36120 |
US $3.06 |
||
|
21648
|
21648
21637-36120 Gasket, Union Nipple[10.1979 - 10.1981] 18RJ..RN36 |
21637-36120 |
US $2.18 |
||
|
21659
|
21659
21655-31100 Ring, O(For Thermostatic Valve)[10.1979 - 10.1981] 18RJ..RN36 |
21655-31100 |
US $3.64 |
||
|
21667
|
21667
21173-36110
Diaphragm
[10.1979 - 10.1981] 18RJ..RN36 |
21173-36110 |
— | ||
|
21667
|
21667
21667-38310
Diaphragm
[10.1981 - 09.1988] 12RJ,18RJ..RN3#,45 |
21667-38310 |
— | ||
| replacement | |||||
|
21667
|
21667
21675-35510 Diaphragm[10.1981 - 09.1988] 12RJ,18RJ..RN3#,45 |
21675-35510 |
from US $16.84 |
||
|
21679
|
21679
21099-36110
Positioner
[10.1979 - 10.1981] 18RJ..RN36 |
21099-36110 |
— | ||
|
21699
|
21699
21656-36110
Boot(For Pump Plunger)
[10.1979 - 10.1981] 18RJ..RN36 |
21656-36110 |
— | ||
|
21699
|
21699
21699-28150 Boot(For Pump Plunger)[10.1981 - 09.1988] 12RJ,18RJ..RN3#,45 |
21699-28150 |
US $14.50 |
||
|
21722
|
21722
21735-36120 Spring, Pump Damping[10.1979 - 10.1981] 18RJ..RN36 |
21735-36120 |
US $3.06 |
||
|
21723
|
21723
21723-30030 Spring, Idle Adjusting[10.1979 - 10.1981] 18RJ..RN36 |
21723-30030 |
US $3.64 |
||
|
21724
|
21724
21724-30030 Spring, Throttle Adjusting[10.1979 - 10.1981] 18RJ..RN36 |
21724-30030 |
US $2.62 |
||
|
21726
|
21726
21723-30030 Spring, Idle Adjusting[10.1979 - 10.1981] 18RJ..RN36 |
21723-30030 |
US $3.64 |
||
|
21728
|
21728
21728-34630
Spring, Throttle Valve Return
[10.1979 - 10.1981] 18RJ..RN36 |
21728-34630 |
— | ||
|
21735
|
21735
21722-36120
Spring, Pump Arm
[10.1979 - 10.1981] 18RJ..RN36 |
21722-36120 |
— | ||
|
21736
|
21736
21748-36110 Spring, 1St Idle Cam[10.1979 - 10.1981] 18RJ..RN36 |
21748-36110 |
US $4.66 |
||
|
21751
|
21751
21751-36200 Union, Nipple[10.1979 - 10.1981] 18RJ..RN36 |
21751-36200 |
US $21.11 |
||
|
21756
|
21756
21727-36120 Spring, Back(For Throttle Shaft)[10.1979 - 10.1981] 18RJ..RN36 |
21727-36120 |
US $6.12 |
||
|
21763
|
21763
21768-36110 Pin, Float Lever[10.1979 - 10.1981] 18RJ..RN36 |
21768-36110 |
US $3.20 |
||
|
21781
|
21781
21776-44310
Plug, Main Passage(For Carburetor Jet)
[10.1979 - 10.1981] 18RJ..RN36 |
21776-44310 |
— | ||
|
21784
|
21784
21787-36110
Plug, Slow Passage
[10.1979 - 10.1981] 18RJ..RN36 |
21787-36110 |
— | ||
|
21786
|
21786
21787-36120
Plug, Slow Passage
[10.1979 - 10.1981] 18RJ..RN36 |
21787-36120 |
— | ||
|
21787
|
21787
21787-31030
Plug, Pump Jet
[10.1979 - 10.1981] 18RJ..RN36 |
21787-31030 |
— | ||
|
21791
|
21791
21797-44050
Ring, Snap, No.1(For Carburetor Link)
[10.1979 - 10.1981] 18RJ..RN36 |
21797-44050 |
— | ||
|
21797
|
21797
21797-44050
Ring, Snap, No.1(For Carburetor Link)
[10.1979 - 10.1981] 18RJ..RN36 |
21797-44050 |
— | ||
|
21799
|
21799
21799-40020 Ring, Retainer, No.1(For Throttle Shaft)[10.1979 - 10.1981] 18RJ..RN36 |
21799-40020 |
US $3.49 |
||
|
21811
|
21811
21811-36110 Bolt, Union Nipple[10.1979 - 10.1981] 18RJ..RN36 |
21811-36110 |
US $14.85 |
||
|
21833
|
21833
21804-36120
Screw, Set, No.1(For Carburetor Body Set)
[10.1979 - 10.1981] 18RJ..RN36 |
21804-36120 |
— | ||
|
21842
|
21842
21832-36120 Screw, Set(For Carburetor Level Gage Clamp Set)[10.1979 - 10.1981] 18RJ..RN36 |
21832-36120 |
US $2.18 |
||
|
21852
|
21852
21852-36120
Nut, Throttle Lever Set
[10.1979 - 10.1981] 18RJ..RN36 |
21852-36120 |
— | ||
|
21881
|
21881
21881-31030 Washer, Lock(For Throttle Shaft)[10.1979 - 10.1981] 18RJ..RN36 |
21881-31030 |
US $3.49 |
||
| replacement | |||||
|
21881
|
21881
21881-40030
Washer, Lock(For Throttle Shaft)
[10.1979 - 10.1981] 18RJ..RN36 |
21881-40030 |
— | ||
|
21934
|
21934
21391-36110 Solenoid, Throttle Valve[10.1979 - 10.1981] 18RJ..RN36 |
21391-36110 |
US $64.94 |
||
|
2130836110
|
2130836110
21308-36110 Valve Sub-assy, Discharge Check |
21308-36110 |
US $4.08 |
||
|
2153136110
|
2153136110
21531-36110 Retainer, Coil Housing |
21531-36110 |
US $4.22 |
||
|
2161236110
|
2161236110
21612-36110
Gasket, Power Valve
|
21612-36110 |
— | ||
|
2176536120
|
2176536120
21765-36120
Pin(for Pump Plunger)
|
21765-36120 |
— | ||
| replacement | |||||
|
2176536120
|
2176536120
21765-36110 Pin(for Pump Plunger) |
21765-36110 |
US $2.33 |
||
|
2177636110
|
2177636110
21776-36110 New Genuine Part |
21776-36110 |
US $2.33 |
||
|
2179936110
|
2179936110
21799-36110
Ring, E, Top
|
21799-36110 |
— | ||
|
2181636120
|
2181636120
21816-36120 Screw, Small Venturi Set, No.1 |
21816-36120 |
US $2.48 |
||
|
2181736120
|
2181736120
21817-36120 New Genuine Part |
21817-36120 |
US $2.48 |
||
|
2182936120
|
2182936120
21829-36120
Screw, High Speed Valve Set
|
21829-36120 |
— | ||
|
2182944150
|
2182944150
21829-44150 Screw, High Speed Valve Set |
21829-44150 |
US $2.33 |
||
|
2183236110
|
2183236110
21832-36110 Screw(for Choke Lever Adapter Set) |
21832-36110 |
US $2.18 |
||
|
2183244051
|
2183244051
21832-44051 Screw(for Choke Lever Adapter Set) |
21832-44051 |
US $2.77 |
||
|
2183244120
|
2183244120
21832-44120 Screw, Set(for 1st Idle Cam Follower Set) |
21832-44120 |
US $2.48 |
||
| replacement | |||||
|
2183244120
|
2183244120
21824-44120 Screw, Set(for 1st Idle Cam Follower Set) |
21824-44120 |
US $2.48 |
||
|
2183436110
|
2183436110
21834-36110 Screw, Set, No.2(for Carburetor Body Set) |
21834-36110 |
US $3.20 |
||
|
2183436120
|
2183436120
21834-36120 Screw, Set, No.2(for Carburetor Body Set) |
21834-36120 |
US $2.33 |
||
|
2184136120
|
2184136120
21841-36120 Screw, 1St Idle Adjusting |
21841-36120 |
US $2.33 |
||
|
2184536120
|
2184536120
21845-36120 Screw(for Lever Set) |
21845-36120 |
US $3.49 |
||
|
2185236110
|
2185236110
21852-36110 Nut, Throttle Lever Set |
21852-36110 |
US $2.33 |
||
|
2187436120
|
2187436120
21874-36120
Washer, 2nd Throttle Lever Set
|
21874-36120 |
— | ||
|
2187536120
|
2187536120
21875-36120 Washer, Throttle Opener Arm |
21875-36120 |
US $2.18 |
||
|
2187540040
|
2187540040
21875-40040 Washer, Throttle Opener Arm |
21875-40040 |
US $2.77 |
||
|
2188136120
|
2188136120
21881-36120
Washer, Lock(for Throttle Shaft)
|
21881-36120 |
— | ||
