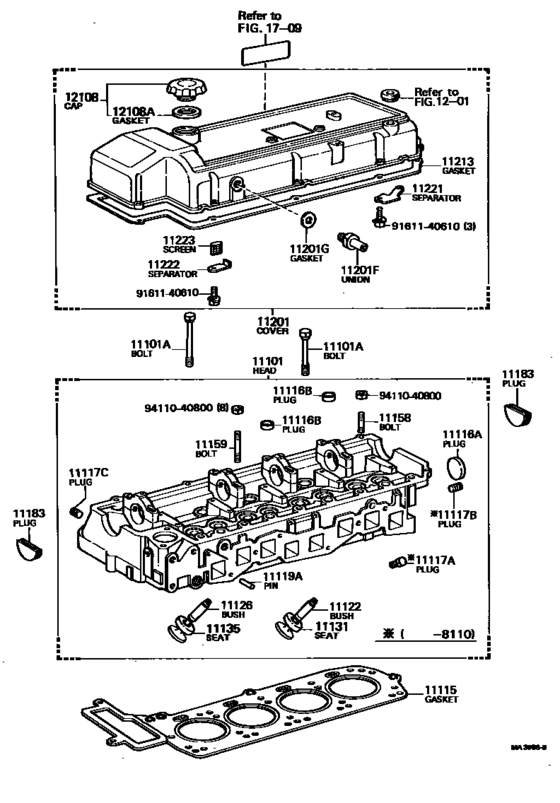

Cylinder Head ([10.1979 - 10.1983] (7910-8310)18RJ) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 1979 - 1981
- Sales region
- Japan
- Frame
- RN36
- grade
- DLX
- ENGINE
- 18RJ
- TRANSMISSION
- MTM
- Model
- HILUX
- From
- 10.1979
- To
- 10.1981
- Gear Shift Type
- 4F
- Vehicle Model
- Hilux
- Deck,cab
- T1
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11101
|
11101
11101-39226 Head Sub-Assy, Cylinder[10.1979 - 07.1980] 18RJ..RN36 |
11101-39226 |
US $1,073.07 |
||
| replacements | |||||
|
11101
|
11101
13715-34050 Valve, Exhaust[10.1979 - 07.1980] 18RJ..RN36 |
13715-34050 |
US $45.43 |
||
|
11101
|
11101
11101-39229
Head Sub-Assy, Cylinder
[10.1979 - 07.1980] 18RJ..RN36 |
11101-39229 |
— | ||
|
11101
|
11101
23842-34051
Clamp, Fuel Pipe(Hose), No.2
[10.1979 - 07.1980] 18RJ..RN36 |
23842-34051 |
— | ||
|
11101
|
11101
11101-39228 Head Sub-Assy, Cylinder[07.1980 - 08.1980] 18RJ..RN36 |
11101-39228 |
US $1,073.07 |
||
| replacements | |||||
|
11101
|
11101
13715-34050 Valve, Exhaust[07.1980 - 08.1980] 18RJ..RN36 |
13715-34050 |
US $45.43 |
||
|
11101
|
11101
11101-39229
Head Sub-Assy, Cylinder
[07.1980 - 08.1980] 18RJ..RN36 |
11101-39229 |
— | ||
|
11101
|
11101
11101-39229
Head Sub-Assy, Cylinder
[08.1980 - 10.1981] 18RJ..RN36 |
11101-39229 |
— | ||
|
11101A
|
11101A
90910-02060
Bolt(For Cylinder Head Set)
[10.1979 - 10.1983] 18RJ..RN36,39 *12-1.25PX112-24 |
90910-02060 |
— | ||
| replacement | |||||
|
11101A
|
11101A
90910-02090 Bolt(For Cylinder Head Set)[10.1979 - 10.1983] 18RJ..RN36,39 *12-1.25PX112-24 |
90910-02090 |
US $5.91 |
||
|
11101A
|
11101A
90910-02061 Bolt(For Cylinder Head Set)[10.1979 - 10.1983] 18RJ..RN36,39 *12-1.25PX80-24 |
90910-02061 |
US $4.12 |
||
|
11115
|
11115
11115-36020
Gasket, Cylinder Head
[10.1979 - 10.1983] 18RJ..RN36,39 |
11115-36020 |
— | ||
| replacement | |||||
|
11115
|
11115
11115-36021
Gasket, Cylinder Head
[10.1979 - 10.1983] 18RJ..RN36,39 |
11115-36021 |
— | ||
|
11116A
|
11116A
96411-43500 Plug, Tight, No.1[10.1979 - 10.1983] 18RJ..RN36,39 OD=35 |
96411-43500 |
from US $3.59 |
||
|
11116B
|
11116B
96411-42000 Plug, Tight, No.1[10.1979 - 10.1983] 18RJ..RN36,39 OD=20 |
96411-42000 |
from US $2.73 |
||
|
11117A
|
11117A
90072-34107
Plug, W/head Taper Screw, No.1
[10.1979 - 08.1980] 18RJ..RN36 |
90072-34107 |
— | ||
| replacement | |||||
|
11117A
|
11117A
90345-51006 Plug, W/head Taper Screw, No.2[10.1979 - 08.1980] 18RJ..RN36 |
90345-51006 |
from US $0.87 |
||
|
11117A
|
11117A
90344-52013
Plug, W/head Taper Screw, No.1
[08.1980 - 10.1981] 18RJ..RN36 |
90344-52013 |
— | ||
| replacement | |||||
|
11117A
|
11117A
90344-52003 Plug, W/head Taper Screw, No.1[08.1980 - 10.1981] 18RJ..RN36 |
90344-52003 |
US $1.40 |
||
|
11117B
|
11117B
90344-53008 Plug, W/head Taper Screw, No.2[02.1980 - 10.1981] 18RJ..RN36 |
90344-53008 |
US $1.97 |
||
|
11117B
|
11117B
90344-53011 Plug, W/head Taper Screw, No.1[10.1979 - 02.1980] 18RJ..RN36 |
90344-53011 |
US $4.30 |
||
|
11117C
|
11117C
90344-51001
Plug, W/head Taper Screw, No.3
[10.1979 - 02.1980] 18RJ..RN36 |
90344-51001 |
— | ||
|
11117C
|
11117C
90344-51010 Plug, W/head Taper Screw, No.3[02.1980 - 10.1983] 18RJ..RN36,39 |
90344-51010 |
US $3.93 |
||
|
11119A
|
11119A
90250-08054 Pin, Straight[08.1978 - 09.1988] 12RJ,18RJ..RN3#,4# 長さ＝２３，外径＝８,L=23,OD=8 |
90250-08054 |
from US $0.98 |
||
|
11122
|
11122
11122-33011 Bush, Intake Valve Guide[10.1979 - 07.1980] 18RJ..RN36 STD |
11122-33011 |
US $9.17 |
||
|
11122
|
11122
11122-34010 Bush, Intake Valve Guide[07.1980 - 10.1983] 18RJ..RN36,39 STD |
11122-34010 |
US $10.92 |
||
|
11122
|
11122
11123-33011 Bush, Intake Valve Guide[10.1979 - 07.1980] 18RJ..RN36 O/S 0.05 |
11123-33011 |
US $9.17 |
||
|
11122
|
11122
11123-34010
Bush, Intake Valve Guide
[07.1980 - 10.1983] 18RJ..RN36,39 O/S 0.05 |
11123-34010 |
— | ||
|
11126
|
11126
11122-34010 Bush, Intake Valve Guide[07.1980 - 10.1983] 18RJ..RN36,39 STD |
11122-34010 |
US $10.92 |
||
|
11126
|
11126
11123-34010
Bush, Intake Valve Guide
[07.1980 - 10.1983] 18RJ..RN36,39 O/S 0.05 |
11123-34010 |
— | ||
|
11126
|
11126
11126-33011 Bush, Exhaust Valve Guide[10.1979 - 07.1980] 18RJ..RN36 STD |
11126-33011 |
from US $8.97 |
||
|
11126
|
11126
11127-33011
Bush, Exhaust Valve Guide
[10.1979 - 07.1980] 18RJ..RN36 O/S 0.05 |
11127-33011 |
— | ||
|
11131
|
11131
11131-36011 Seat, Intake Valve[10.1979 - 10.1983] 18RJ..RN36,39 STD |
11131-36011 |
US $23.88 |
||
|
11131
|
11131
11132-36011
Seat, Intake Valve
[10.1979 - 10.1983] 18RJ..RN36,39 O/S 0.03 |
11132-36011 |
— | ||
|
11135
|
11135
11135-34030 Seat, Exhaust Valve[10.1979 - 07.1980] 18RJ..RN36 STD |
11135-34030 |
US $15.72 |
||
| replacement | |||||
|
11135
|
11135
11135-34031 Seat, Exhaust Valve[10.1979 - 07.1980] 18RJ..RN36 STD |
11135-34031 |
US $18.20 |
||
|
11135
|
11135
11135-34031 Seat, Exhaust Valve[07.1980 - 10.1983] 18RJ..RN36,39 STD |
11135-34031 |
US $18.20 |
||
|
11135
|
11135
11136-34040 Seat, Exhaust Valve[10.1979 - 07.1980] 18RJ..RN36 O/S 0.03 |
11136-34040 |
US $17.76 |
||
| replacement | |||||
|
11135
|
11135
11136-34041
Seat, Exhaust Valve
[10.1979 - 07.1980] 18RJ..RN36 O/S 0.03 |
11136-34041 |
— | ||
|
11135
|
11135
11136-34041
Seat, Exhaust Valve
[07.1980 - 10.1983] 18RJ..RN36,39 O/S 0.03 |
11136-34041 |
— | ||
|
11158
|
11158
90116-08084 Bolt, Stud(For Head To Cylinder Head Cover)[10.1979 - 10.1983] 18RJ..RN36,39 L=32,S=7&14 |
90116-08084 |
US $2.04 |
||
|
11159
|
11159
90116-08201
Bolt, Stud(For Head To Camshaft Bearing Cap)
[10.1979 - 10.1983] 18RJ..RN36,39 L=34.7,S=13&13.7 |
90116-08201 |
— | ||
|
11183
|
11183
11183-33010
Plug, Semicircular
[10.1979 - 10.1983] 18RJ..RN36,39 |
11183-33010 |
— | ||
|
11201
|
11201
11201-39178
Cover Sub-Assy, Cylinder Head
[10.1979 - 10.1983] 18RJ..RN36,39 |
11201-39178 |
— | ||
|
11201F
|
11201F
90404-16108 Union(For Positive Crankcase Ventilation)[10.1979 - 10.1983] 18RJ..RN36,39 |
90404-16108 |
US $7.13 |
||
|
11201G
|
11201G
90430-16175
Gasket(For Positive Crankcase Ventilation)
[10.1979 - 10.1983] 18RJ..RN36,39 |
90430-16175 |
— | ||
|
11213
|
11213
11213-33010
Gasket, Cylinder Head Cover
[10.1979 - 10.1983] 18RJ..RN36,39 |
11213-33010 |
— | ||
| replacement | |||||
|
11213
|
11213
11213-34020
Gasket, Cylinder Head Cover
[10.1979 - 10.1983] 18RJ..RN36,39 |
11213-34020 |
— | ||
|
11221
|
11221
11221-34010
Separator, Cylinder Head Cover, No.1
[10.1979 - 10.1983] 18RJ..RN36,39 |
11221-34010 |
— | ||
|
11222
|
11222
11222-34010
Separator, Cylinder Head Cover, No.2
[10.1979 - 10.1983] 18RJ..RN36,39 |
11222-34010 |
— | ||
|
11223
|
11223
11223-33010 Screen,cylinder Head Cover[10.1979 - 10.1983] 18RJ..RN36,39 |
11223-33010 |
US $5.10 |
||
|
12108
|
12108
12180-13010 Cap Sub-Assy, Oil Filler[10.1979 - 06.1983] L..LN3#,4#; 12RJ,18RJ..RN33,35,36,39,43,45 |
12180-13010 |
from US $16.54 |
||
|
12108A
|
12108A
90430-37140 Gasket(For Oil Filler Cap)[10.1979 - 09.1988] L,2L..LN3#,4#; 12RJ,18RJ..RN33,35,36,39,43,45 |
90430-37140 |
from US $1.17 |
||
|
9161140610
|
9161140610
91611-40610
Bolt(For Dust Cover To Steering Knuckle Arm Setting)
|
91611-40610 |
— | ||
| replacement | |||||
|
9161140610
|
9161140610
91611-B0610 Bolt (For Transfer Oil Receiver No.1) |
91611-B0610 |
from US $0.80 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.84 |
||
