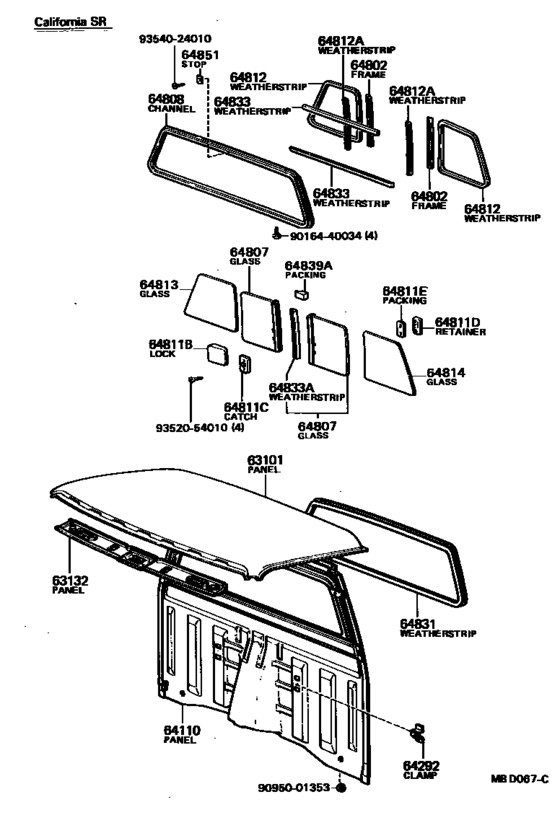

Roof Panel & Back Panel ([06.1981 - 06.1981] (8106-8106)RN36) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 1979 - 1981
- Sales region
- Japan
- Frame
- RN36
- grade
- DLX
- ENGINE
- 18RJ
- TRANSMISSION
- MTM
- Model
- HILUX
- From
- 10.1979
- To
- 10.1981
- Gear Shift Type
- 4F
- Vehicle Model
- Hilux
- Deck,cab
- T1
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
63101
|
63101
63111-89105
Panel Sub-Assy, Roof
[10.1979 - 10.1983] LN36,46,RN36,39..T1 |
63111-89105 |
— | ||
|
63132
|
63132
63102-89101
Panel, Windshield Header, Inner
[08.1978 - 09.1988] LN3#,4#,RN3#,4# |
63102-89101 |
— | ||
|
64110
|
64110
64101-95116
Panel Assy, Front Body Back
[10.1979 - 10.1983] LN36,46,RN36,39..T1 |
64101-95116 |
— | ||
|
64292
|
64292
58706-89101
Clamp, Jack Handle
[01.1979 - 09.1988] LN3#,4#,RN3#,4#..T1 |
58706-89101 |
— | ||
|
64802
|
64802
64881-89101
Frame Sub-Assy, Back Window Fix
[06.1981 - 06.1981] RN36 CALIFORNIA SR,RH |
64881-89101 |
— | ||
|
64802
|
64802
64881-89102
Frame Sub-Assy, Back Window Fix
[06.1981 - 06.1981] RN36 CALIFORNIA SR,LH |
64881-89102 |
— | ||
|
64807
|
64807
64807-89101 Glass Sub-Assy, Back Window Slide[06.1981 - 06.1981] RN36 EVENT,SLIDE GLASS,RH,*TT,T=4.0 |
64807-89101 |
US $100.46 |
||
| replacement | |||||
|
64807
|
64807
64807-89103
Glass Sub-Assy, Back Window Slide
[06.1981 - 06.1981] RN36 EVENT,SLIDE GLASS,RH,*TT,T=4.0 |
64807-89103 |
— | ||
|
64807
|
64807
64807-89102 Glass Sub-Assy, Back Window Slide[06.1981 - 06.1981] RN36 EVENT,SLIDE GLASS,LH,*TT,T=4.0 |
64807-89102 |
US $109.20 |
||
| replacement | |||||
|
64807
|
64807
64807-89104
Glass Sub-Assy, Back Window Slide
[06.1981 - 06.1981] RN36 EVENT,SLIDE GLASS,LH,*TT,T=4.0 |
64807-89104 |
— | ||
|
64808
|
64808
64808-89102
Channel Sub-Assy, Back Window Slide Glass
[06.1981 - 06.1981] RN36 CALIFORNIA SR |
64808-89102 |
— | ||
|
64811B
|
64811B
69370-89101
Lock Assy, Back Window
[06.1981 - 06.1981] RN36 CALIFORNIA SR |
69370-89101 |
— | ||
|
64811C
|
64811C
69374-89101
Catch, Back Window Lock
[06.1981 - 06.1981] RN36 CALIFORNIA SR |
69374-89101 |
— | ||
|
64811D
|
64811D
69375-89102 Retainer, Back Window[06.1981 - 06.1981] RN36 CALIFORNIA SR |
69375-89102 |
from US $6.29 |
||
|
64811E
|
64811E
69376-89101
Packing, Back Window Lock
[06.1981 - 06.1981] RN36 CALIFORNIA SR |
69376-89101 |
— | ||
|
64812
|
64812
64812-89102
Weatherstrip, Back Window Glass, No.1
[06.1981 - 06.1981] RN36 CALIFORNIA SR |
64812-89102 |
— | ||
|
64812A
|
64812A
64812-89103
Weatherstrip, Back Window Glass, No.2
[06.1981 - 06.1981] RN36 CALIFORNIA SR |
64812-89103 |
— | ||
|
64813
|
64813
64811-89110
Glass, Back Window Corner, Rh
[06.1981 - 06.1981] RN36 EVENT,FIXED GLASS,*TT,T=4.0 |
64811-89110 |
— | ||
| replacement | |||||
|
64813
|
64813
64811-89114
Glass, Back Window Corner, Rh
[06.1981 - 06.1981] RN36 EVENT,FIXED GLASS,*TT,T=4.0 |
64811-89114 |
— | ||
|
64814
|
64814
64811-89111
Glass, Back Window Corner, Lh
[06.1981 - 06.1981] RN36 EVENT,FIXED GLASS,*TT,T=4.0 |
64811-89111 |
— | ||
| replacement | |||||
|
64814
|
64814
64811-89115
Glass, Back Window Corner, Lh
[06.1981 - 06.1981] RN36 EVENT,FIXED GLASS,*TT,T=4.0 |
64811-89115 |
— | ||
|
64831
|
64831
64812-89101
Weatherstrip, Back Window Glass
[08.1978 - 09.1988] LN3#,4#,RN3#,4# |
64812-89101 |
— | ||
| replacement | |||||
|
64831
|
64831
64812-89101-83
Weatherstrip, Back Window Glass
[08.1978 - 09.1988] LN3#,4#,RN3#,4# |
64812-89101-83 |
— | ||
|
64833
|
64833
64833-89101
Weatherstrip, Back Window Channel
[06.1981 - 06.1981] RN36 CALIFORNIA SR,LWR |
64833-89101 |
— | ||
|
64833
|
64833
64833-89102
Weatherstrip, Back Window Channel
[06.1981 - 06.1981] RN36 CALIFORNIA SR,UPR |
64833-89102 |
— | ||
|
64833A
|
64833A
64833-89103
Weatherstrip, Back Window Center Channel
[06.1981 - 06.1981] RN36 CALIFORNIA SR |
64833-89103 |
— | ||
|
64839A
|
64839A
64839-89101 Packing, Back Window[06.1981 - 06.1981] RN36 CALIFORNIA SR |
64839-89101 |
US $9.46 |
||
|
64851
|
64851
64851-89101
Stop, Back Window Slide Glass
[06.1981 - 06.1981] RN36 CALIFORNIA SR |
64851-89101 |
— | ||
|
9016440034
|
9016440034
90164-40034 New Genuine Part |
90164-40034 |
US $1.05 |
||
|
9095001353
|
9095001353
90950-01353 Plug, Hole(For Rocker Inner Panel) |
90950-01353 |
US $2.33 |
||
|
9352054010
|
9352054010
93520-54010 Screw |
93520-54010 |
from US $1.44 |
||
|
9354024010
|
9354024010
93540-24010 Screw, Roof Headlining Trim |
93540-24010 |
US $2.87 |
||
