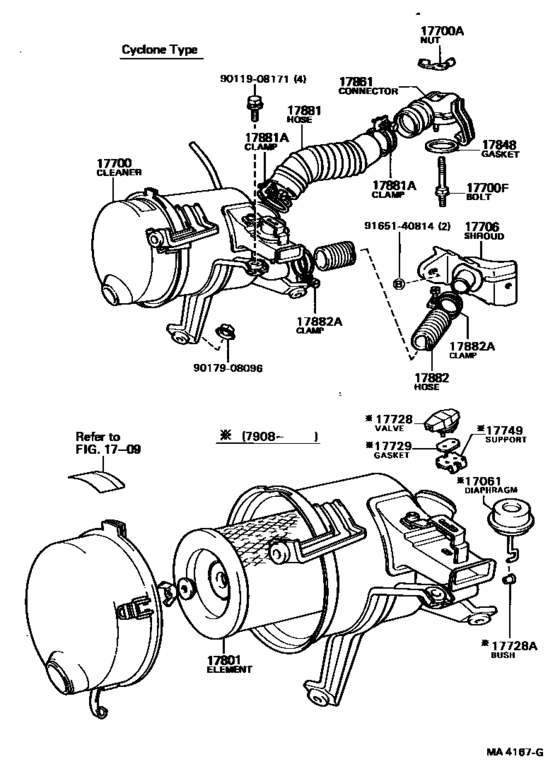

Air Cleaner ([01.1979 - 07.1983] (7901-8307)18R..RN36,46..ARL) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 1979 - 1983
- Sales region
- Europe
- Frame
- RN36
- grade
- STD
- body
- T1
- ENGINE
- 18R
- DESTINATION
- ARL
- CAB
- ECB
- Model
- HILUX
- From
- 01.1979
- Engine
- 18RC
- To
- 07.1983
- Gear Shift Type
- 4F
- Vehicle Model
- Hilux
- Driver's Position
- RHD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17061
|
17061
17061-34010 Diaphragm Sub-Assy[08.1979 - 07.1983] L..LN46..T1..ARL..CBU; 18R..RN36..ARL;18R..RN46..ARL..IV3; 18R..RN36,46..EUR W/HOT AIR INTAKE |
17061-34010 |
US $50.81 |
||
|
17700
|
17700
17700-34441
Cleaner Assy, Air
[01.1979 - 07.1983] L..LN46..T1..ARL..CBU CYCLONE TYPE; 18R..RN46..ARL..IV3;18R..RN46..GEN,ME,SA;18R..RN36..ARL,GEN,ME CYCLONE TYPE |
17700-34441 |
— | ||
|
17700
|
17700
17700-34521
Cleaner Assy, Air
[01.1979 - 08.1979] 18R..RN36,46 CYCLONE,W/HOT AIR INTAKE |
17700-34521 |
— | ||
|
17700
|
17700
17700-34522
Cleaner Assy, Air
[08.1979 - 07.1983] L..LN46..T1..ARL..CBU CYCLONE,W/HOT AIR INTAKE; 18R..RN36..ARL;18R..RN46..ARL..IV3 CYCLONE,W/HOT AIR INTAKE |
17700-34522 |
— | ||
|
17700A
|
17700A
90175-06003 Nut, Wing(For Air Cleaner)[08.1978 - 03.1984] L..LN46..T1..ARL..CBU; 18R..RN46..ARL..IV3;12R#,18R..RN3#,40,41;18R..RN46..EUR,GEN,ME,SA |
90175-06003 |
from US $1.21 |
||
|
17700F
|
17700F
90116-06230
Bolt, Stud(For Air Cleaner Setting)
[01.1979 - 07.1983] L..LN46..T1..ARL..CBU CYCLONE TYPE; 18R..RN46..ARL..IV3;18R..RN46..GEN,ME,SA;18R..RN36..ARL,GEN,ME CYCLONE TYPE |
90116-06230 |
— | ||
|
17706
|
17706
17895-34050 Inlet Sub-Assy, Air Cleaner, No.2[01.1979 - 07.1983] 18R..RN36,46..EUR W/HOT AIR INTAKE; L..LN46..T1..ARL..CBU W/HOT AIR INTAKE; 18R..RN36..ARL;18R..RN46..ARL..IV3 W/HOT AIR INTAKE |
17895-34050 |
US $38 |
||
|
17728
|
17728
17728-34010 Valve, Thermostatic[08.1979 - 07.1983] L..LN46..T1..ARL..CBU; 18R..RN36..ARL;18R..RN46..ARL..IV3; 18R..RN36,46..EUR W/HOT AIR INTAKE |
17728-34010 |
US $99.01 |
||
|
17728A
|
17728A
90386-03001
Bush(For Air Cleaner)
[08.1979 - 07.1983] L..LN46..T1..ARL..CBU; 18R..RN36..ARL;18R..RN46..ARL..IV3; 18R..RN36,46..EUR W/HOT AIR INTAKE |
90386-03001 |
— | ||
|
17729
|
17729
17729-34010
Gasket, Thermostat Valve
[08.1979 - 07.1983] L..LN46..T1..ARL..CBU; 18R..RN36..ARL;18R..RN46..ARL..IV3; 18R..RN36,46..EUR W/HOT AIR INTAKE |
17729-34010 |
— | ||
|
17749
|
17749
17749-34010
Support, Thermostat Valve
[08.1979 - 07.1983] L..LN46..T1..ARL..CBU; 18R..RN36..ARL;18R..RN46..ARL..IV3; 18R..RN36,46..EUR W/HOT AIR INTAKE |
17749-34010 |
— | ||
|
17801
|
17801
17801-31050 Element Sub-Assy, Air Cleaner Filter[01.1979 - 07.1983] L..LN46..T1..ARL..CBU CYCLONE TYPE; 18R..RN46..ARL..IV3;18R..RN46..GEN,ME,SA;18R..RN36..ARL,GEN,ME CYCLONE TYPE |
17801-31050 |
US $65.35 |
||
|
17848
|
17848
90430-72003
Gasket, Air Cleaner To Carburetor
[01.1980 - 12.1983] L..LN46..T1..ARL..CBU; 18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA |
90430-72003 |
— | ||
|
17848
|
17848
90430-72114
Gasket, Air Cleaner To Carburetor
[01.1979 - 01.1980] 18R..RN31,41..ARL; 18R..RN31,41..GEN,SA CYCLONE TYPE; 18R..RN36,46..ARL,GEN CYCLONE TYPE |
90430-72114 |
— | ||
|
17861
|
17861
17861-34070 Connector, Intake AirINTAKE AIR [01.1979 - 01.1980] 18R..RN36,46..ARL,GEN CYCLONE TYPE |
17861-34070 |
US $107.74 |
||
| replacement | |||||
|
17861
|
17861
17861-34071 Connector, Intake AirINTAKE AIR [01.1979 - 01.1980] 18R..RN36,46..ARL,GEN CYCLONE TYPE |
17861-34071 |
US $106.29 |
||
|
17861
|
17861
17861-34071 Connector, Intake AirINTAKE AIR [01.1980 - 07.1983] L..LN46..T1..ARL..CBU CYCLONE TYPE; 18R..RN46..ARL..IV3;18R..RN46..GEN,ME,SA;18R..RN36..ARL,GEN,ME CYCLONE TYPE |
17861-34071 |
US $106.29 |
||
|
17861
|
17861
17861-34080 Connector, Intake AirINTAKE AIR [01.1979 - 01.1980] 18R..RN36,46 CYCLONE TYPE |
17861-34080 |
US $113.57 |
||
| replacement | |||||
|
17861
|
17861
17861-34081
Connector, Intake Air
[01.1979 - 01.1980] 18R..RN36,46 CYCLONE TYPE |
17861-34081 |
— | ||
|
17861
|
17861
17861-34081
Connector, Intake Air
[01.1980 - 07.1983] L..LN46..T1..ARL..CBU CYCLONE TYPE; 18R..RN36..ARL;18R..RN46..ARL..IV3 CYCLONE TYPE |
17861-34081 |
— | ||
|
17881
|
17881
17882-34100
Hose, Air Cleaner, No.1
[01.1979 - 07.1983] L..LN46..T1..ARL..CBU CYCLONE TYPE; 18R..RN46..ARL..IV3;18R..RN46..GEN,ME,SA;18R..RN36..ARL,GEN,ME CYCLONE TYPE |
17882-34100 |
— | ||
|
17881A
|
17881A
96111-10690 Clamp, Hose[01.1979 - 07.1983] L..LN46..T1..ARL..CBU CYCLONE TYPE,ID=69; 18R..RN46..ARL..IV3;18R..RN46..GEN,ME,SA;18R..RN36..ARL,GEN,ME CYCLONE TYPE,ID=69 |
96111-10690 |
from US $2.87 |
||
|
17882
|
17882
17881-34150
Hose, Air Cleaner, No.2
[01.1979 - 07.1983] L..LN46..T1..ARL..CBU W/HOT AIR INTAKE; 18R..RN36..ARL;18R..RN46..ARL..IV3 W/HOT AIR INTAKE |
17881-34150 |
— | ||
| replacement | |||||
|
17882
|
17882
17883-75030 Hose, Air Cleaner, No.3[01.1979 - 07.1983] L..LN46..T1..ARL..CBU W/HOT AIR INTAKE; 18R..RN36..ARL;18R..RN46..ARL..IV3 W/HOT AIR INTAKE |
17883-75030 |
US $34.80 |
||
|
17882A
|
17882A
96111-10460 Clamp Or Clip, Hose(For Radiator Inlet)[01.1979 - 07.1983] L..LN46..T1..ARL..CBU W/HOT AIR INTAKE; 18R..RN36..ARL;18R..RN46..ARL..IV3 W/HOT AIR INTAKE |
96111-10460 |
from US $2.83 |
||
|
9011908171
|
9011908171
90119-08171
New Genuine Part
|
90119-08171 |
— | ||
| replacement | |||||
|
9011908171
|
9011908171
90119-08806 BOLT WWASHER |
90119-08806 |
US $3.58 |
||
|
9017908096
|
9017908096
90179-08096 NUT |
90179-08096 |
from US $1.40 |
||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $1.23 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
