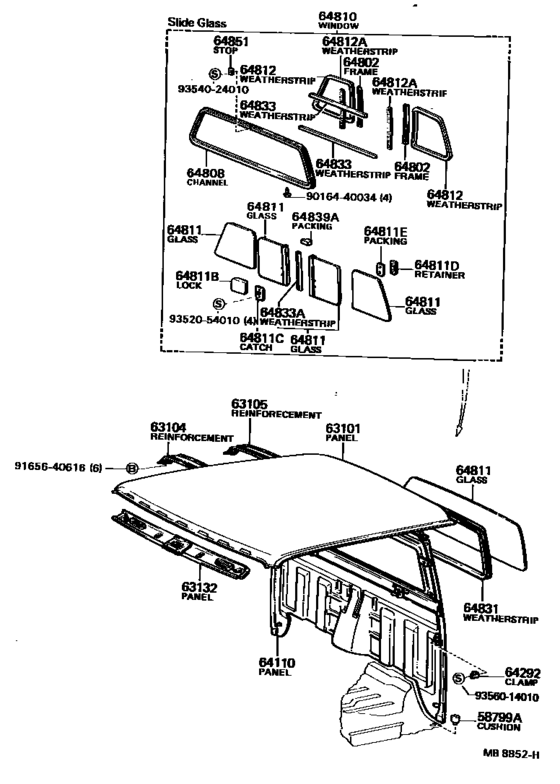

Roof Panel & Back Panel ([01.1979 - 07.1983] (7901-8307)TW) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 1980 - 1983
- Sales region
- General
- Frame
- RN46
- grade
- STD
- body
- TW
- ENGINE
- 18R
- DESTINATION
- GEN
- CAB
- ECB
- Model
- HILUX
- From
- 01.1980
- To
- 07.1983
- Gear Shift Type
- 4F
- Vehicle Model
- Hilux
- Driver's Position
- RHD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
58799A
|
58799A
58799-89101 Cushion, Jack Handle[01.1979 - 07.1983] LN4#,RN4#..TW |
58799-89101 |
US $10.19 |
||
|
63101
|
63101
63111-89107 Panel Sub-Assy, Roof[01.1979 - 07.1983] LN4#,RN4#..TW |
63111-89107 |
US $579.49 |
||
|
63104
|
63104
63103-89103
Reinforcement Sub-Assy, Roof Panel, Center
[01.1979 - 07.1983] LN4#,RN4#..TW |
63103-89103 |
— | ||
|
63105
|
63105
63141-89102 Reinforcement Sub-Assy, Roof Panel, Rear[01.1979 - 07.1983] LN4#,RN4#..TW |
63141-89102 |
US $64.21 |
||
|
63132
|
63132
63102-89101
Panel, Windshield Header, Inner
[08.1978 - 03.1984] LN3#,4#,RN3#,4# |
63102-89101 |
— | ||
|
64110
|
64110
64101-89113 Panel Assy, Front Body Back[01.1979 - 08.1981] LN4#,RN40,46..TW |
64101-89113 |
US $687.23 |
||
| replacement | |||||
|
64110
|
64110
64101-89119
Panel Assy, Front Body Back
[01.1979 - 08.1981] LN4#,RN40,46..TW |
64101-89119 |
— | ||
|
64110
|
64110
64101-95113 Panel Assy, Front Body BackFRONT BODY BACK [08.1981 - 07.1983] LN46,RN46..TW |
64101-95113 |
US $583.86 |
||
|
64292
|
64292
64292-89102 Clamp, Jack Handle[01.1979 - 07.1983] LN4#,RN4#..TW |
64292-89102 |
US $4.95 |
||
|
64802
|
64802
64881-89101
Frame Sub-Assy, Back Window Fix
[01.1979 - 07.1983] LN36,46,RN36,46..GEN,ME,SA RH |
64881-89101 |
— | ||
|
64802
|
64802
64881-89102
Frame Sub-Assy, Back Window Fix
[01.1979 - 07.1983] LN36,46,RN36,46..GEN,ME,SA LH |
64881-89102 |
— | ||
|
64808
|
64808
64808-89101 Channel Sub-Assy, Back Window Slide GlassBACK WINDOW SLIDE GLASS [01.1979 - 07.1983] LN36,46,RN36,46..GEN,SA |
64808-89101 |
US $182 |
||
|
64808
|
64808
64808-89102
Channel Sub-Assy, Back Window Slide Glass
[08.1981 - 07.1983] LN36,46,RN36,46..(GEN,ME)..CBU W/GUARD BAR |
64808-89102 |
— | ||
|
64810
|
64810
64810-89101
Window Assy, Back
[08.1979 - 08.1980] RN36,46..GEN SLIDE CLEAR; RN31,41..LHD..DLX SLIDE CLEAR; RN40..LHD..TW SLIDE CLEAR |
64810-89101 |
— | ||
|
64810
|
64810
64810-89102
Window Assy, Back
[08.1979 - 08.1980] RN36,46..GEN SLIDE TINCT; RN31,41..LHD..DLX SLIDE TINCT; RN40..LHD..TW SLIDE TINCT |
64810-89102 |
— | ||
|
64811
|
64811
64807-89101 Glass Sub-Assy, Back Window Slide[01.1979 - 07.1983] LN36,46,RN36,46..GEN,ME,SA SLIDE GLASS,RH,*TEM,T=4.0 |
64807-89101 |
US $100.46 |
||
| replacement | |||||
|
64811
|
64811
64807-89103
Glass Sub-Assy, Back Window Slide
[01.1979 - 07.1983] LN36,46,RN36,46..GEN,ME,SA SLIDE GLASS,RH,*TEM,T=4.0 |
64807-89103 |
— | ||
|
64811
|
64811
64807-89102 Glass Sub-Assy, Back Window Slide[01.1979 - 07.1983] LN36,46,RN36,46..GEN,ME,SA SLIDE GLASS,LH,*TEM,T=4.0 |
64807-89102 |
US $109.20 |
||
| replacement | |||||
|
64811
|
64811
64807-89104
Glass Sub-Assy, Back Window Slide
[01.1979 - 07.1983] LN36,46,RN36,46..GEN,ME,SA SLIDE GLASS,LH,*TEM,T=4.0 |
64807-89104 |
— | ||
|
64811
|
64811
64807-89103
Glass Sub-Assy, Back Window Slide
[01.1979 - 07.1983] LN36,46,RN36,46..GEN SLIDE GLASS,RH,*TT,T=4.0 |
64807-89103 |
— | ||
|
64811
|
64811
64807-89104
Glass Sub-Assy, Back Window Slide
[01.1979 - 07.1983] LN36,46,RN36,46..GEN SLIDE GLASS,LH,*TT,T=4.0 |
64807-89104 |
— | ||
|
64811
|
64811
64811-89108
Glass, Back Window
[08.1978 - 08.1981] LN3#,4#,RN3#,4#..GEN,PHL,SA *TT,T=3.5,*TT,T=3.5 |
64811-89108 |
— | ||
|
64811
|
64811
64811-89109
Glass, Back Window
[01.1979 - 07.1983] LN36,46,RN36,46..GEN,ME,SA *TEM,T=3.5,*TEM,T=3.5 |
64811-89109 |
— | ||
| replacement | |||||
|
64811
|
64811
64811-89108
Glass, Back Window
[01.1979 - 07.1983] LN36,46,RN36,46..GEN,ME,SA *TEM,T=3.5,*TEM,T=3.5 |
64811-89108 |
— | ||
|
64811
|
64811
64811-89110
Glass, Back Window Corner, Rh
[01.1979 - 07.1983] LN36,46,RN36,46..GEN,ME,SA FIXED GLASS,RH,*TEM,T=4.0 |
64811-89110 |
— | ||
| replacement | |||||
|
64811
|
64811
64811-89114
Glass, Back Window Corner, Rh
[01.1979 - 07.1983] LN36,46,RN36,46..GEN,ME,SA FIXED GLASS,RH,*TEM,T=4.0 |
64811-89114 |
— | ||
|
64811
|
64811
64811-89111
Glass, Back Window Corner, Lh
[01.1979 - 07.1983] LN36,46,RN36,46..GEN,ME,SA FIXED GLASS,LH,*TEM,T=4.0 |
64811-89111 |
— | ||
| replacement | |||||
|
64811
|
64811
64811-89115
Glass, Back Window Corner, Lh
[01.1979 - 07.1983] LN36,46,RN36,46..GEN,ME,SA FIXED GLASS,LH,*TEM,T=4.0 |
64811-89115 |
— | ||
|
64811
|
64811
64811-89114
Glass, Back Window Corner, Rh
[01.1979 - 07.1983] LN36,46,RN36,46..GEN FIXED GLASS,RH,*TT,T=4.0 |
64811-89114 |
— | ||
|
64811
|
64811
64811-89115
Glass, Back Window Corner, Lh
[01.1979 - 07.1983] LN36,46,RN36,46..GEN FIXED GLASS,LH,*TT,T=4.0 |
64811-89115 |
— | ||
|
64811B
|
64811B
69370-89101
Lock Assy, Back Window
[01.1979 - 07.1983] LN36,46,RN36,46..GEN,ME,SA |
69370-89101 |
— | ||
|
64811C
|
64811C
69374-89101
Catch, Back Window Lock
[01.1979 - 07.1983] LN36,46,RN36,46..GEN,ME,SA |
69374-89101 |
— | ||
|
64811D
|
64811D
69375-89102 Retainer, Back Window[01.1979 - 07.1983] LN36,46,RN36,46..GEN,ME,SA |
69375-89102 |
from US $6.29 |
||
|
64811E
|
64811E
69376-89101
Packing, Back Window Lock
[01.1979 - 07.1983] LN36,46,RN36,46..GEN,ME,SA |
69376-89101 |
— | ||
|
64812
|
64812
64812-89102
Weatherstrip, Back Window Glass, No.1
[01.1979 - 07.1983] LN36,46,RN36,46..GEN,ME,SA |
64812-89102 |
— | ||
|
64812A
|
64812A
64812-89103
Weatherstrip, Back Window Glass, No.2
[01.1979 - 07.1983] LN36,46,RN36,46..GEN,ME,SA |
64812-89103 |
— | ||
|
64831
|
64831
64812-89101
Weatherstrip, Back Window Glass
[08.1978 - 03.1984] LN3#,4#,RN3#,4# |
64812-89101 |
— | ||
| replacement | |||||
|
64831
|
64831
64812-89101-83
Weatherstrip, Back Window Glass
[08.1978 - 03.1984] LN3#,4#,RN3#,4# |
64812-89101-83 |
— | ||
|
64833
|
64833
64833-89101
Weatherstrip, Back Window Channel
[01.1979 - 07.1983] LN36,46,RN36,46..GEN,ME,SA LWR |
64833-89101 |
— | ||
|
64833
|
64833
64833-89102
Weatherstrip, Back Window Channel
[01.1979 - 07.1983] LN36,46,RN36,46..GEN,ME,SA UPR |
64833-89102 |
— | ||
|
64833A
|
64833A
64833-89103
Weatherstrip, Back Window Center Channel
[01.1979 - 07.1983] LN36,46,RN36,46..GEN,ME,SA |
64833-89103 |
— | ||
|
64839A
|
64839A
64839-89101 Packing, Back Window[09.1980 - 07.1983] LN36,46,RN36,46..GEN,ME,SA; RN31,41..LHD..DLX..CBU; RN30,40..LHD..(GEN,ME)..ECB |
64839-89101 |
US $9.46 |
||
|
64851
|
64851
64851-89101
Stop, Back Window Slide Glass
[01.1979 - 07.1983] LN36,46,RN36,46..GEN,ME,SA |
64851-89101 |
— | ||
|
9016440034
|
9016440034
90164-40034 New Genuine Part |
90164-40034 |
US $1.05 |
||
|
9165640616
|
9165640616
91656-40616
Bolt
|
91656-40616 |
— | ||
| replacement | |||||
|
9165640616
|
9165640616
91651-60614 Bolt |
91651-60614 |
from US $1.19 |
||
|
9352054010
|
9352054010
93520-54010 Screw |
93520-54010 |
from US $1.44 |
||
|
9354024010
|
9354024010
93540-24010 Screw, Roof Headlining Trim |
93540-24010 |
US $2.87 |
||
|
9356014010
|
9356014010
93560-14010 SCREW |
93560-14010 |
US $1.08 |
||
