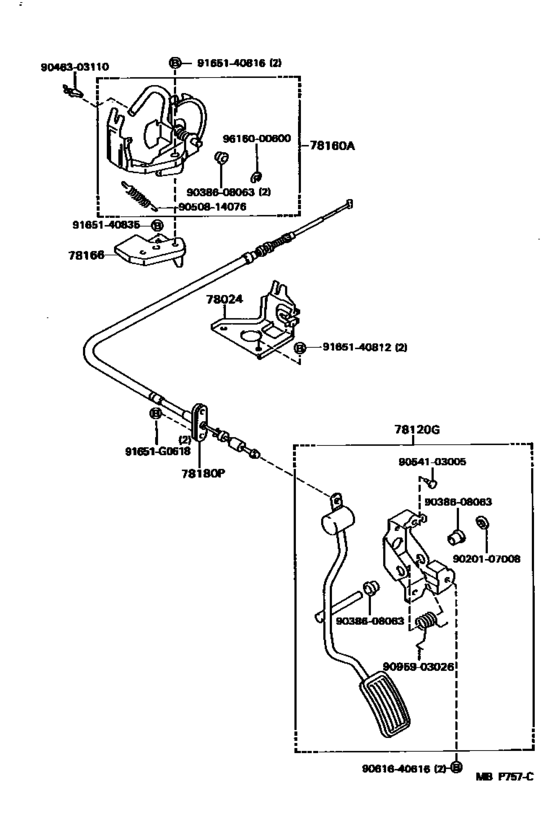

Accelerator Link ([08.1988 - ] (8808- )JPP..STD..CBR..USA) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 1988 - 1989
- Sales region
- Europe
- Frame
- RN80
- grade
- STD
- ENGINE
- 22R
- TRANSMISSION
- MTM
- PRODUCT
- JPP
- DESTINATION
- USA
- CAB
- RCB
- Model
- 4RUNNER TRUCK
- From
- 08.1988
- To
- 08.1989
- Gear Shift Type
- 4F
- No.of Doors
- T1
- Vehicle Model
- 4RUNNER
- Loading Capacity
- HLF
- Fuel Induction
- CBR
- Building Condition
- IV3
- Transmission Model
- W
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78024
|
78024
78024-22060
Bracket Sub-Assy, Accelerator Control Cable
[08.1988 - 08.1990] RN8#,90..CBR |
78024-22060 |
— | ||
|
78120G
|
78120G
78120-89138 Rod Assy, Accelerator PedalACCELERATOR PEDAL [08.1988 - 08.1990] RN8#,90..CBR |
78120-89138 |
US $74.26 |
||
|
78160A
|
78160A
78160-89101
Bellcrank Assy, Accelerator
[08.1988 - 08.1990] RN8#,90..CBR |
78160-89101 |
— | ||
|
78166
|
78166
78166-35010 Bracket, Accel Control No.2 BellcrankACCEL CONTROL NO.2 BELLCRANK [08.1988 - 08.1990] RN8#,90..CBR |
78166-35010 |
US $26.64 |
||
|
78180P
|
78180P
78180-89158 Cable Assy, Accelerator ControlACCELERATOR CONTROL [08.1988 - 08.1990] RN80..STD..CBR..USA |
78180-89158 |
US $47.32 |
||
|
91651G0618
|
91651G0618
91651-G0618 New Genuine Part |
91651-G0618 |
US $0.92 |
||
|
9020107008
|
9020107008
90201-07008 New Genuine Part |
90201-07008 |
US $0.70 |
||
|
9038608063
|
9038608063
90386-08063
Bush (For Accelerator Pedal Rod)
|
90386-08063 |
— | ||
|
9046303110
|
9046303110
90463-03110
Clamp (For Accelerator Torque Rod)
|
90463-03110 |
— | ||
|
9050814076
|
9050814076
90508-14076
Spring (For Accelerator Rod Return)
|
90508-14076 |
— | ||
|
9054103005
|
9054103005
90541-03005 Cushion, Glove Compartment Door Check |
90541-03005 |
from US $3.58 |
||
|
9061640616
|
9061640616
90616-40616
New Genuine Part
|
90616-40616 |
— | ||
|
9095903026
|
9095903026
90959-03026
Spring (For Accelerator Pedal Rod)
|
90959-03026 |
— | ||
|
9165140812
|
9165140812
91651-40812 New Genuine Part |
91651-40812 |
US $1.24 |
||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
from US $0.98 |
||
|
9165140835
|
9165140835
91651-40835 New Genuine Part |
91651-40835 |
US $3.44 |
||
|
9616000600
|
9616000600
96160-00600 Ring, E(For Clutch Pedal Pawl) |
96160-00600 |
from US $0.84 |
