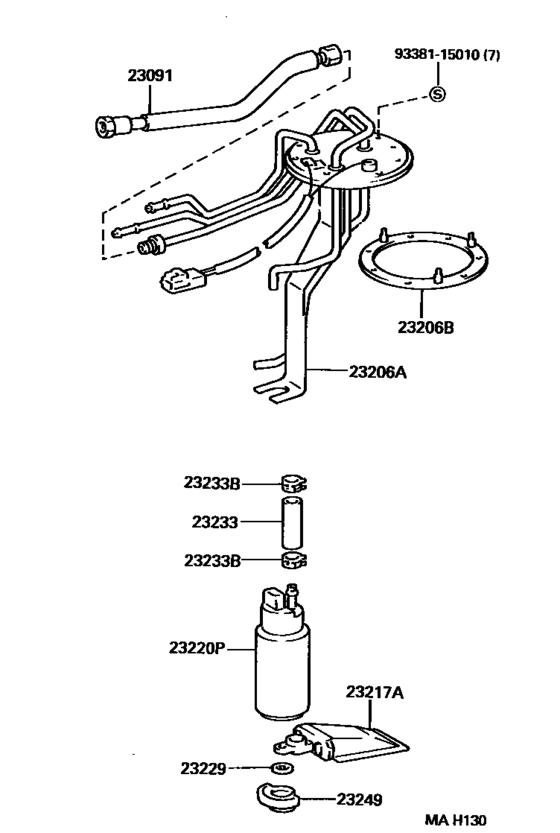

Fuel Injection System ([01.1994 - ] (9401- )22RE) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 1997 - 1999
- Sales region
- General
- Frame
- RN85
- grade
- STD
- ENGINE
- 22RE
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- HILUX 2WD
- From
- 09.1997
- To
- 09.1999
- Body
- RCB
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux (2WD)
- Driver's Position
- LHD
- Fuel Induction
- EFI
- Body
- T1
- Building Condition
- IV3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23091
|
23091
23091-35060
Tube Sub-Assy, Fuel Pump
[01.1994 - 09.1999] 22RE..RN85 |
23091-35060 |
— | ||
|
23206A
|
23206A
23206-35300
Bracket, Fuel Pump
[01.1994 - 09.1999] 22RE..RN85 |
23206-35300 |
— | ||
|
23206B
|
23206B
77169-14010 Gasket, Fuel Pump Bracket[01.1994 - 09.1999] 22RE..RN85 |
77169-14010 |
from US $3.86 |
||
| replacement | |||||
|
23206B
|
23206B
77169140101
Gasket, Fuel Pump Bracket
[01.1994 - 09.1999] 22RE..RN85 |
77169140101 |
— | ||
|
23217A
|
23217A
23217-74021 Filter, Fuel Pump[01.1994 - 09.1999] 22RE..RN85 |
23217-74021 |
from US $9.61 |
||
|
23220P
|
23220P
23221-16490
Pump Assy, Fuel
[01.1994 - 09.1999] 22RE..RN85 |
23221-16490 |
— | ||
| replacement | |||||
|
23220P
|
23220P
23221-28280 Pump Assy, Fuel (without filter)[01.1994 - 09.1999] 22RE..RN85 |
23221-28280 |
from US $370.52 |
||
|
23229
|
23229
23229-16010 Clip(For Fuel Pump Filter)[01.1994 - 09.1999] 22RE..RN85 |
23229-16010 |
from US $0.82 |
||
| replacement | |||||
|
23229
|
23229
23219-03010 Clip(For Fuel Pump Filter)[01.1994 - 09.1999] 22RE..RN85 |
23219-03010 |
US $2.55 |
||
|
23233
|
23233
23239-11010 Hose, Fuel Pump[02.1994 - 09.1999] 22RE..RN85 |
23239-11010 |
from US $7.62 |
||
|
23233B
|
23233B
90467-12067 Clip(For Fuel Pump Hose)[02.1994 - 09.1999] 22RE..RN85 |
90467-12067 |
from US $1.27 |
||
|
23249
|
23249
23249-74610 Rubber, Cushion(For Fuel Pump)[01.1994 - 09.1999] 22RE..RN85 |
23249-74610 |
from US $8.15 |
||
|
9338115010
|
9338115010
93381-15010 SCREW |
93381-15010 |
US $1.08 |
||
