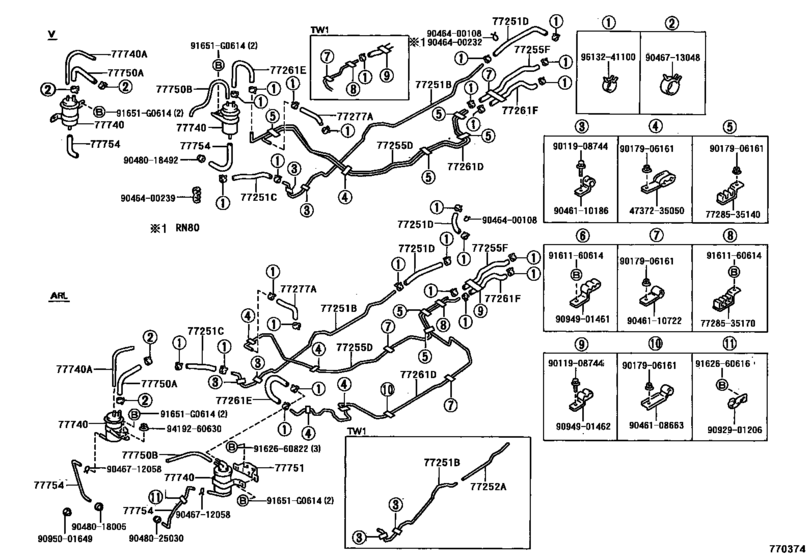

Fuel Tank & Tube ([08.1988 - ] (8808- )RN8#,90..CBR) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 1988 - 1997
- Sales region
- General
- Frame
- RN85
- grade
- STD
- ENGINE
- 22R
- TRANSMISSION
- MTM
- DESTINATION
- ARL
- Model
- HILUX 2WD
- From
- 08.1988
- To
- 08.1997
- Body
- RCB
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux (2WD)
- Driver's Position
- RHD
- Fuel Induction
- CBR
- Body
- T1
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
77251B
|
77251B
77251-35770 Tube, Fuel Main[08.1988 - 05.1997] RN85,YN85,86,87..T1..CBR..(ARL,GEN,V) |
77251-35770 |
US $38.44 |
||
|
77251D
|
77251D
95333-06030
Hose, Fuel
[08.1989 - 08.1990] RN80,90;RN85..ARL *H,L=260 |
95333-06030 |
— | ||
| replacement | |||||
|
77251D
|
77251D
95338-06030 HOSE, FUEL[08.1989 - 08.1990] RN80,90;RN85..ARL *H,L=260 |
95338-06030 |
from US $10.39 |
||
|
77255D
|
77255D
77255-35530 Tube, Fuel Return[08.1988 - 05.1997] RN85,YN85,86,87..T1..CBR |
77255-35530 |
US $41.35 |
||
|
77255F
|
77255F
90445-12223 Hose, Fuel, No.2 (For Fuel Return Tube)[05.1997 - 06.2001] YN85,86;RN85..CBU;LN85,86..TW1;RN85..RHD..IV3;RN85..EFI..IV3 L=570 |
90445-12223 |
US $13.10 |
||
| replacement | |||||
|
77255F
|
77255F
95333-06060 Hose, Fuel[05.1997 - 06.2001] YN85,86;RN85..CBU;LN85,86..TW1;RN85..RHD..IV3;RN85..EFI..IV3 L=570 |
95333-06060 |
from US $17.14 |
||
|
77261D
|
77261D
77261-35420 Tube, Fuel Tank To Canister[08.1988 - 12.1994] YN85..ARL;RN85..RHD..T1 |
77261-35420 |
US $39.60 |
||
|
77261D
|
77261D
77261-35490 Tube, Fuel Tank To Canister[12.1994 - 12.1998] RN85,90,YN85..RHD..(4FC,5F)..(ARL,GEN) |
77261-35490 |
US $38.15 |
||
|
77261E
|
77261E
95333-06030
Hose, Fuel
[08.1988 - 12.1988] YN81,86 *H,L=240; RN85,90,YN85..ARL *H,L=300 |
95333-06030 |
— | ||
| replacement | |||||
|
77261E
|
77261E
95338-06030 HOSE, FUEL[08.1988 - 12.1988] YN81,86 *H,L=240; RN85,90,YN85..ARL *H,L=300 |
95338-06030 |
from US $10.39 |
||
|
77261F
|
77261F
77209-35290 Hose, Fuel, No.2 (For Fuel Tank To Canister Tube)[08.1988 - 12.1994] RN90;RN85..RHD..T1;RN85..T1..EFI L=460 |
77209-35290 |
US $25.63 |
||
|
77277A
|
77277A
23271-35080 Hose, Fuel, No.1(For Return Tube, No.1)FUEL, NO.1(FOR RETURN TUBE, NO.1) [08.1988 - 12.1998] RN85,90..RHD |
23271-35080 |
US $12.23 |
||
|
77740
|
77740
77740-35230 Canister Assy, CharcoalCHARCOAL [08.1988 - 08.1991] RN85,90,YN85..ARL RR |
77740-35230 |
US $171.81 |
||
|
77740
|
77740
77740-35320
Canister Assy, Charcoal
[08.1988 - 12.1998] RN85,90..RHD FR |
77740-35320 |
— | ||
|
77740A
|
77740A
90445-08275 Hose, Vacuum, No.1 (For Front Drive Shift)[08.1989 - 12.1998] RN85,90..RHD L=1150 |
90445-08275 |
US $24.17 |
||
| replacement | |||||
|
77740A
|
77740A
90999-92006 Hose, Vacuum, No.1 (For Front Drive Shift)[08.1989 - 12.1998] RN85,90..RHD L=1150 |
90999-92006 |
from US $20.12 |
||
|
77740A
|
77740A
90999-92006 Hose, Vacuum, No.1 (For Front Drive Shift)[08.1988 - 08.1989] RN85,90..ARL L=1150 |
90999-92006 |
from US $20.12 |
||
|
77750A
|
77750A
23829-35030 Hose, Fuel, No.1 (For Charcoal Canister)[08.1988 - 08.1989] RN85,90..ARL |
23829-35030 |
US $14.56 |
||
| replacement | |||||
|
77750A
|
77750A
23829-35040 Hose, Fuel, No.1 (For Charcoal Canister)[08.1988 - 08.1989] RN85,90..ARL |
23829-35040 |
US $14.41 |
||
|
77750A
|
77750A
23829-35040 Hose, Fuel, No.1 (For Charcoal Canister)[08.1989 - 12.1998] RN85,90..RHD |
23829-35040 |
US $14.41 |
||
|
77750B
|
77750B
90999-92002
Air Hose (300 mm)
[08.1988 - 12.1998] RN85,90..RHD *H,L=180,MARK=#* |
90999-92002 |
— | ||
|
77751
|
77751
77751-35070 Bracket, Charcoal Canister Base[08.1988 - 07.1989] RN85,90..ARL |
77751-35070 |
US $19.36 |
||
| replacement | |||||
|
77751
|
77751
77751-35071 Bracket, Charcoal Canister Base[08.1988 - 07.1989] RN85,90..ARL |
77751-35071 |
US $19.07 |
||
|
77751
|
77751
77751-35071 Bracket, Charcoal Canister Base[07.1989 - 12.1998] RN85,90..RHD |
77751-35071 |
US $19.07 |
||
|
77754
|
77754
77754-35230 Hose, Charcoal Canister Outlet, No.1CHARCOAL CANISTER OUTLET, NO.1 [08.1988 - 12.1998] RN85,90..RHD FR |
77754-35230 |
US $3.64 |
||
|
77754
|
77754
77754-35250 Hose, Charcoal Canister Outlet, No.1[08.1988 - 12.1998] RN85,90..RHD RR |
77754-35250 |
US $3.64 |
||
|
91651G0614
|
91651G0614
91651-G0614
BOLT,W/WASHER
|
91651-G0614 |
— | ||
| replacement | |||||
|
91651G0614
|
91651G0614
90119-06482 New Genuine Part |
90119-06482 |
US $1.38 |
||
|
4737235050
|
4737235050
47372-35050 Clamp, Brake Tube, No.2 |
47372-35050 |
US $7.13 |
||
|
7728535140
|
7728535140
77285-35140 Bracket, Fuel Tube |
77285-35140 |
US $6.84 |
||
|
7728535170
|
7728535170
77285-35170 Bracket, Fuel Tube |
77285-35170 |
US $7.43 |
||
|
9011908744
|
9011908744
90119-08744 New Genuine Part |
90119-08744 |
US $2.33 |
||
|
9017906161
|
9017906161
90179-06161 Bolt, Union(For Clutch Accumulator) |
90179-06161 |
from US $0.80 |
||
|
9046108663
|
9046108663
90461-08663 New Genuine Part |
90461-08663 |
US $5.24 |
||
|
9046110186
|
9046110186
90461-10186 New Genuine Part |
90461-10186 |
US $5.68 |
||
|
9046110722
|
9046110722
90461-10722 Clamp, Fuel Tube, No.1 |
90461-10722 |
US $4.12 |
||
|
9046400108
|
9046400108
90464-00108 New Genuine Part |
90464-00108 |
from US $2.43 |
||
|
9046400232
|
9046400232
90464-00232 New Genuine Part |
90464-00232 |
US $0.52 |
||
|
9046400239
|
9046400239
90464-00239 New Genuine Part |
90464-00239 |
from US $3.49 |
||
|
9046712058
|
9046712058
90467-12058 Clamp Or Clip(For Radiator Reserve Tank Hose) |
90467-12058 |
from US $0.72 |
||
|
9046713048
|
9046713048
90467-13048
Clip, No.2(For Idle-Up Hose)
|
90467-13048 |
— | ||
| replacement | |||||
|
9046713048
|
9046713048
96132-51300 Clip(For Ventilation Hose No.2) |
96132-51300 |
from US $1.48 |
||
|
9048018005
|
9048018005
90480-18005 New Genuine Part |
90480-18005 |
US $6.40 |
||
|
9048018492
|
9048018492
90480-18492 New Genuine Part |
90480-18492 |
US $4.02 |
||
|
9048025030
|
9048025030
90480-25030 New Genuine Part |
90480-25030 |
US $2.62 |
||
|
9092901206
|
9092901206
90929-01206 New Genuine Part |
90929-01206 |
US $3.64 |
||
|
9094901461
|
9094901461
90949-01461 New Genuine Part |
90949-01461 |
US $6.12 |
||
|
9094901462
|
9094901462
90949-01462 New Genuine Part |
90949-01462 |
US $3.64 |
||
|
9095001649
|
9095001649
90950-01649
Plug, Hole(For Frame)
|
90950-01649 |
— | ||
|
9161160614
|
9161160614
91611-60614
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60614 |
— | ||
| replacement | |||||
|
9161160614
|
9161160614
91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector) |
91611-B0614 |
from US $0.80 |
||
|
9162660616
|
9162660616
91626-60616
New Genuine Part
|
91626-60616 |
— | ||
| replacement | |||||
|
9162660616
|
9162660616
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.66 |
||
|
9162660822
|
9162660822
91626-60822
Bolt, Radiator Side Support Plate
|
91626-60822 |
— | ||
| replacement | |||||
|
9162660822
|
9162660822
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $0.99 |
||
|
9419260630
|
9419260630
94192-60630 New Genuine Part |
94192-60630 |
US $2.48 |
||
|
9613241100
|
9613241100
96132-41100
Clamp Or Clip(For Radiator Reserve Tank Hose)
|
96132-41100 |
— | ||
| replacement | |||||
|
9613241100
|
9613241100
96132-51100 Clip (For Hose) |
96132-51100 |
from US $1.42 |
||
