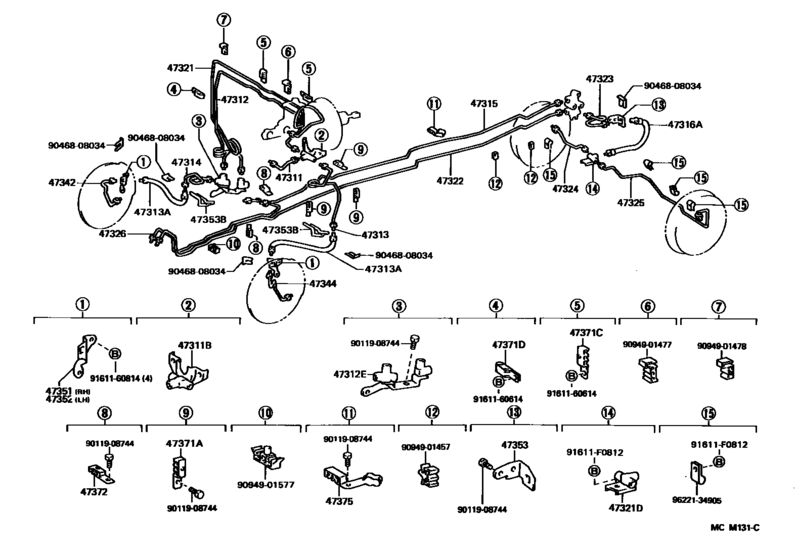

Brake Tube & Clamp ([09.1991 - 01.1995] W(ABS) (9109-9501)) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 1993 - 1995
- Sales region
- U.S.A.
- Frame
- RN90
- grade
- DLX
- ENGINE
- 22RE
- TRANSMISSION
- MTM
- PRODUCT
- NAP
- DESTINATION
- USA
- DECK
- T1
- CAB
- XTR
- Model
- 4RUNNER TRUCK
- From
- 03.1993
- To
- 01.1995
- Gear Shift Type
- 5F
- Vehicle Model
- 4RUNNER
- Fuel Induction
- EFI
- Building Condition
- CBU
- Transmission Model
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
47311
|
47311
47311-35440
Tube, Front Brake, No.1
[09.1991 - 04.1993] RN80,90 |
47311-35440 |
— | ||
|
47311B
|
47311B
90413-10111
Way(For Front Brake Tube)
[09.1991 - 04.1993] RN80,90 |
90413-10111 |
— | ||
|
47312
|
47312
47312-04020
Tube, Front Brake, No.2
[09.1991 - 01.1995] RN80,90 |
47312-04020 |
— | ||
|
47312E
|
47312E
90415-10006
Way, No.2(For Front Brake Tube)
[09.1991 - 01.1995] RN80,90 |
90415-10006 |
— | ||
|
47313
|
47313
47313-04020
Tube, Front Brake, No.3
[09.1991 - 01.1995] RN80,90 |
47313-04020 |
— | ||
|
47313A
|
47313A
90947-02581 Hose, Flexible, No.1(For Front)[09.1991 - 01.1995] RN80,90 |
90947-02581 |
US $27.08 |
||
| replacement | |||||
|
47313A
|
47313A
90947-02447 Hose, Flexible, No.1(For Front)[09.1991 - 01.1995] RN80,90 |
90947-02447 |
US $26.88 |
||
|
47314
|
47314
47314-04010
Tube, Front Brake, No.4
[09.1991 - 01.1995] RN80,90 |
47314-04010 |
— | ||
|
47315
|
47315
47315-04030
Tube, Front Brake, No.5
[03.1993 - 01.1995] RN90 |
47315-04030 |
— | ||
|
47316A
|
47316A
96940-34206 Hose, Flexible(For Rear Brake Tube)[09.1991 - 01.1995] RN80,90 |
96940-34206 |
US $23.44 |
||
| replacement | |||||
|
47316A
|
47316A
96940-34205 Hose, Flexible(For Rear Brake Tube)[09.1991 - 01.1995] RN80,90 |
96940-34205 |
US $12.58 |
||
|
47321
|
47321
47321-04020
Tube, Rear Brake, No.1
[09.1991 - 01.1995] RN80,90 |
47321-04020 |
— | ||
|
47321D
|
47321D
90413-10198 Way(For Rear Brake Tube)[09.1991 - 01.1995] RN80,90 |
90413-10198 |
US $12.66 |
||
|
47322
|
47322
47322-04050
Tube, Rear Brake, No.2
[03.1993 - 01.1995] RN90 |
47322-04050 |
— | ||
|
47322
|
47322
47322-04060
Tube, Rear Brake, No.2
[03.1993 - 01.1995] RN90 W(*66) |
47322-04060 |
— | ||
|
47323
|
47323
47323-04010
Tube, Rear Brake, No.3
[09.1991 - 01.1995] RN80,90 |
47323-04010 |
— | ||
|
47324
|
47324
47324-04010
Tube, Rear Brake, No.4
[09.1991 - 01.1995] RN80,90 |
47324-04010 |
— | ||
|
47325
|
47325
47325-04010
Tube, Rear Brake, No.5
[09.1991 - 01.1995] RN80,90 |
47325-04010 |
— | ||
|
47326
|
47326
47326-04010
Tube, Rear Brake, No.6
[09.1991 - 01.1995] RN80,90 |
47326-04010 |
— | ||
|
47342
|
47342
47341-04010
Tube, Wheel Cylinder, Front Rh No.2
[09.1991 - 01.1995] RN80,90 |
47341-04010 |
— | ||
|
47344
|
47344
47343-04010
Tube, Wheel Cylinder, Front Lh No.2
[09.1991 - 01.1995] RN80,90 |
47343-04010 |
— | ||
|
47351
|
47351
47351-35160 Bracket, Flexible Hose(For Front Rh)FLEXIBLE HOSE(FOR FRONT RH) [09.1991 - 01.1995] RN80,90..DLX |
47351-35160 |
US $13.54 |
||
|
47352
|
47352
47352-35180 Bracket, Flexible Hose(For Front Lh)FLEXIBLE HOSE(FOR FRONT LH) [09.1991 - 01.1995] RN80,90..DLX |
47352-35180 |
US $13.54 |
||
|
47353
|
47353
47352-35200 Bracket, Flexible Hose(For Rear)[09.1991 - 01.1995] RN80,90 |
47352-35200 |
US $11.36 |
||
|
47353B
|
47353B
47353-35060 Bracket, Flexible Hose, No.3[09.1991 - 01.1995] RN80,90 RH |
47353-35060 |
US $5.39 |
||
|
47353B
|
47353B
47353-35070 Bracket, Flexible Hose, No.3[09.1991 - 01.1995] RN80,90 LH |
47353-35070 |
US $5.39 |
||
|
47371A
|
47371A
47371-35080 Clamp, Brake Tube, No.1[09.1991 - 01.1995] RN80,90 |
47371-35080 |
US $7.72 |
||
|
47371C
|
47371C
47371-35130 Clamp, Brake Tube, No.4[09.1991 - 01.1995] RN80,90 |
47371-35130 |
US $8.21 |
||
|
47371D
|
47371D
47372-35080 Clamp, Brake Tube, No.8[09.1991 - 01.1995] RN80,90 |
47372-35080 |
US $7.72 |
||
|
47372
|
47372
47372-35030 Clamp, Brake Tube, No.2[09.1991 - 01.1995] RN80,90 |
47372-35030 |
US $7.16 |
||
|
47375
|
47375
47375-35090 Clamp, Brake Tube, No.5[09.1991 - 01.1995] RN80,90 |
47375-35090 |
US $11.79 |
||
|
91611F0812
|
91611F0812
91611-F0812
New Genuine Part
|
91611-F0812 |
— | ||
| replacement | |||||
|
91611F0812
|
91611F0812
90119-08846 BOLT WWASHER |
90119-08846 |
US $1.25 |
||
|
9011908744
|
9011908744
90119-08744 New Genuine Part |
90119-08744 |
US $2.33 |
||
|
9046808034
|
9046808034
90468-08034 CLIP |
90468-08034 |
from US $0.96 |
||
|
9094901457
|
9094901457
90949-01457 Clamp, Brake Tube, No.5 |
90949-01457 |
US $4.12 |
||
|
9094901477
|
9094901477
90949-01477
New Genuine Part
|
90949-01477 |
— | ||
|
9094901478
|
9094901478
90949-01478 New Genuine Part |
90949-01478 |
US $3.64 |
||
|
9094901577
|
9094901577
90949-01577 New Genuine Part |
90949-01577 |
US $3.64 |
||
|
9161160614
|
9161160614
91611-60614
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60614 |
— | ||
| replacement | |||||
|
9161160614
|
9161160614
91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector) |
91611-B0614 |
from US $0.80 |
||
|
9161160814
|
9161160814
91611-60814 Bolt |
91611-60814 |
from US $0.76 |
||
|
9622134905
|
9622134905
96221-34905 Clamp |
96221-34905 |
US $4.30 |
||
